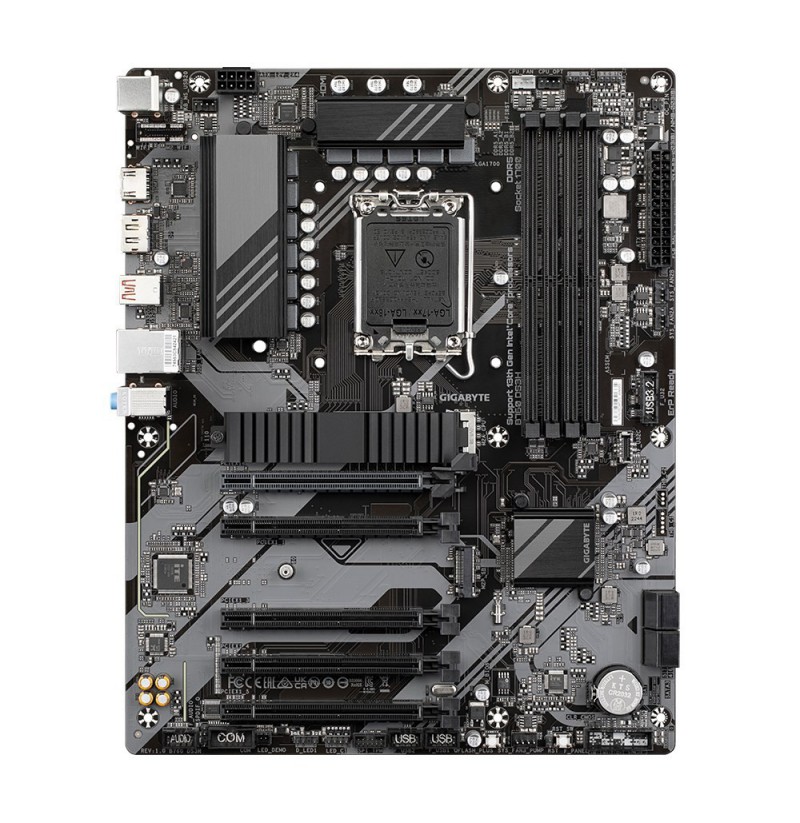

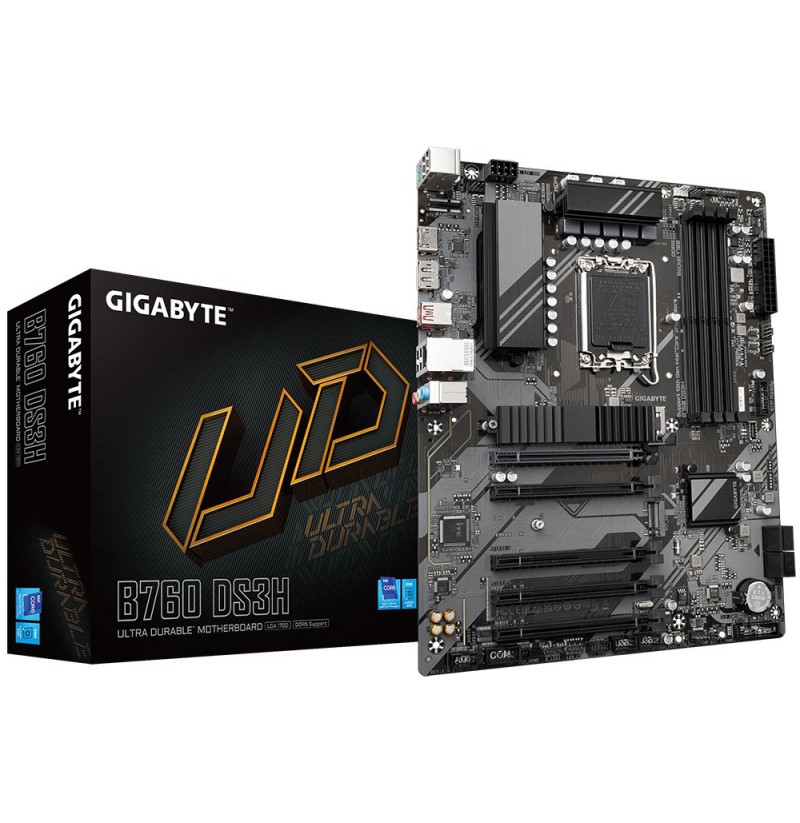

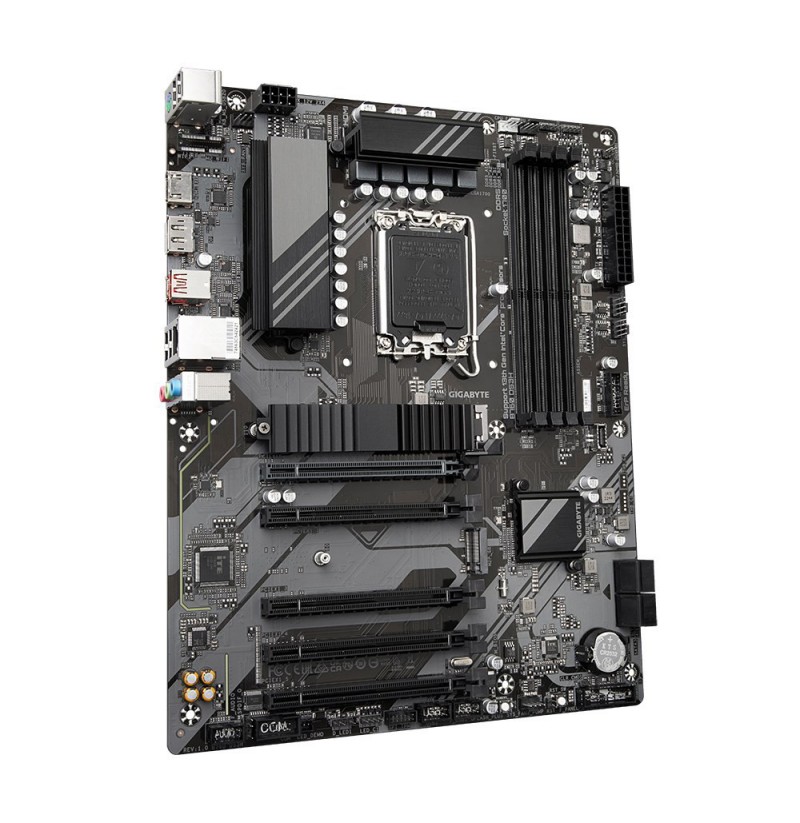

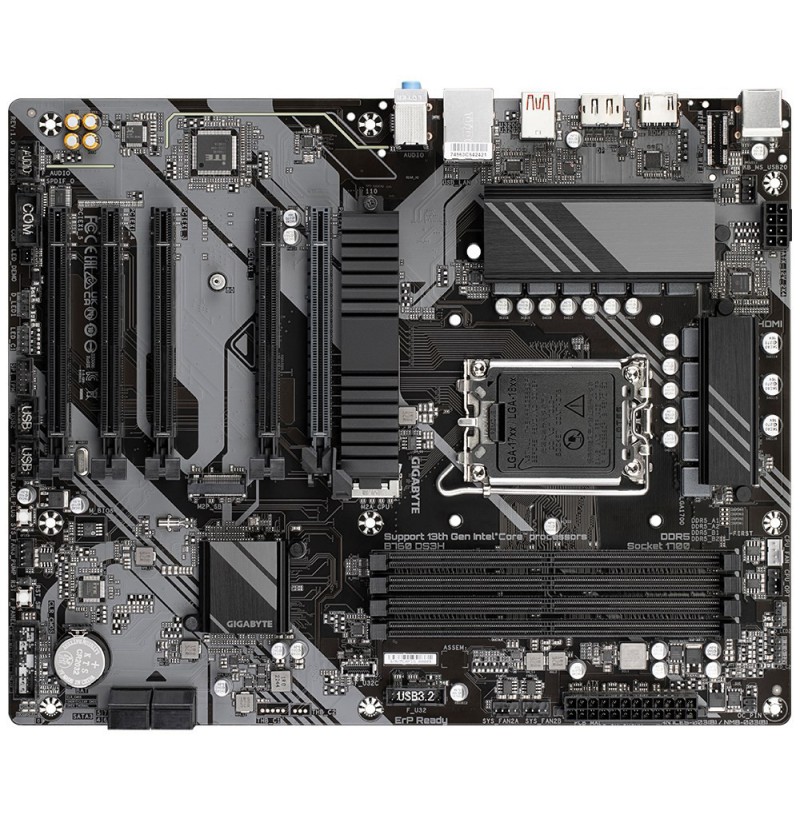

Mainboard Gigabyte B760 DS3H

Warranty period: 3 year(s)
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor socket: LGA 1700
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Motherboard chipset: Intel B760 Express
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset family: Intel
Product colour: Bronze
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speed (max): 7600 MHz
Supported memory clock speeds: 6600, 5200, 6200, 7400, 6400, 6000, 5600, 7200, 4000 MHz, 4800, 7000, 6800, 5800, 5400, 7600
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
CPU fan connector: Yes
EPS power connector (8-pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
TPM connector: Yes
Total number of SATA connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
USB 2.0 connectors: 2
S/PDIF out connector: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Package weight: 1.51 kg
Bundled software: Norton Internet Security
Cables included: SATA
Batteries included: Yes
RAID levels: 1, 0, 5, 10
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

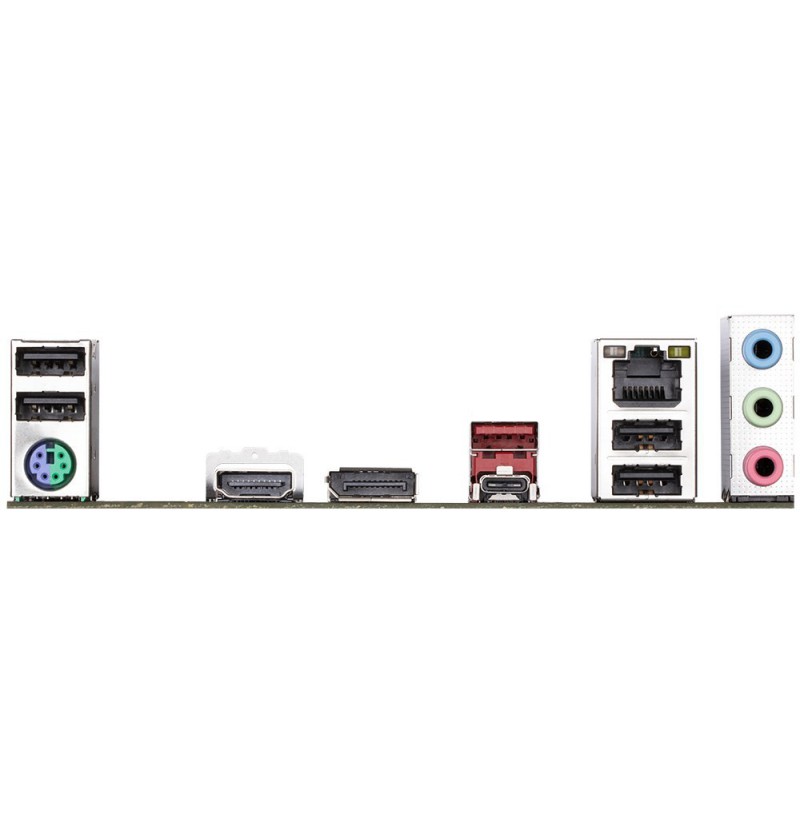

PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
Headphone outputs: 3
HDMI version: 2.0
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB connector type: USB Type-A, USB Type-C
DisplayPort version: 1.2
DisplayPorts quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 slots: 5
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
