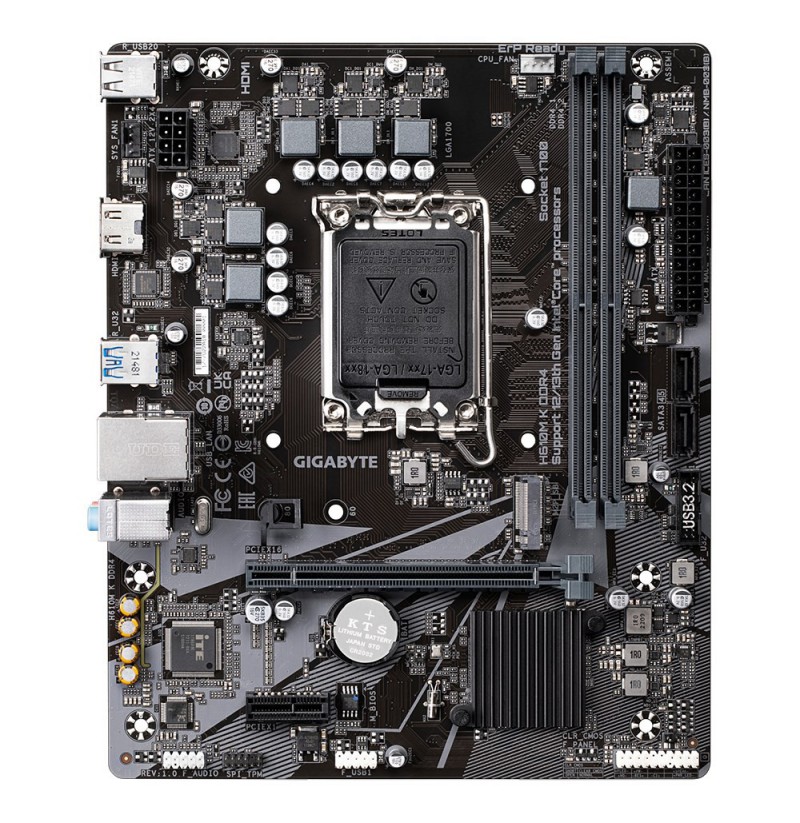

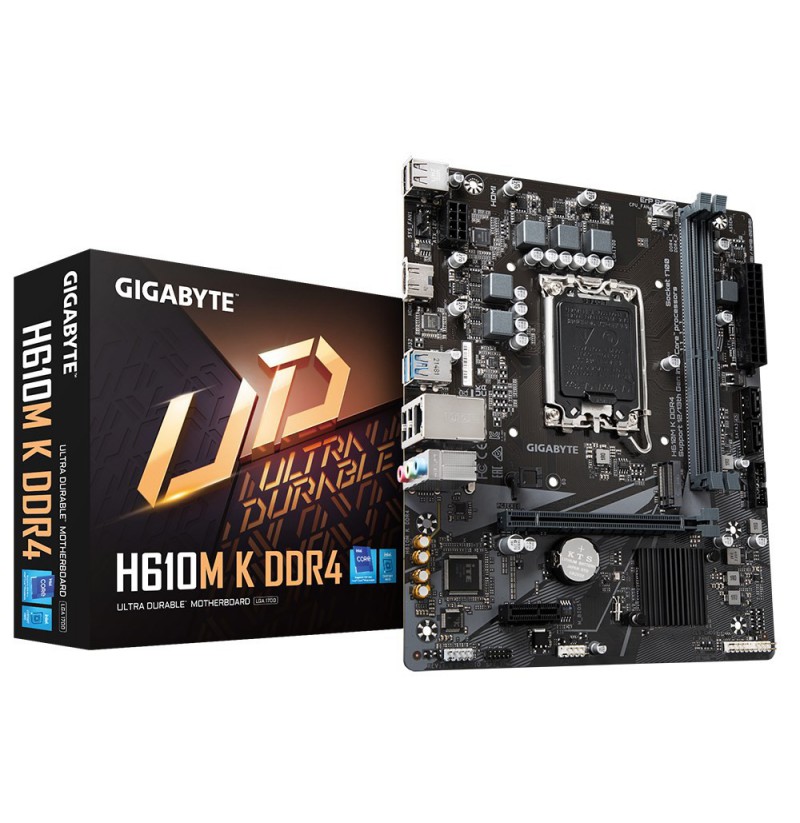

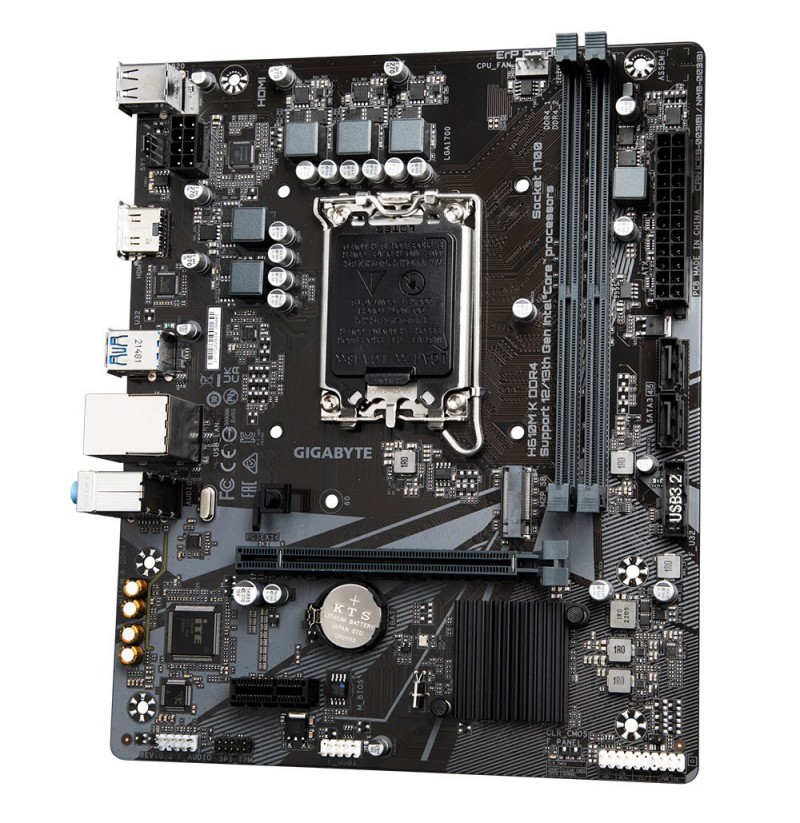

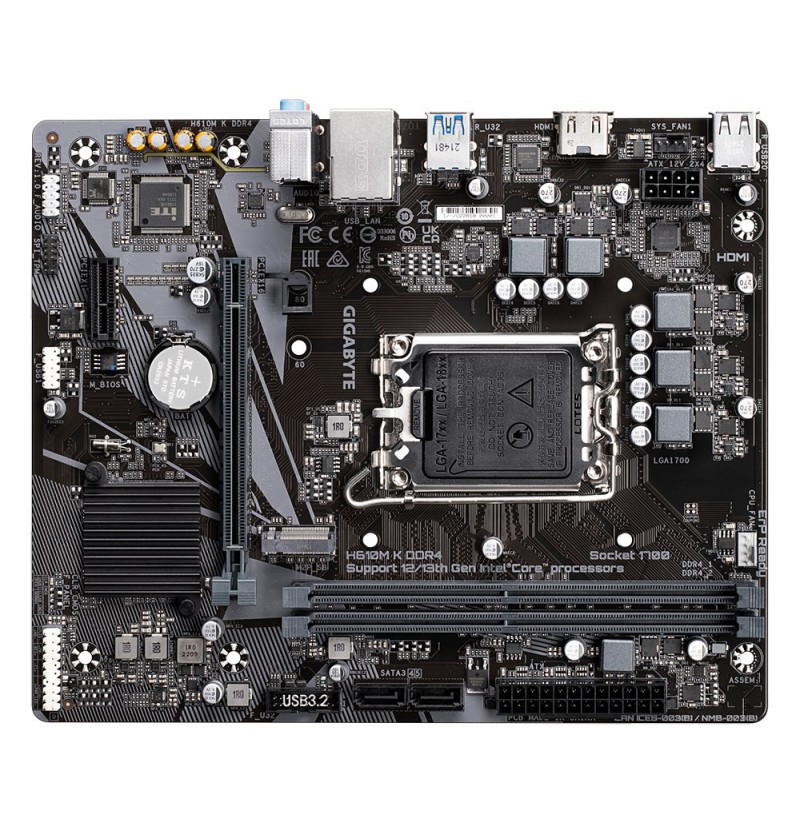

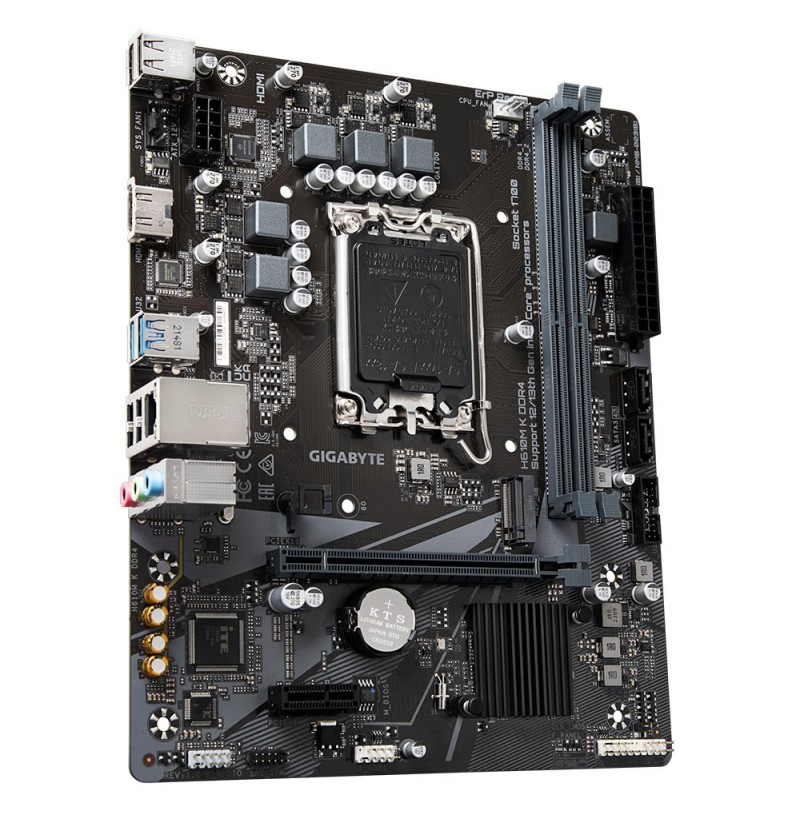

Gigabyte | H610M K DDR4 1.0 M

Warranty period: 3 year(s)
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i3, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Power source type: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610 Express
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Motherboard form factor: micro ATX
Product colour: Bronze
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Supported memory clock speeds: 3200, 2933, 2400, 3000, 2666, 2133
Unbuffered memory: Yes
Supported memory module capacities: 2GB, 4GB, 12GB, 32GB, 1GB, 16GB, 8GB
Maximum internal memory: 64 GB
ECC сompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Maximum RDIMM memory: 64 GB
Number of memory slots: 2
Supported memory clock speed (max): 3200 MHz
Depth: 185 mm
Width: 226 mm
Height: 35 mm
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
USB 2.0 connectors: 1
EPS power connector (8-pin): Yes
Number of EATX power connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 2
Power fan connector: Yes
Number of chassis fan connectors: 1
TPM connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Total number of SATA connectors: 2
12V power connector: Yes
Audio connector: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Package weight: 717 g
Package width: 265 mm
Package height: 52 mm
Package depth: 235 mm
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Cables included: SATA
Batteries included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 3

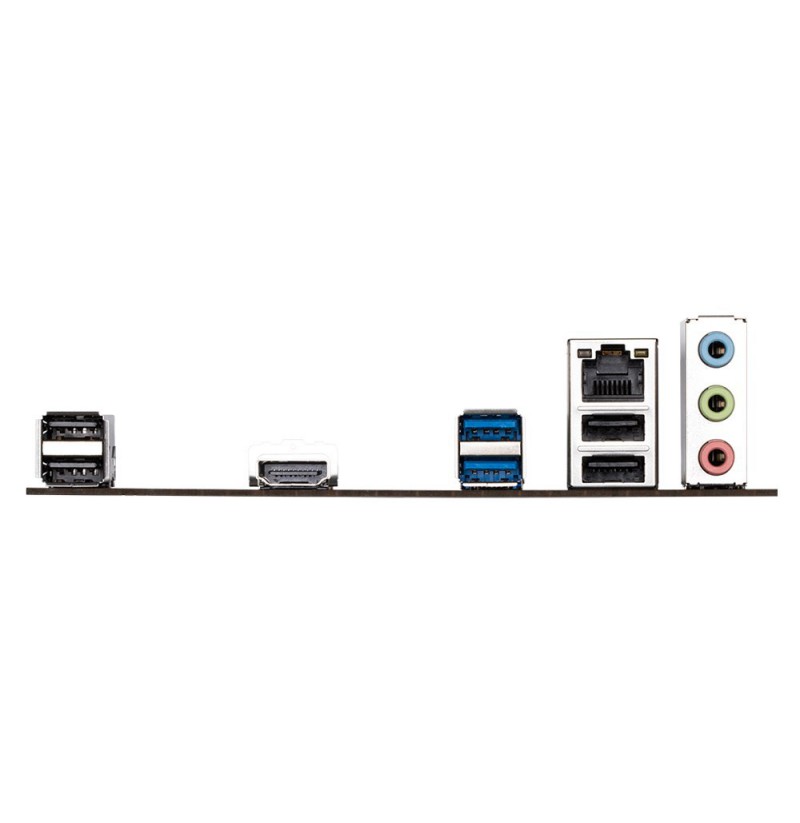

USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Headphone outputs: 1
HDMI version: 2.1
Line-in: Yes
Microphone in: Yes
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Battery type: CR2032
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.
