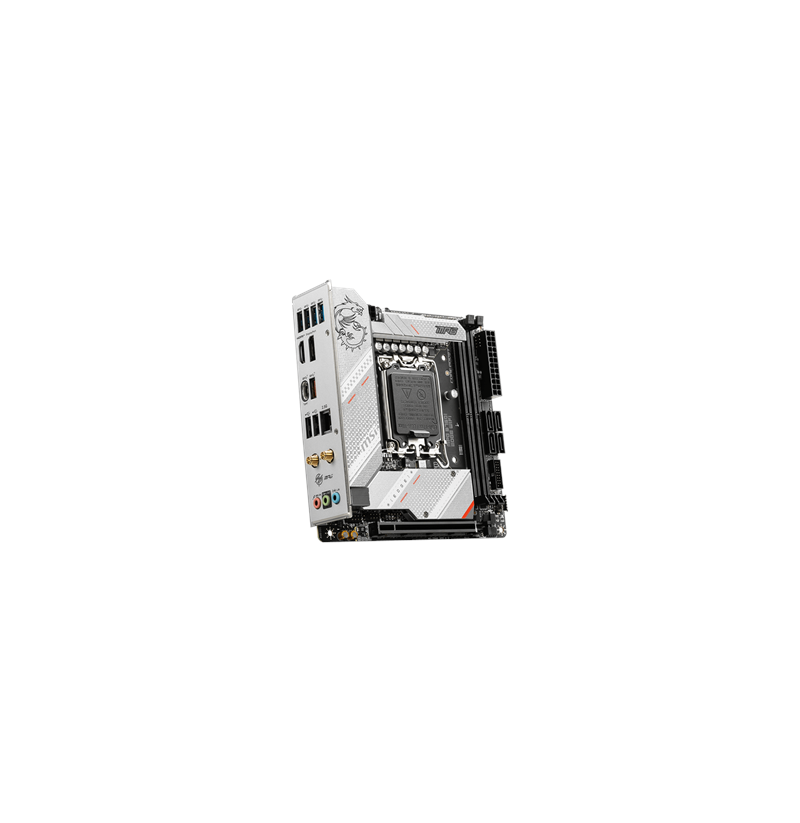

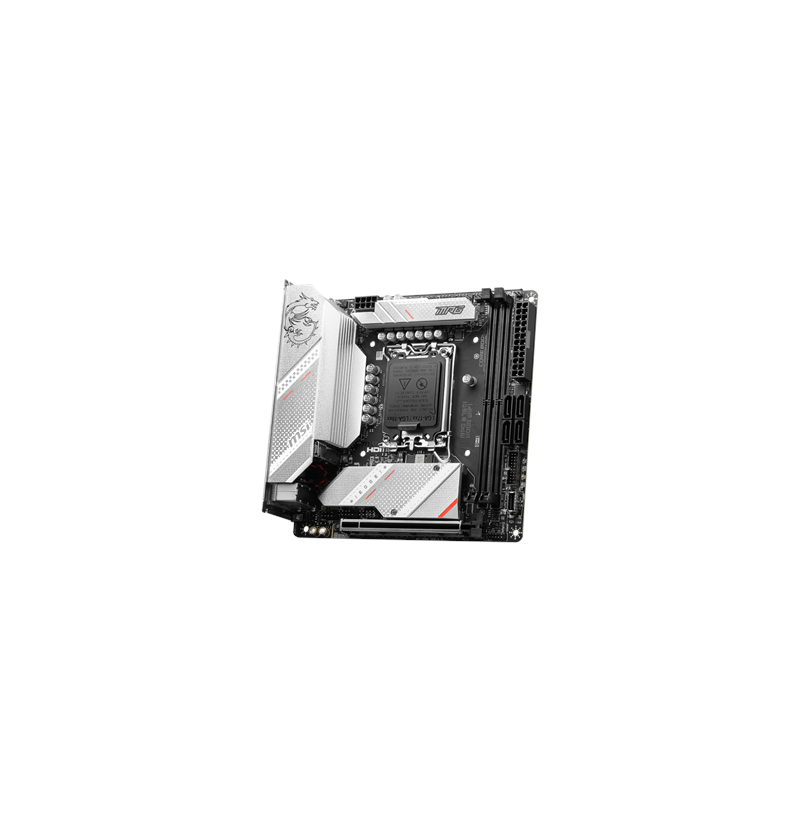

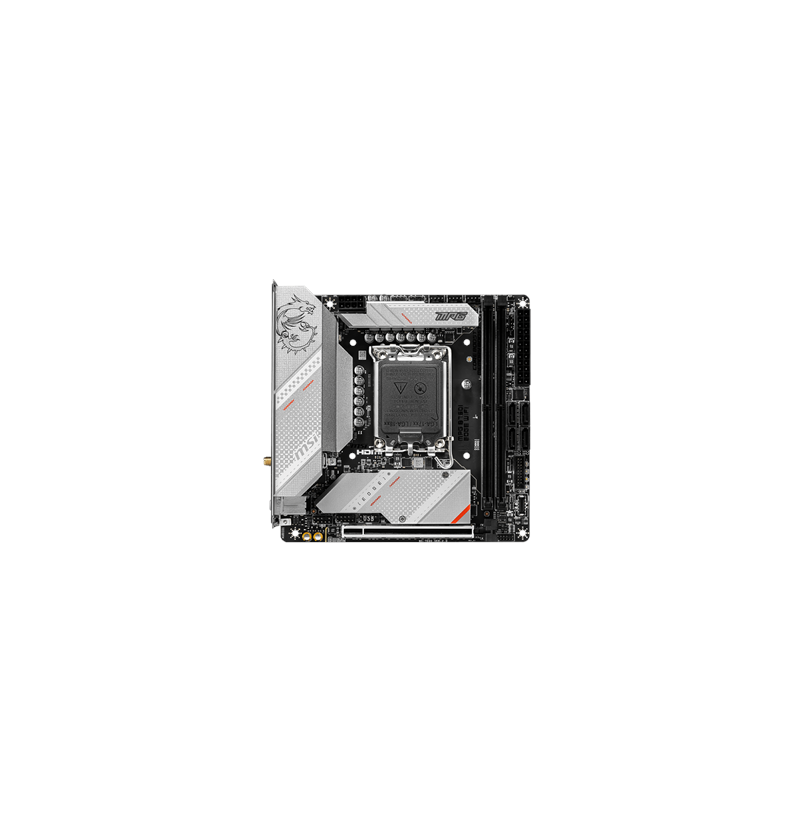

MSI MPG B760I EDGE WIFI motherboard Intel B760 LGA 1700 mini ATX

Maximum number of SMP processors: 1
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
On-board graphics card: No
Motherboard chipset family: Intel
Product colour: Black, Silver
Audio chip: Realtek ALC897
Motherboard form factor: mini ITX
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10
Power source type: ATX
Supported memory clock speeds: 6400, 6600, 6000, 5600, 7200, 6800, 6200, 5800, 5400, 5000, 4800 MHz, 7000, 5200
Supported memory clock speed (max): 7200 MHz
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Maximum internal memory: 96 GB
Number of memory slots: 2
Width: 170 mm
Depth: 170 mm
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.3
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
RGB LED pin header: Yes
CPU fan connector: Yes
TPM connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
Front panel connector: Yes
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 6

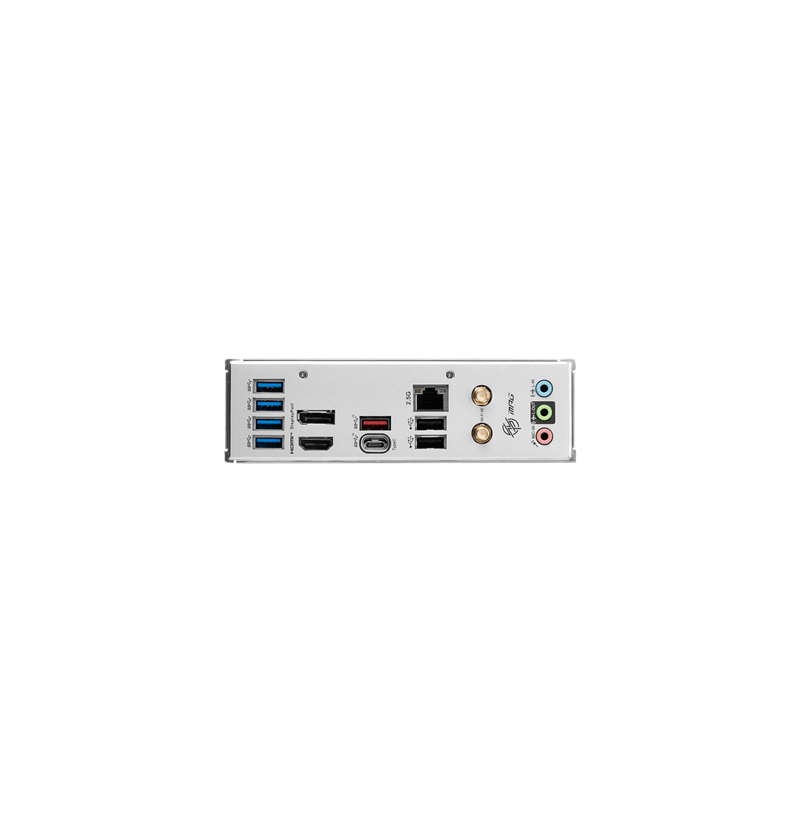

DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
HDMI version: 2.1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply.
