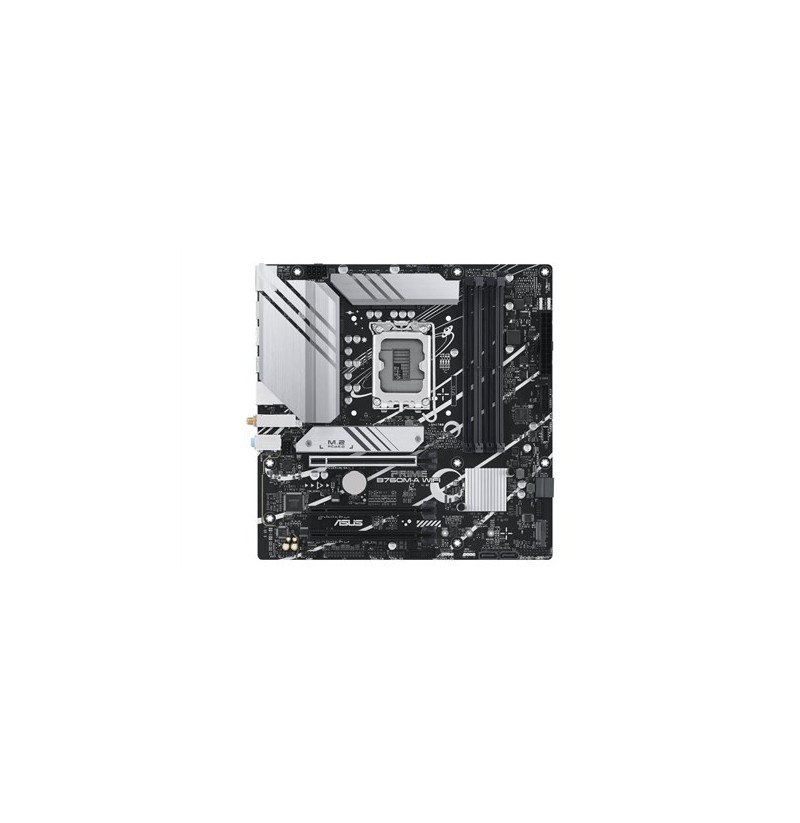

ASUS PRIME B760M-A WIFI LGA 1700 4xDDR5 microATX 4xSATA MB 2xHDMI 1xDP 2xM.2

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Parallel processing technology support: Not supported
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 7200 MHz
Supported memory clock speeds: 5800, 5400, 6800, 5600, 7200, 6400, 6000, 6600, 6200, 5000, 5200 MHz, 7000, 4800
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Width: 244 mm
Depth: 244 mm
Height: 50 mm
Ethernet LAN: Yes
Bluetooth version: 5.2
Ethernet interface type: Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi: Yes
Bluetooth: Yes
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
RGB LED pin header: Yes
12V power connector: Yes
USB 2.0 connectors: 3
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of COM connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
Front panel connector: Yes
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Package weight: 1.4 kg
Package height: 67.5 mm
Package depth: 275 mm
Package width: 275 mm
User guide: Yes
Cables included: SATA
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 10, 5
Supported storage drive types: HDD & SSD
WiFi-AP antenna jack: 2
Microphone in: Yes
DisplayPorts quantity: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
Weight: 886 g
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
