MSI | PRO H610M-E | Processor family Intel | Processor socket LGA1700 | Supported hard disk drive interfaces SATA Padidinti

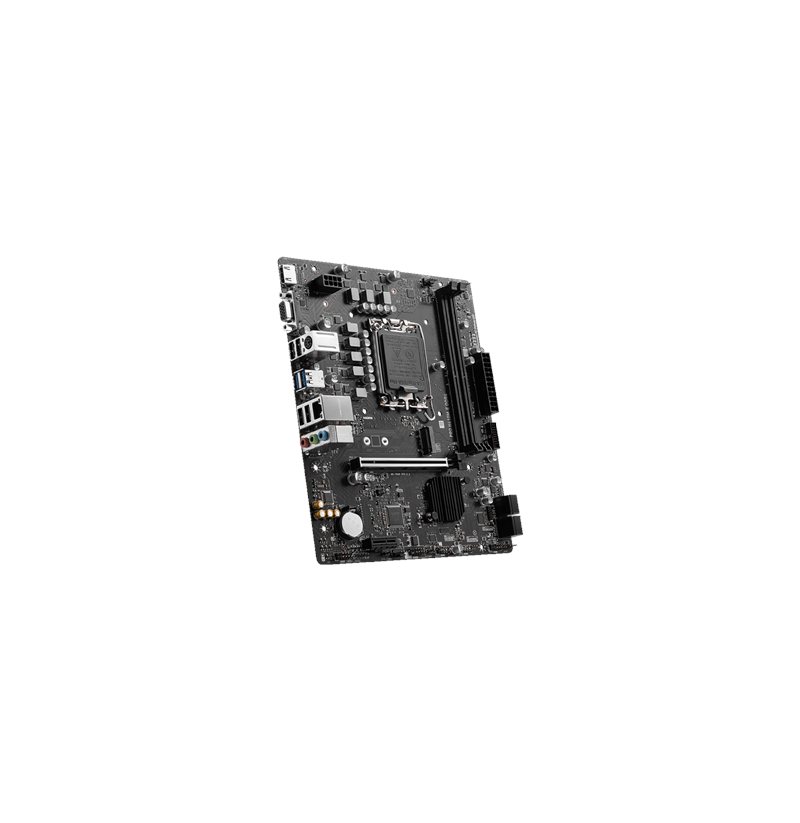

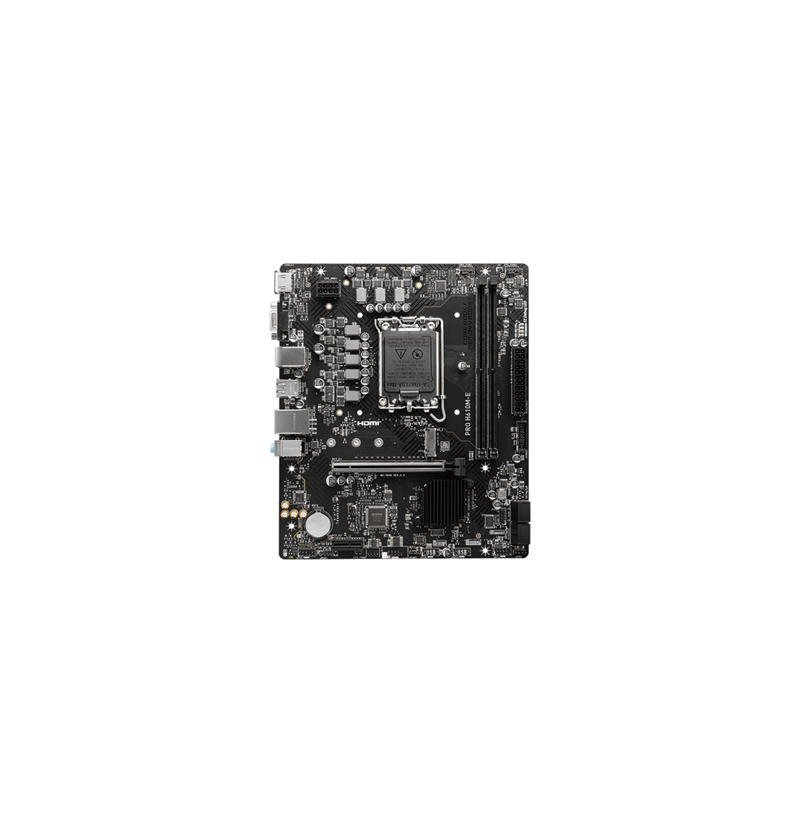

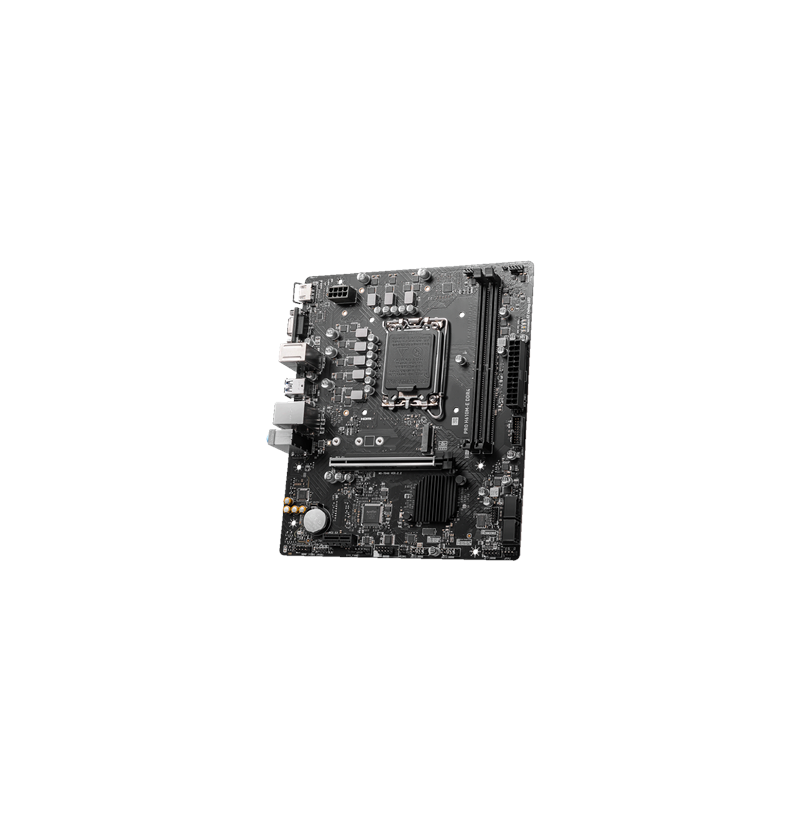

Płyta główna MSI PRO H610M-E

87,77 €

PRO H610M-E

4711377125147

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Cooling type: Active
Motherboard chipset family: Intel
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Supported memory module capacities: 32GB, 16GB, 4GB, 8GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Supported memory clock speeds: 5600
Maximum internal memory: 96 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Width: 200 mm
Depth: 236.2 mm
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Number of COM connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Audio connector: Yes
USB 2.0 connectors: 4
Number of chassis fan connectors: 2
Thunderbolt headers: 2
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
RAID support: Yes
RAID levels: 0, 1, 10, 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Headphone outputs: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PS/2 ports quantity: 1
Microphone in: Yes
HDMI version: 1.4
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
