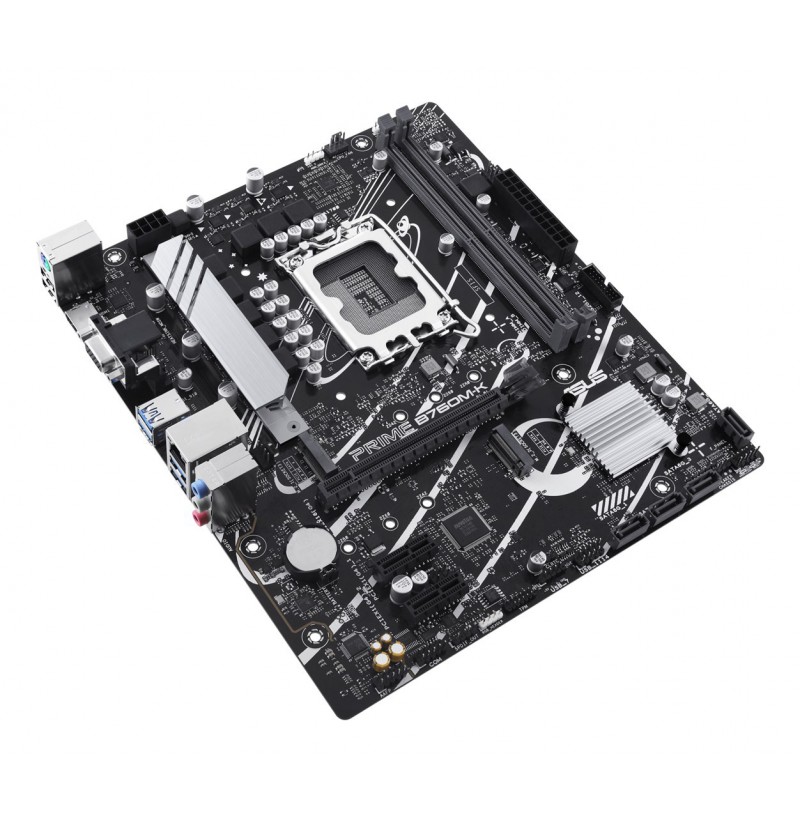

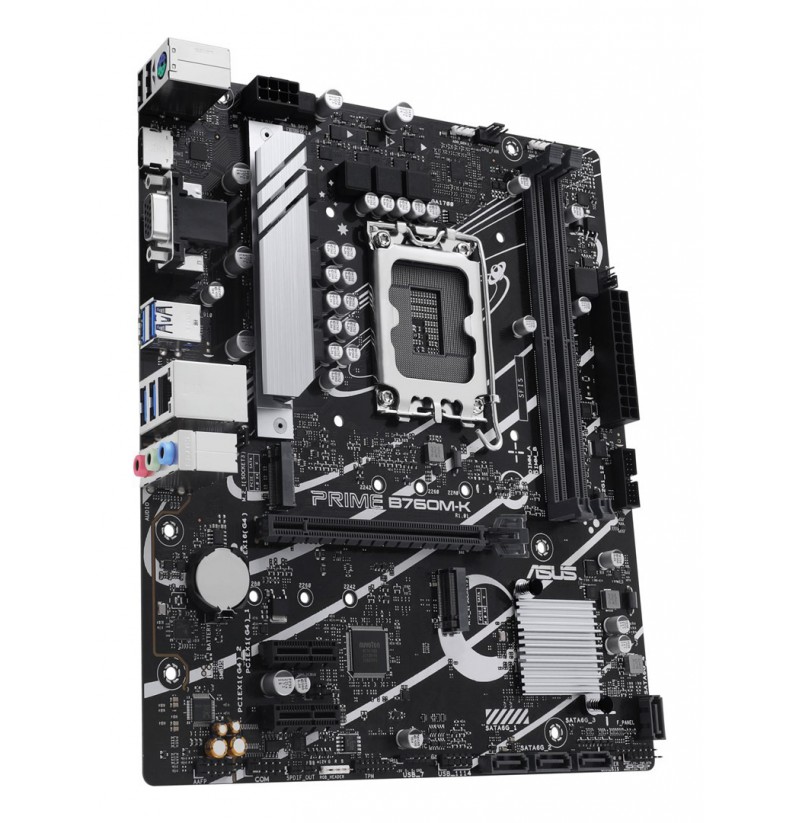

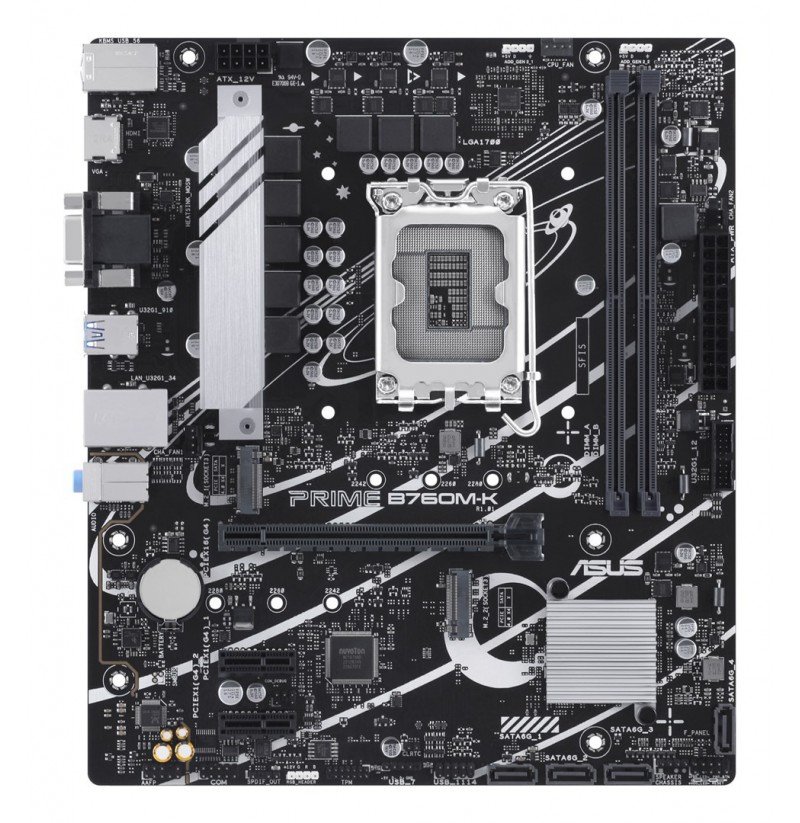

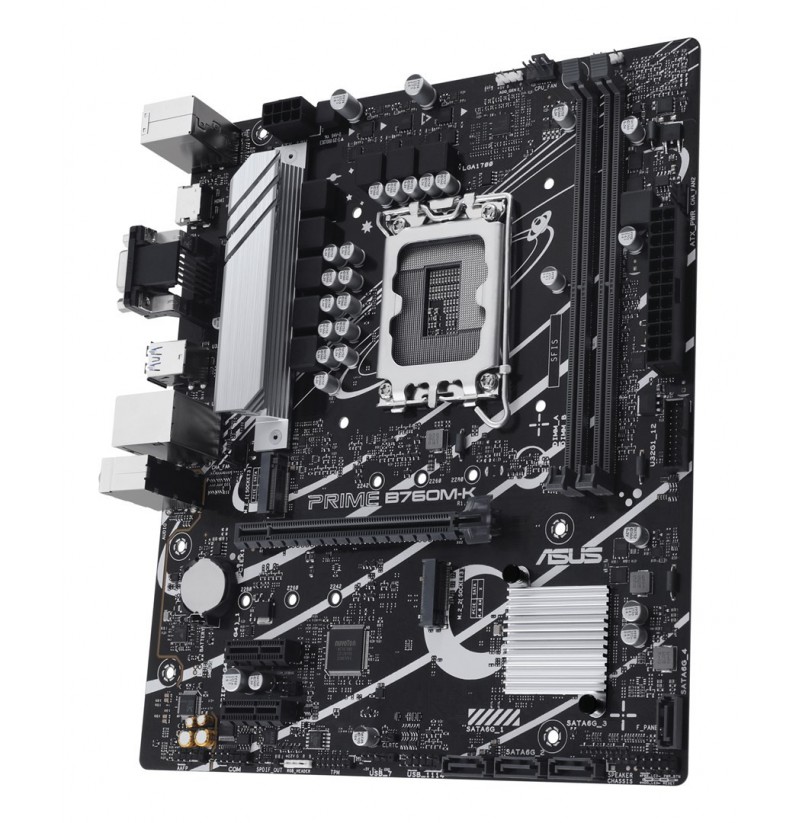

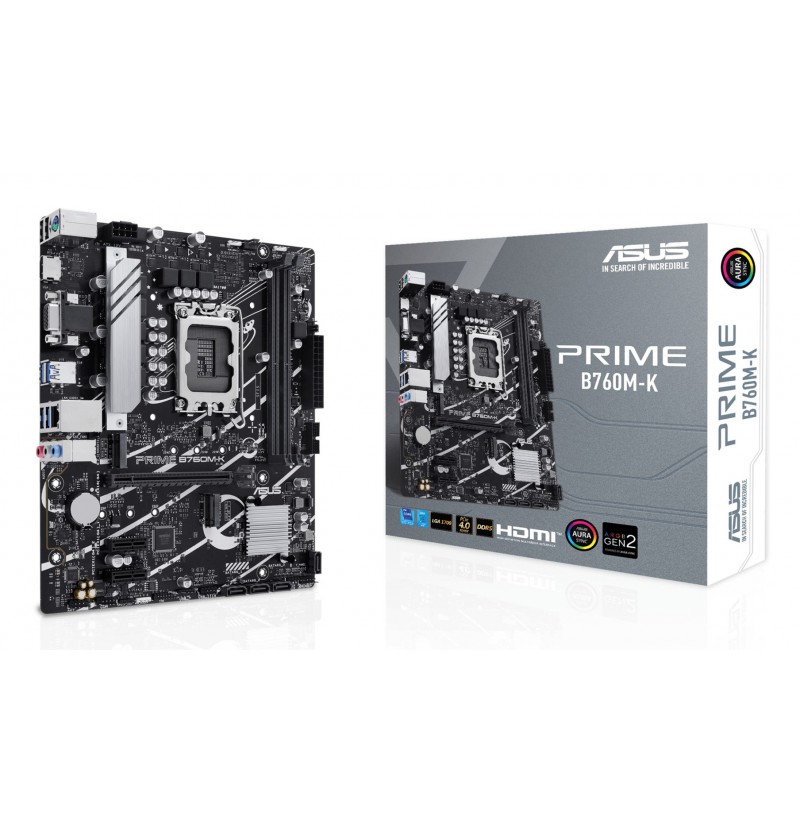

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX

Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels
Supported memory clock speeds: 7400, 5200, 4800, 6400, 6600, 6200, 7000, 6000, 5600, 7200, 5000, 8000, 7600, 7800, 6800, 5800, 5400
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 96 GB
Number of memory slots: 2
Supported memory clock speed (max): 8000 MHz
ECC сompatibility: Non-ECC
Width: 244 mm
Depth: 211 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Number of SATA III connectors: 4
Number of COM connectors: 1
S/PDIF out connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
TPM connector: Yes
CPU fan connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 1
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
BIOS type: UEFI AMI
Cables included: SATA
RAID support: Yes
RAID levels: 5, 1, 10, 0
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD

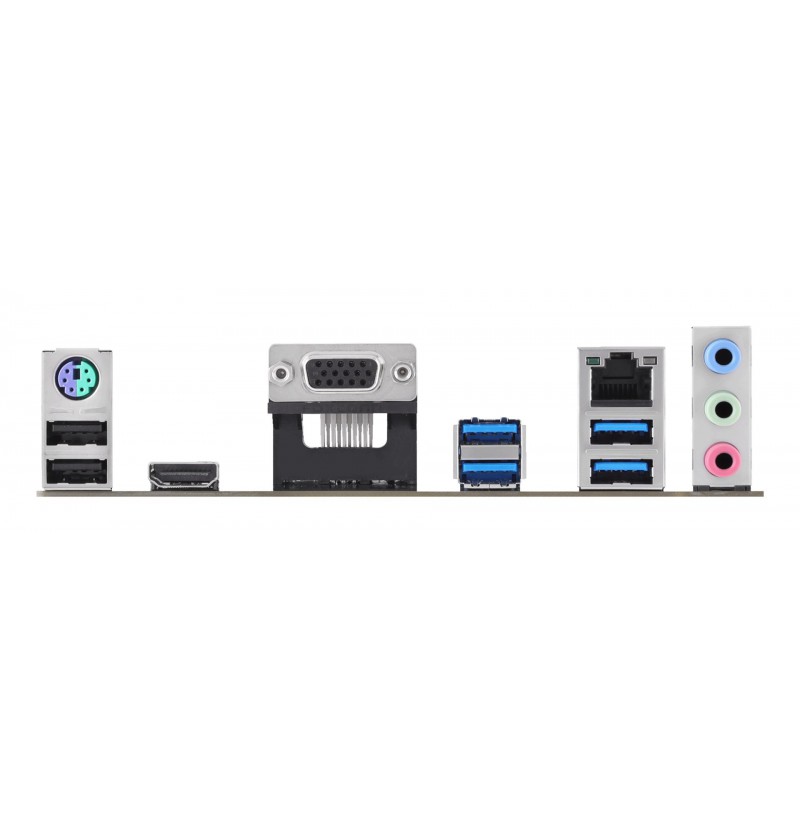

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
S/PDIF out port: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 4.x) slots: 2
