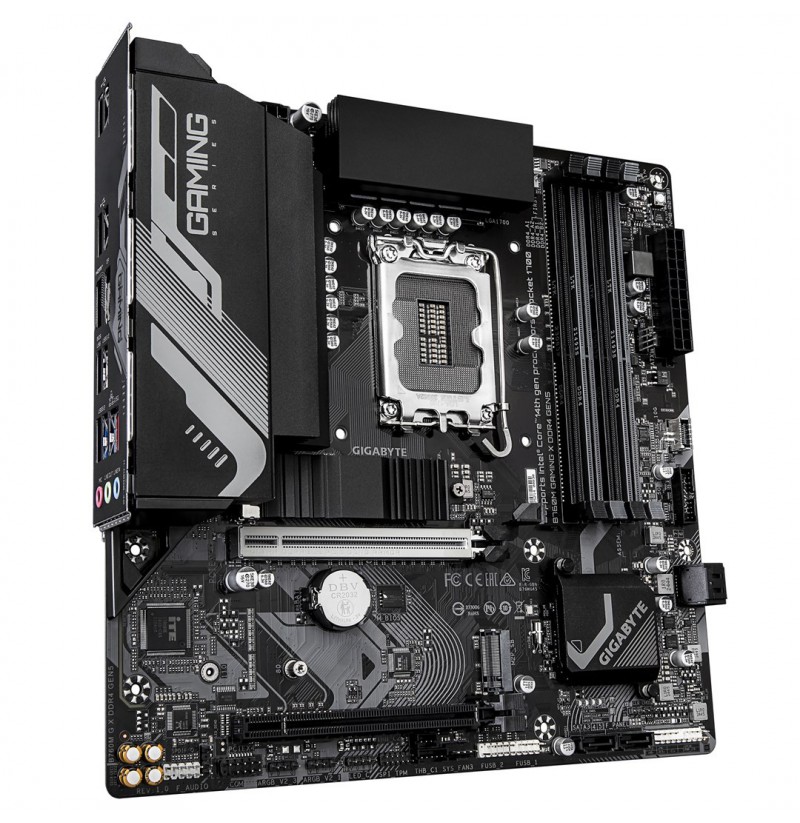

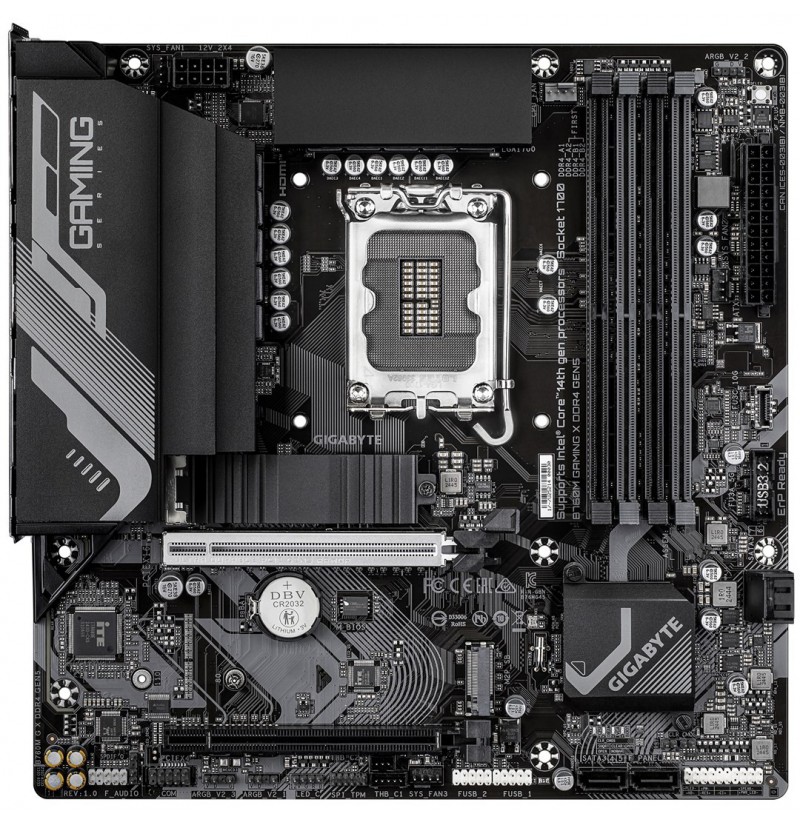

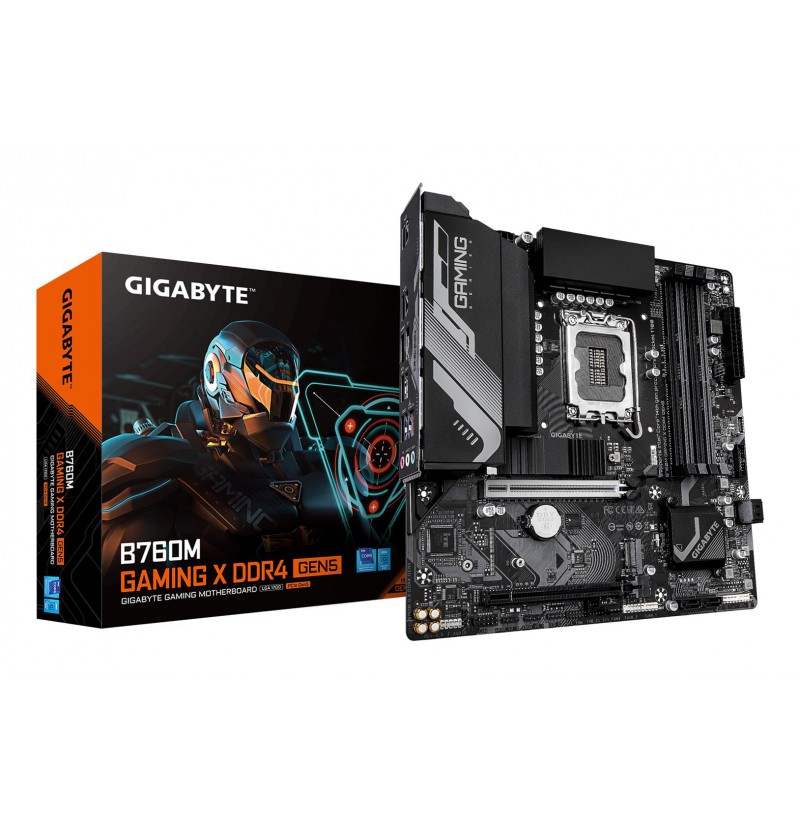

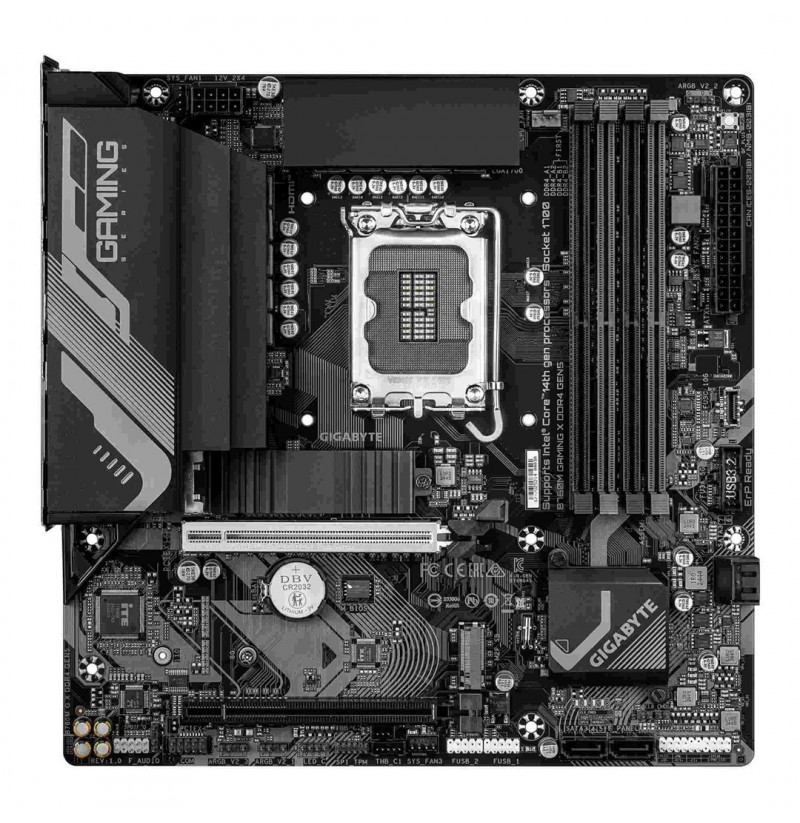

Gigabyte B760M Gaming X DDR4 GEN5 (B760,S1700,mATX,DDR4)

Warranty period: 3 year(s)
Processor manufacturer: Intel
Compatible processor series: Intel Core i7 13th Gen, Intel Core i5 12th Gen, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i7 12th Gen, Intel® Pentium®, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel Core i7 14th Gen, Intel Core i3 14th Gen, Intel Core i5 14th Gen
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0
Component for: PC
Cooling type: Passive
Audio chip: Realtek ALC897
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset: Intel B760
Product colour: Dark brown
Power source type: ATX
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Memory channels: Dual-channel
Supported memory clock speeds: 3000, 3200, 2666, 2400, 2933, 2133 MHz
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 32 GB
Number of memory slots: 4
Supported memory clock speed (max): 3200 MHz
Height: 35 mm
Width: 244 mm
Depth: 244 mm
LAN controller: Realtek RTL8125
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Number of chassis fan connectors: 3
TPM connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
S/PDIF out connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
12V power connector: Yes
Thunderbolt headers: 2
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 4
ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Package depth: 268 mm
Package width: 270 mm
Package weight: 1.6 kg
Package height: 68 mm
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
Number of storage drives supported: 6
RAID levels: 1, 10, 0, 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

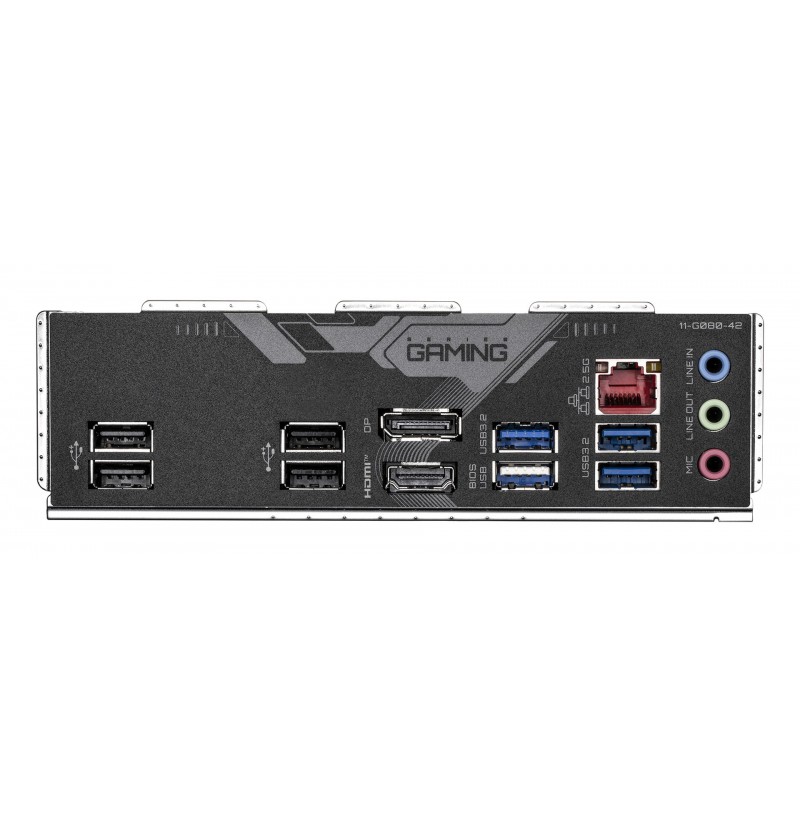

USB 2.0 ports quantity: 5
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Headphone outputs: 1
Microphone in: Yes
DisplayPorts quantity: 1
HDMI version: 2.1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 22110
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 1.19 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
