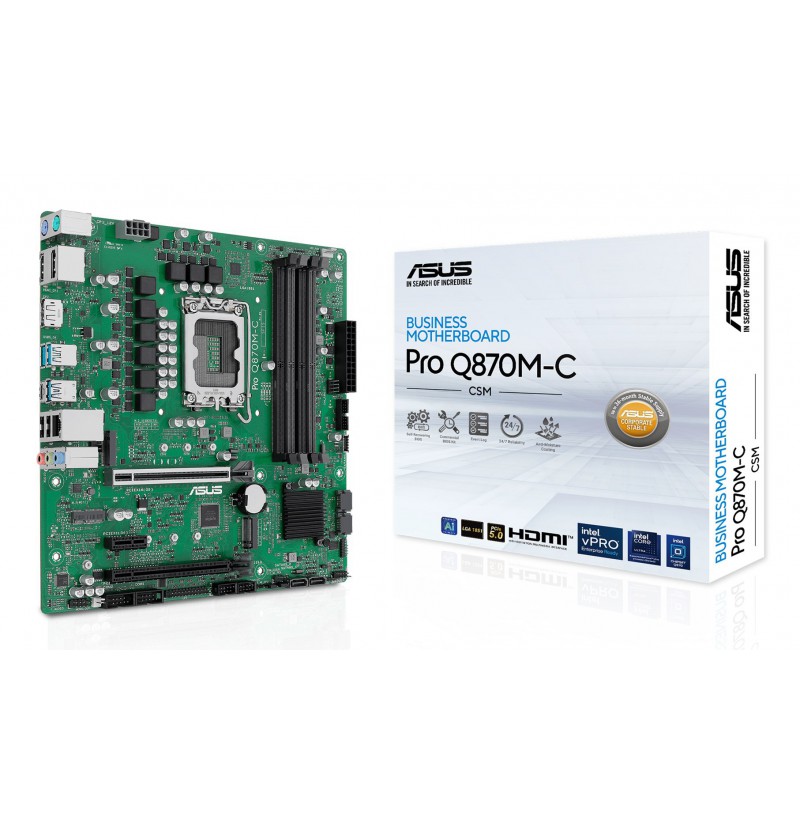

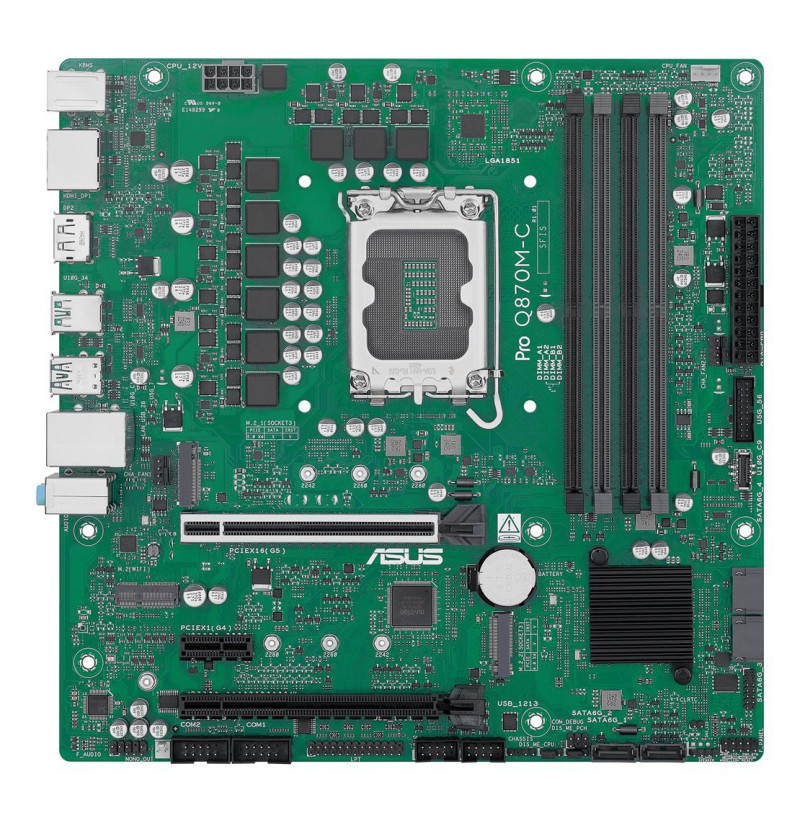

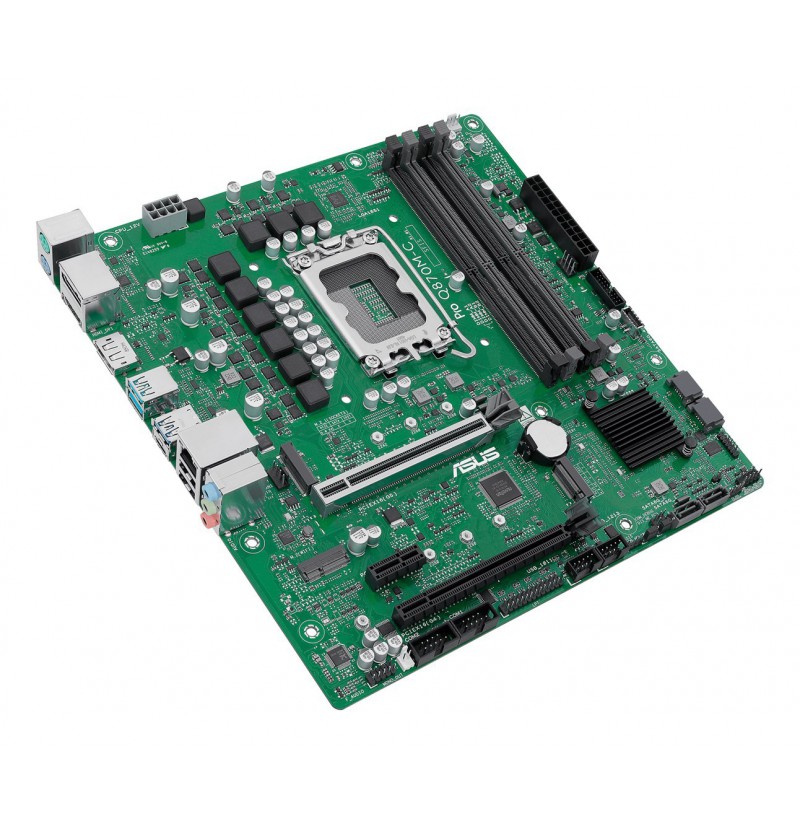

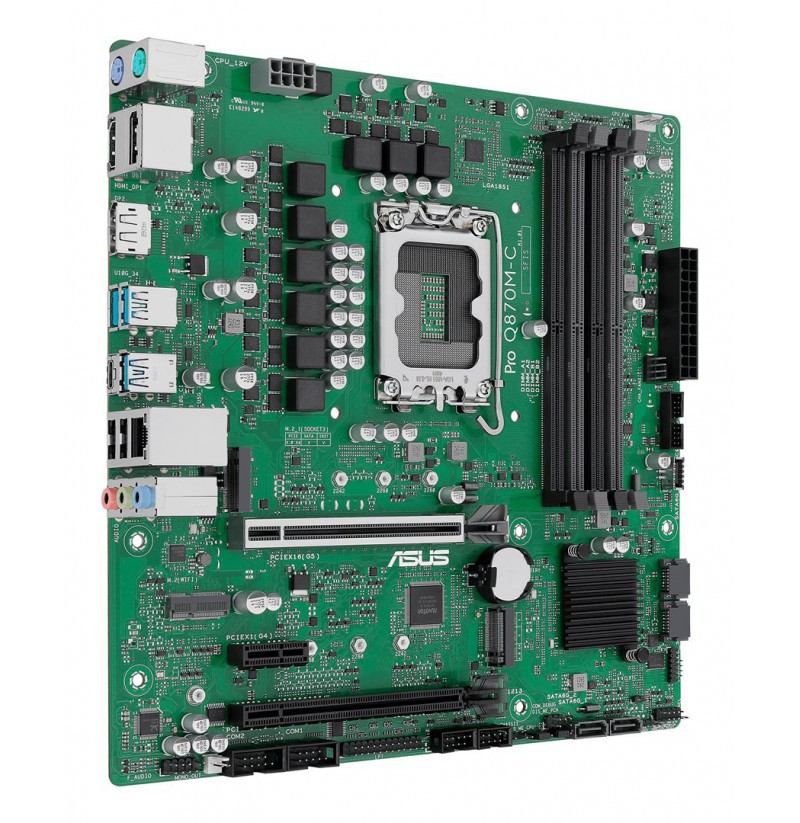

ASUS PRO Q870M-C-CSM Intel® Q870 LGA 1851 (Socket V1) micro ATX

Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Parallel processing technology support: Not supported
On-board graphics card: No
Component for: PC
Motherboard chipset: Intel® Q870
Product colour: Multicolour
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Number of memory slots: 4
Supported memory clock speed (max): 6400 MHz
ECC сompatibility: Non-ECC
Width: 244 mm
Height: 50 mm
Depth: 244 mm
LAN controller: Intel® I219-LM
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Number of COM connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 2
Number of chassis fan connectors: 2
12V power connector: Yes
Number of CPU fan connectors: 1
BIOS memory size: 256 Mbit
Package depth: 263 mm
Package weight: 889.03 g
Package width: 270 mm
Package height: 51.5 mm
RAID levels: 5, 10, 0, 1
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD

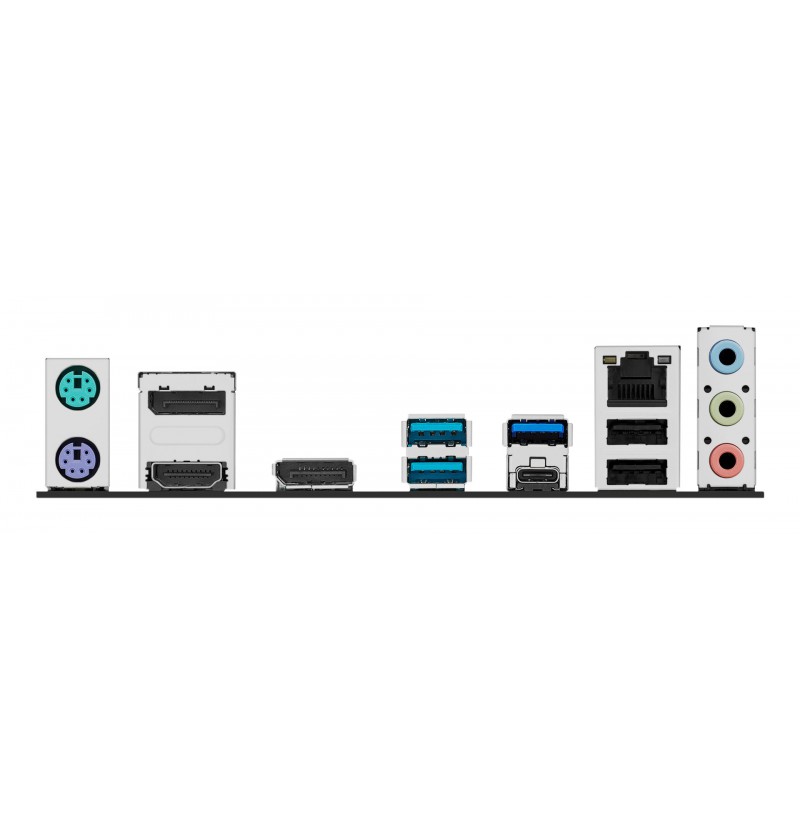

USB 2.0 ports quantity: 2
DisplayPorts quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB connector type: USB Type-C, USB Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
PS/2 ports quantity: 2
Microphone in: Yes
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
Weight: 550.6 g
