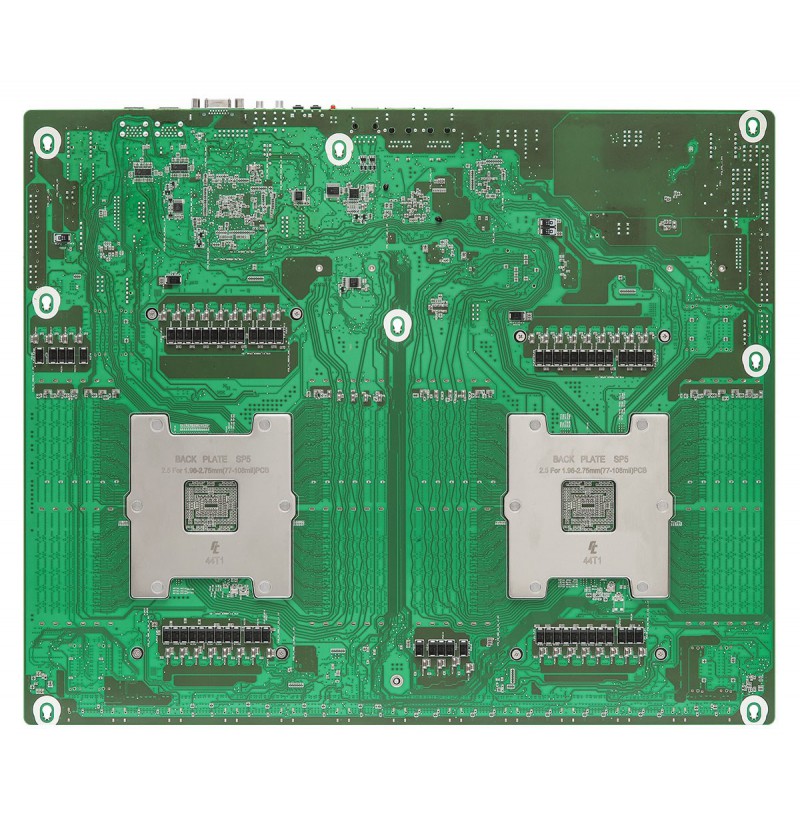

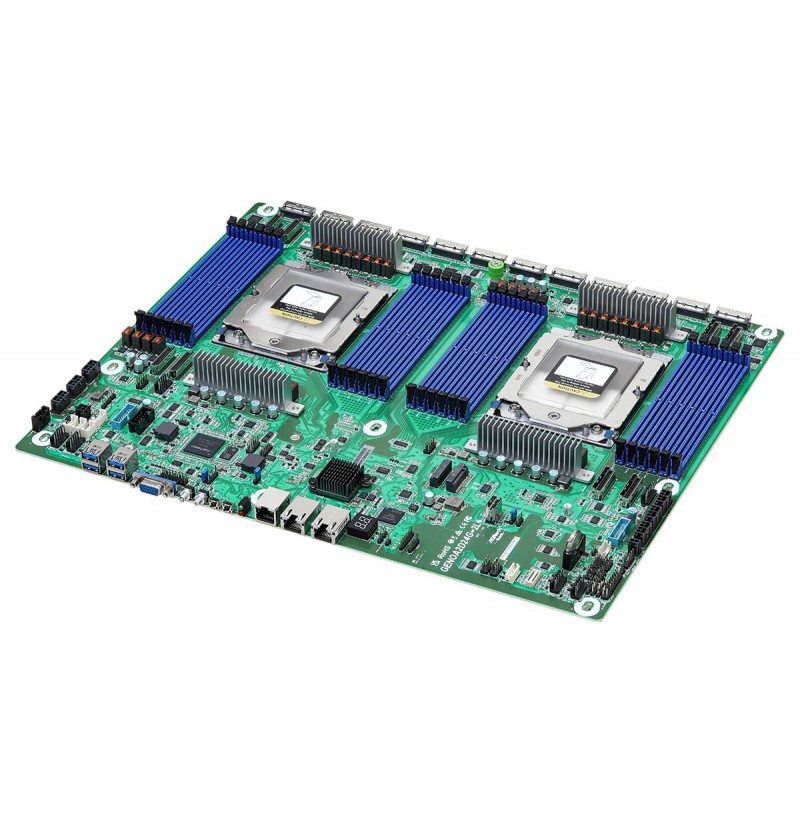

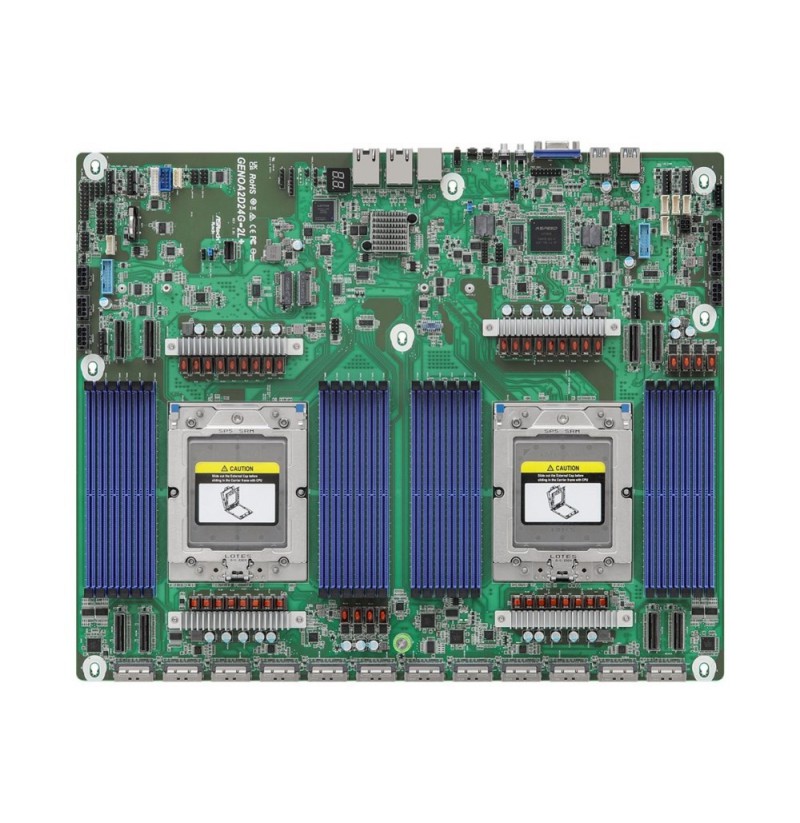

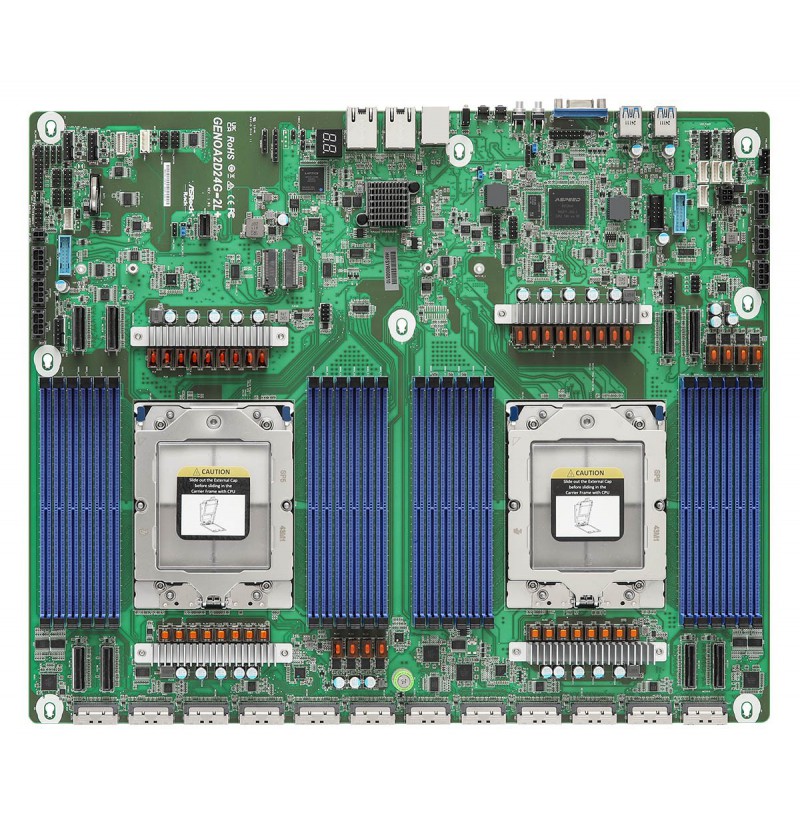

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5

Processor manufacturer: AMD
Maximum number of SMP processors: 2
Compatible processor series: AMD EPYC
Processor socket: Socket SP5
On-board graphics card memory: 512 MB
Parallel processing technology support: Not supported
On-board graphics card model: Aspeed AST2600
PC health monitoring: Voltage, Temperature, Fan
Product colour: Green, Grey
Motherboard chipset family: AMD
Component for: Server
Motherboard chipset: AMD SoC
Maximum internal memory: 12 TB
Memory slot pin count: 288
Supported memory clock speeds: 4800
Number of memory slots: 24
Memory voltage: 1.1 V
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Storage temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%
Operating temperature (T-T): -40 - 70 °C
Width: 430 mm
Depth: 350 mm
LAN controller: Intel® I350
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Front panel connector: Yes
Chassis intrusion connector: Yes
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 6
Clear CMOS button: Yes
ACPI version: 6.4
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.5
Number of storage drives supported: 34
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
Number of HDDs supported: 32

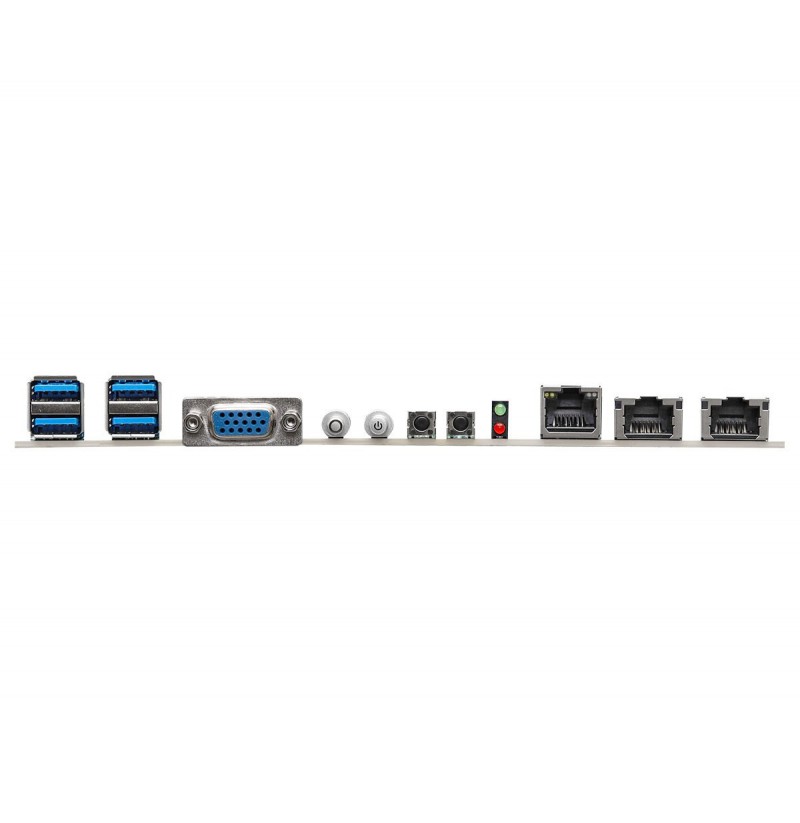

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
