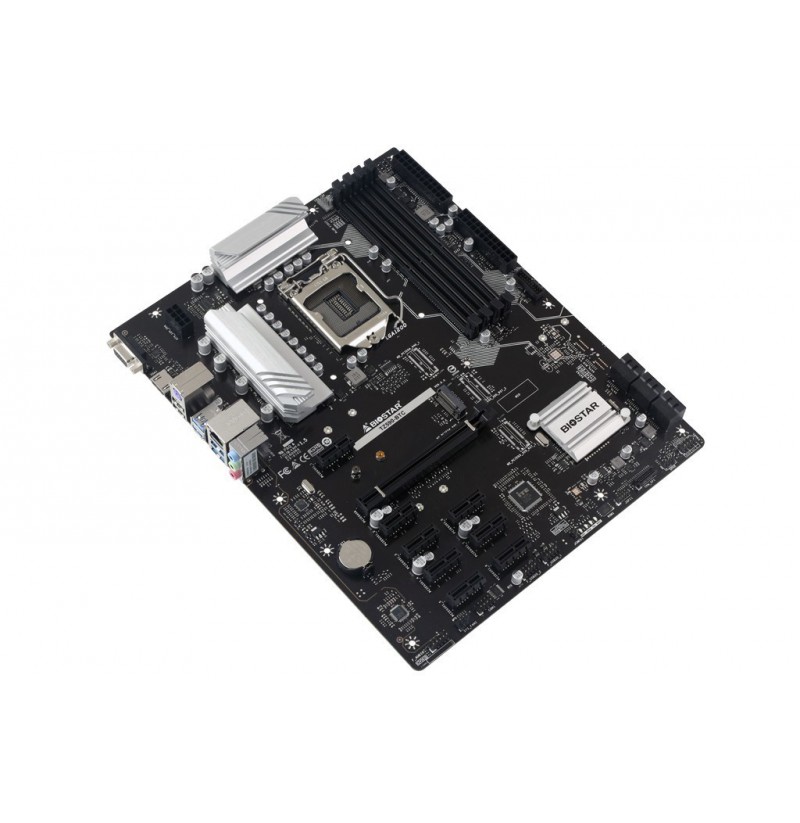

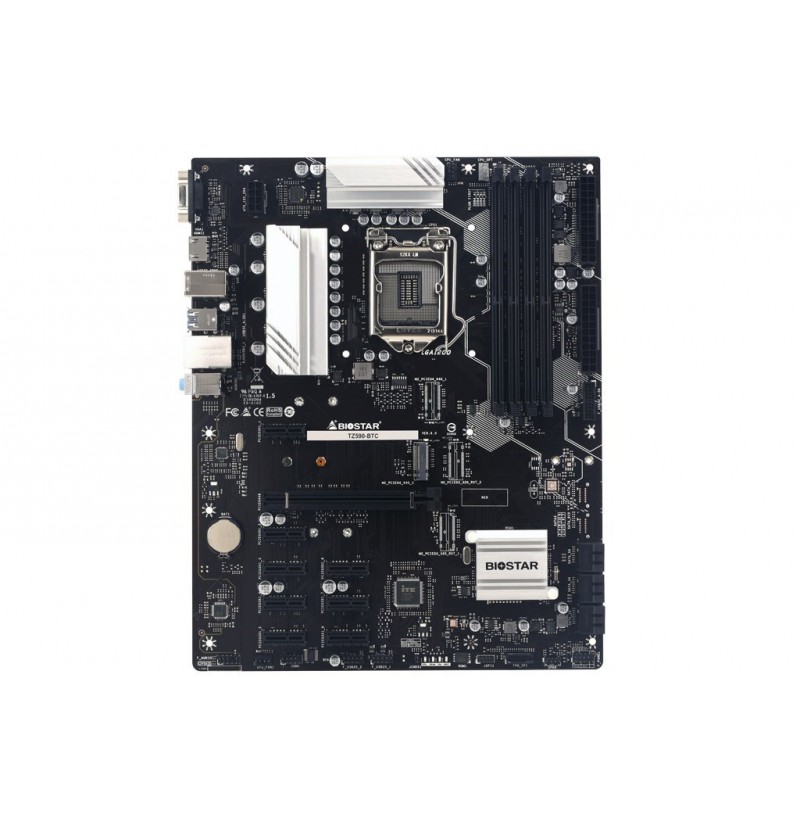

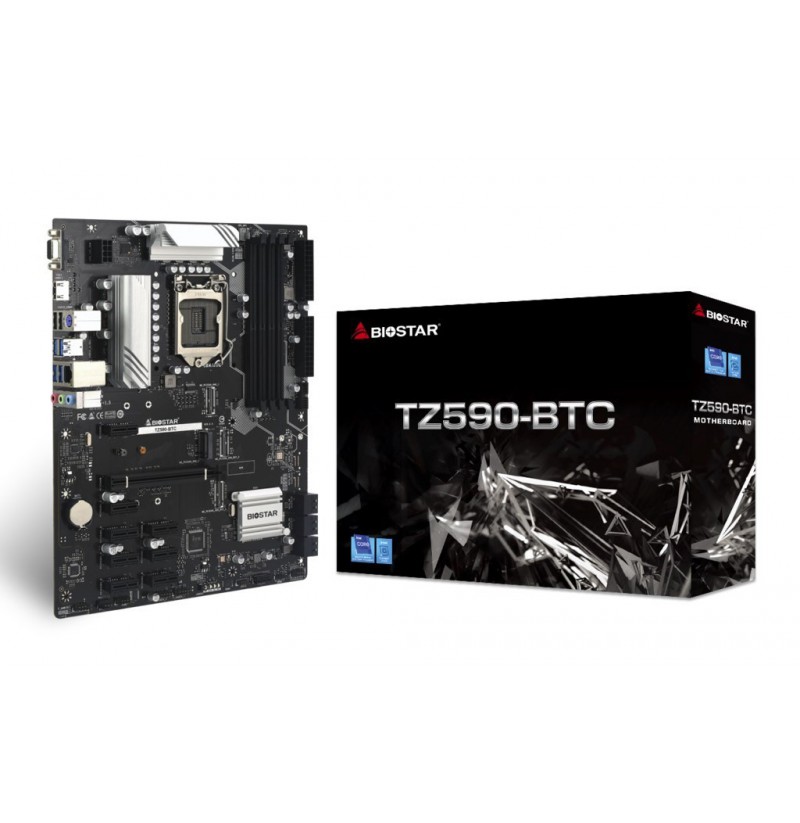

Motherboard Biostar TZ590-BTC

Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3
Processor manufacturer: Intel
HDCP: Yes
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z590
Product colour: Black
Motherboard chipset family: Intel
Audio chip: Realtek ALC887
Memory channels: Dual-channel
Supported memory clock speeds: 3200, 2666, 2400, 2800, 2133, 2933, 3600 MHz
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Maximum internal memory: 128 GB
Supported memory clock speed (max): 3600 MHz
ECC сompatibility: Non-ECC
Width: 305 mm
Depth: 244 mm
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel I219V
Ethernet LAN: Yes
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of COM connectors: 1
Number of SATA III connectors: 6
USB 2.0 connectors: 2
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 6
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Number of audio jack connectors: 3
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 8
