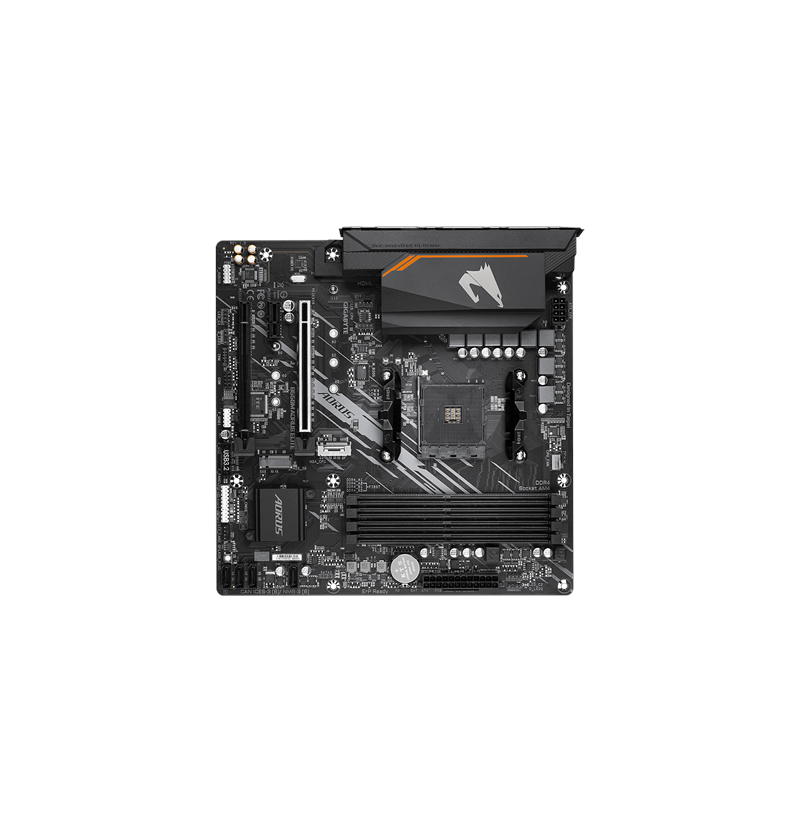

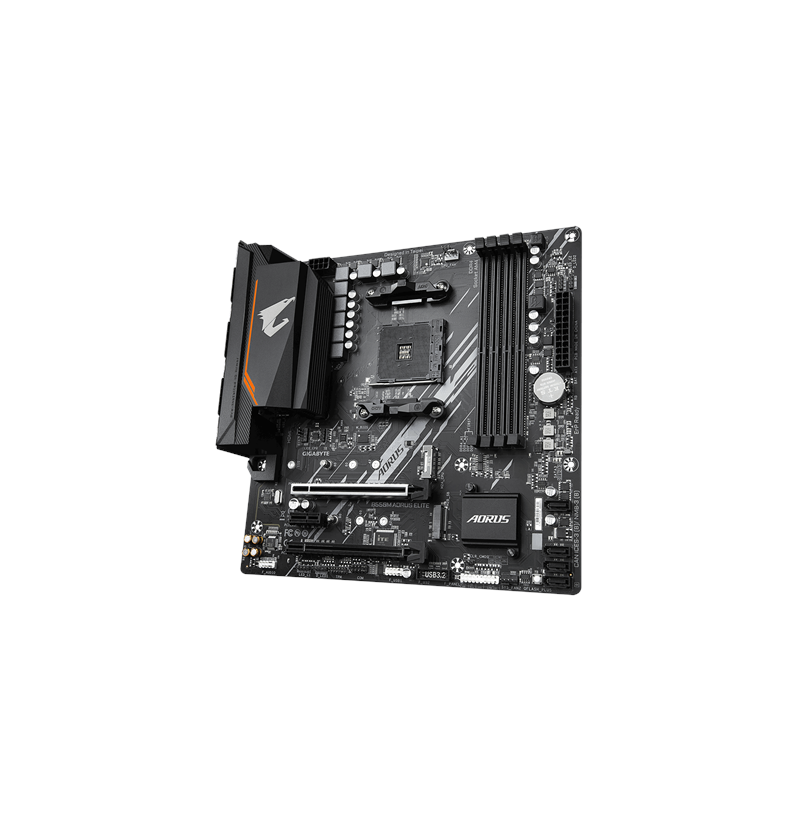

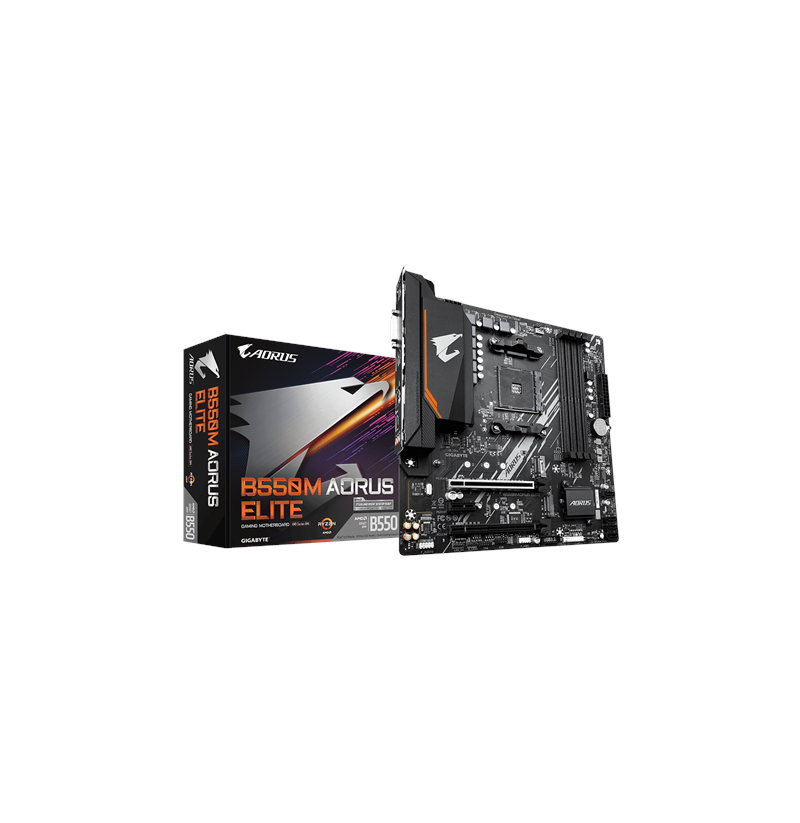

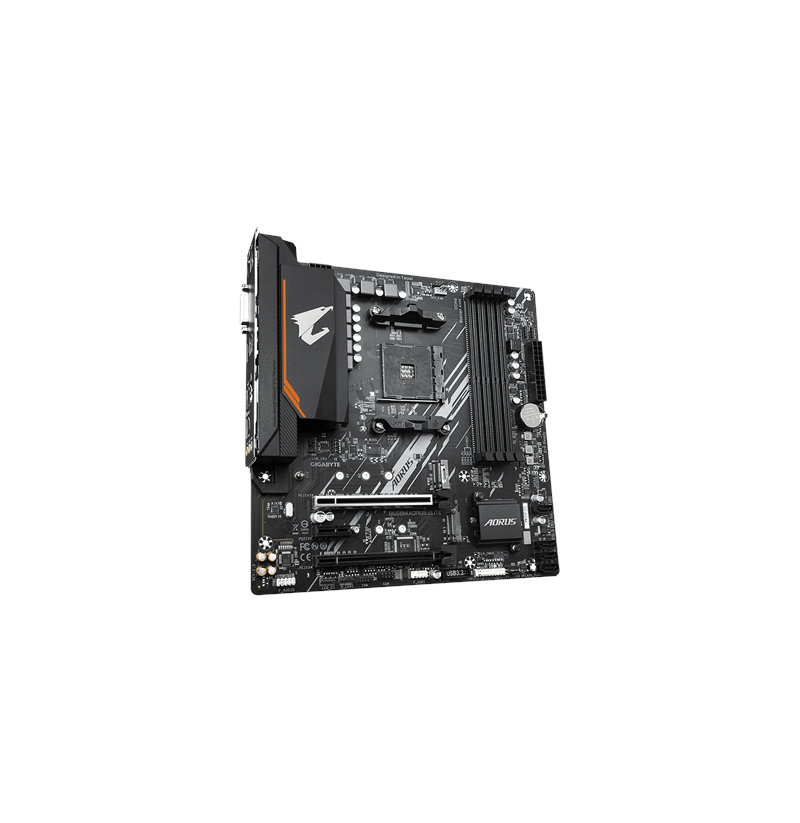

Gigabyte B550M AORUS ELITE 1.0 Processor family AMD Padidinti

Gigabyte | B550M AORUS ELITE 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Number of SATA con

91,29 €

B550M AORUS ELITE

4719331809546

Galimas pasirinkimas

 1..4 d.d.


Warranty period: 3 year(s)
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
DirectX version: 12.0
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Audio output channels: 7.1 channels
Product colour: Bronze
Cooling type: Passive
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Component for: PC
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Power source type: ATX
Supported memory clock speeds: 2133, 2400, 2667, 3733, 4400, 3200 MHz, 4266, 4133, 4000, 3466, 3400, 3866, 4600, 2933, 3600, 4733
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory clock speed (max): 4733 MHz
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
ECC сompatibility: ECC & Non-ECC
Depth: 244 mm
Width: 244 mm
Height: 35 mm
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
CPU fan connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 2
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Number of CPU fan connectors: 1
Front panel connector: Yes
USB 2.0 connectors: 1
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 2
Number of RGB LED pin headers: 5
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 2.7
ACPI version: 5.0
Package depth: 265 mm
Package weight: 1.27 kg
Package height: 65 mm
Package width: 265 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Screws included: Yes
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
PS/2 ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 22110
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Harmonized System (HS) code: 84733020
Country of origin: China
Warnings: Store away from water and sources of moisture.
