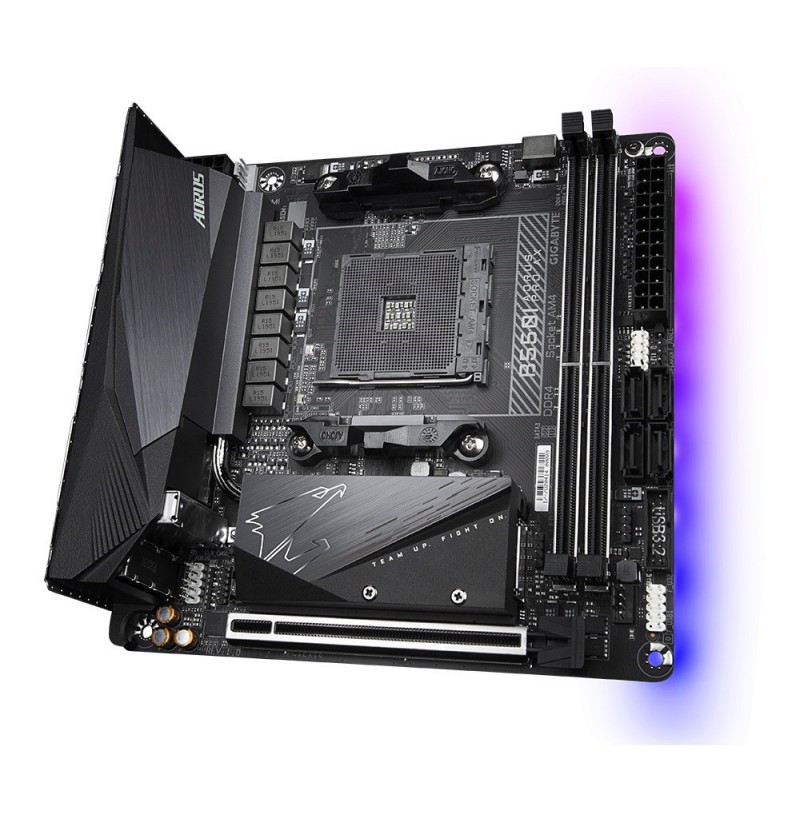

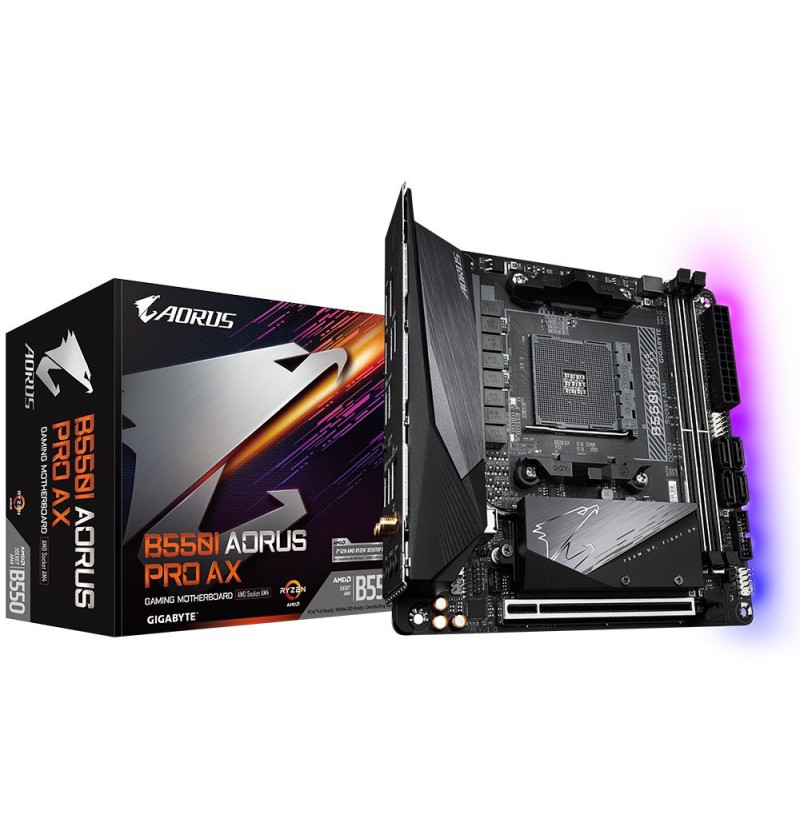

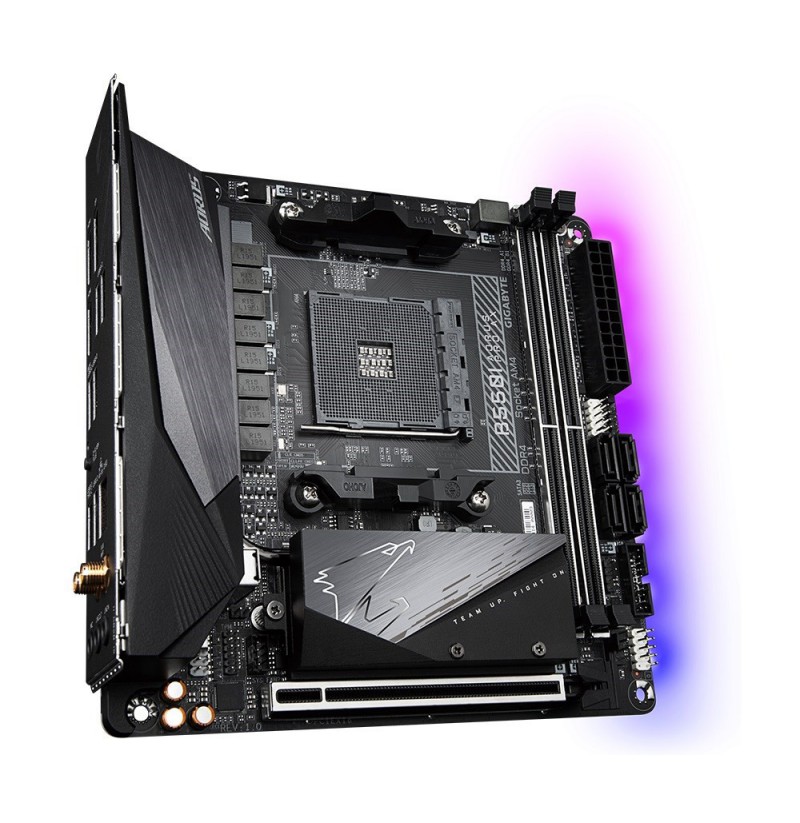

Płyta główna Gigabyte B550I AORUS PRO AX

Compatible processor series: AMD Ryzen™ 3000 Series, AMD Ryzen™ 5000 G-Series, AMD Ryzen™ 5000 Series, AMD Ryzen™ 4000 G-Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Graphics card family: AMD
HDCP: Yes
High Dynamic Range (HDR) supported: Yes
Maximum resolution: 5120 x 2880 pixels
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Cooling type: Active
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: Mini-ITX
Motherboard chipset family: AMD
Motherboard chipset: AMD B550
Power source type: ATX
Supported memory types: DDR4 SO-DIMM
Supported memory module capacities: 32GB
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 2400, 3400, 3866, 3200 MHz, 4266 MHz, 4133, 4000, 4800, 2667, 3733, 4400 MHz, 5200, 2133, 2933, 3600 MHz, 5100 MHz, 5300 MHz, 4600, 3466
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory clock speed (max): 5300 MHz
Maximum internal memory: 64 GB
Depth: 170 mm
Width: 170 mm
Wi-Fi: Yes
Bluetooth version: 5
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth: Yes
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes
Number of SATA connectors: 4
Power fan connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of LED strips supported: 2
Number of chassis fan connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
Number of M.2 (M) slots: 2
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
Audio connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Supported storage drive types: SSD
RAID levels: 1, 10, 0
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA

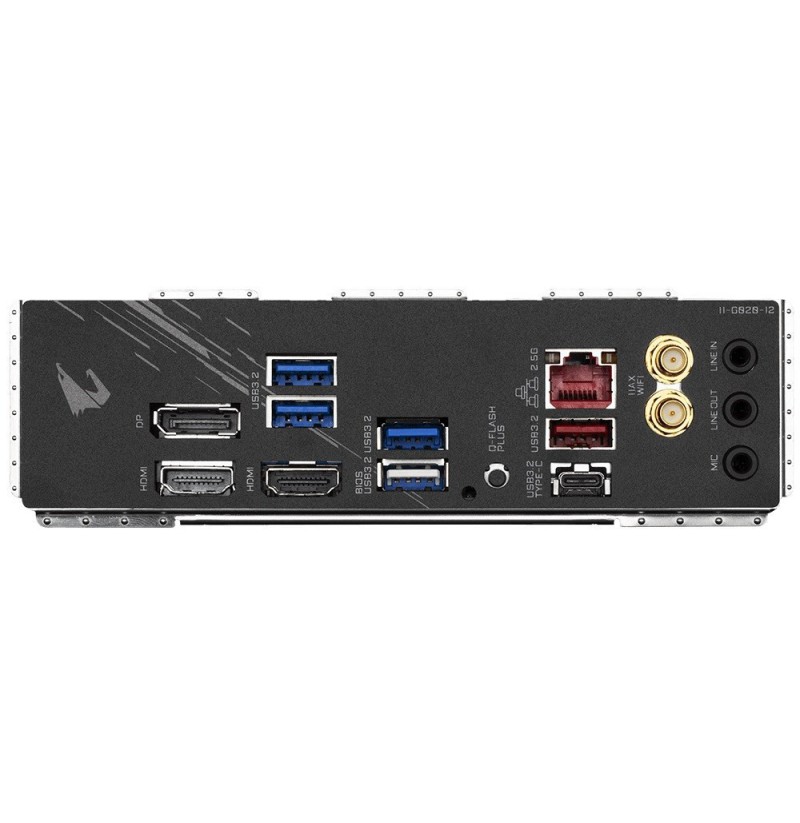

Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 2
Headphone outputs: 3
PCI Express x1 slots: 1
PCI Express x16 slots: 1
