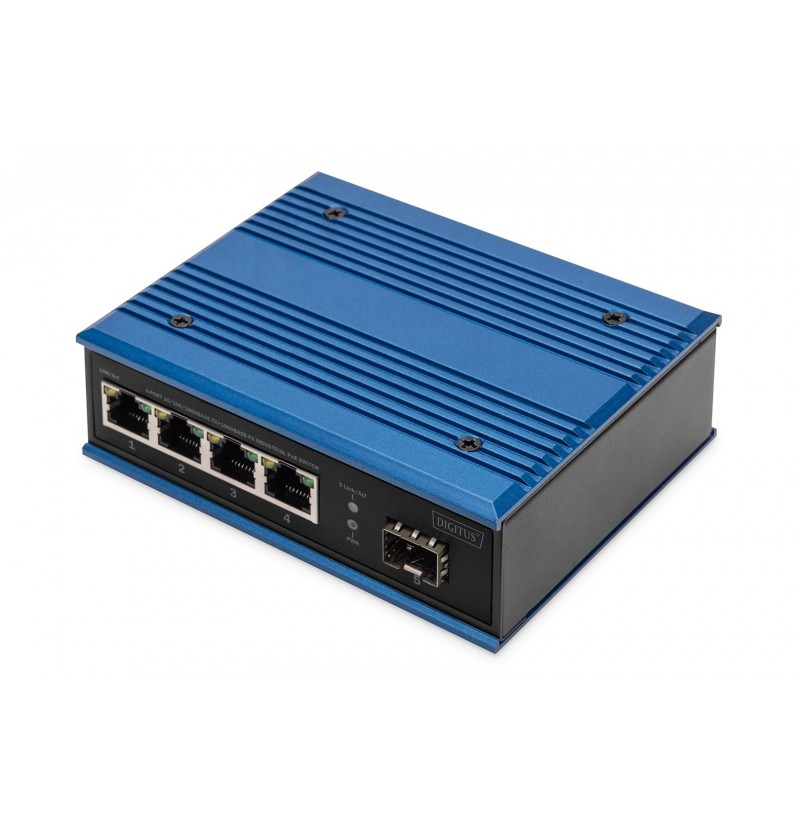

Industrial switch 4x 1000Base-TX PoE + 1x 1000FX

Stackable: No

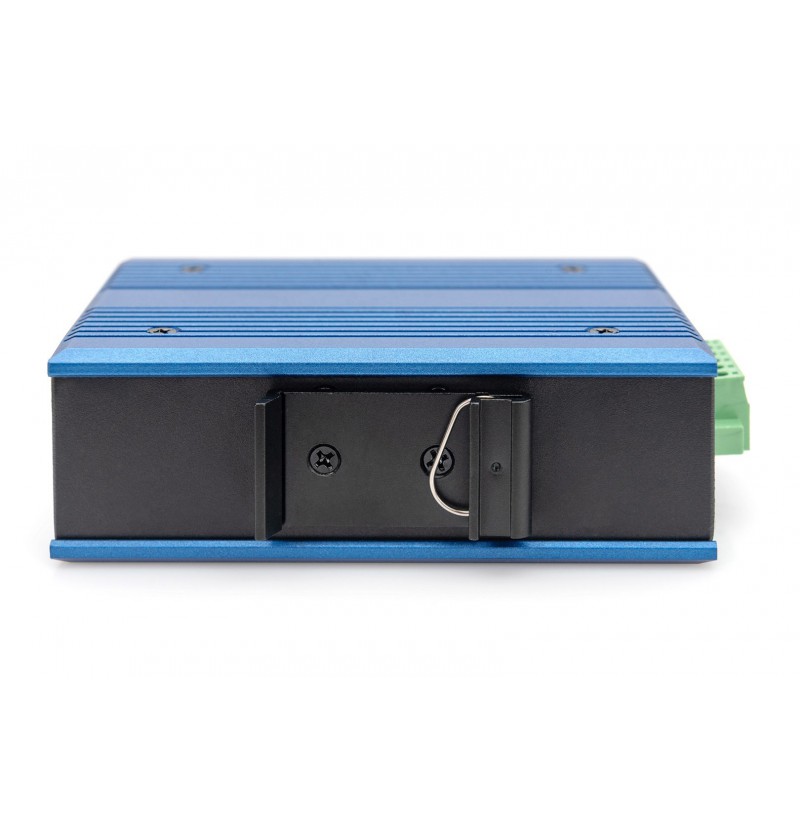

DIN rail mounting: Yes
Vandal-proof: No
Housing material: Aluminium
Suitable for outdoor use: No
International Protection (IP) code: IP40
Product colour: Black, Blue
Rack mounting: No
LED indicators: Yes
DC input voltage: 48 - 57 V
Power source: DC
Power consumption (typical): 3 W
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Switch type: Unmanaged
Depth: 86 mm
Weight: 450 g
Height: 34 mm
Width: 128 mm
Half duplex: Yes
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-TX, 10BASE-T, 100BASE-FX, 1000BASE-TX, 100BASE-TX
VLAN support: No
Auto MDI/MDI-X: Yes
Full duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
10G support: No
Flow control support: Yes
Package height: 165 mm
Package weight: 558.333 g
Package depth: 54 mm
Package volume: 1202.85 cm³
Package width: 135 mm
Manual: Yes
Gigabit Ethernet (copper) ports quantity: 4
Uplink ports quantity: 1

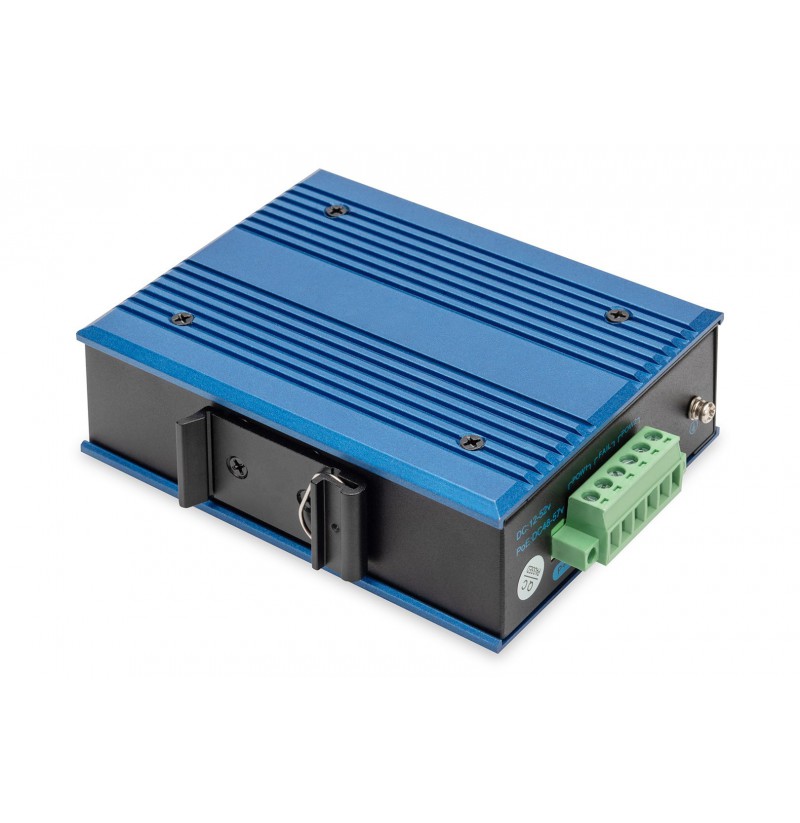

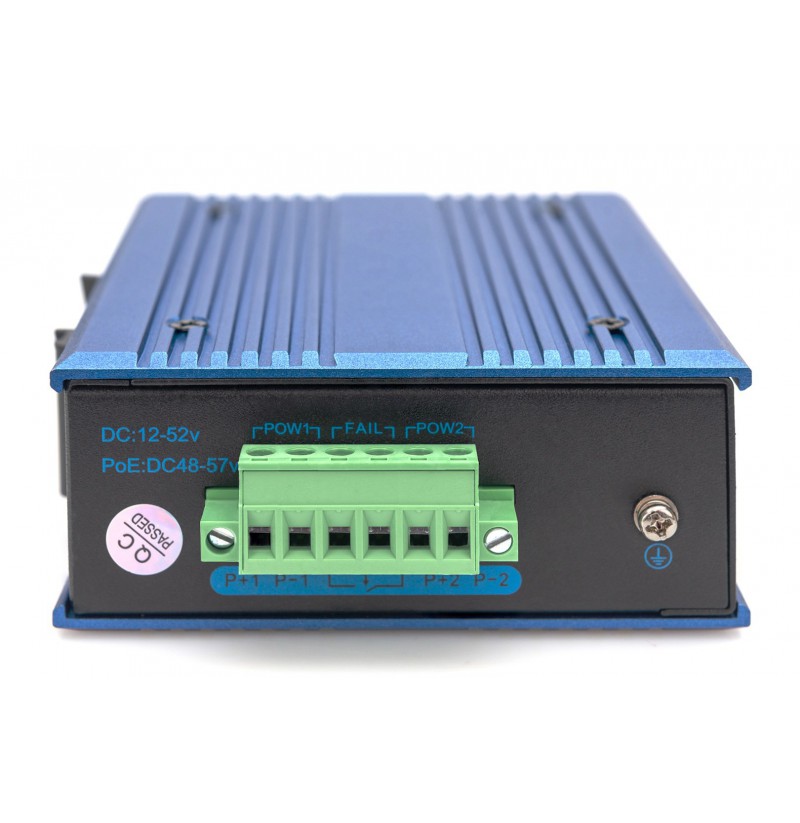

Power connector: Terminal block (6-pin)

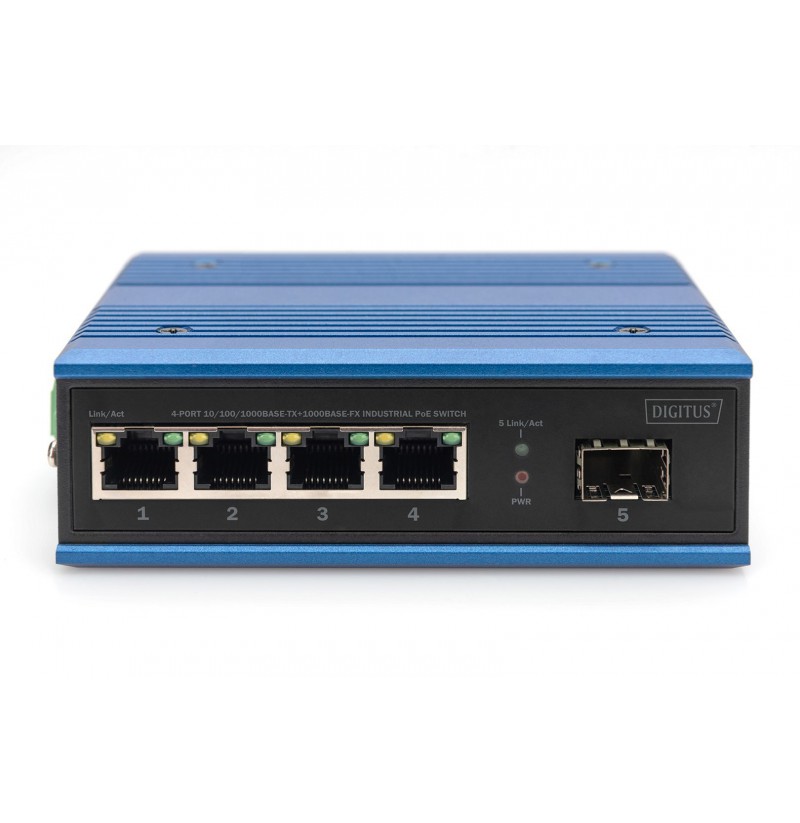

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Bandwidth: 14 Gbit/s
Ethernet interface type: Gigabit Ethernet
UK Trade Tariff code: 85176200
Country of origin: China
Forwarding rate: 10.5 Mpps
Switching capacity: 1 Gbit/s
MAC address table: 2000 entries
Packet buffer memory: 1.2 MB
Total Power over Ethernet (PoE) budget: 30 W
Power over Ethernet (PoE): No
