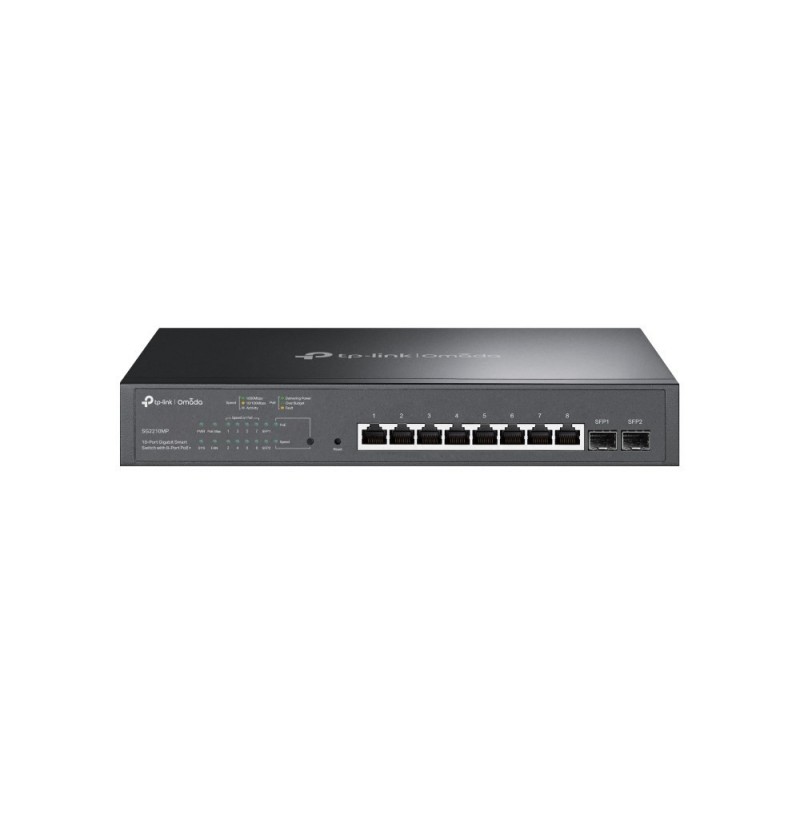

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Product colour: Black
Rack mounting: Yes
Form factor: 1U
Number of fans: 1 fan(s)
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 173.9 W
Power supply included: Yes
Power source: AC
SSH/SSL support: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
IGMP snooping: Yes
Access Control List (ACL): Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping, DHCPv6 client
Security algorithms: EAP-MD5, HTTPS, SNMPv2, EAP-TLS, SNMP, SSL/TLS, EAP-TTLS, EAP-LEAP, SNMPv3, SSH, SSH-2
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 594.46 BTU/h
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 5 - 90%
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
System event log: Yes
Cloud-managed: Yes
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2/L2+
Switch type: Managed
Depth: 180 mm
Height: 44 mm
Width: 294 mm
Rate limiting: Yes
Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Multicast VLAN, Voice VLAN
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Networking standards: IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3i, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u
VLAN support: Yes
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX
10G support: No
Port mirroring: Yes
Number of VLANs: 4000
Management protocols: SNMPv1/v2c/v3, SNTP
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Number of queues: 8
Forwarding rate: 14.9 Mpps
Jumbo frames: 9000
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Jumbo frames support: Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 150 W
Multicast support: Yes
Fiber ethernet cabling technology: 1000BASE-X, 100BASE-FX
