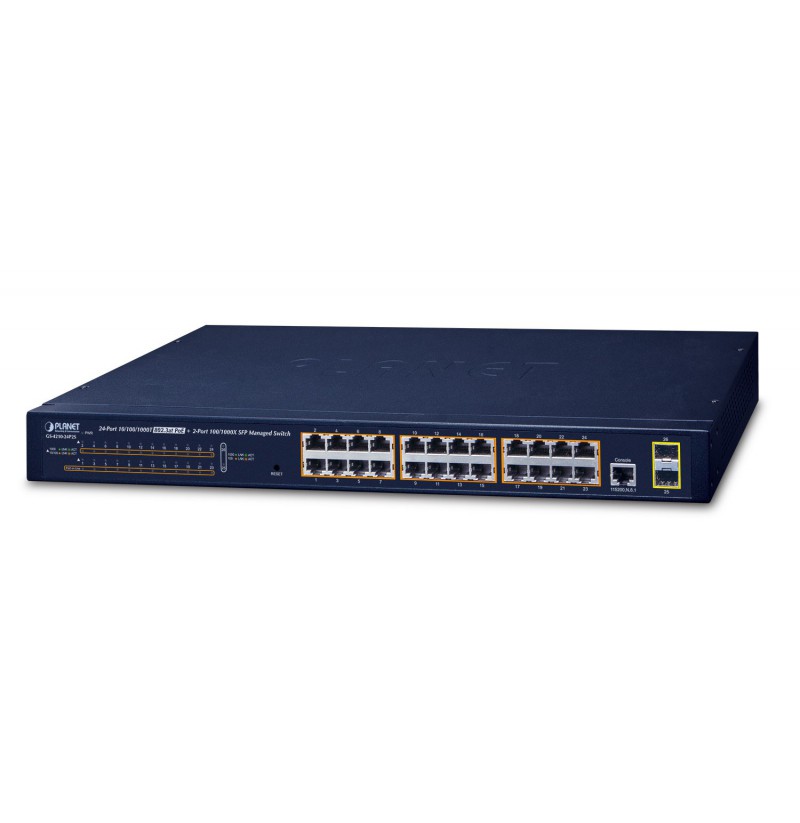

PLANET GS-4210-24P2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue

Certification: FCC Part 15 Class A, CE
Housing material: Metal
Number of fans: 2 fan(s)
Rack mounting: Yes
Form factor: 1U
Reset button: Yes
LED indicators: Yes
Product colour: Blue
Power supply included: No
Power consumption (max): 330 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Input current: 4 A
Access Control List (ACL): Yes
MAC address filtering: Yes
IGMP snooping: Yes
BPDU filtering/protection: Yes
Authentication: Port-based authentication
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 5 - 95%
Heat dissipation: 1122 BTU/h
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
System event log: Yes
Traffic classification: Yes
Web-based management: Yes
Switch layer: L2/L4
Switch type: Managed
Quality of Service (QoS) support: Yes
Height: 45 mm
Weight: 2.8 kg
Depth: 207 mm
Width: 445 mm
Virtual LAN features: Protocol-based VLAN, Tagged VLAN
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.1ab
Link aggregation: Yes
Spanning tree protocol: Yes
Full duplex: Yes
Broadcast storm control: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support: Yes
Auto MDI/MDI-X: Yes
Port mirroring: Yes
10G support: No
Number of VLANs: 4094
Flow control support: Yes
Supported network protocols: IPv4 / IPv6
Management protocols: web, Telnet, SNMP v1/v2c/v3
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 24
Console port: RJ-45
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Harmonized System (HS) code: 85176990
Jumbo frames: 9216
Jumbo frames support: Yes
Throughput: 38.6 Mpps
Switching capacity: 52 Gbit/s
Store-and-forward: Yes
Number of queues: 8
MAC address table: 8000 entries
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 300 W
Power over Ethernet (PoE): Yes
Multicast support: Yes
Fiber ethernet cabling technology: 1000BASE‑LX, 1000BASE‑SX
