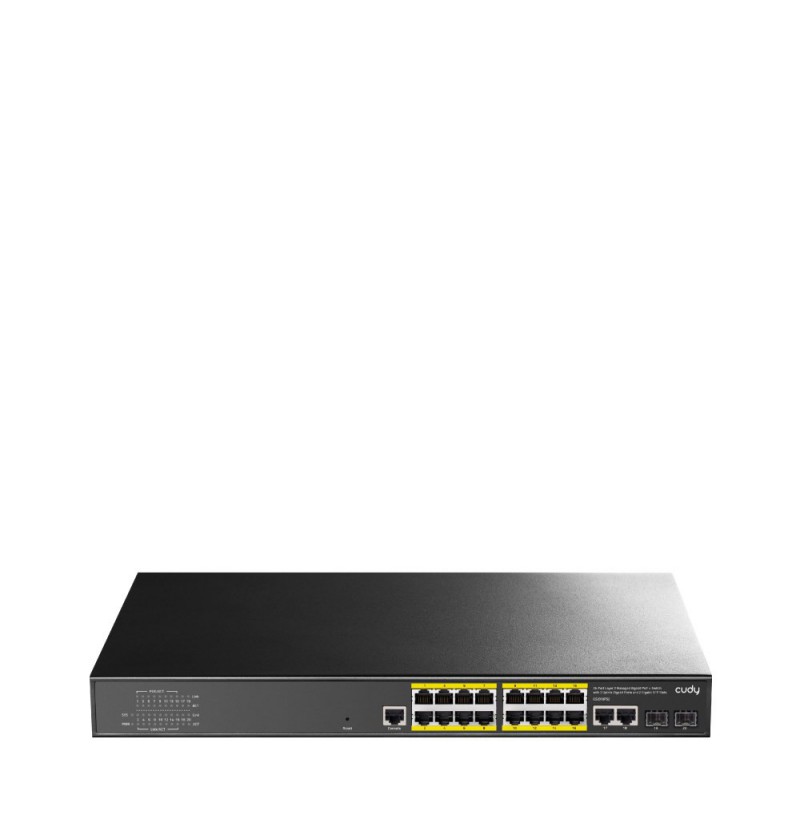

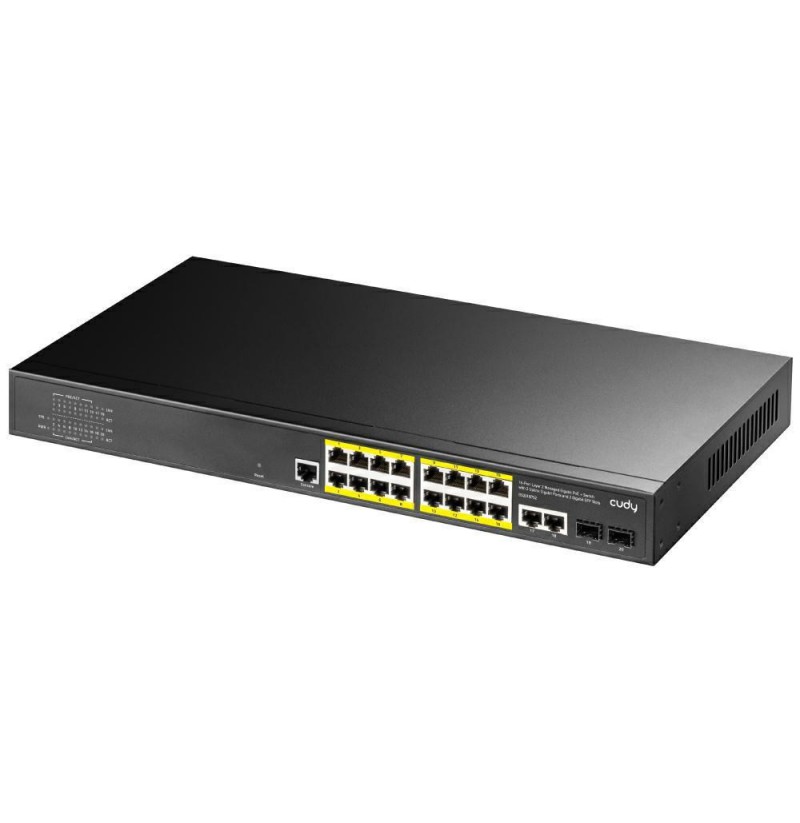

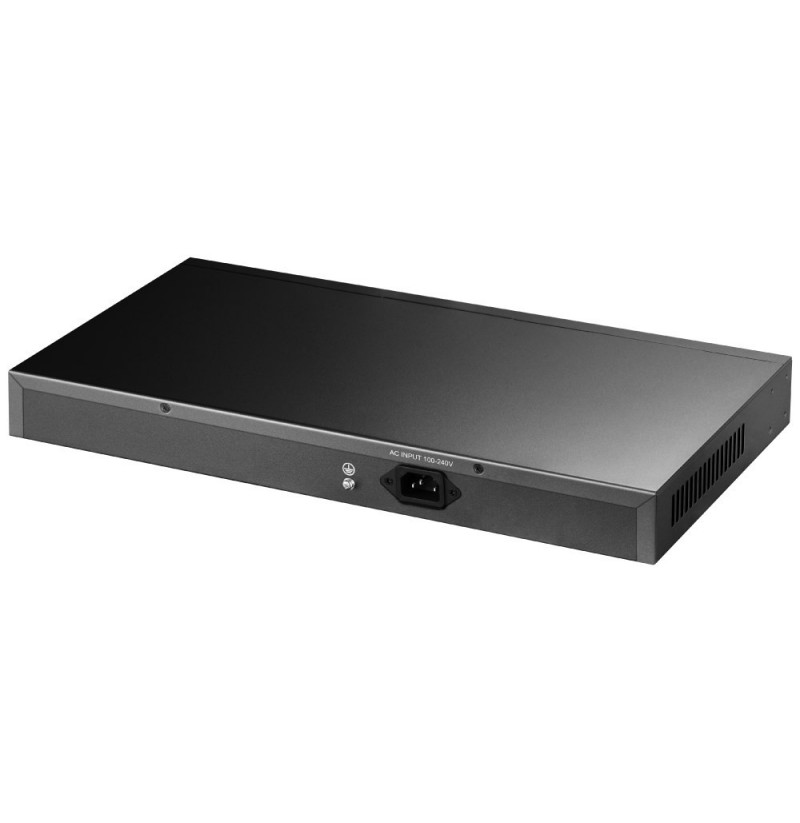

Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black Padidinti

Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

241,61 €

6971690790394

Galimas pasirinkimas

 pristatymas 7...9 d.d.


LED indicators: System, Power, PoE, Activity, Link
Product colour: Black
Form factor: 1U
Rack mounting: Yes
Reset button: Yes
Surge protection: Yes
AC input frequency: 50/60 Hz
Surge protection voltage: 15 kV
AC input voltage: 100 - 240 V
Power source: AC
Queue scheduling algorithms: PQ + WRR
Packet filtering: Y
Password protection: Yes
Security algorithms: SSH-2, SSH, HTTPS
BPDU filtering/protection: Yes
IGMP snooping: Yes
MAC address entries: Dynamic MAC address entries, Static MAC address entries
IP-MAC-Port binding: Yes
Authentication type: IEEE 802.1x, RADIUS
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -20 - 50 °C
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 3048 m
Storage relative humidity (H-H): 5 - 90%
Switch type: Managed
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
Web-based management: Yes
Switch layer: L2
Virtual LAN features: Port-based VLAN, Voice VLAN, MAC address-based VLAN
Ethernet Ring Protection Switching (ERPS): Yes
Flow control support: Yes
Number of VLANs: 4096
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
10G support: No
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Link aggregation: Yes
MAC address auto-learning supported: Yes
VLAN support: Yes
MAC address auto-aging supported: Yes
Spanning tree protocol: Yes
Rate limiting: Yes
Networking standards: IEEE 802.3af, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3i, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.1x, IEEE 802.3u
Port mirroring: Yes
Fast leave: Yes
Internal memory: 128 MB
Flash memory: 16 MB
Mean time between failures (MTBF): 50000 h
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: HTTP, HTTPS, Telnet, SSH V1/V2, SNMP V1/V2/V3, RMON V2
Basic switching RJ-45 Ethernet ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 16
Console port: RJ-45
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Uplink ports quantity: 2
Number of queues: 8
Jumbo frames: 9600
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4 MB
Switching capacity: 40 Gbit/s
Forwarding rate: 19.76 Mpps
Total Power over Ethernet (PoE) budget: 200 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) ports quantity: 16
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: v1/v2
Multicast features: Multicast traffic suppression
Fiber ethernet cabling technology: 1000BASE-X
