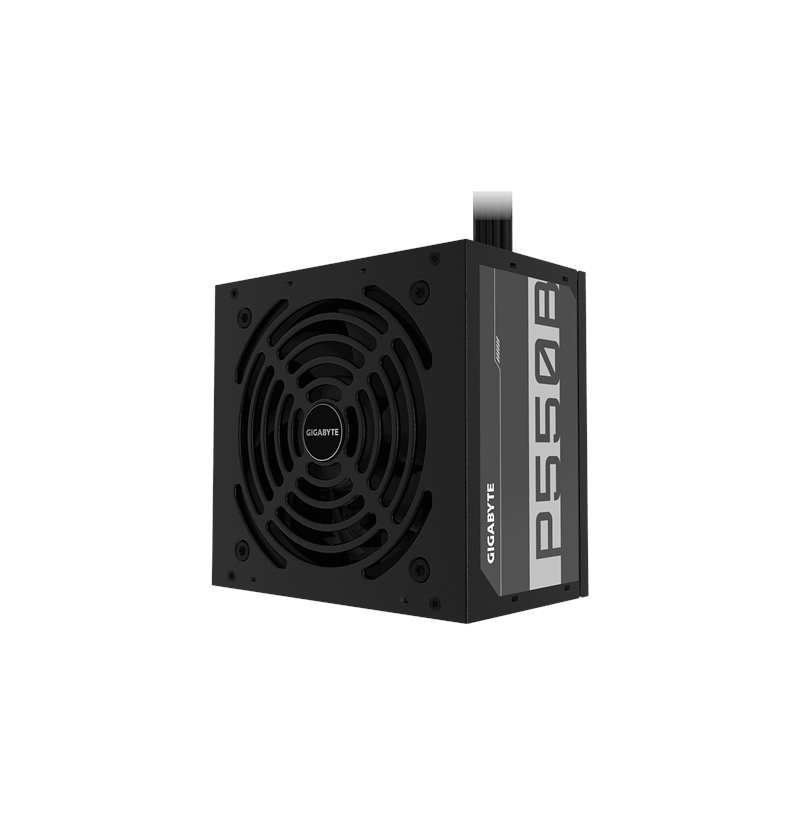

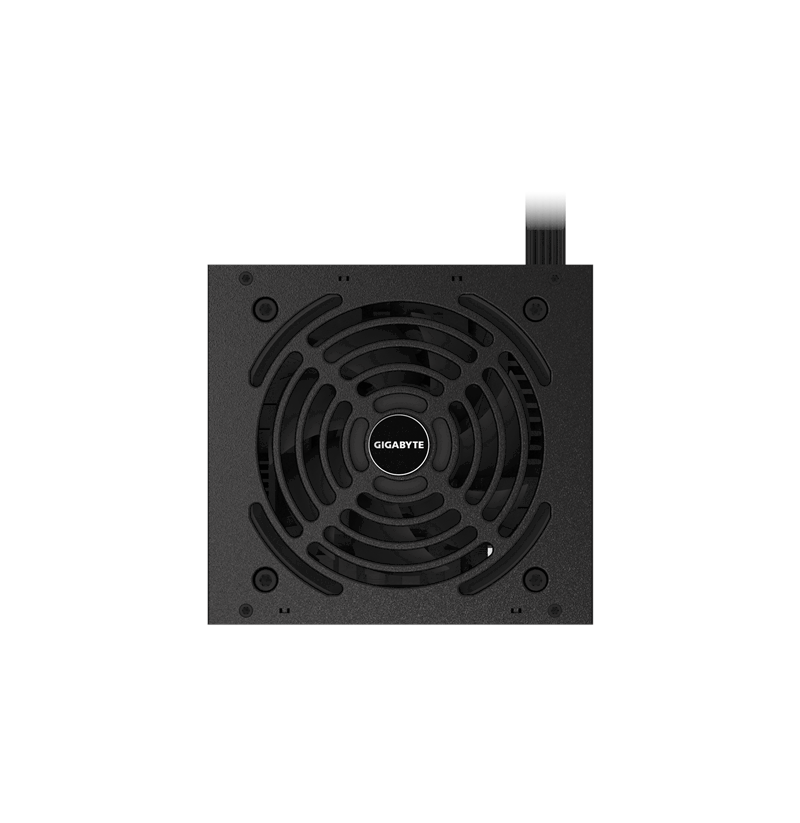

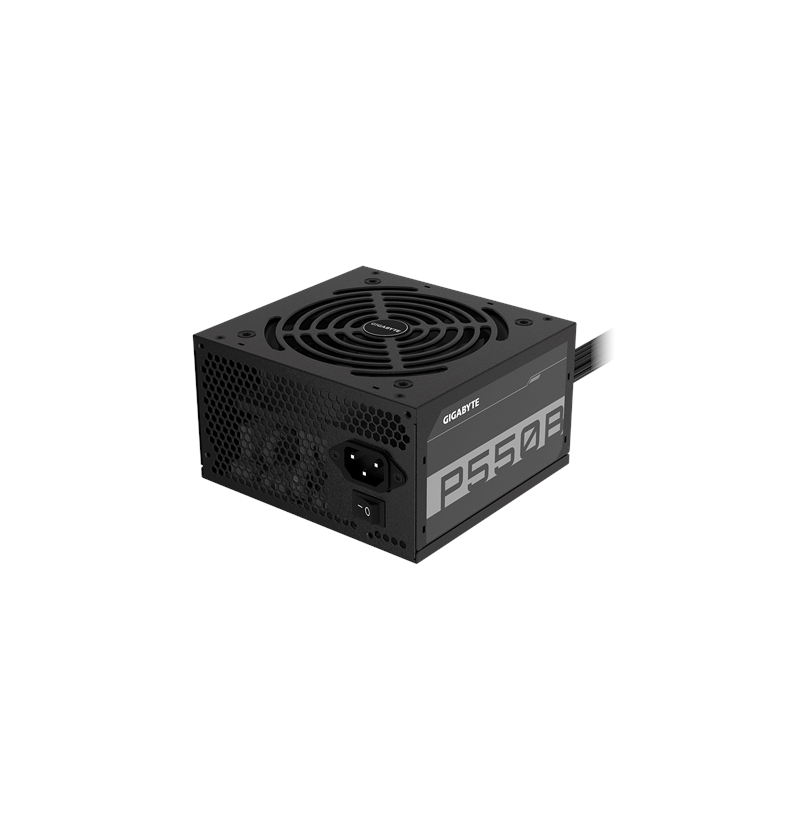

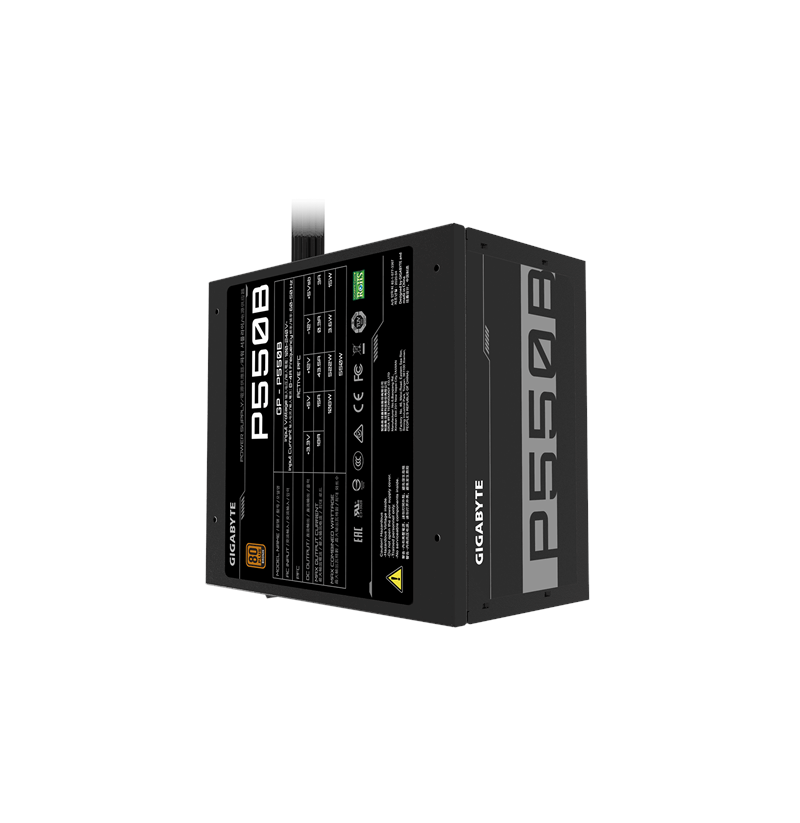

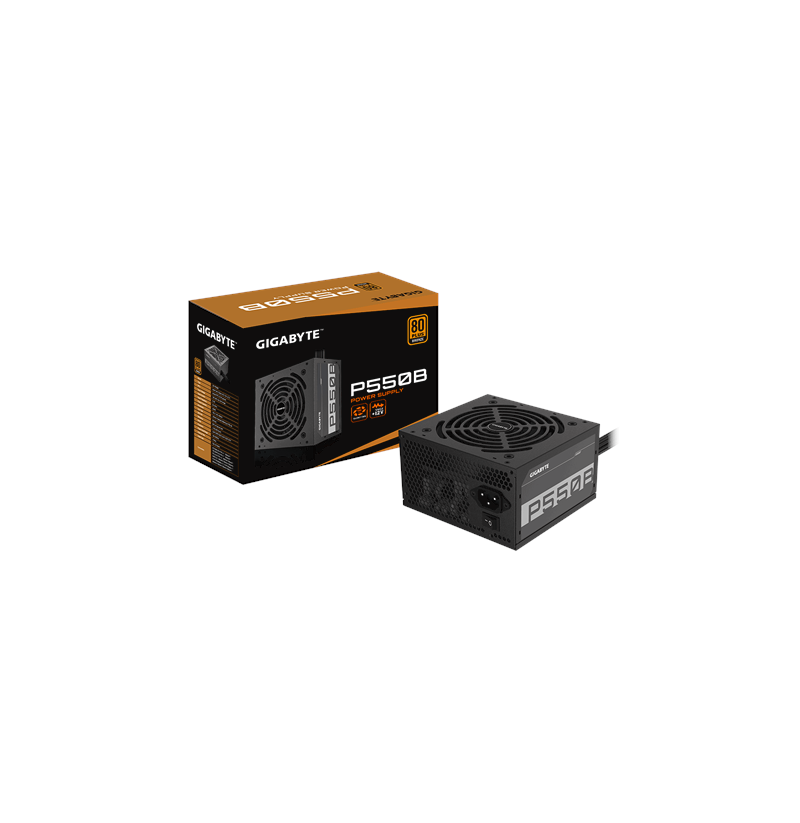

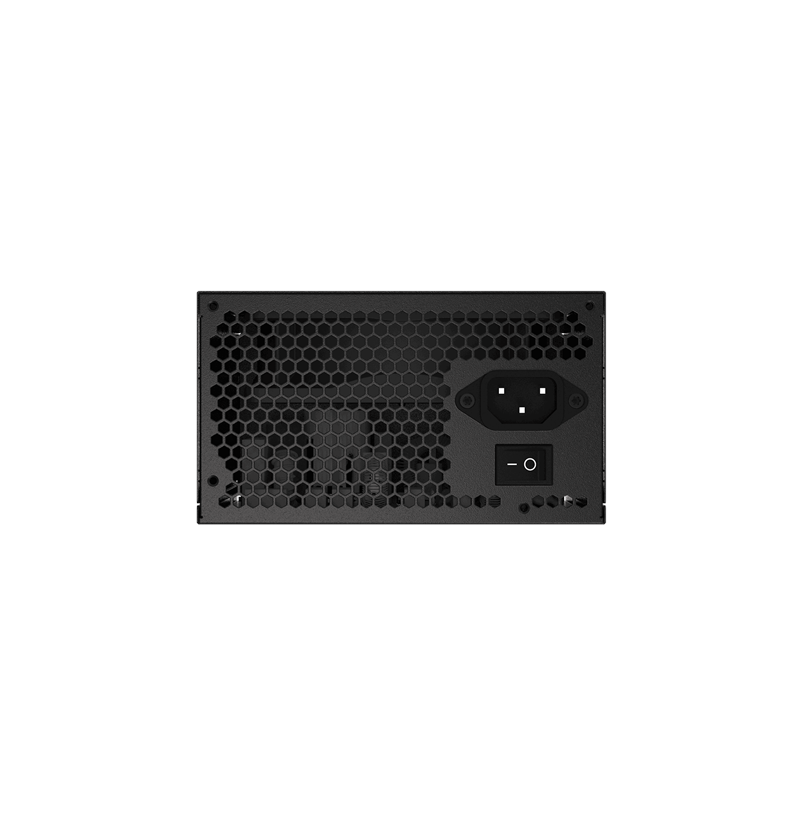

Gigabyte | GP-P550B | 550 W | 80 PLUS Bronze certified

Product colour: Black
Fan location: Top
Cooling type: Active
On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Max output current (+3.3V): 18 A
Combined power (+5V): 108 W
Combined power (-12V): 3.6 W
Hold time: 16 ms
Power Factor Correction (PFC) type: Active
AC input voltage: 100 - 240 V
Max output current (+5V): 15 A
Input current: 8 - 4 A
Combined power (+12V): 522 W
Efficiency: 85%
Combined power (+3.3V): 108 W
Total power: 550 W
Power factor: 0.9
Max output current (+12V): 43.5 A
Combined power (+5Vsb): 15 W
Max output current (-12V): 0.3 A
AC input frequency: 50 - 60 Hz
Max output current (+5Vsb): 3 A
Power protection features: Short circuit, Under voltage, Over current, Over voltage, Over power, Overheating
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
ATX version: 2.31
PCI Express connector: Yes
Floppy disk drive connector: Yes
SATA power cable length: 500
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 500
ATX power connector (20+4 pin): Yes
PCI Express power cable length: 55 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
CPU power cable length: 60 cm
Floppy drive power connector: 1
Motherboard power connector: 20+4 pin ATX
Harmonized System (HS) code: 84733020
