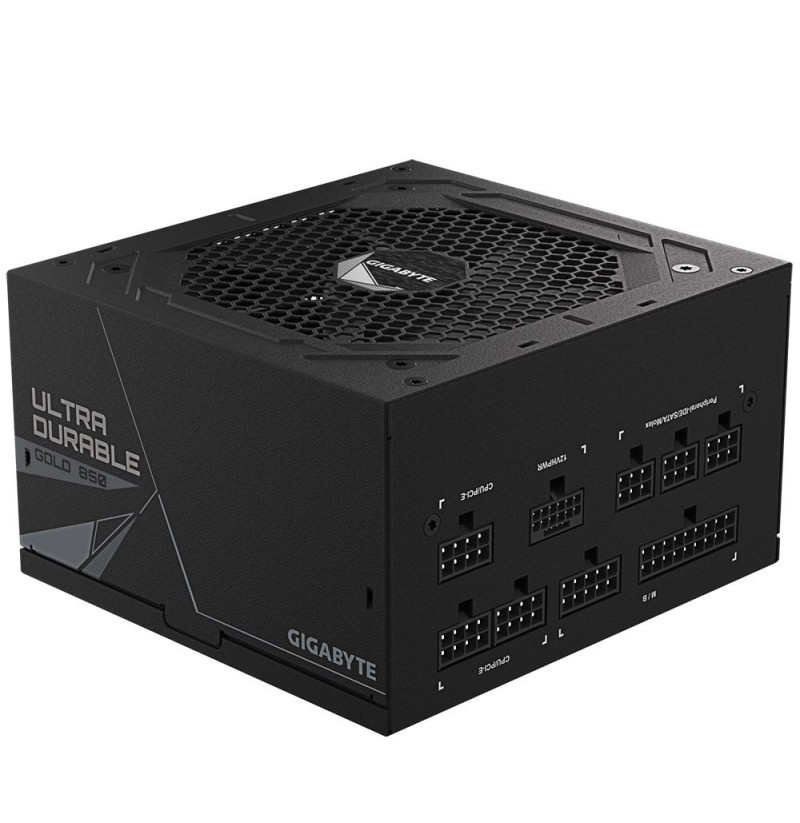

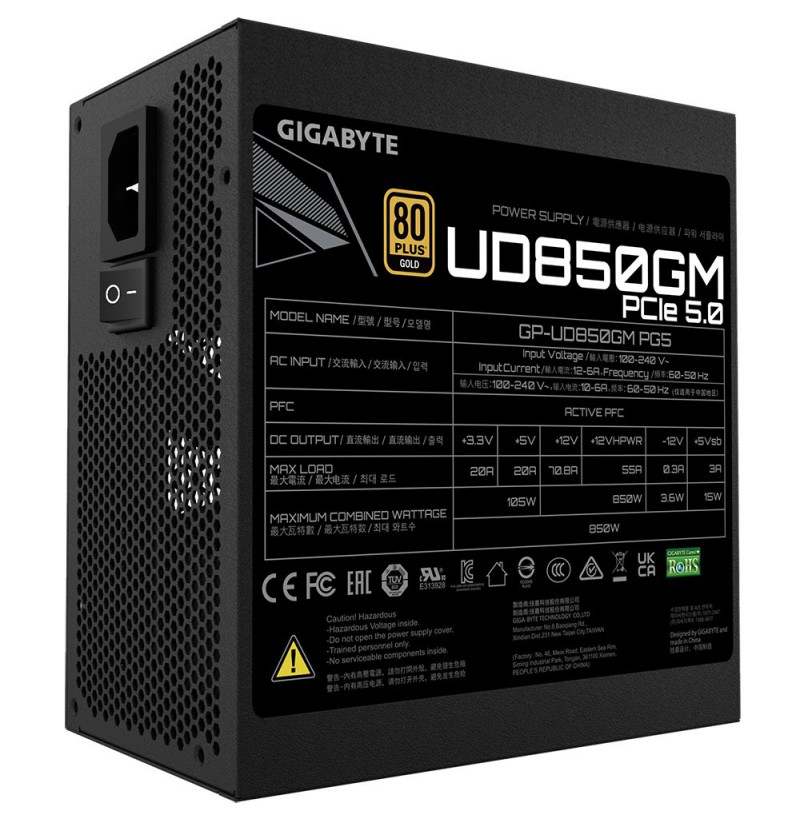

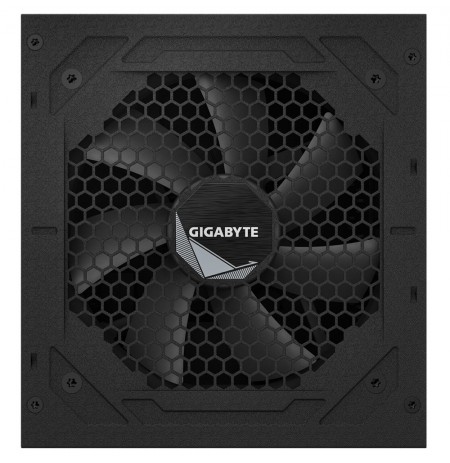

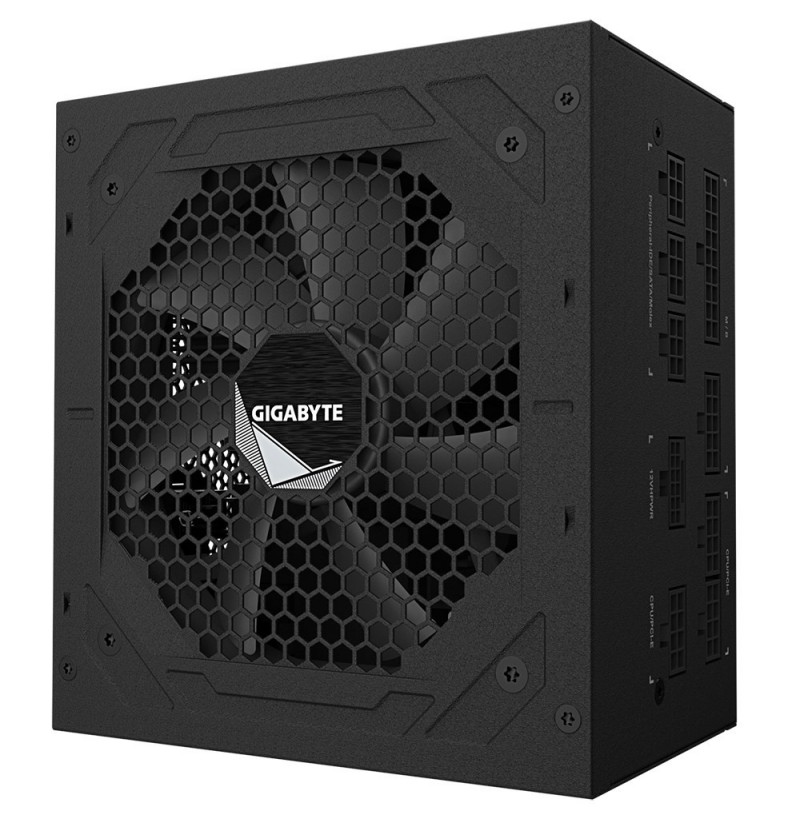

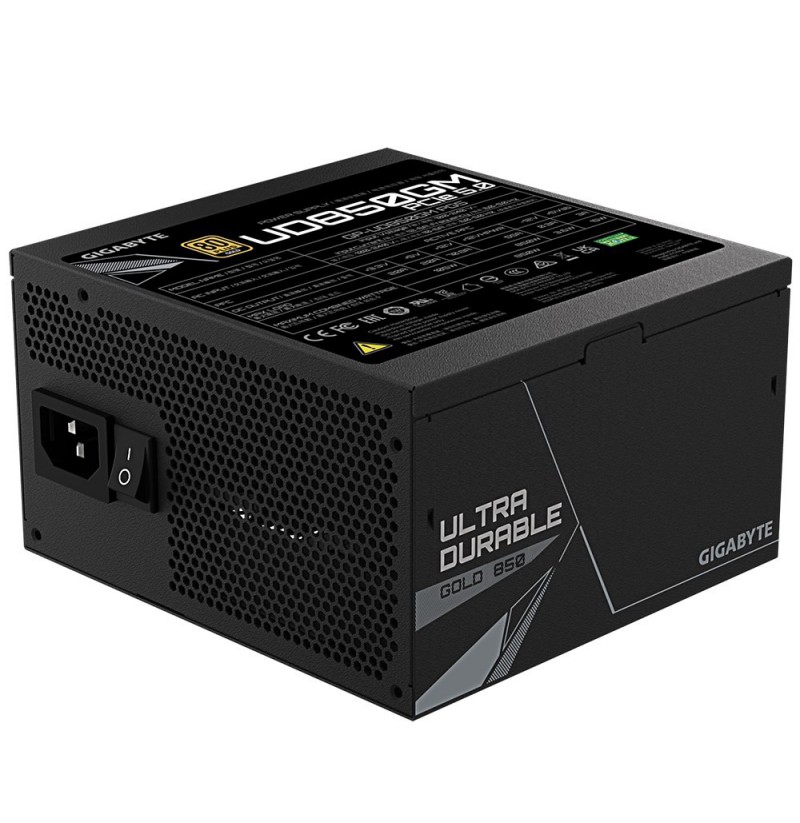

Power supply Gigabyte GP-UD850GM PG5 850W 80+ Gold Padidinti

GIGABYTE GP-UD850GM PG5 V2 850W PSU

108,54 €

4719331553104

Galimas pasirinkimas

 3..5 d.d.


Product colour: Black
Illumination: No

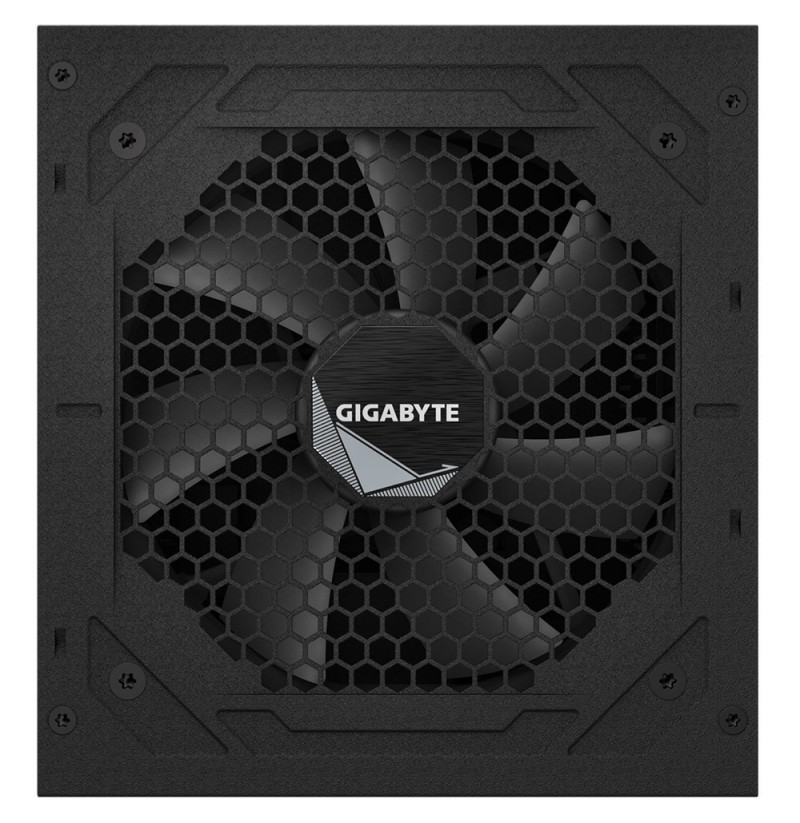

Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
Cooling type: Active
Total power: 850 W
Combined power (+5V): 105 W
Hold time: 16 ms
Combined power (+12V): 850 W
Max output current (-12V): 0.3 A
Combined power (+3.3V): 105 W
Power protection features: Under voltage, Over current, Overheating, Over power, Short circuit, Over voltage
Combined power (-12V): 3.6 W
AC input frequency: 50 - 60 Hz
Max output current (+12V): 70.8 A
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 15 W
Input current: 12 - 6 A
AC input voltage: 100 - 240 V
Max output current (+5V): 20 A
Efficiency: 90%
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
Maximum input current (@110V): 6 A
Maximum input current (@220V): 12 A
Width: 150 mm
Height: 85 mm
Depth: 140 mm
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Noise level: 40 dB
Purpose: PC

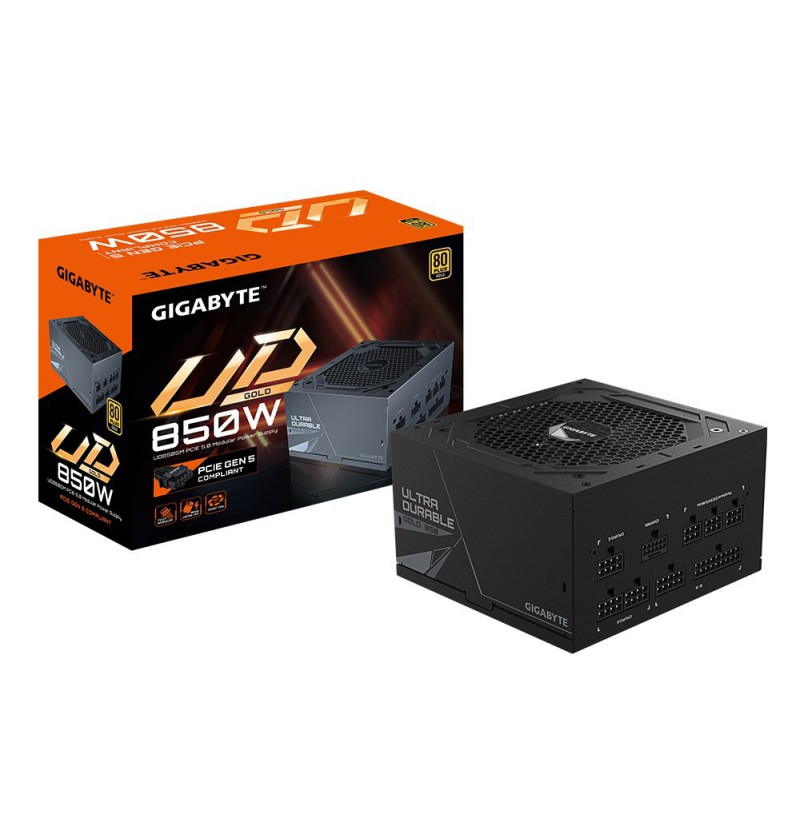

Package type: Box

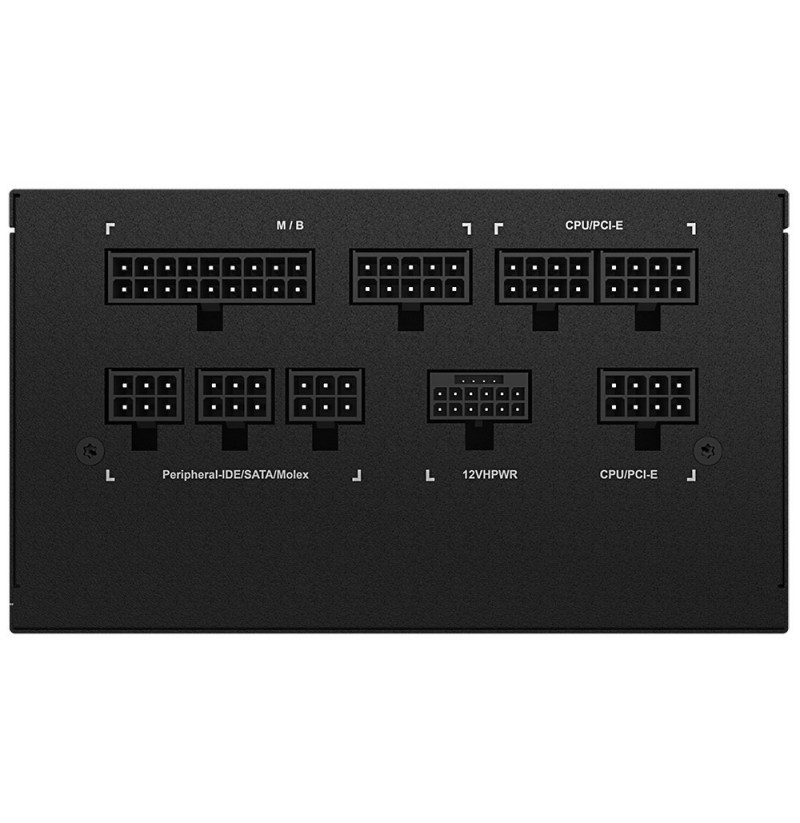

Cables included: CPU, PATA, Peripheral (Molex), SATA
Cable tie(s) included: Yes
Compliance certificates: Federal Communications Commission (FCC), RoHS, CE, CCC
Cabling type: Fully-Modular
PCI Express power cable length: 70 cm
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 8
SATA power cable length: 150, 600
PCI Express connector: Yes
Number of PATA power connectors: 3
Peripheral (Molex) power cable length: 200, 600
Motherboard power cable length: 61 cm
PCI Express power connectors (16-pin): 1
Warranty period: 5 year(s)
