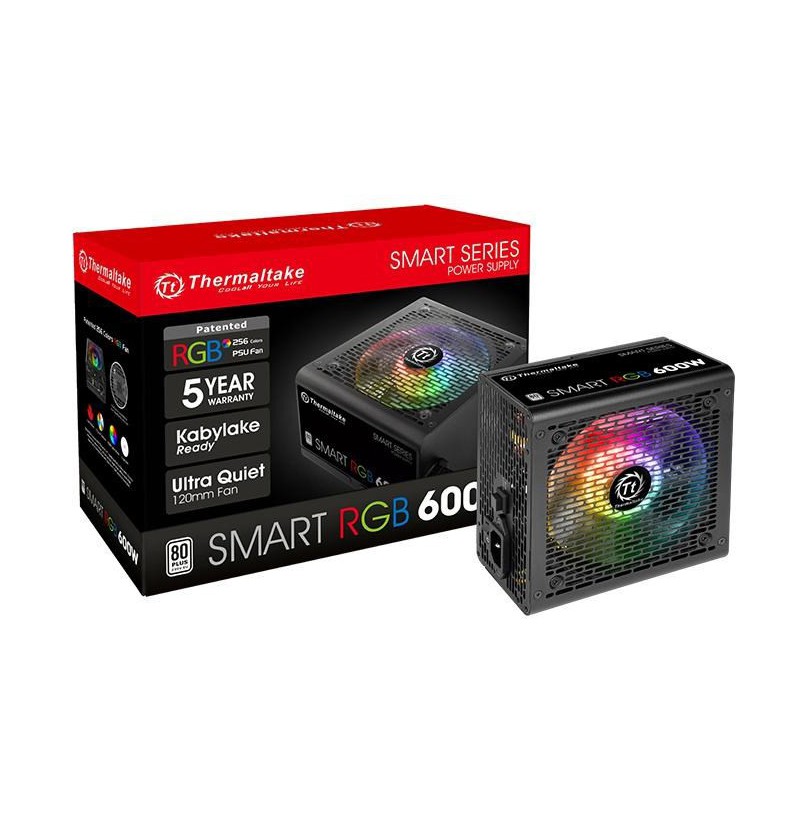

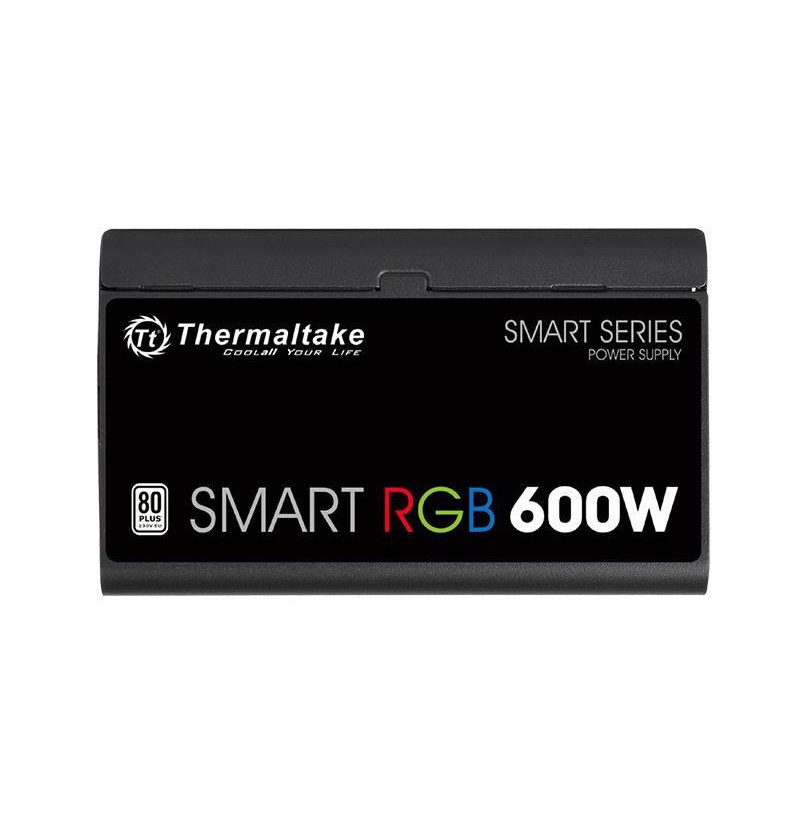

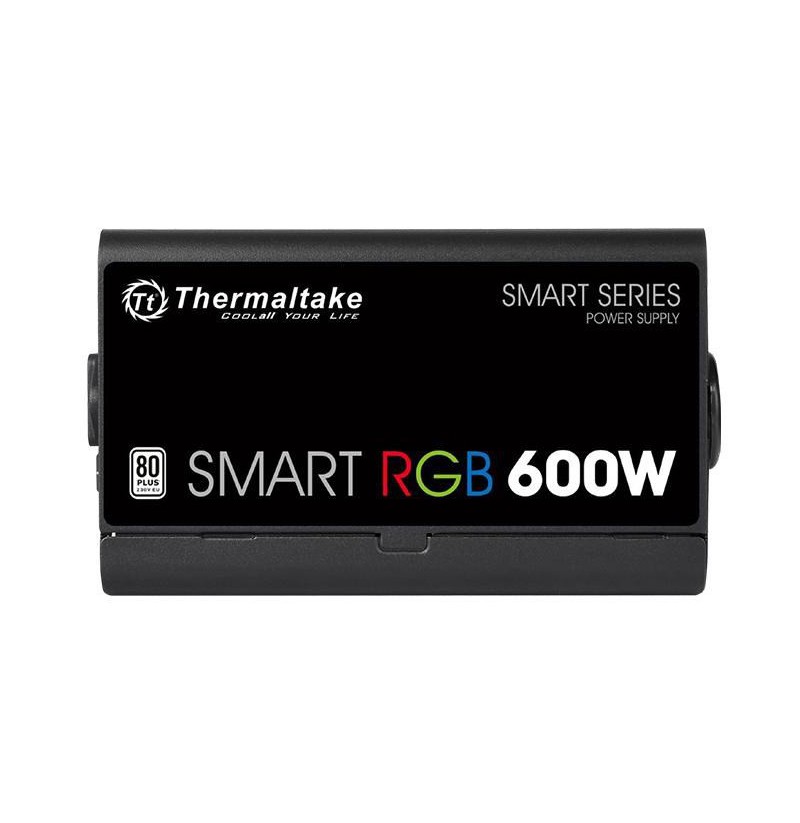

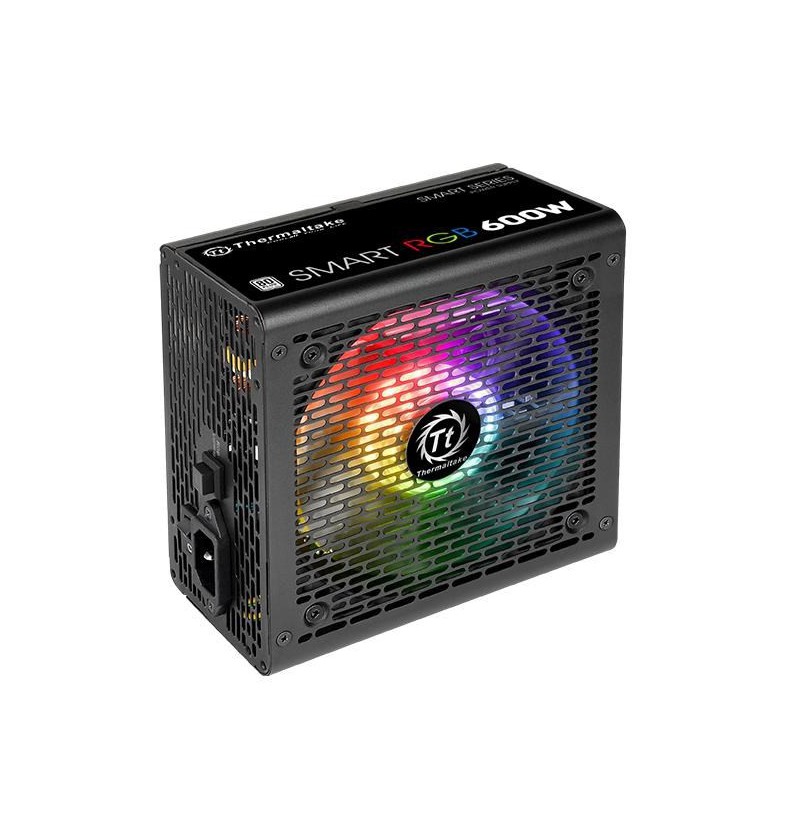

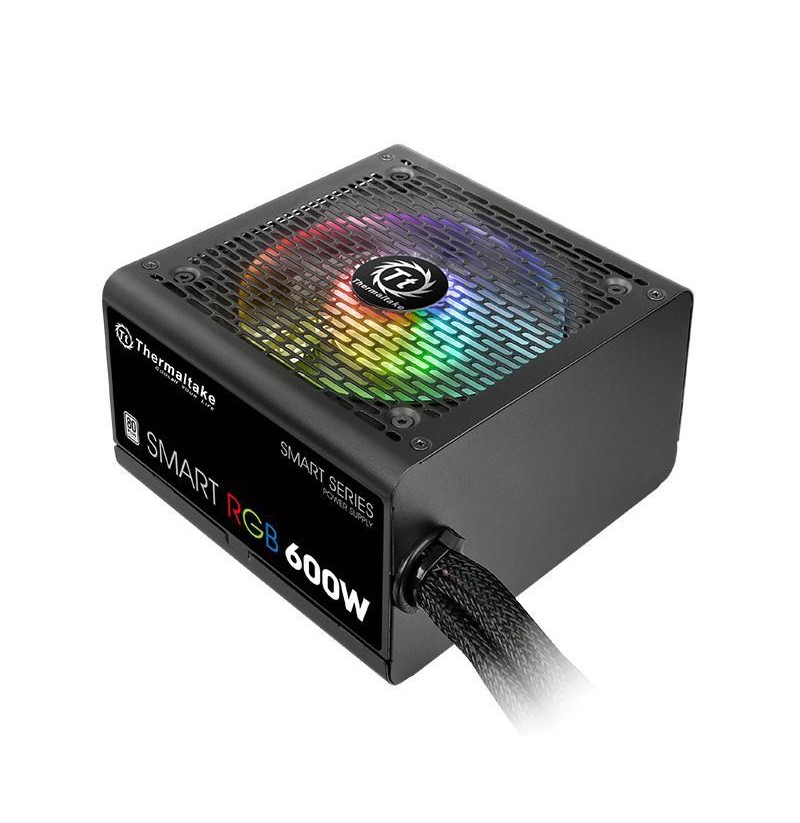

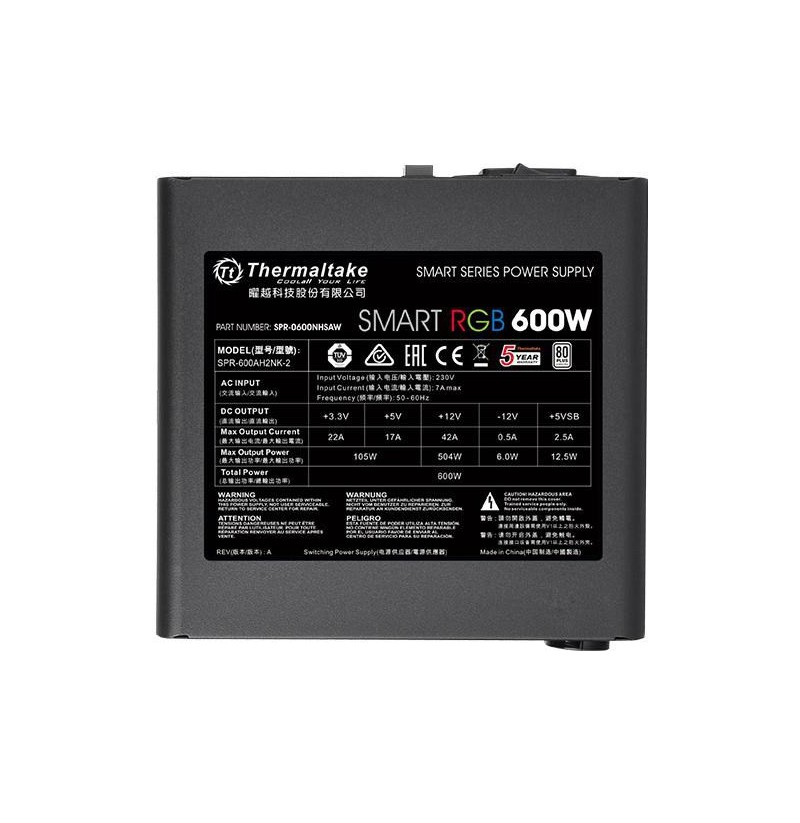

Power supply Thermaltake Smart 600W RGB PS-SPR-0600NHSAWE-1 (600 W, Active, 120 mm)

Fan location: Top
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Black
Cooling type: Active
Illumination: Yes
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Combined power (+5V): 105 W
Max output current (+5V): 17 A
Max output current (+3.3V): 22 A
Hold time: 16 ms
Combined power (-12V): 6 W
Combined power (+12V): 504 W
Max output current (+12V): 42 A
Power Good signal delay range: 100 - 500 ms
Max output current (-12V): 0.5 A
Efficiency: 86%
Total power: 600 W
Input current: 7 A
AC input voltage: 230 V
AC input frequency: 50 - 60 Hz
Storage temperature (T-T): -40 - 55 °C
Operating temperature (T-T): 5 - 40 °C
Storage relative humidity (H-H): 10 - 95%
Operating relative humidity (H-H): 20 - 85%
Height: 86 mm
Depth: 140 mm
Width: 150 mm
ATX version: 2.3
80 PLUS certification: 80 PLUS
Noise level: 28.1 dB
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
Package type: Box
Floppy drive power connector: 1
CPU power cable length: 55 cm
Motherboard power cable length: 50 cm
ATX power connector (20+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
PCI Express connector: Yes
Number of SATA power connectors: 5
CPU power connector (4+4 pin): Yes
Floppy disk drive cable length: 10 cm
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
Floppy disk drive connector: Yes
Peripheral (Molex) power connectors (4-pin): 4
Illumination colour: Multi
Harmonized System (HS) code: 84733020
Safety: CE/CB/TUV/ EAC
