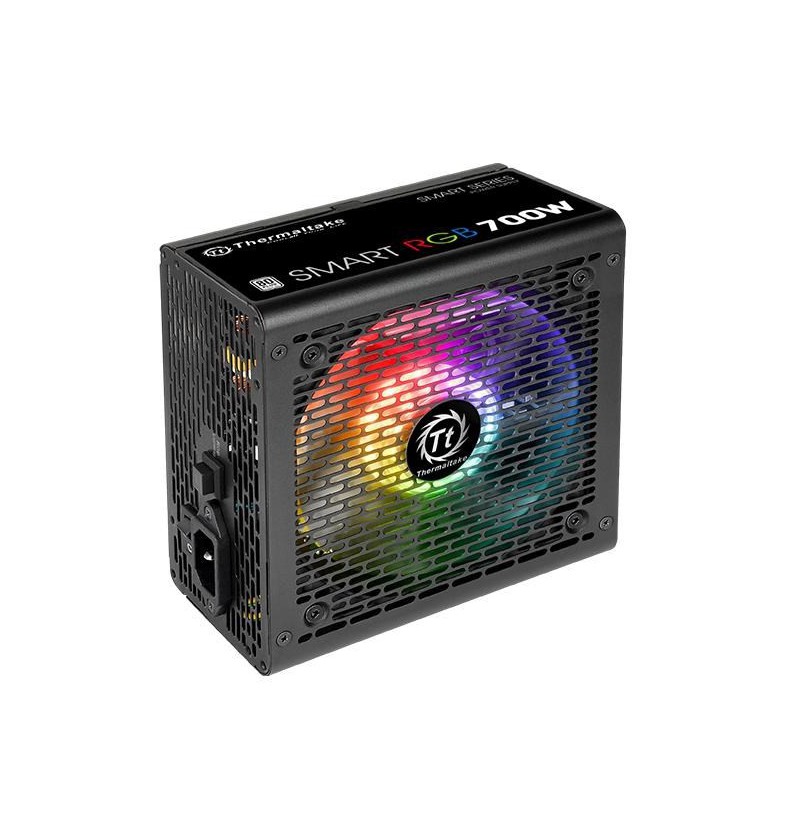

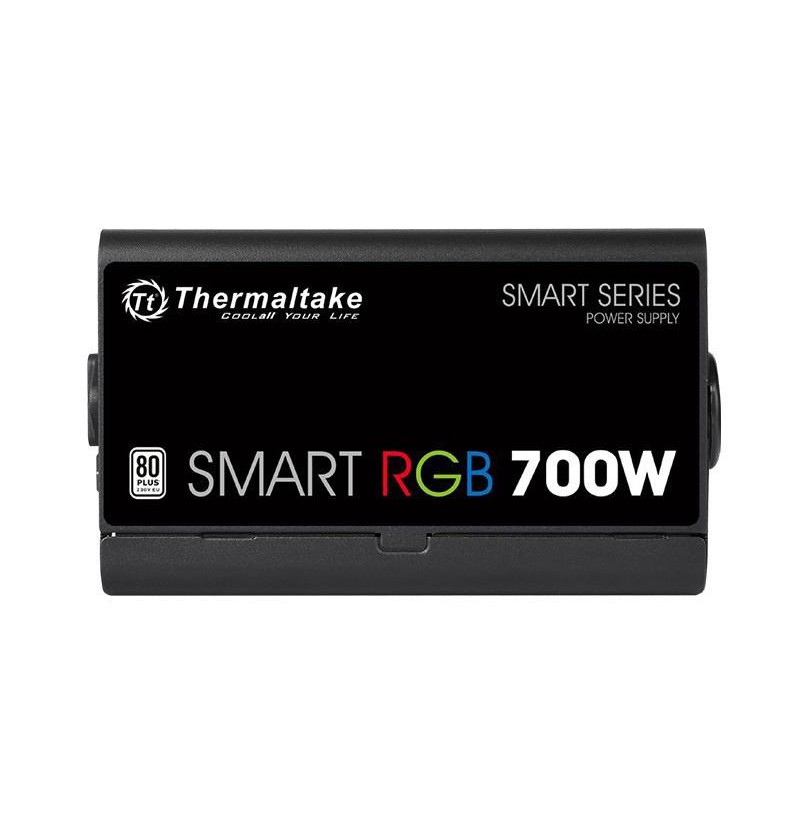

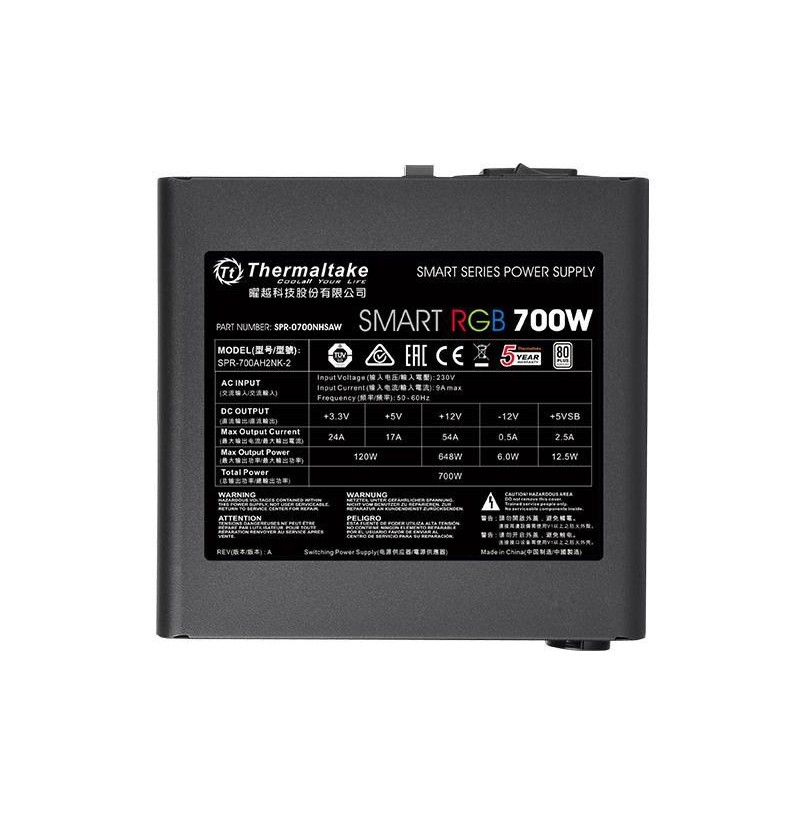

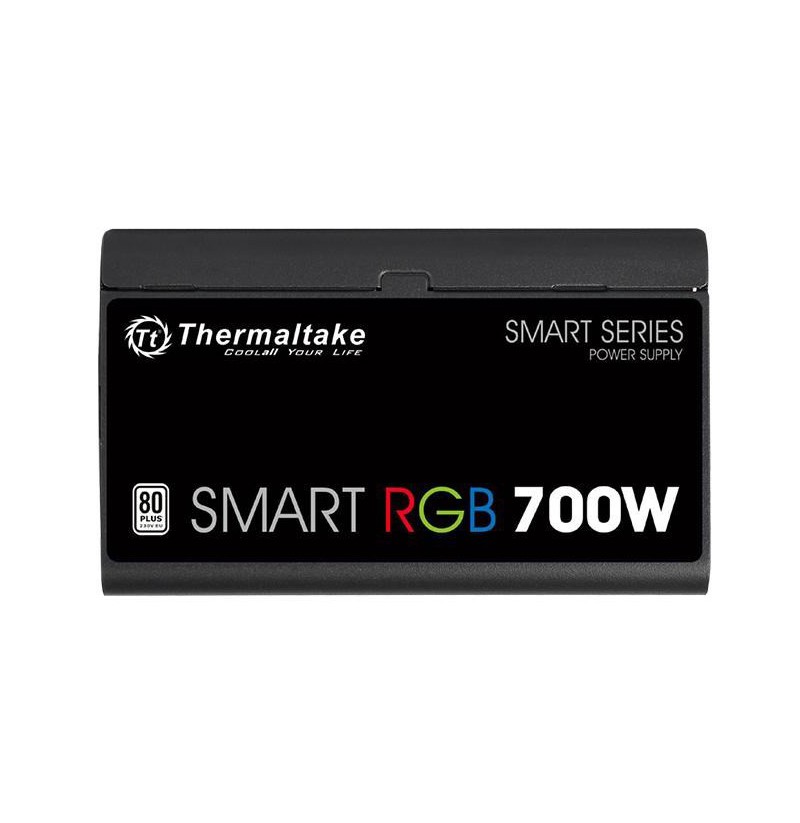

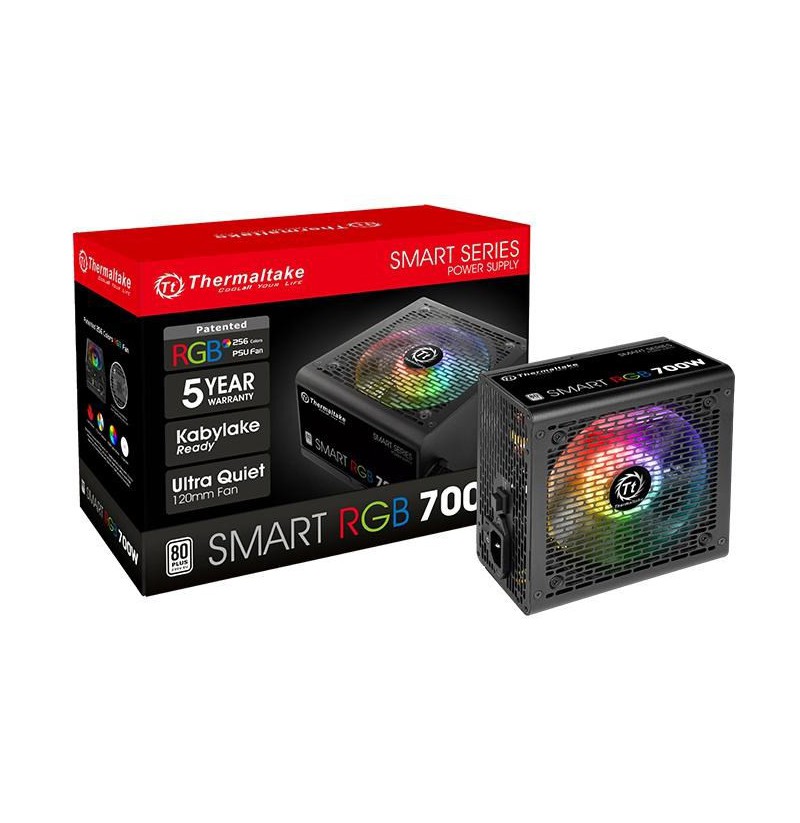

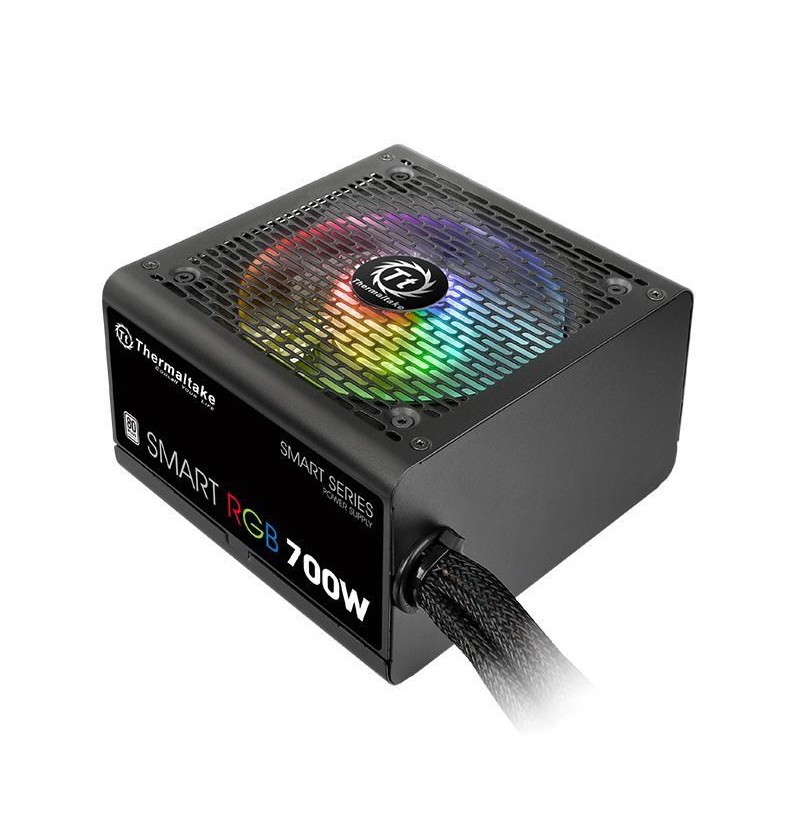

PSU Thermaltake Smart 700W RGB 80+

Fan location: Top
Cooling type: Active
Illumination: Yes
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
AC input voltage: 230 V
Input current: 9 A
Efficiency: 86%
Total power: 700 W
Max output current (-12V): 0.5 A
Combined power (+3.3V): 120 W
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 2.5 A
Combined power (+5V): 120 W
Combined power (+12V): 648 W
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 6 W
Hold time: 16 ms
Max output current (+5V): 17 A
Max output current (+3.3V): 24 A
Max output current (+12V): 54 A
Power Good signal delay range: 100 - 500 ms
AC input frequency: 50 - 60 Hz
Storage relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 55 °C
Operating temperature (T-T): 5 - 40 °C
Operating relative humidity (H-H): 20 - 85%
80 PLUS certification: 80 PLUS
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
Noise level: 28.1 dB
Purpose: PC
Package type: Box
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 5
Cabling type: Non-Modular
Number of SATA power connectors: 6
Floppy disk drive connector: Yes
PCI Express connector: Yes
Motherboard power cable length: 50 cm
CPU power cable length: 55 cm
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive cable length: 10 cm
Motherboard power connector: 20+4 pin ATX
Illumination colour: Multi
Harmonized System (HS) code: 84733020
Safety: CE/CB/TUV/ EAC
