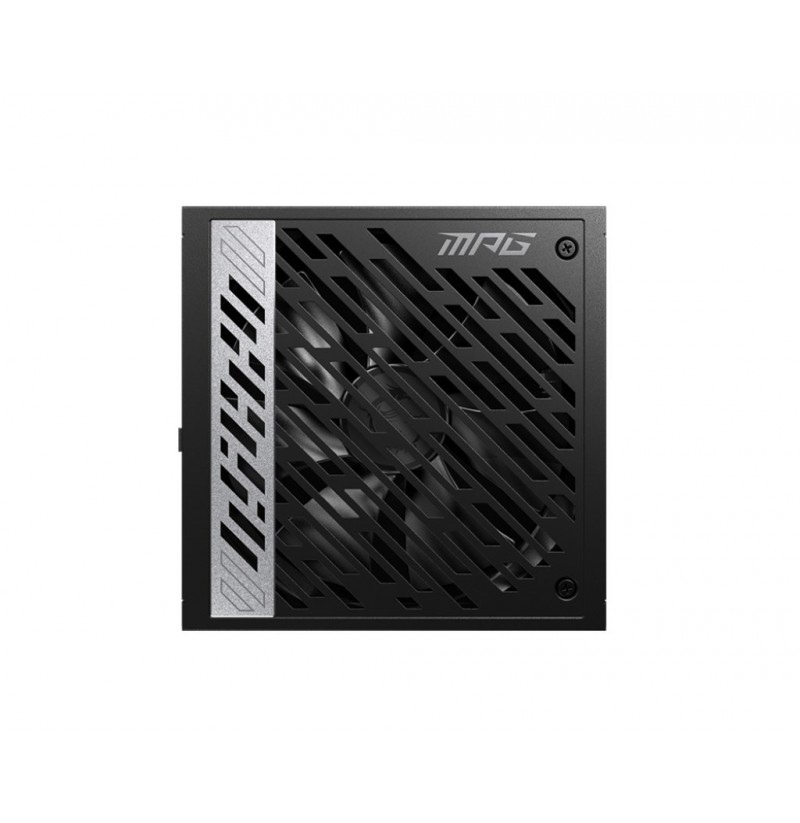

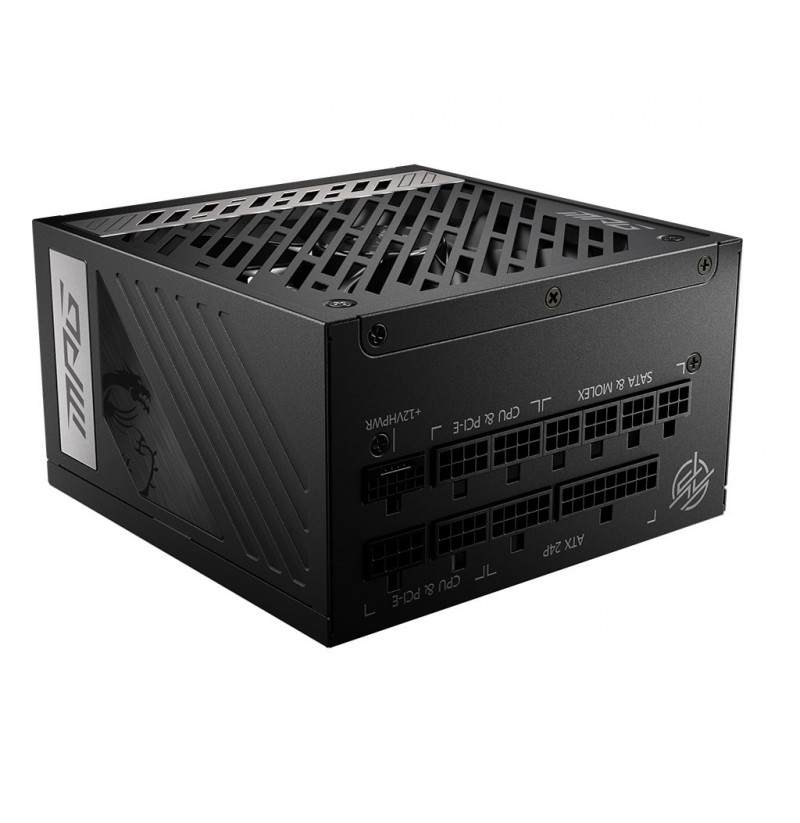

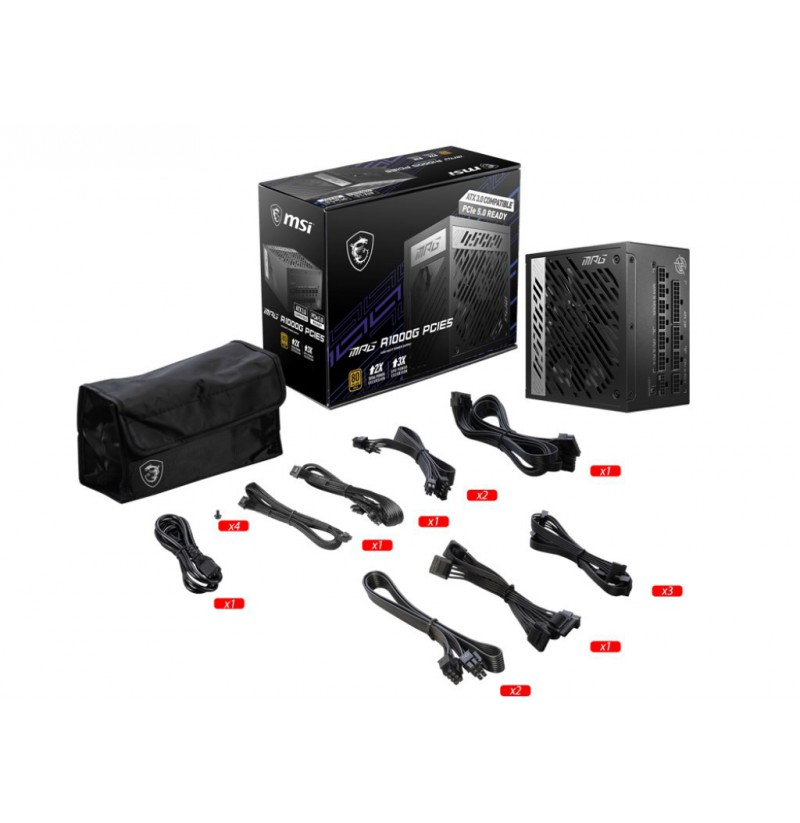

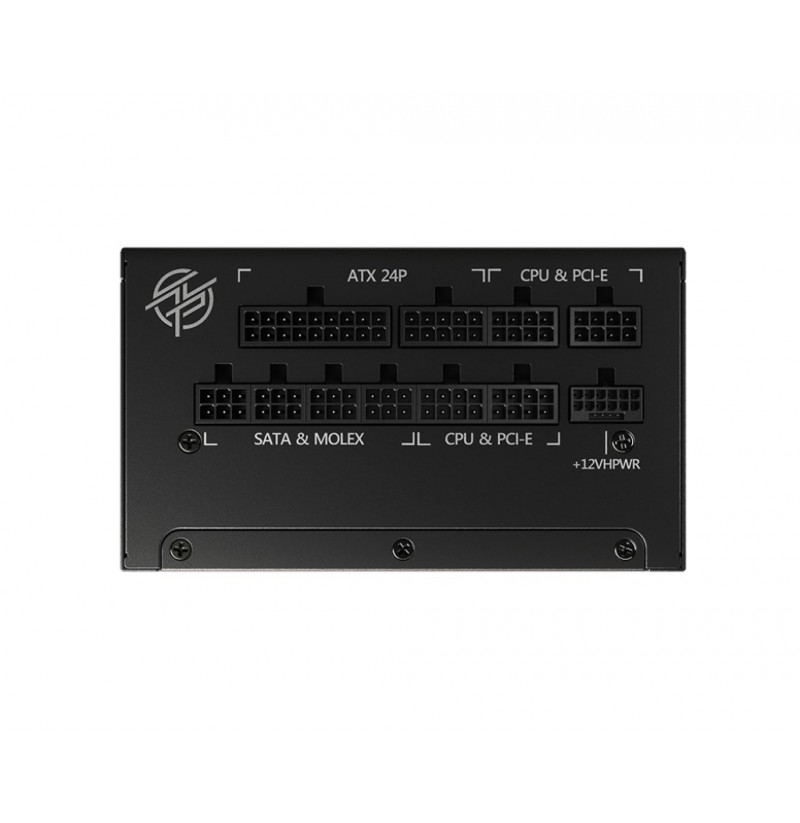

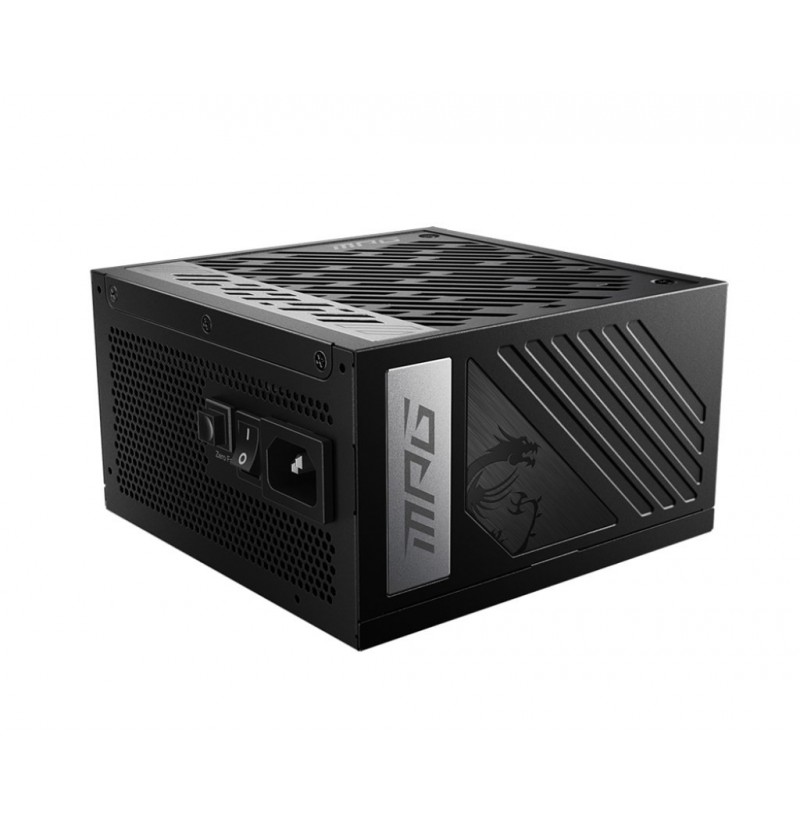

MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black Padidinti

MSI MPG A1000G PCIE5 1000W PSU

177,45 €

4719072972196

Galimas pasirinkimas

 3..5 d.d.


Illumination: No
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Power protection features: Overheating, Short circuit, Over voltage, Under voltage, Over power, Over current
Combined power (+5V): 120 W
Combined power (+12V): 1000 W
Max output current (+3.3V): 22 A
Total power: 1000 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Combined power (+3.3V): 120 W
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Efficiency: 90%
Max output current (+12V): 83.5 A
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Depth: 150 mm
Width: 150 mm
Height: 86 mm
Bearing technology: FDB
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
80 PLUS certification: 80 PLUS Gold
Peripheral (Molex) power cable length: 700, 500 mm, 650, 850 mm, 1100
Motherboard power cable length: 60 cm
PCI Express power cable length: 75 cm
EPS power connector (4+4 pin): Yes
SATA power cable length: 500 mm, 700 mm, 650 mm, 850 mm
Cabling type: Fully-Modular
Number of SATA power connectors: 12
PCI Express power connectors (6+2 pin): 6
PCI Express power connectors (16-pin): 1
Motherboard power connector: 20+4 pin ATX
EPS power connector (8-pin): No
Peripheral (Molex) power connectors (4-pin): 4
Floppy disk drive connector: Yes
EPS cable length: 70 cm
