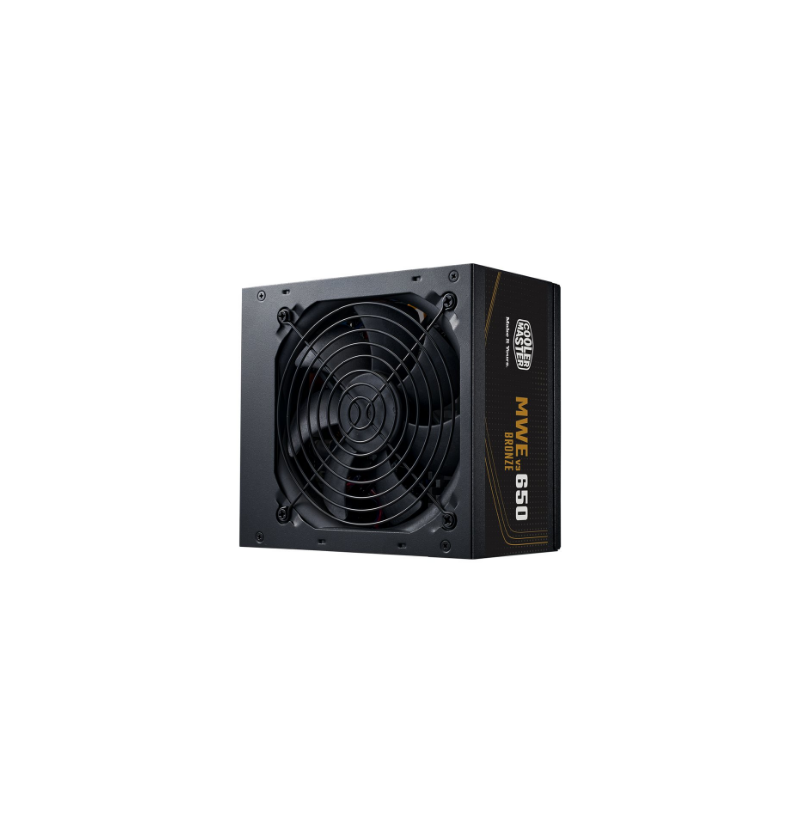

Cooler Master MWE Bronze V3 | MPE-6501-ACABW-3BEU | 650 W Padidinti

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black

72,32 €

MPE-6501-ACABW-3BEU

4719512145227

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compliance certificates: UKCA, Federal Communications Commission (FCC), RCM, BIS, RoHS, CE, China Compulsory Certification (CCC), EAC
Fan diameter: 12 cm
Cooling type: Active
Product colour: Black
Number of fans: 1 fan(s)
Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage
Combined power (-12V): 3.6 W
Efficiency: 88%
Power Factor Correction (PFC) type: Active
Max output current (+12V): 54 A
Input current: 5 A
AC input voltage: 200 - 240 V
Combined power (+5Vsb): 15 W
AC input frequency: 50/60 Hz
Total power: 650 W
Max output current (+3.3V): 19 A
Combined power (+3.3V): 120 W
Hold time: 16 ms
Combined power (+12V): 648 W
Combined power (+5V): 120 W
Power Good signal delay range: 100 - 150 ms
Max output current (+5V): 19 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Operating temperature (T-T): 0 - 40 °C
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Weight: 1.65 kg
Certification: ErP 2014 Lot 3
ATX version: 3.1
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Package weight: 2.05 kg
Package width: 190 mm
Package height: 110 mm
Package depth: 245 mm
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power cable length: 50 cm
EPS power connector (8-pin): Yes
Cabling type: Non-Modular
PCI Express power cable length: 62 cm
Number of SATA power connectors: 6
SATA power cable length: 400, 550, 700
Motherboard power connector: 24-pin ATX
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 400, 550, 700 mm
EPS cable length: 67 cm
Master (outer) case width: 260 mm
Products per master (outer) case: 5 pc(s)
Master (outer) case length: 570 mm
Master (outer) case height: 215 mm
Master (outer) cases per pallet (air): 32 pc(s)
