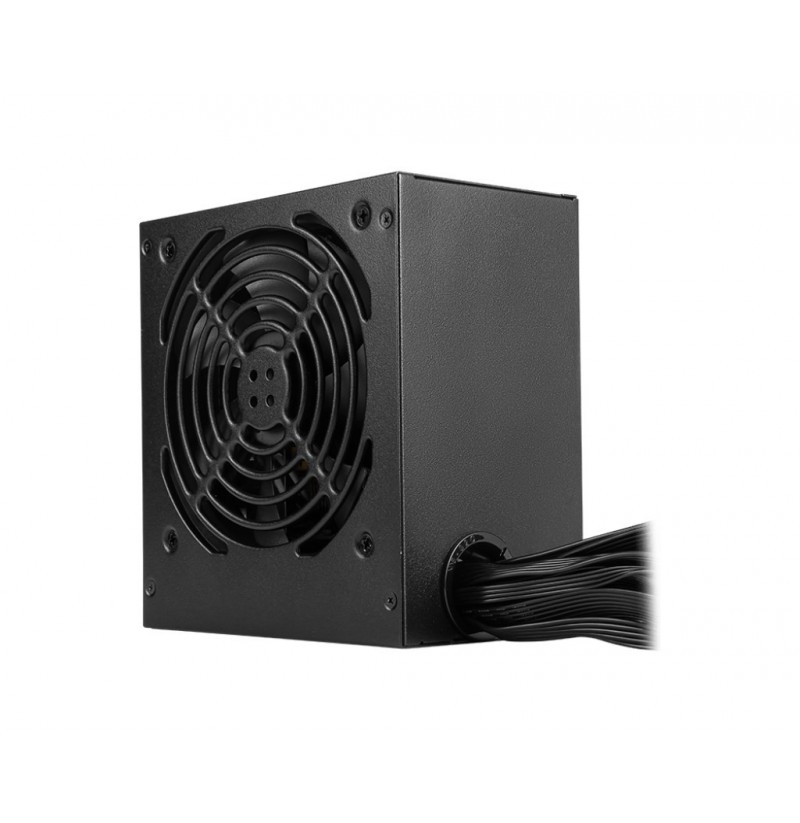

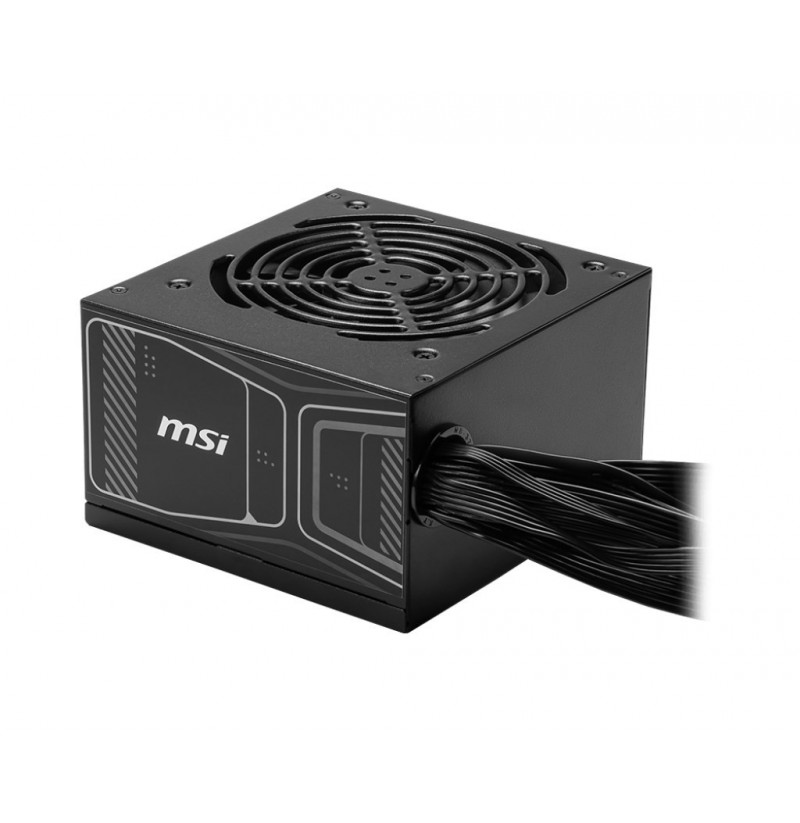

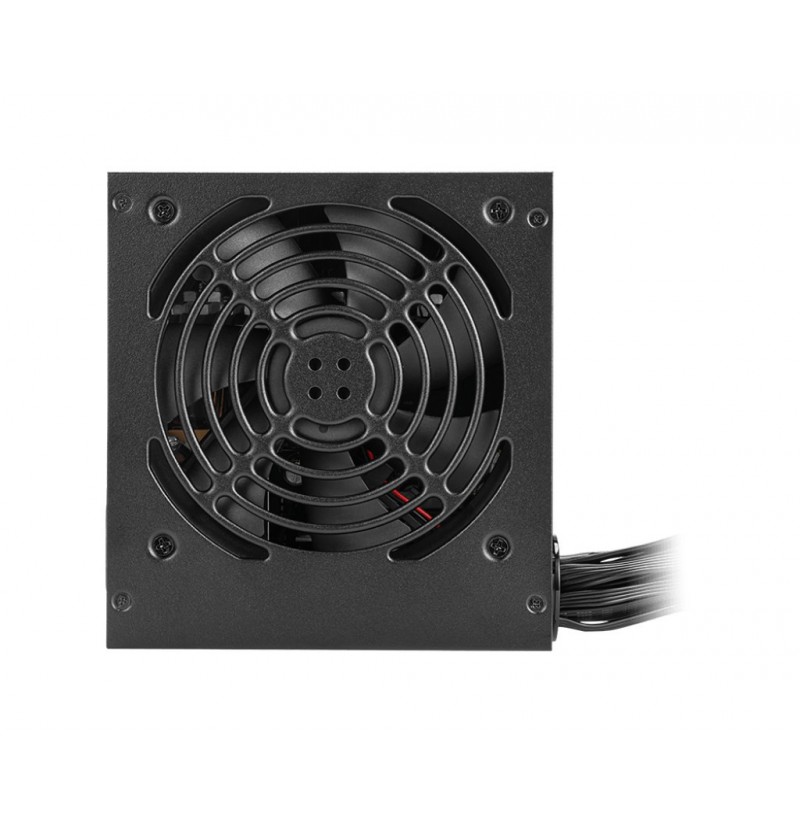

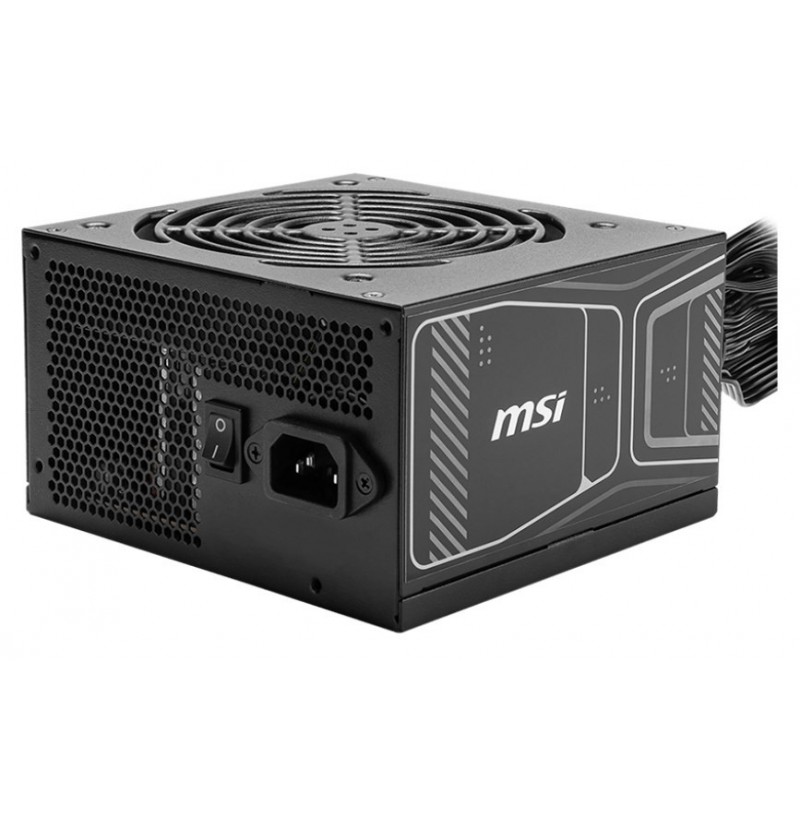

MSI MAG A750GN PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black

Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Black
On/off switch: Yes
Fan diameter: 12 cm
Illumination: No
Number of +12V rail(s): 1
AC input voltage: 100 - 240 V
Power protection features: Over power, Short circuit, Over voltage, Over current, Overheating
AC input frequency: 47 - 63 Hz
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Max output current (+3.3V): 20 A
Power Factor Correction (PFC) type: Active
Total power: 750 W
Maximum input current (@110V): 47 A
Maximum input current (@220V): 63 A
Max output current (-12V): 0.3 A
Efficiency: 90%
Max output current (+5Vsb): 3 A
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Height: 86 mm
Depth: 140 mm
Width: 150 mm
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: Sleeve
Power supply unit (PSU) form factor: ATX
Purpose: PC
Package type: Box
EPS power connector (8-pin): No
Peripheral (Molex) power connectors (4-pin): 4
ATX Power connector (24-pin): No
Cabling type: Non-Modular
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): No
CPU power connector (4+4 pin): Yes
EPS power connector (4+4 pin): Yes
SATA power cable length: 150, 450 mm
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 500
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 4
