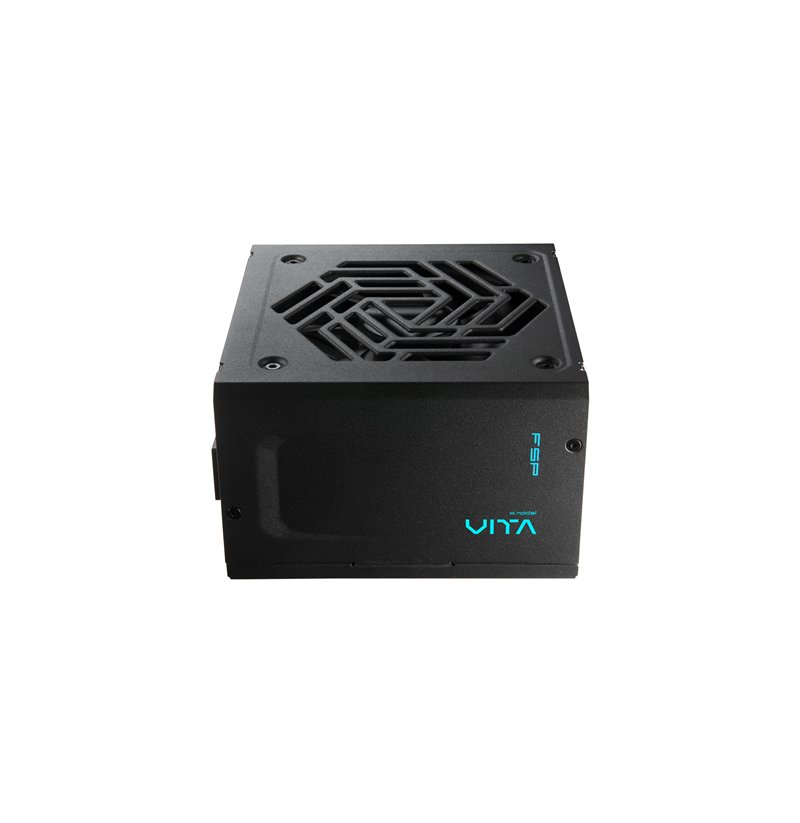

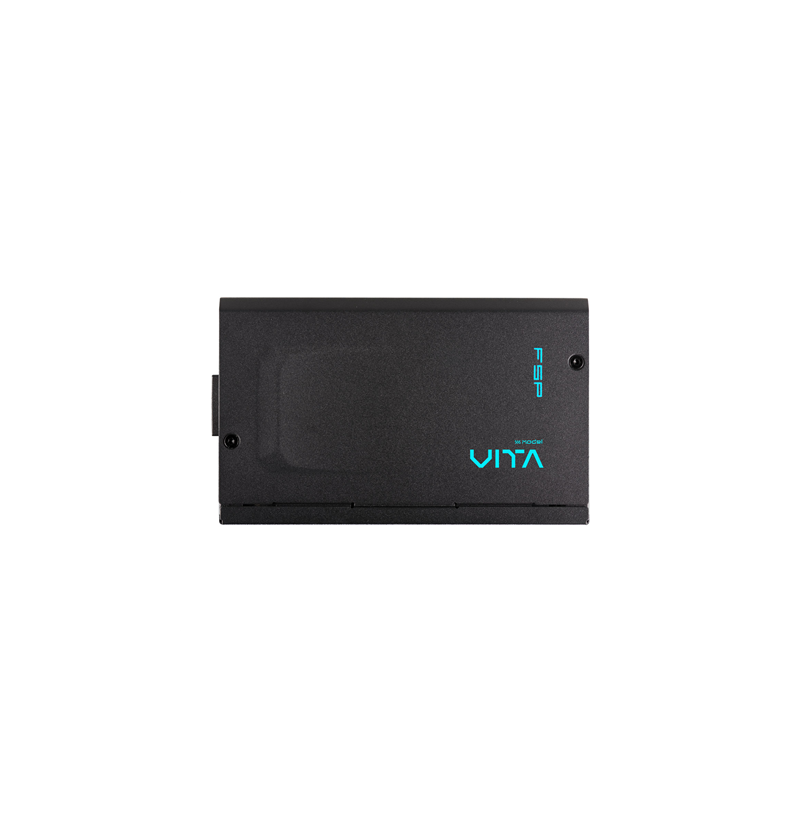

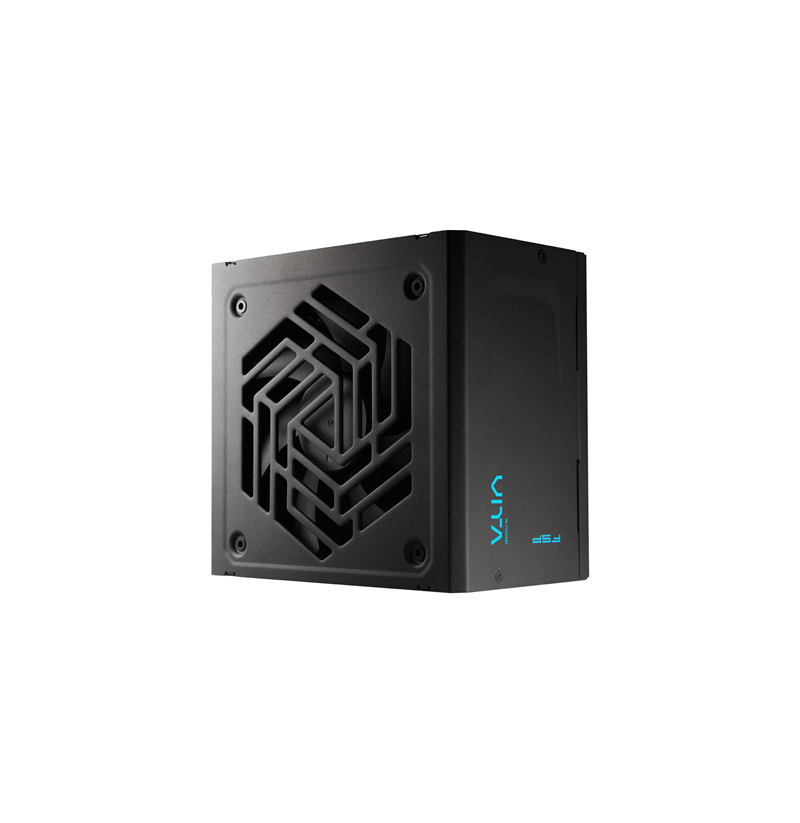

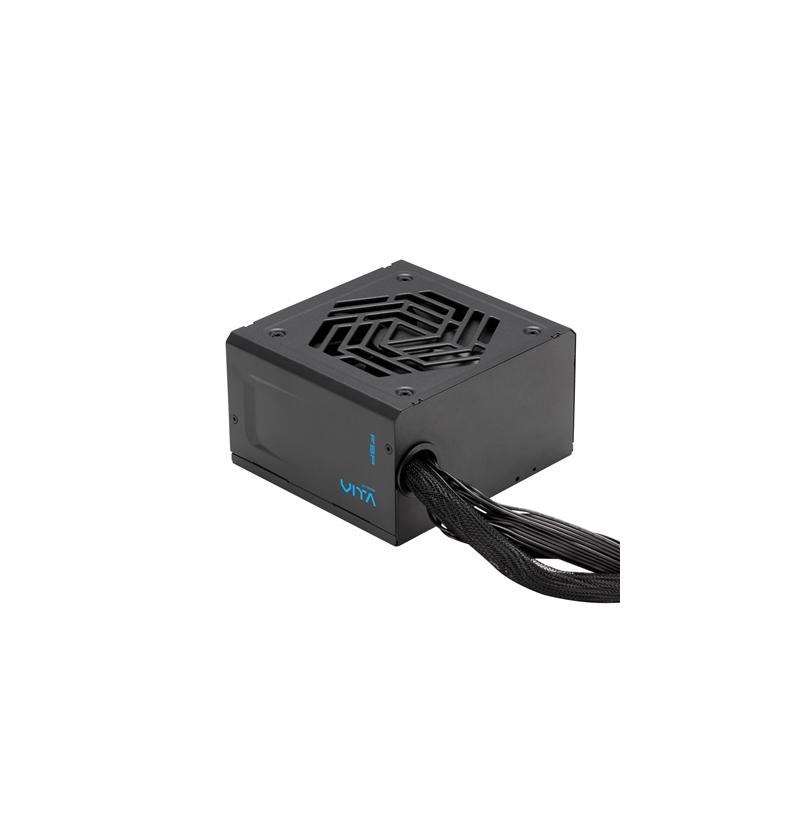

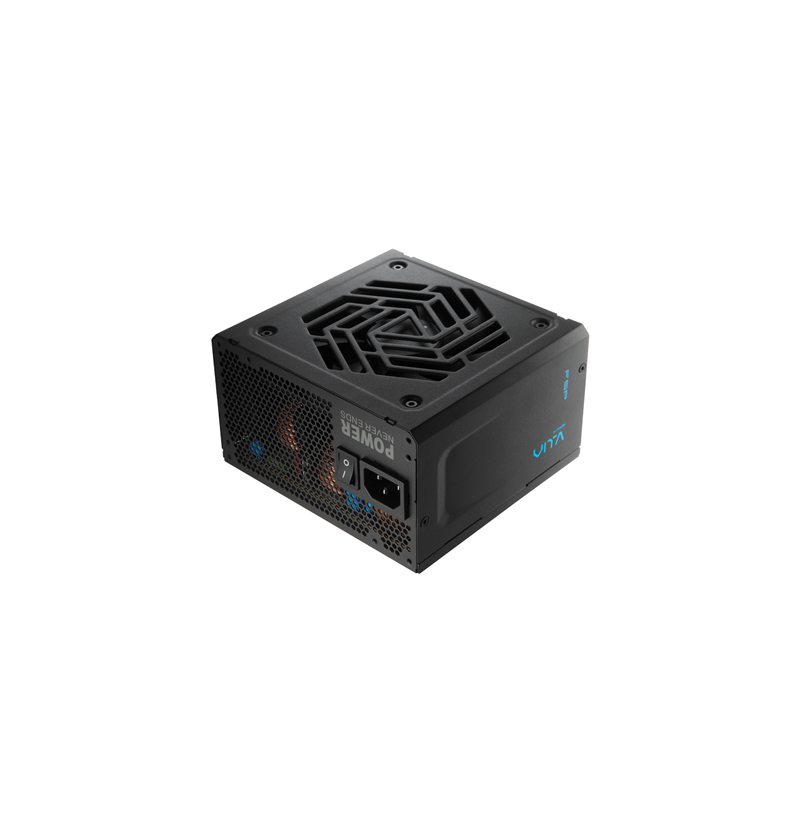

FSP Power Supply | VITA-750GD | 750 W

Product colour: Black
Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 12 cm
Cooling type: Active
Combined power (+3.3V): 100 W
Power Factor Correction (PFC) type: Active
Efficiency: 90%
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating
Input current: 10-5 A
Total power: 750 W
Combined power (+12V): 750 W
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 3 A
AC input voltage: 100 - 240 V
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Max output current (+12V): 62.5 A
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Height: 86 mm
Depth: 140 mm
Width: 150 mm
80 PLUS certification: 80 PLUS Gold
EPS version: 2.92
ATX version: 3.1
Bearing technology: HYB
Purpose: PC
Power supply unit (PSU) form factor: ATX
Cables included: CPU, Peripheral (Molex), SATA
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 4
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Number of SATA power connectors: 8
Motherboard power cable length: 60 cm
SATA power cable length: 500 mm
CPU power cable length: 70 cm
Motherboard power connector: 20+4 pin ATX
