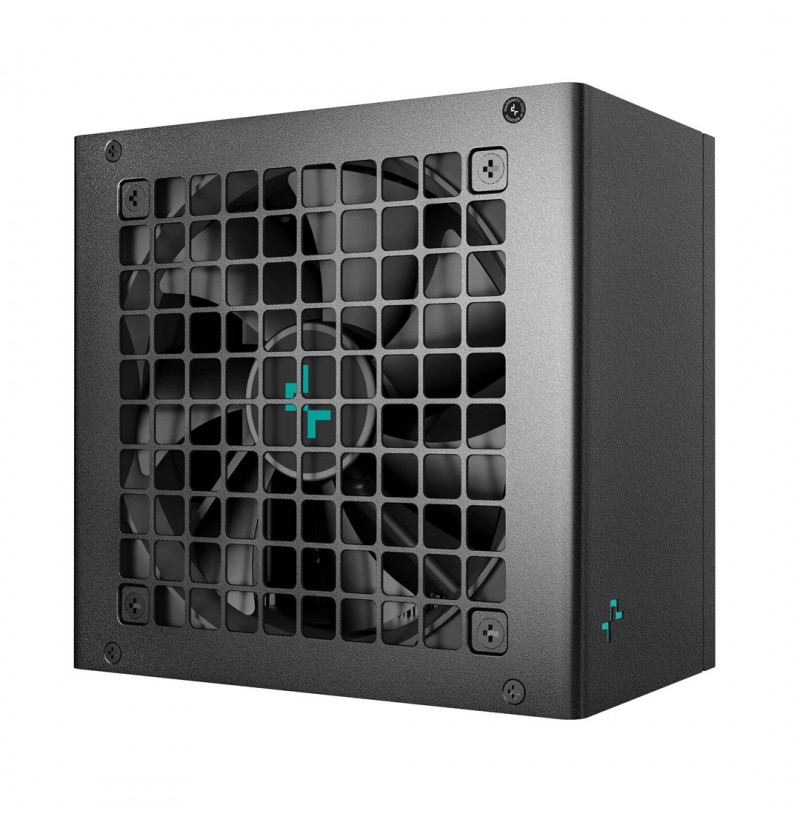

Nauja DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX Black Padidinti

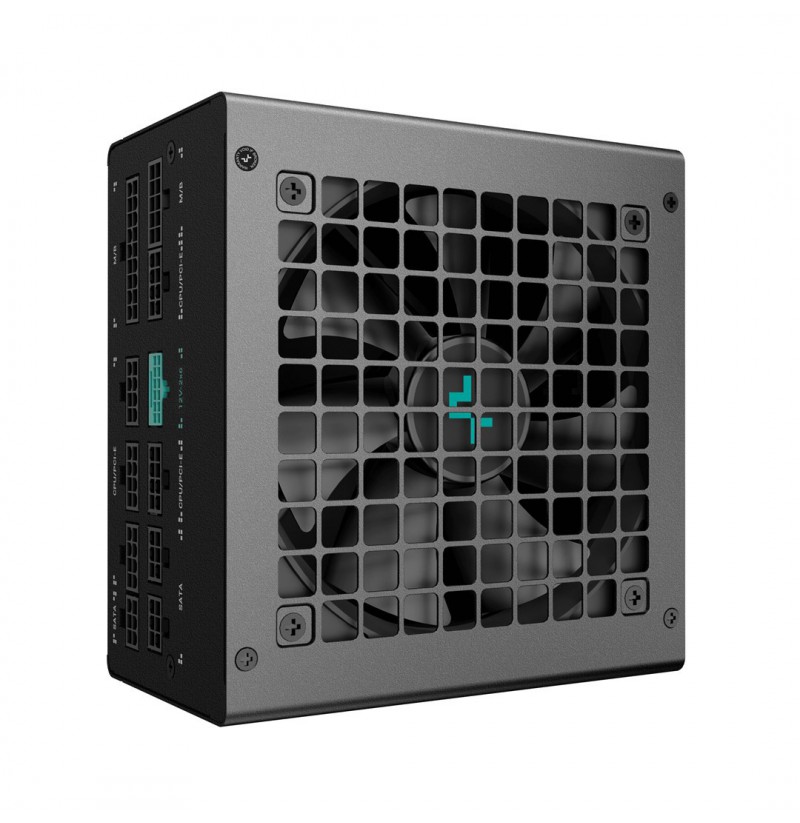

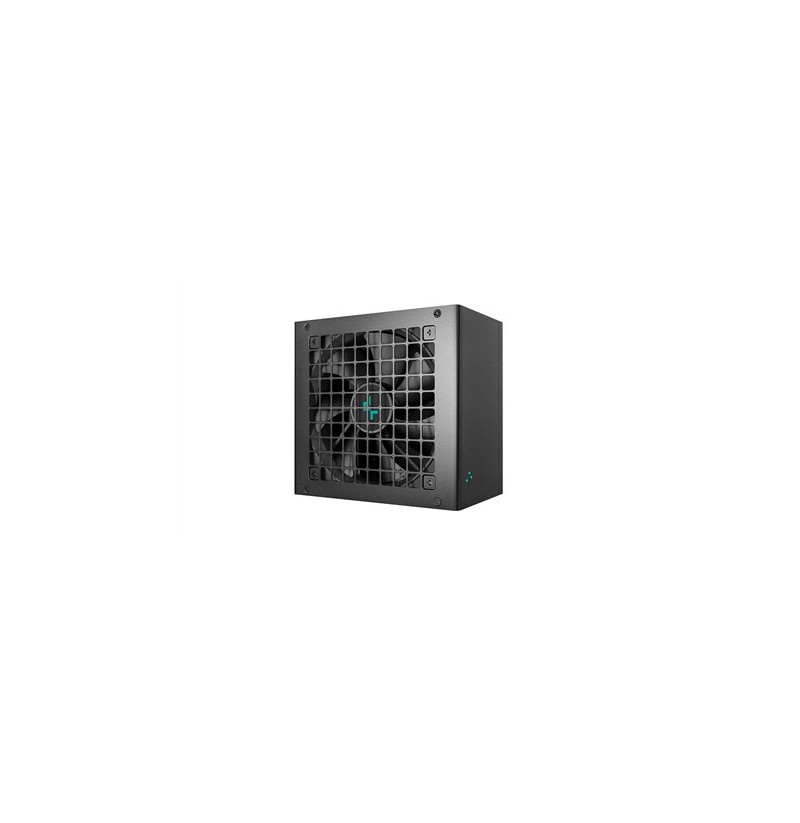

DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX Black

121,35 €

6933412741053

Galimas pasirinkimas

 pristatymas 11...13 d.d.


Sustainability compliance: Yes
Sustainability certificates: Triman, ErP
Cooling type: Active
Number of fans: 1 fan(s)

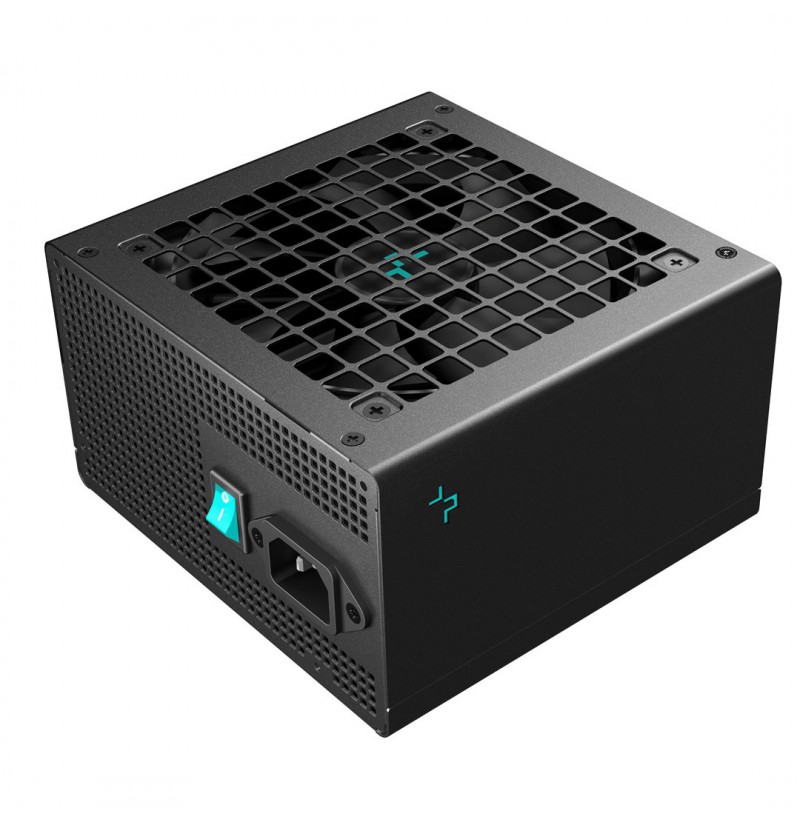

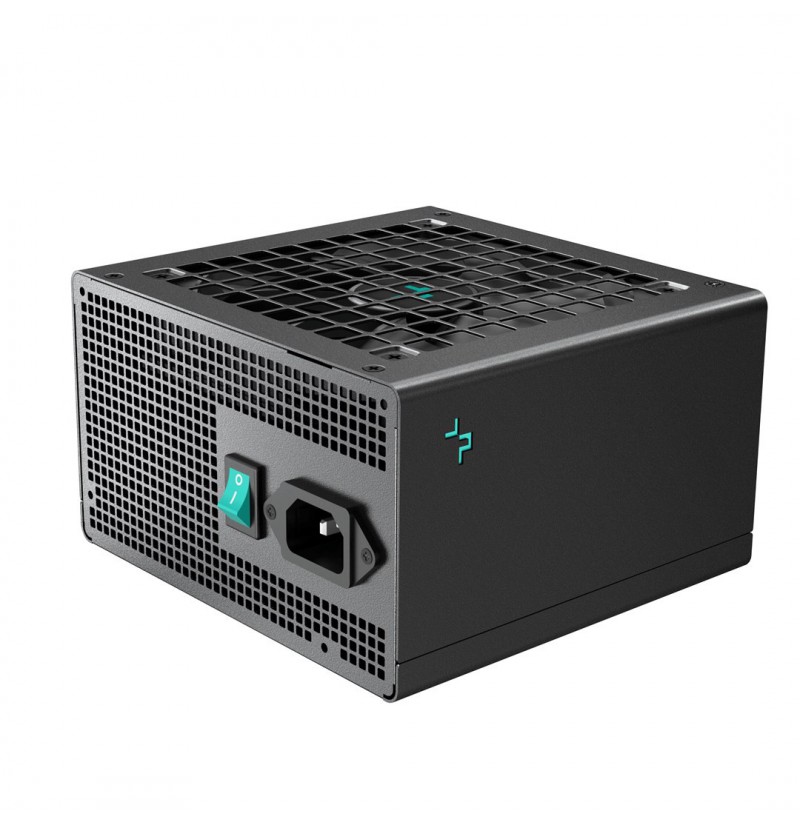

On/off switch: Yes
Product colour: Black

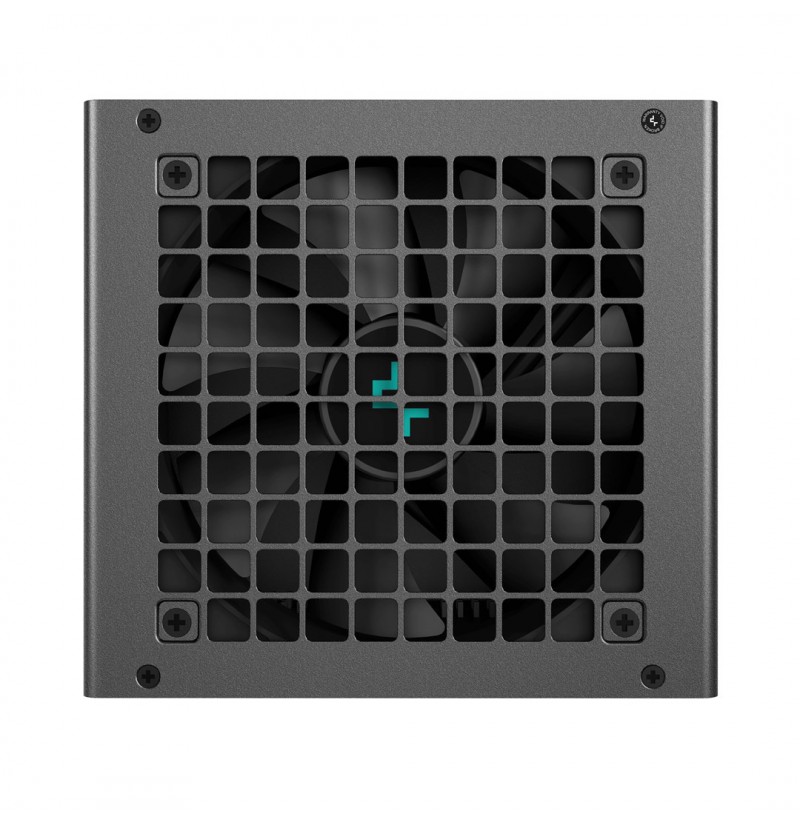

Fan diameter: 12 cm
Fan location: Top
Power protection features: Over power, Overheating, Surge protection, Under voltage, Surge & inrush protection (SIP), Short circuit, Over voltage, No load operation
Input current: 10 - 5 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V

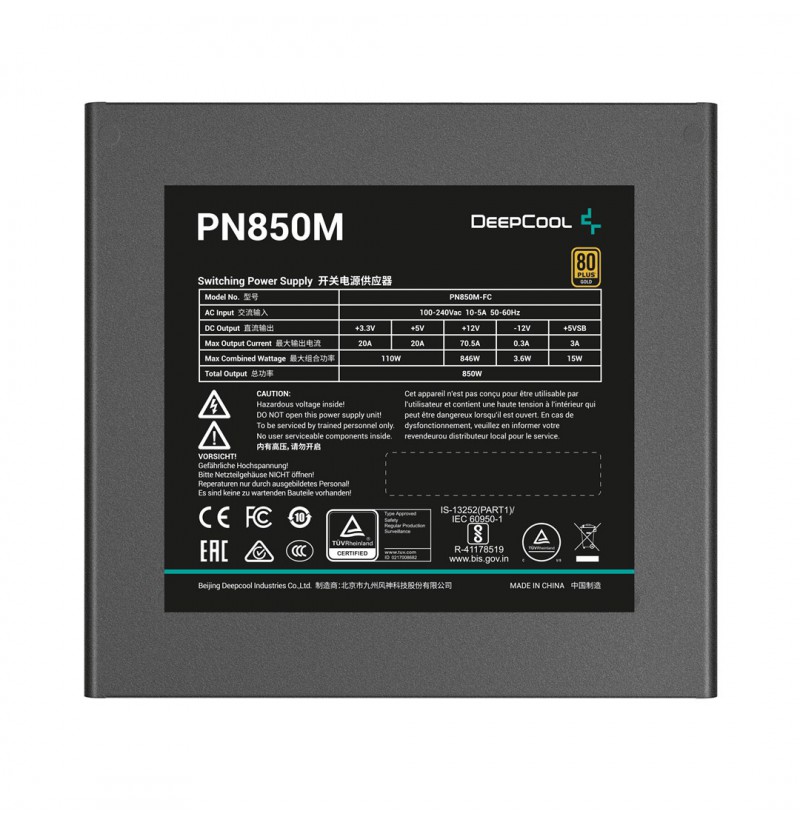

Total power: 850 W
Combined power (+5V): 110 W
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Efficiency: 90%
Combined power (+3.3V): 110 W
Max output current (+12V): 70.5 A
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Max output current (+5V): 20 A
Hold time: 16 ms
Combined power (-12V): 3.6 W
Power Good signal delay range: 100 - 150 ms
Combined power (+12V): 846 W
Operating temperature (T-T): 0 - 40 °C
Height: 86 mm
Width: 150 mm
Depth: 140 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Bearing technology: FDB
ATX version: 3.1
Purpose: PC
Power supply unit (PSU) form factor: ATX
Package type: Box

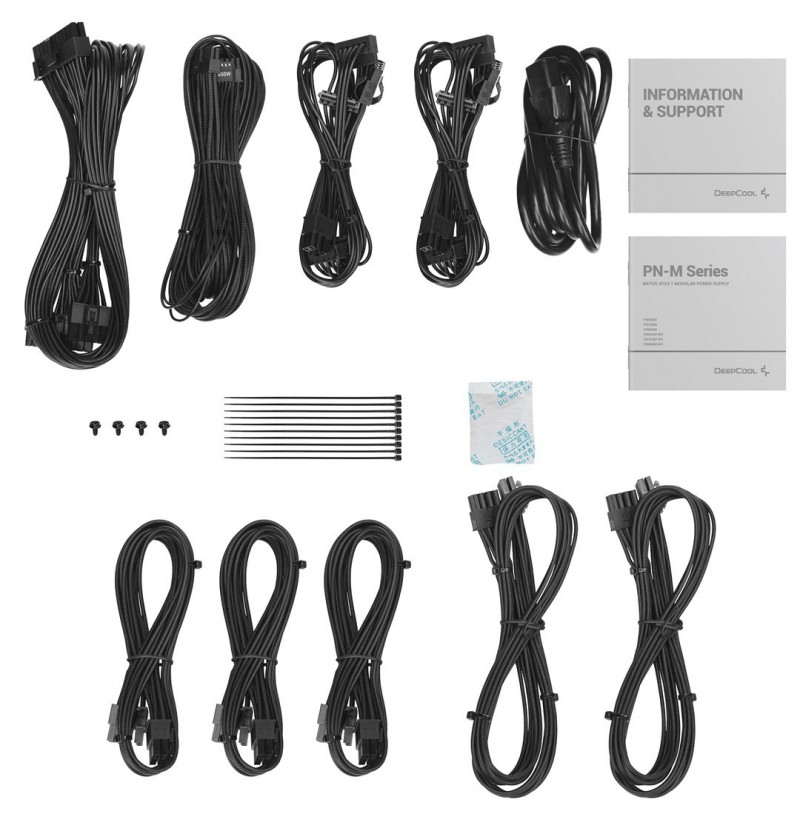

Cables included: AC
Cable tie(s) included: Yes
Compliance certificates: EAC, Federal Communications Commission (FCC), WEEE, RCM, RoHS, CE, CCC
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (16-pin): 1
SATA power cable length: 550 mm, 450, 650, 750 mm
Peripheral (Molex) power cable length: 850 mm
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 3
Number of SATA power connectors: 8

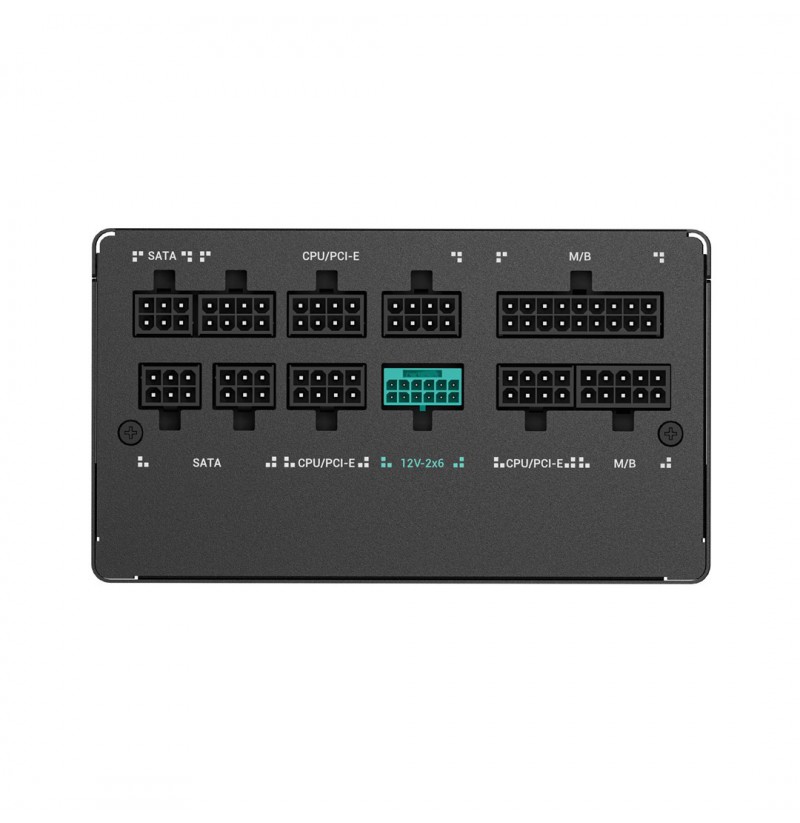

Cabling type: Fully-Modular
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
CPU power cable length: 70 cm
