Power supply Gigabyte UD1000GM 1000W PG5 ICE Padidinti

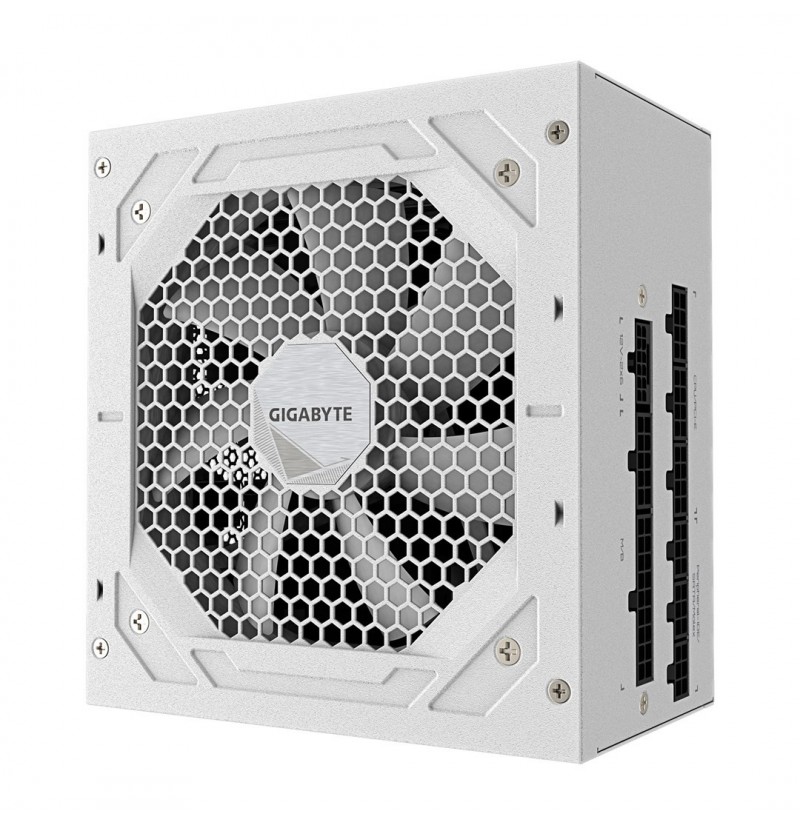

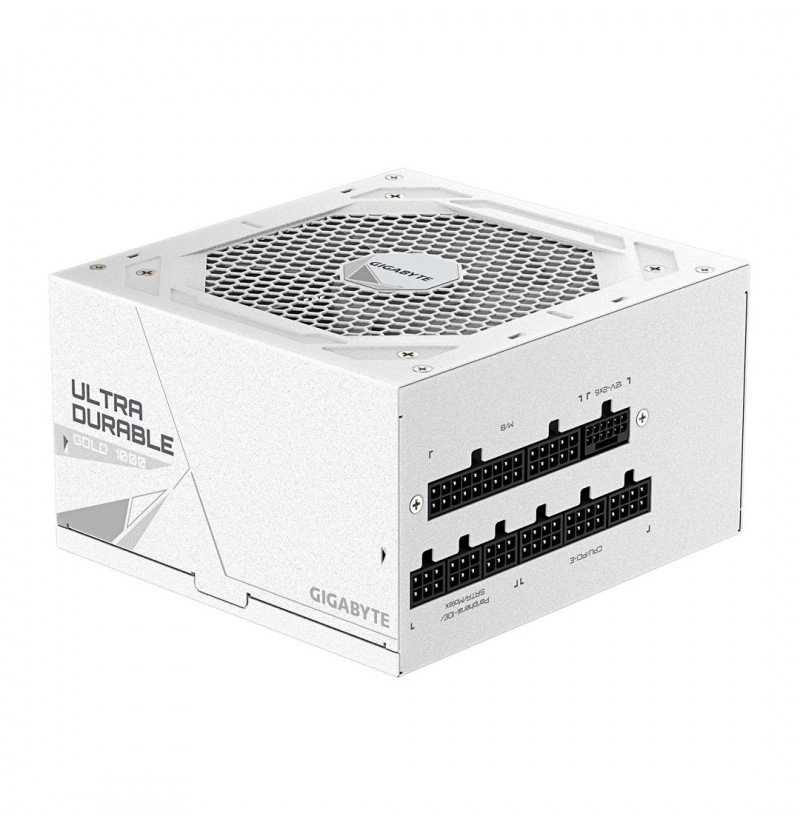

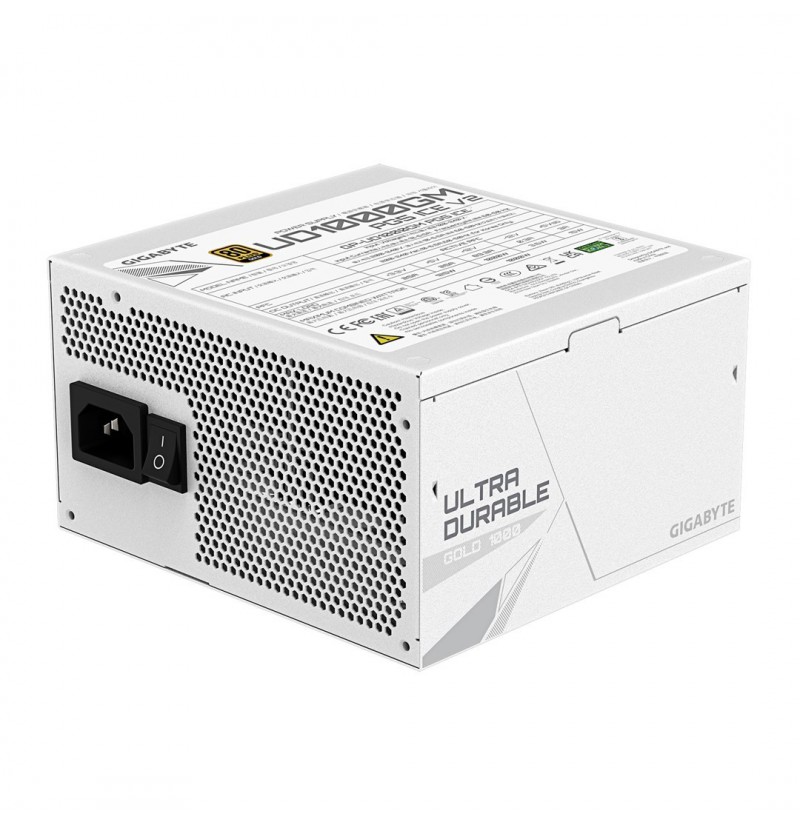

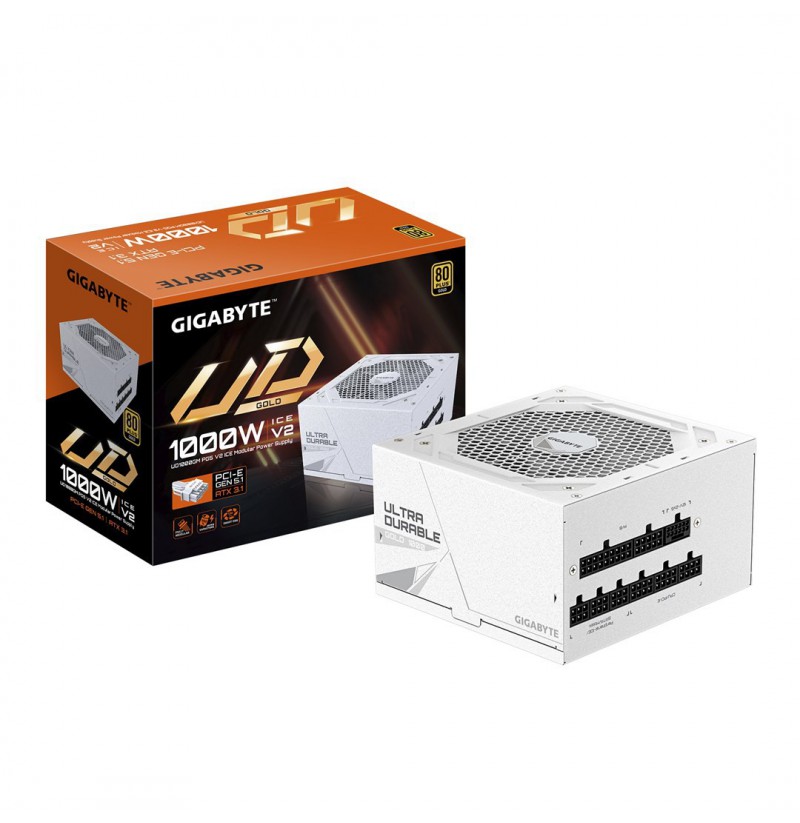

Gigabyte Power Supply | UD1000GM PG5 V2 ICE | 1000 W

117,91 €

GP-UD1000GM PG5 ICE

4719331556594

Galimas pasirinkimas

 1..4 d.d.

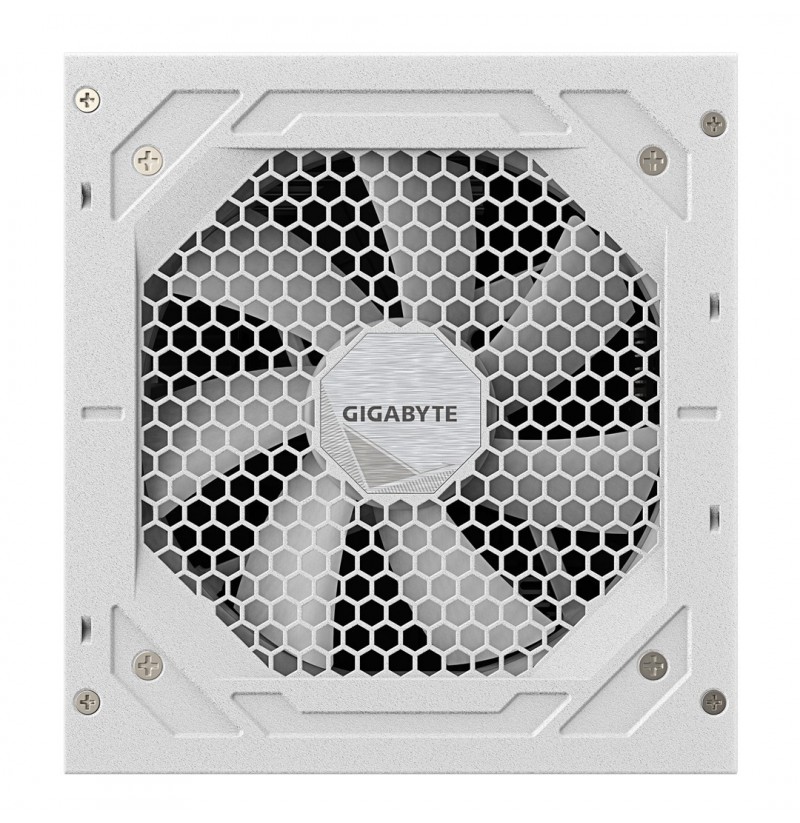

Number of fans: 1 fan(s)
Fan diameter: 12 cm
On/off switch: Yes
Product colour: White
Cooling type: Active

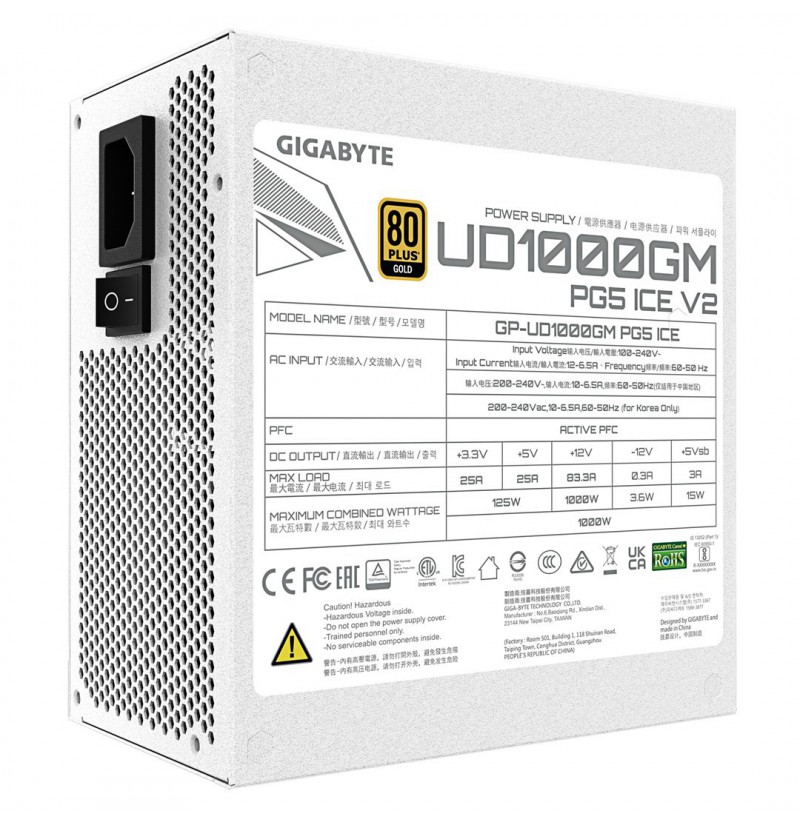

Power protection features: OTP, OCP, UVP, OVP, OPP, SCP
Combined power (-12V): 3.6 W
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Combined power (+12V): 1000 W
Max output current (-12V): 0.3 A
Power factor: 0.9
Total power: 1000 W
Max output current (+5V): 25 A
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Hold time: 16 ms
Max output current (+12V): 83.3 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Input current: 15 - 6.5 A
Depth: 140 mm
Height: 86 mm
Width: 150 mm
ATX version: 3.1
Purpose: PC
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold

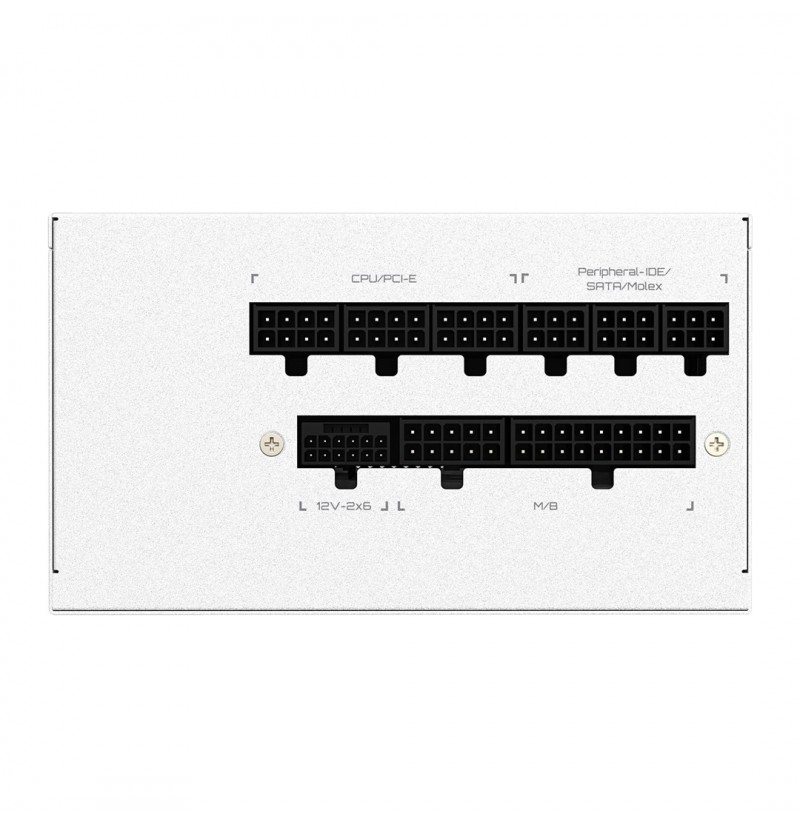

PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 8
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
Motherboard power cable length: 61 cm
Number of EPS connectors: 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 700 mm
