Power supply Gigabyte UD750GM 750W PG5 ICE Padidinti

Gigabyte Power Supply | UD750GM PG5 V2 ICE | 750 W

89,55 €

GP-UD750GM PG5 ICE

4719331556310

Galimas pasirinkimas

 1..4 d.d.

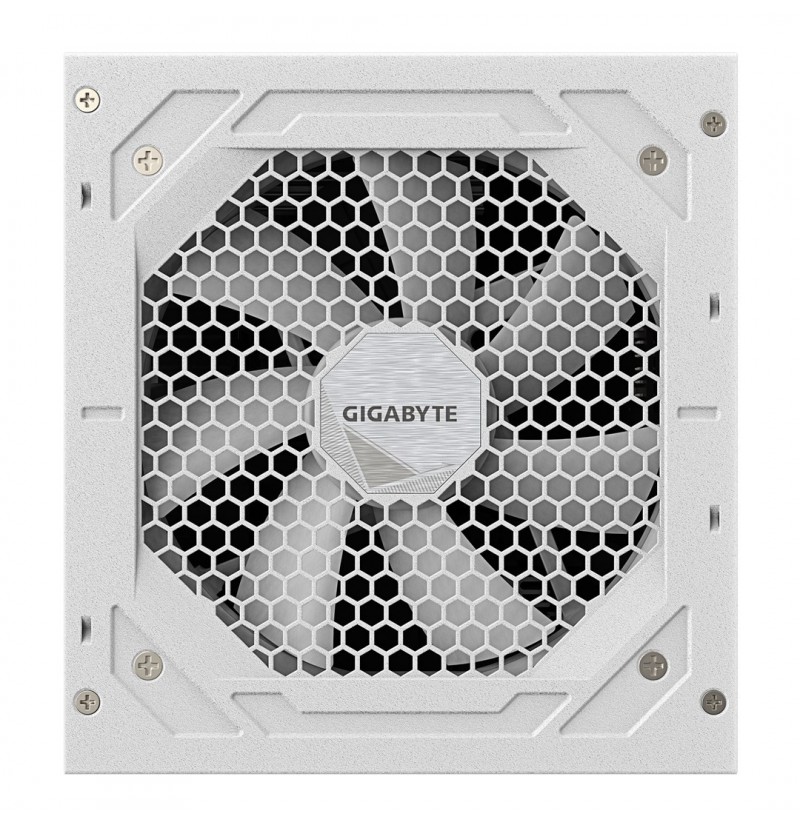

Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Cooling type: Active
Product colour: White
Total power: 750 W
AC input voltage: 100 - 240 V
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Input current: 15 - 6.5 A
Power protection features: OTP, OPP, SCP, UVP, OVP, OCP
Max output current (+5Vsb): 3 A
Combined power (+12V): 750 W
Combined power (-12V): 3.6 W
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Max output current (+12V): 70.8 A
Max output current (+3.3V): 20 A
Combined power (+5V): 105 W
Efficiency: 90%
Max output current (-12V): 0.3 A
Combined power (+3.3V): 105 W
AC input frequency: 50/60 Hz
Hold time: 16 ms
Height: 86 mm
Width: 150 mm
Depth: 140 mm
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Purpose: PC
Power supply unit (PSU) form factor: ATX

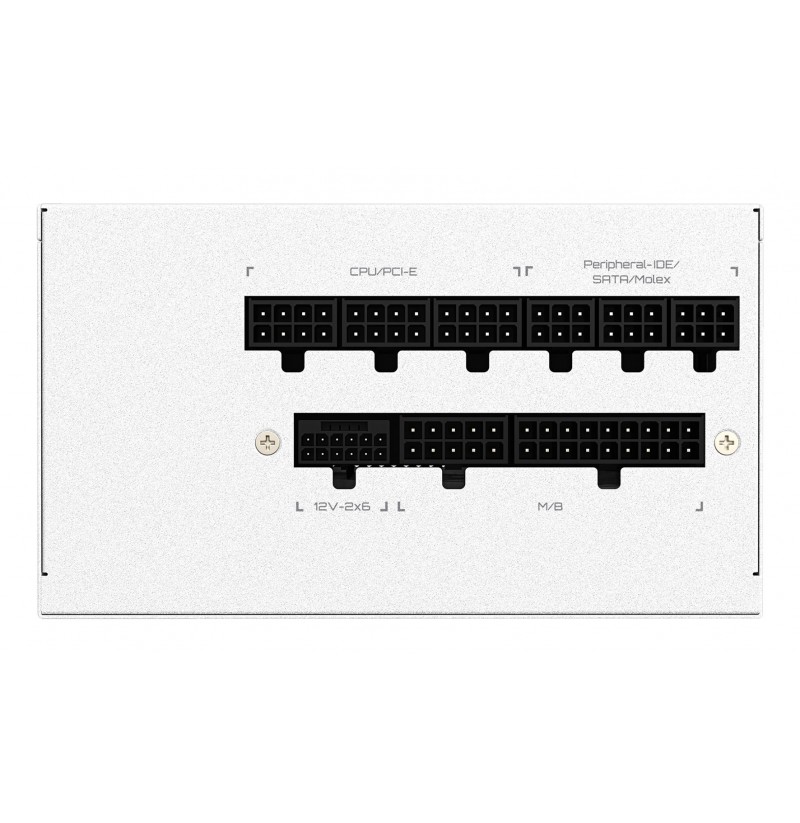

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 4
Motherboard power cable length: 61 cm
PCI Express power connectors (12+4 pin) cable length: 700 mm
PCI Express connector: Yes
CPU power connector (4+4 pin): Yes
PCI Express power connectors (12+4 pin): 1
Number of EPS connectors: 2
