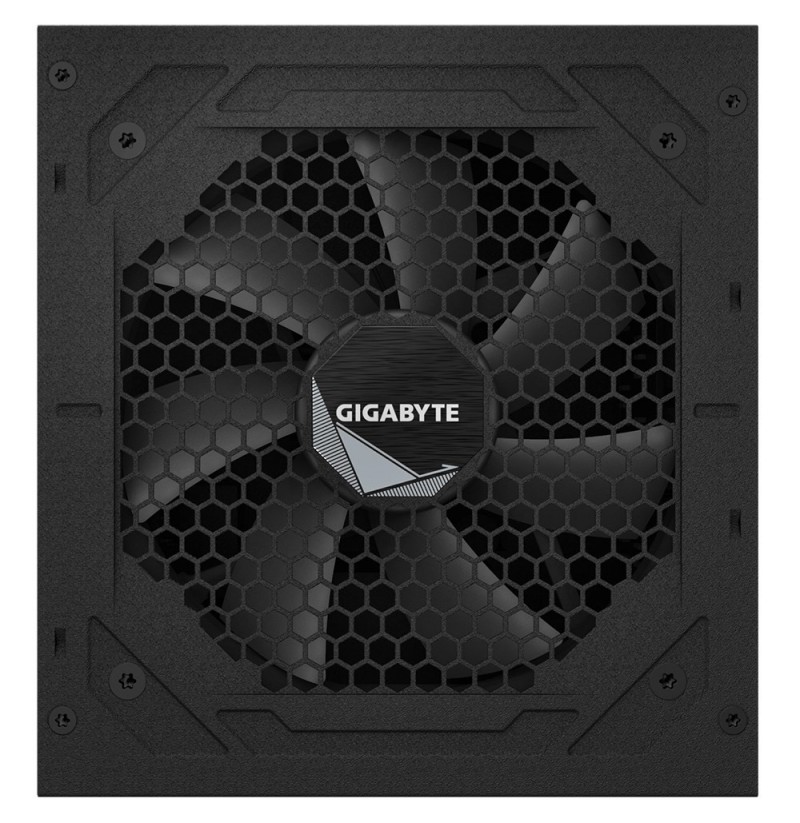

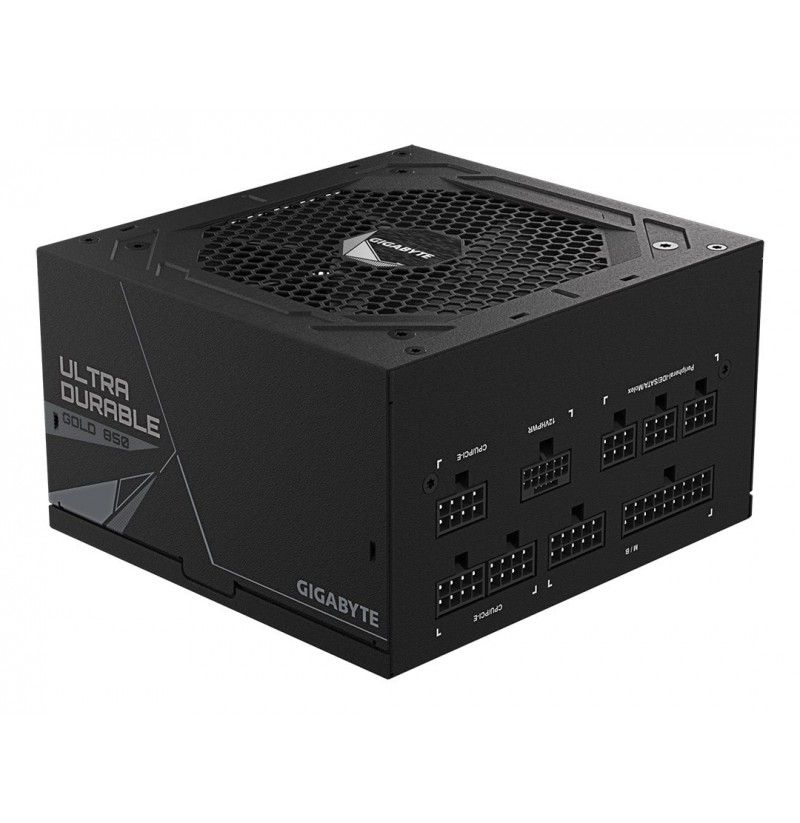

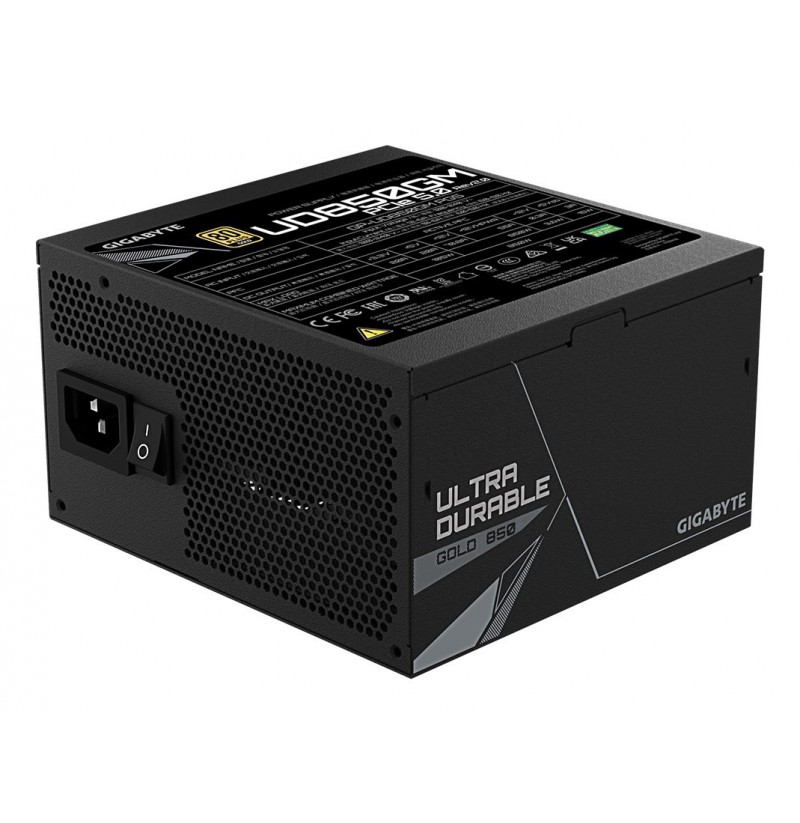

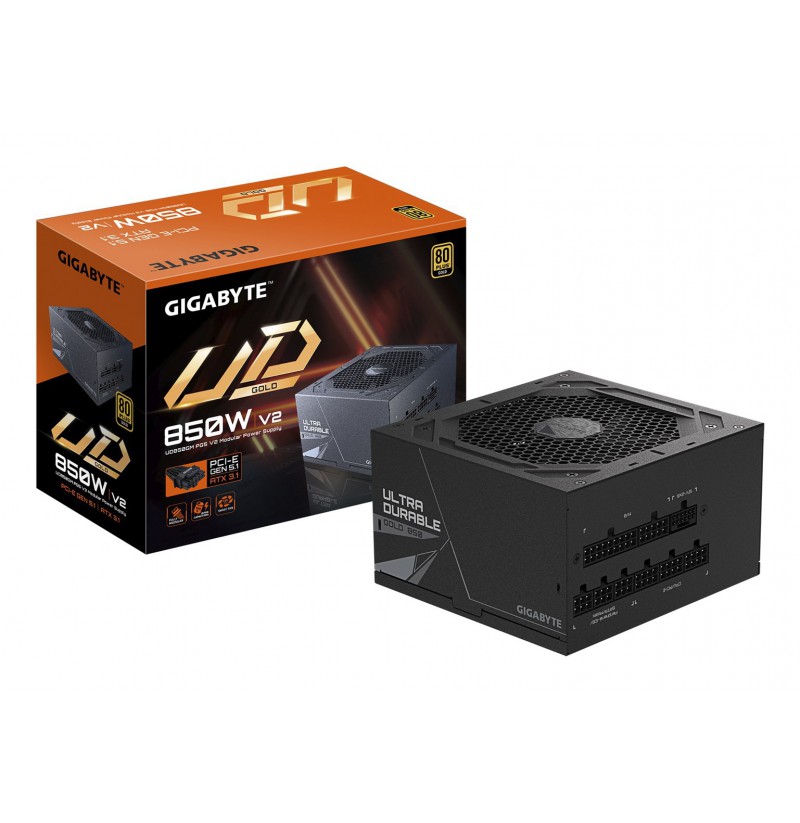

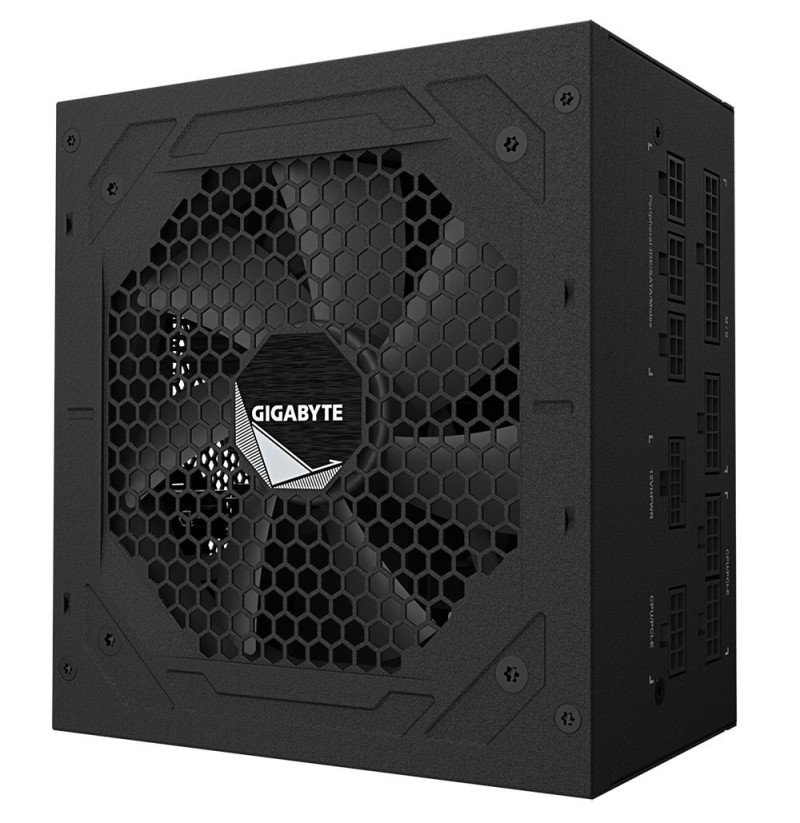

Power supply Gigabyte UD850GM 850W PG5 V2 Padidinti

Gigabyte PSU | UD850GM PG5 V2 | 850 W

100,53 €

4719331555993

Galimas pasirinkimas

 1..4 d.d.


Fan diameter: 12 cm
On/off switch: Yes
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Combined power (+5Vsb): 15 W
AC input voltage: 100 - 240 V
Input current: 12 - 6 A
Max output current (+5V): 20 A
Power protection features: Under voltage, Over current, Over power, Short circuit, Over voltage, Overheating
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 105 W
Max output current (+12V): 70.8 A
Total power: 850 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
AC input frequency: 50/60 Hz
Combined power (+12V): 850 W
Efficiency: 90%
Combined power (+5V): 105 W
Combined power (-12V): 3.6 W
Power factor: 0.9
Hold time: 16 ms
Height: 86 mm
Depth: 140 mm
Width: 150 mm
Weight: 2.4 kg
Purpose: PC
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Bearing technology: HYB
Power supply unit (PSU) form factor: ATX
Package weight: 2.56 kg
Package type: Box
Package height: 211 mm
Package width: 618 mm
Package depth: 269 mm
PCI Express power cable length: 70 cm

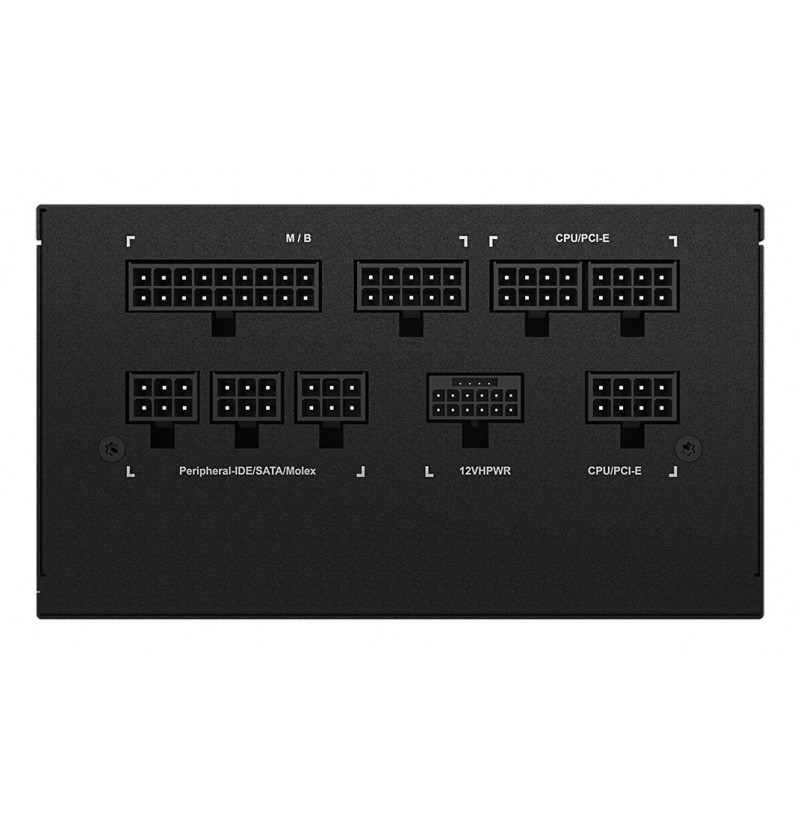

Number of SATA power connectors: 8
PCI Express power connectors (6+2 pin): 4
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
Floppy drive power connector: 1
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
SATA power cable length: 150 mm, 600
Peripheral (Molex) power cable length: 150 mm, 500 mm
Motherboard power cable length: 61 cm
Number of EPS connectors: 2
PCI Express power connectors (16-pin): 1
Warranty period: 10 year(s)
