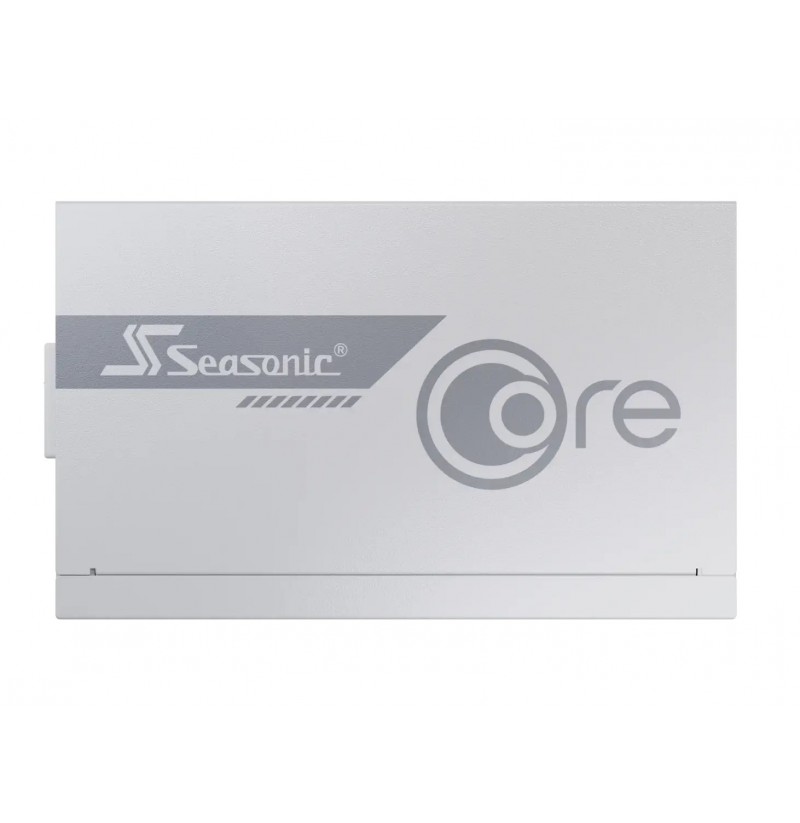

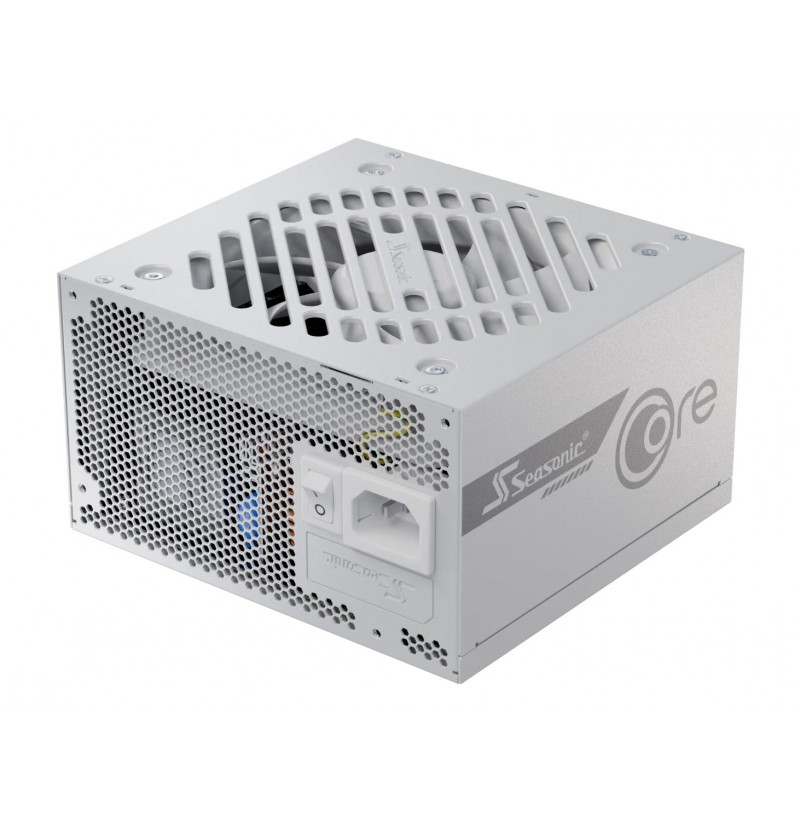

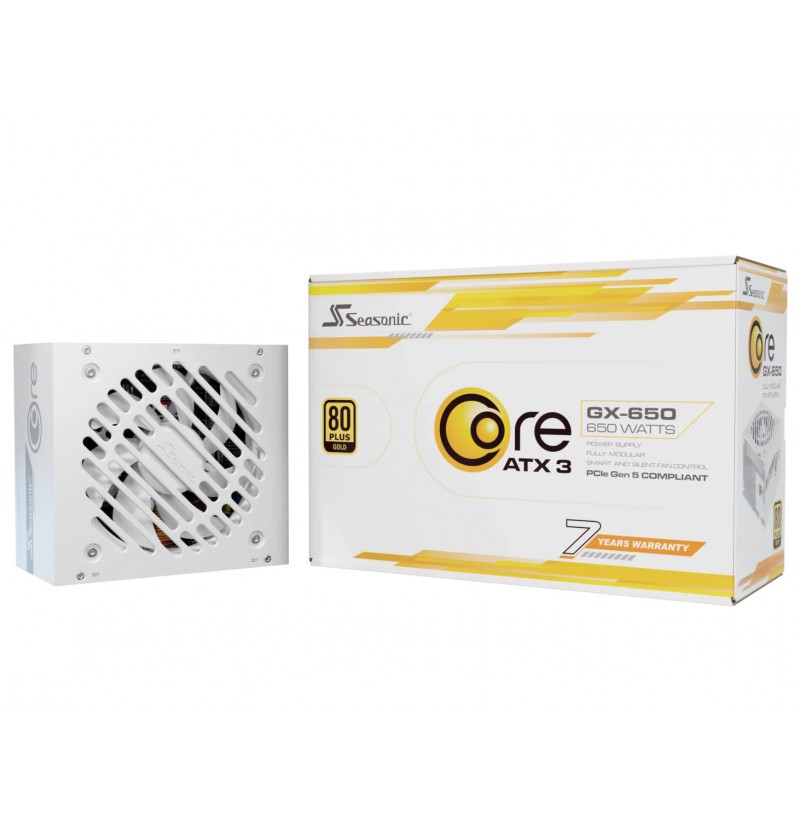

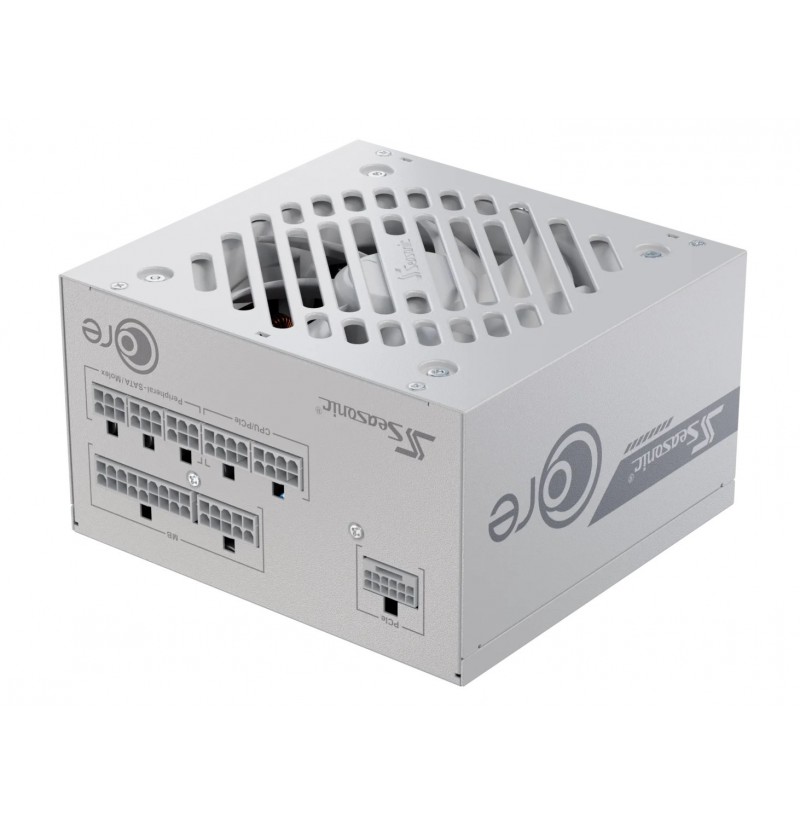

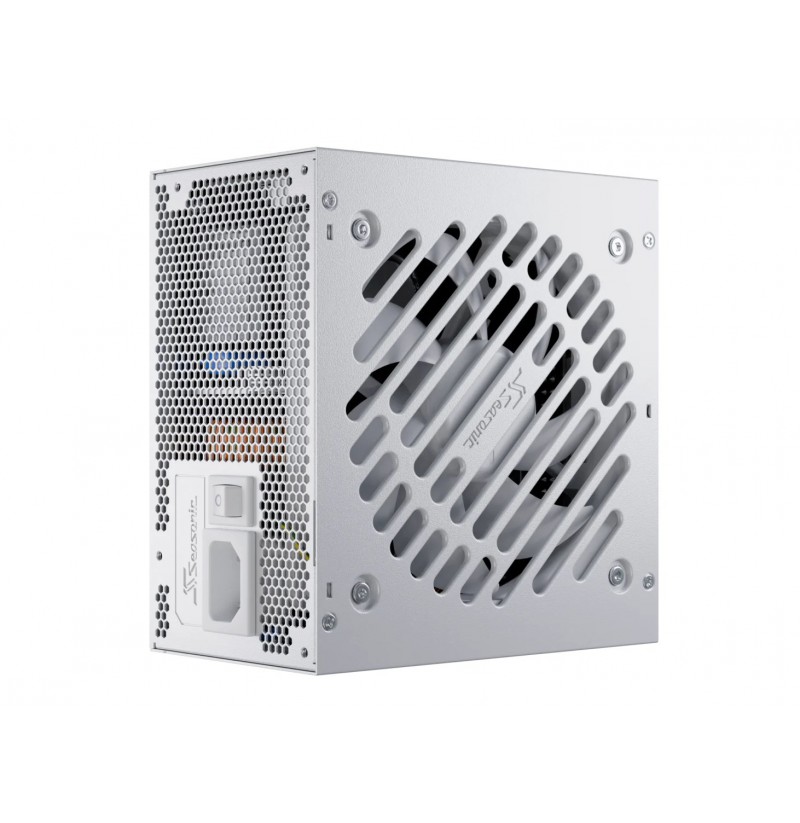

Seasonic CORE GX-650 power supply unit 650 W 20+4 pin ATX ATX White

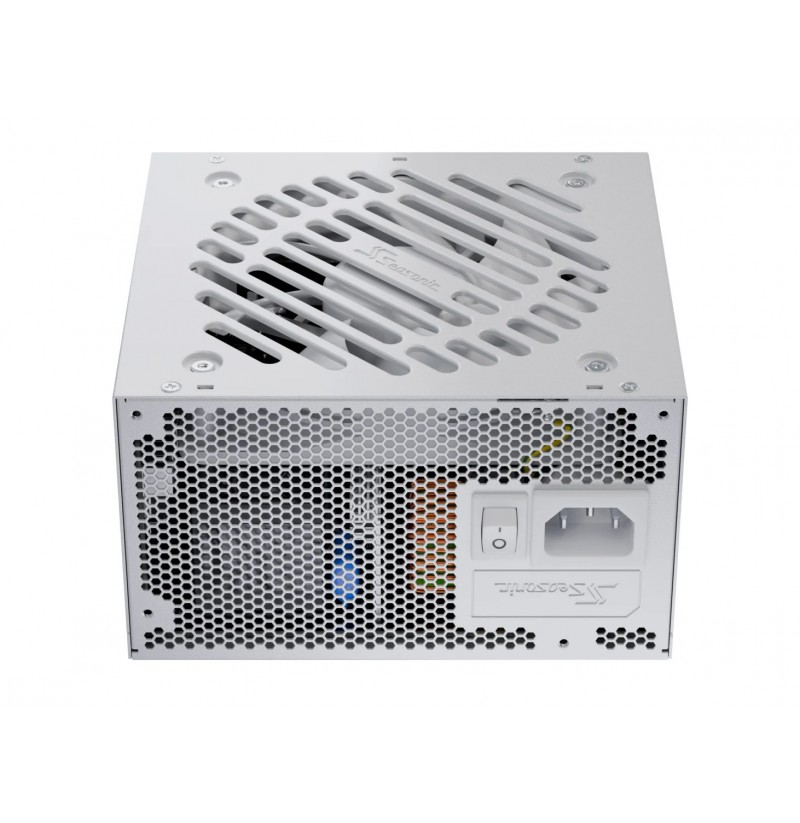

On/off switch: Yes
Cooling type: Active

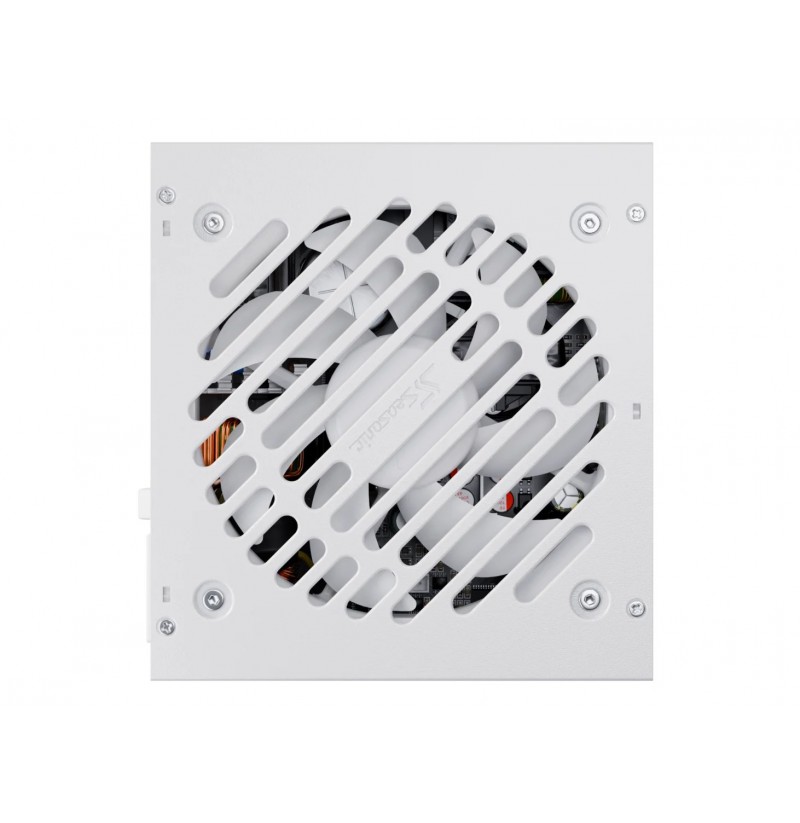

Fan diameter: 12 cm
Product colour: White
AC input voltage: 100 - 240 V
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
AC input frequency: 50/60 Hz
Max output current (+5V): 20 A
Combined power (+12V): 648 W
Combined power (-12V): 3.6 W
Power protection features: Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current
Combined power (+5Vsb): 15 W
Input current: 11 - 5.5 A
Total power: 650 W
Combined power (+3.3V): 100 W
Max output current (+12V): 54 A
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 50 °C
Width: 140 mm
Height: 86 mm
Depth: 150 mm
Mean time between failures (MTBF): 100000 h
Bearing technology: Hypro Bearing
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Purpose: PC
PCI Express power connectors (12+4 pin) cable length: 700 mm
PCI Express power connectors (12+4 pin): 1

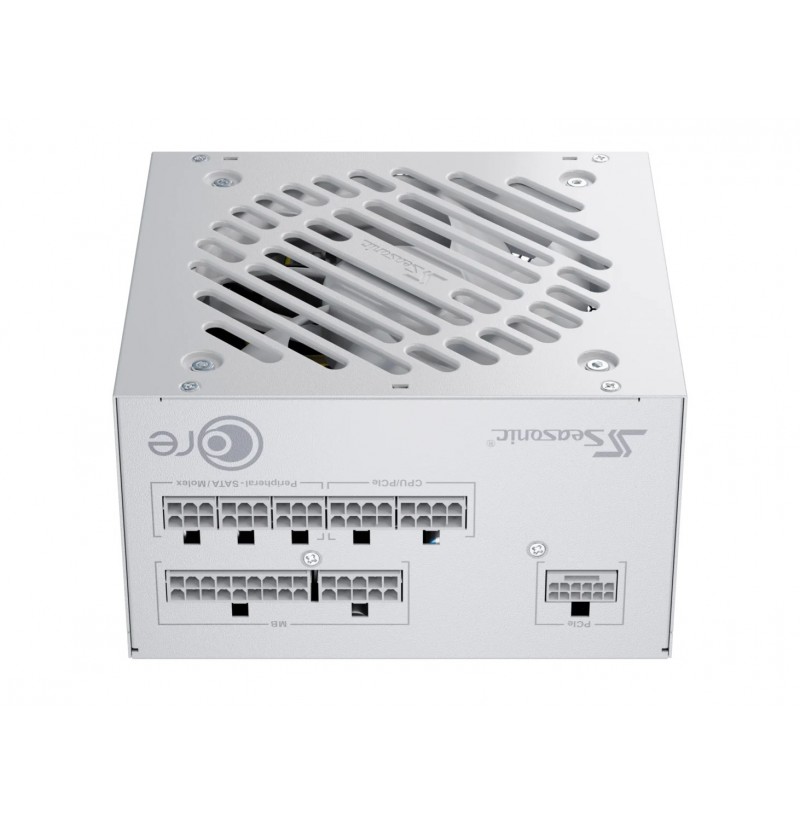

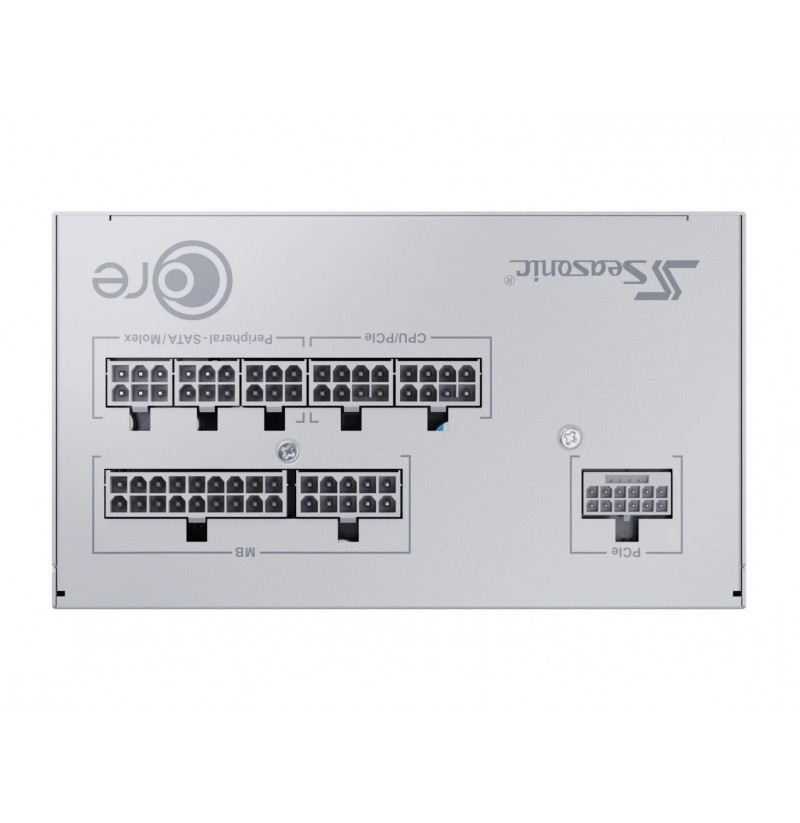

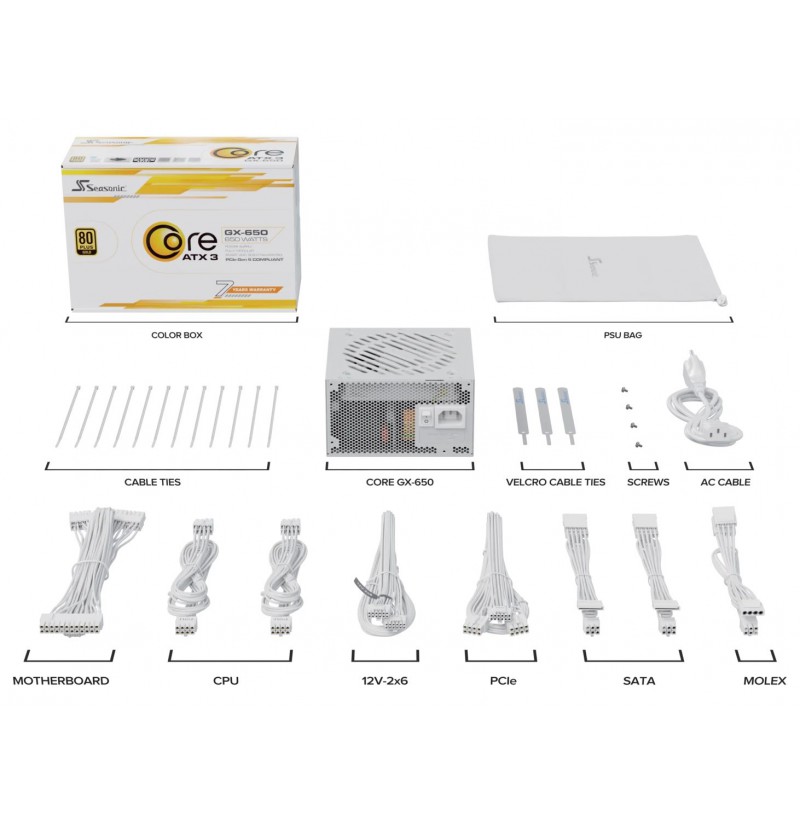

Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 1
CPU power cable length: 75 cm
SATA power cable length: 750
Motherboard power cable length: 61 cm
Peripheral (Molex) power connectors (4-pin): 3
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power cable length: 690 mm
CPU power connector (4+4 pin): Yes
