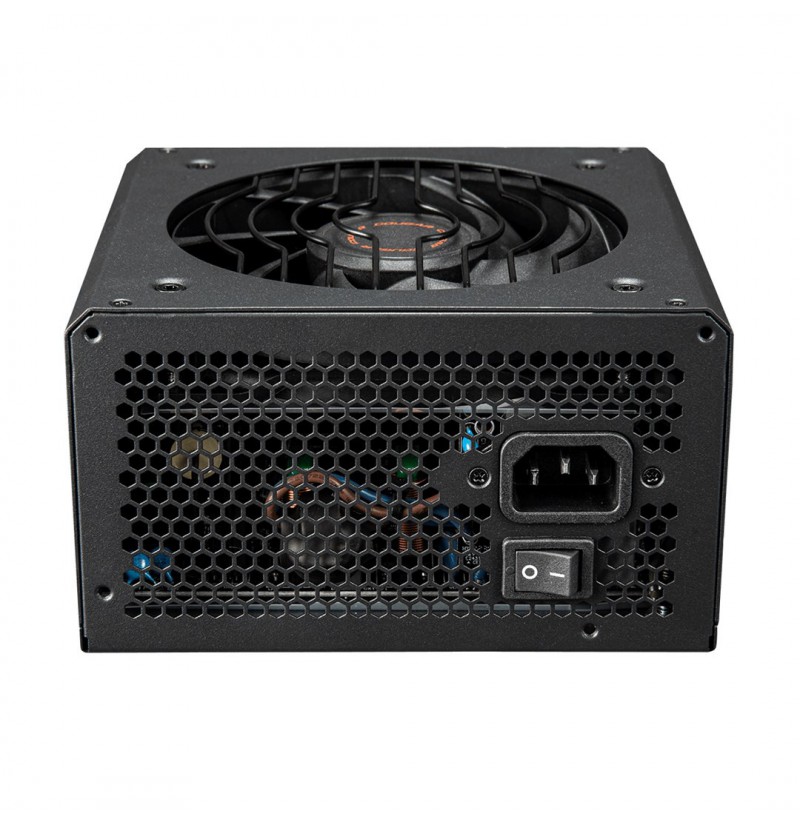

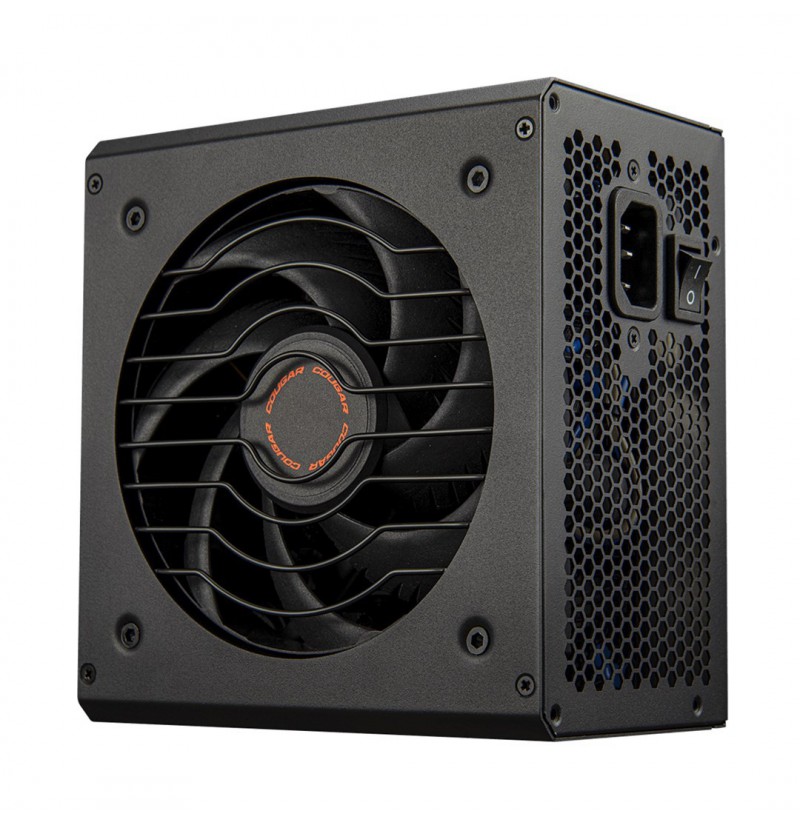

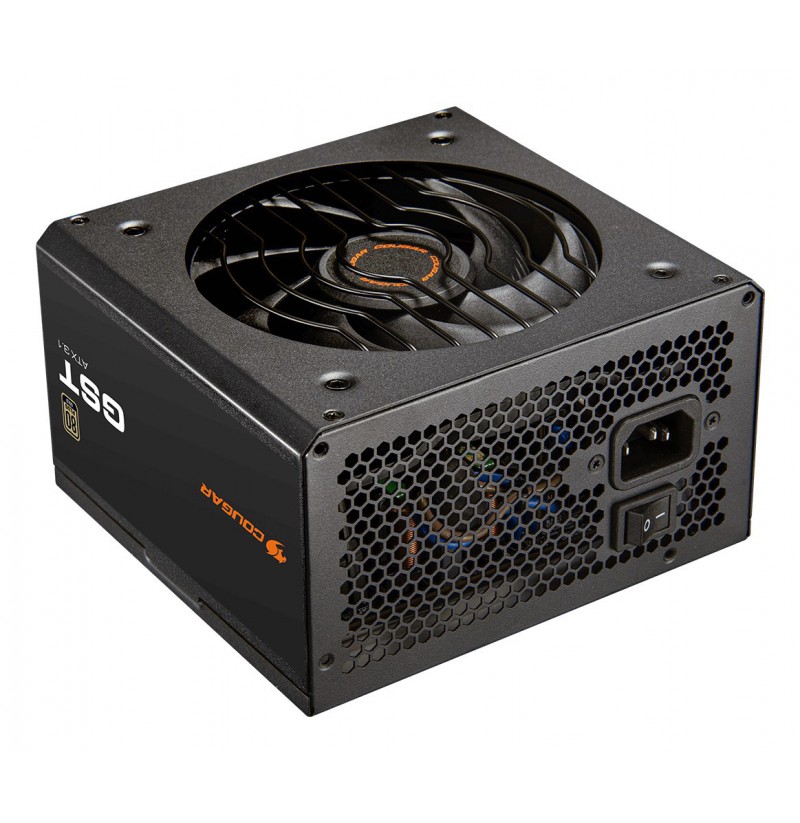

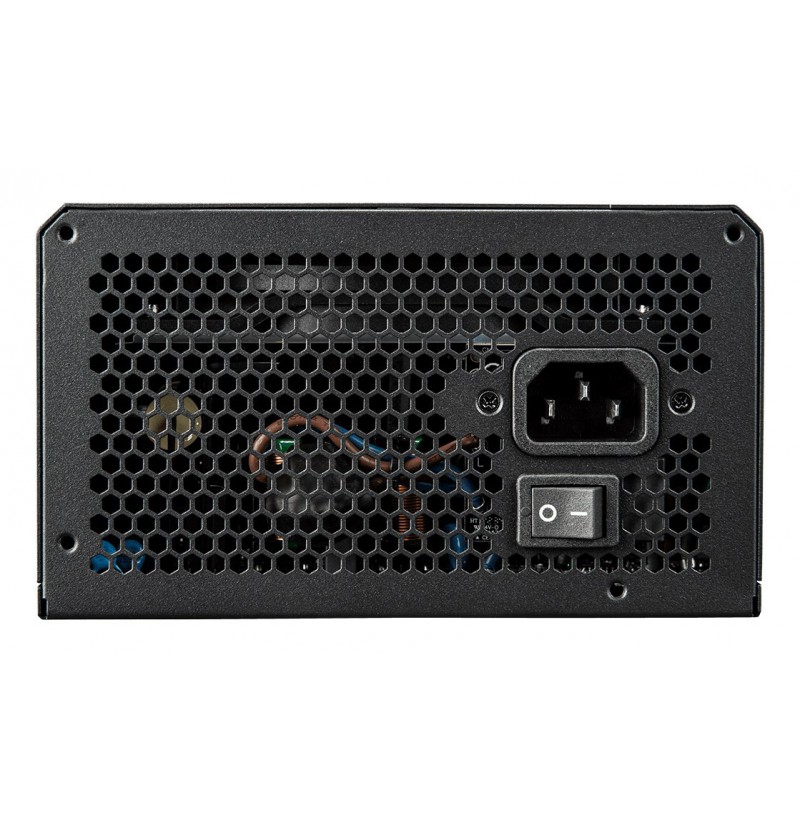

COUGAR GST power supply unit 750 W 20+4 pin ATX ATX Black

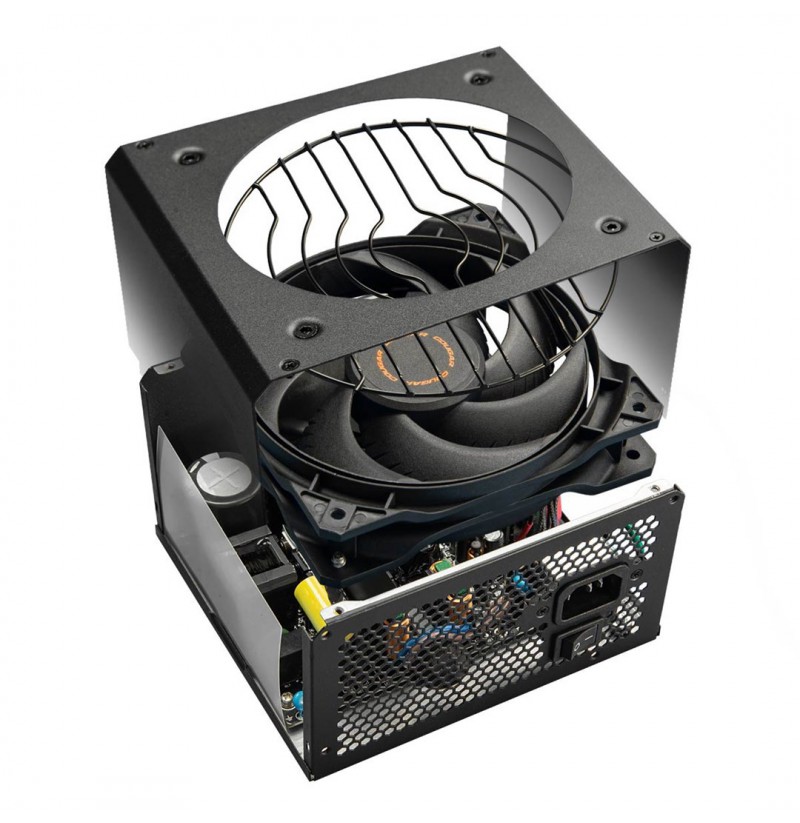

Fan diameter: 12 cm
Product colour: Black
On/off switch: Yes
Number of fans: 1 fan(s)
Cooling type: Active
Efficiency: 91%
Combined power (+5V): 120 W
Max output current (+12V): 62.5 A
Combined power (+12V): 750 W
Combined power (+3.3V): 120 W
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Total power: 750 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Power protection features: Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating
AC input voltage: 100 - 240 V
Input current: 10 - 5 A
AC input frequency: 50/60 Hz
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 40 °C
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -40 - 70 °C
Height: 86 mm
Depth: 140 mm
Weight: 2.01 kg
Width: 150 mm
Bearing technology: HDB
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
80 PLUS certification: 80 PLUS Gold

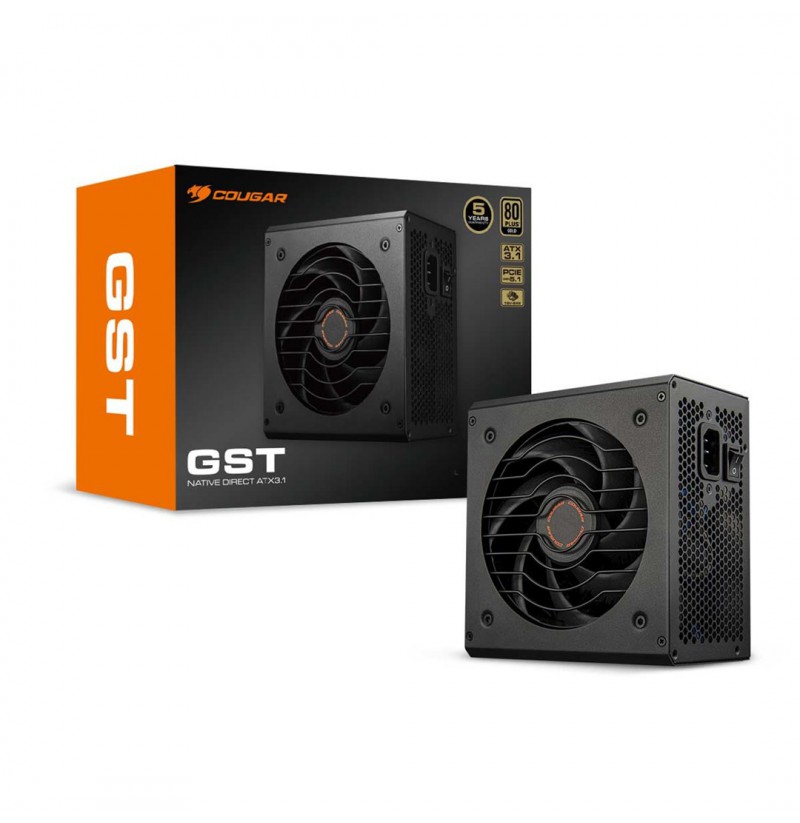

Package depth: 290 mm
Package weight: 2.81 kg
Package height: 105 mm
Package width: 215 mm
Compliance certificates: EAC, Federal Communications Commission (FCC), TÜV mark, UKCA, RoHS, CE
Peripheral (Molex) power cable length: 150, 450 mm
PCI Express connector: Yes
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 55 cm
Cabling type: Non-Modular
PCI Express power connectors (6+2 pin): 4
CPU power cable length: 60 cm
SATA power cable length: 150, 450
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (12+4 pin) cable length: 600 mm
PCI Express power connectors (12+4 pin): 1
