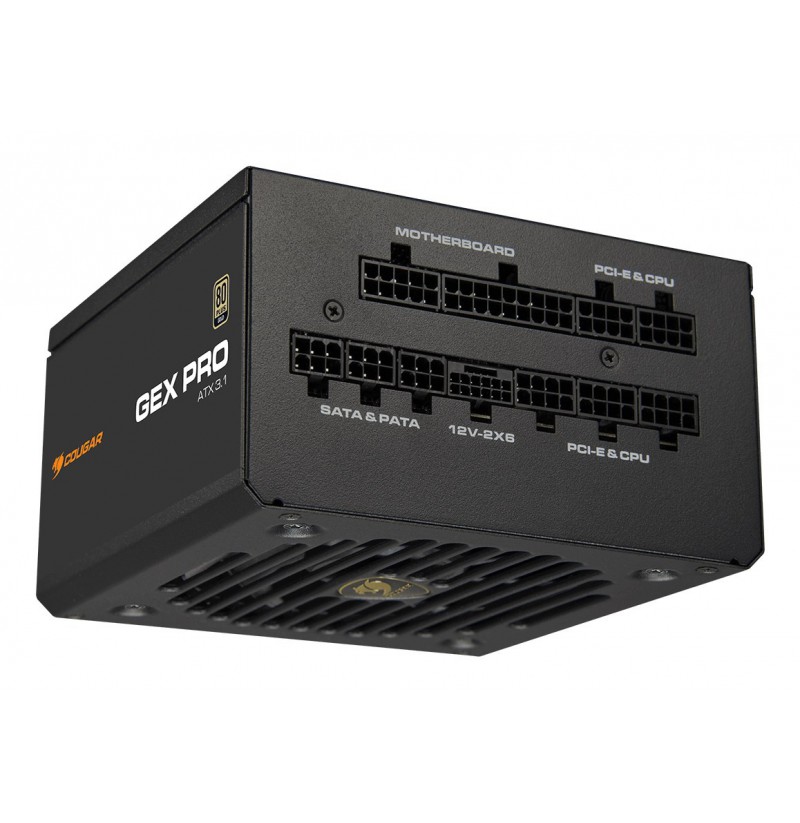

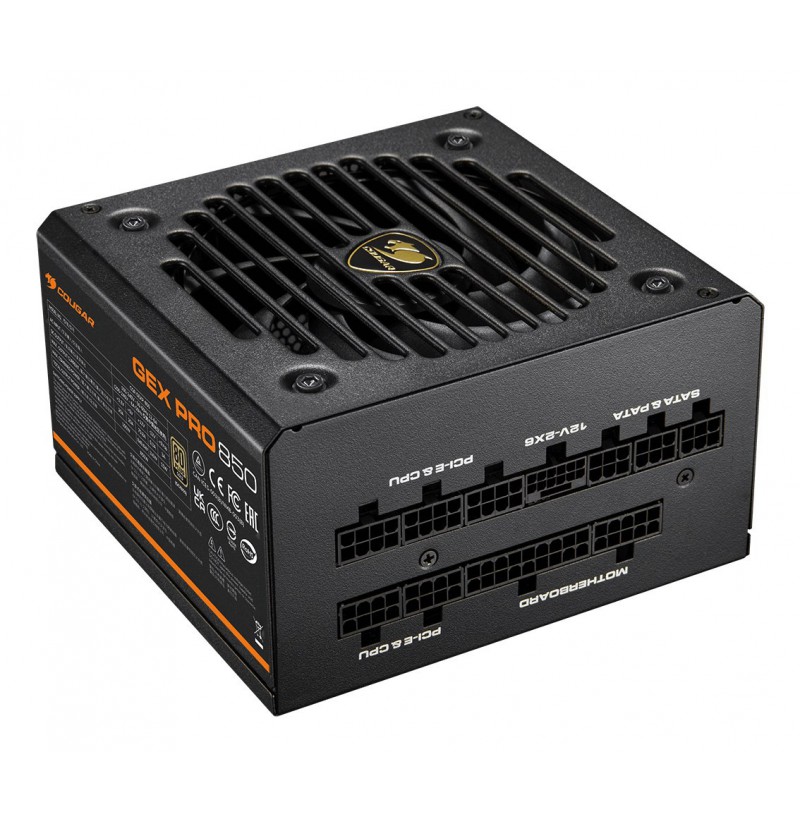

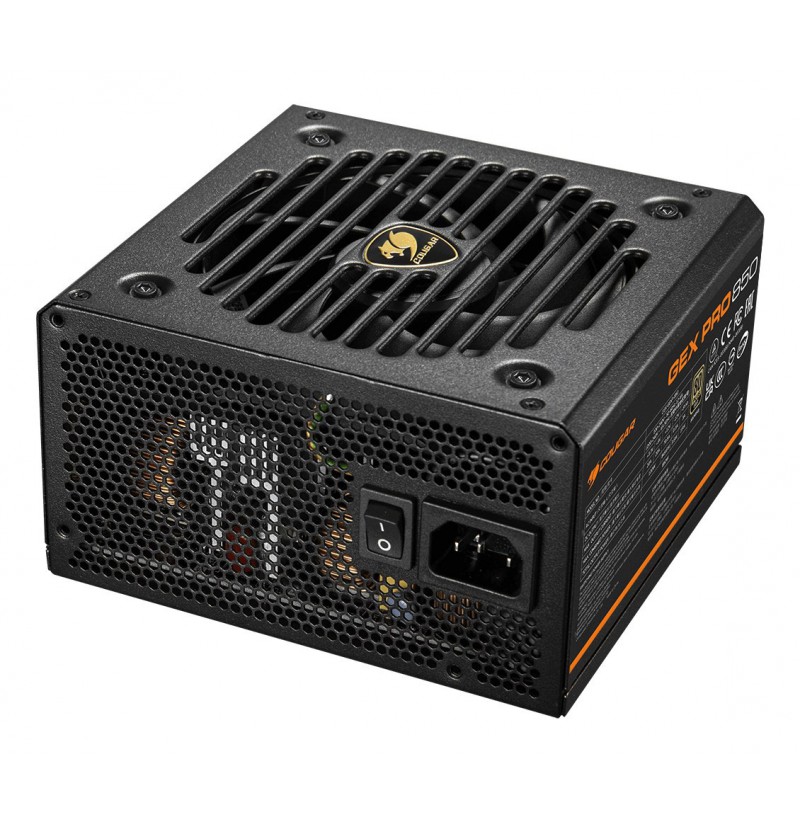

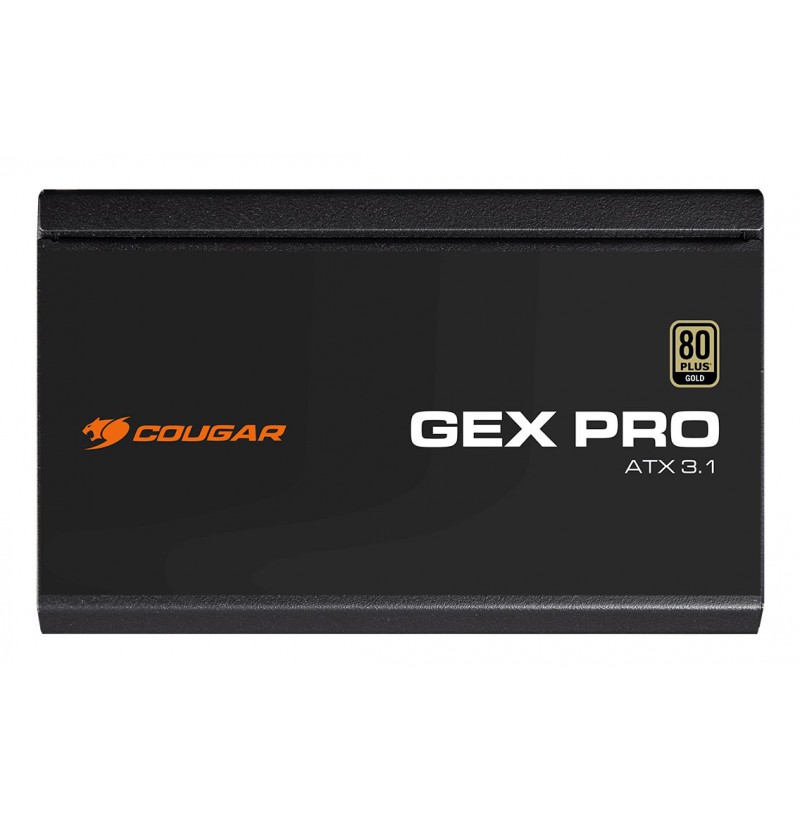

COUGAR CGR GEXP-750 power supply unit 750 W 20+4 pin ATX ATX Black

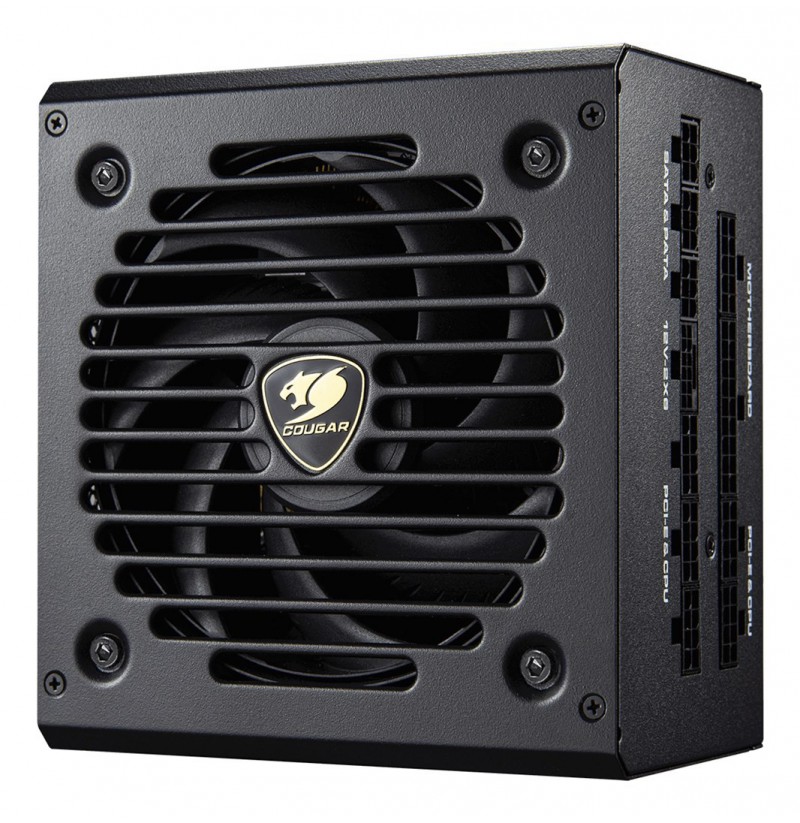

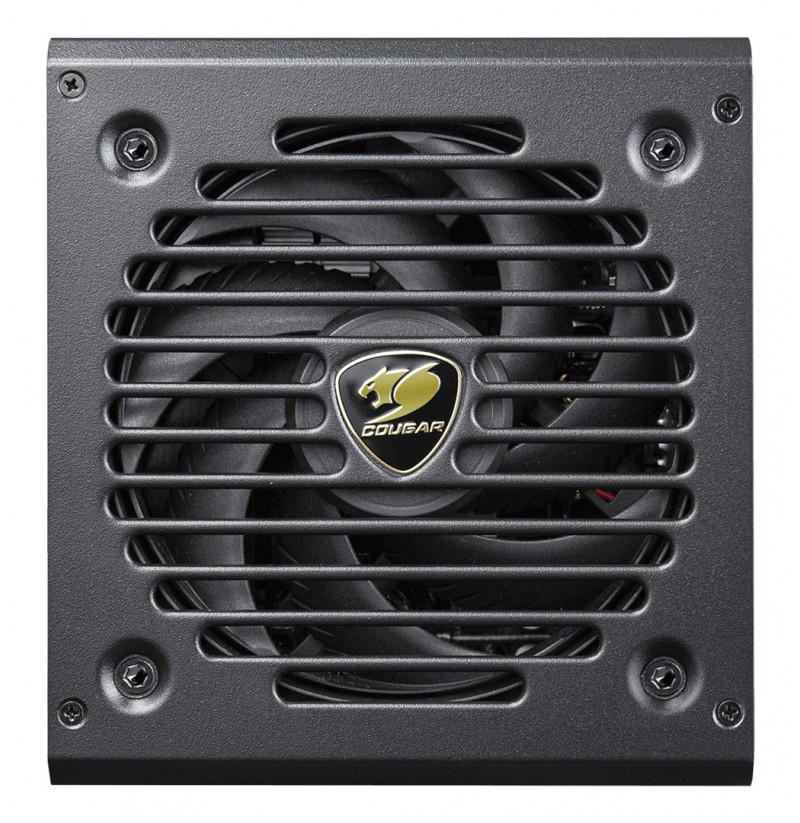

Fan location: Top

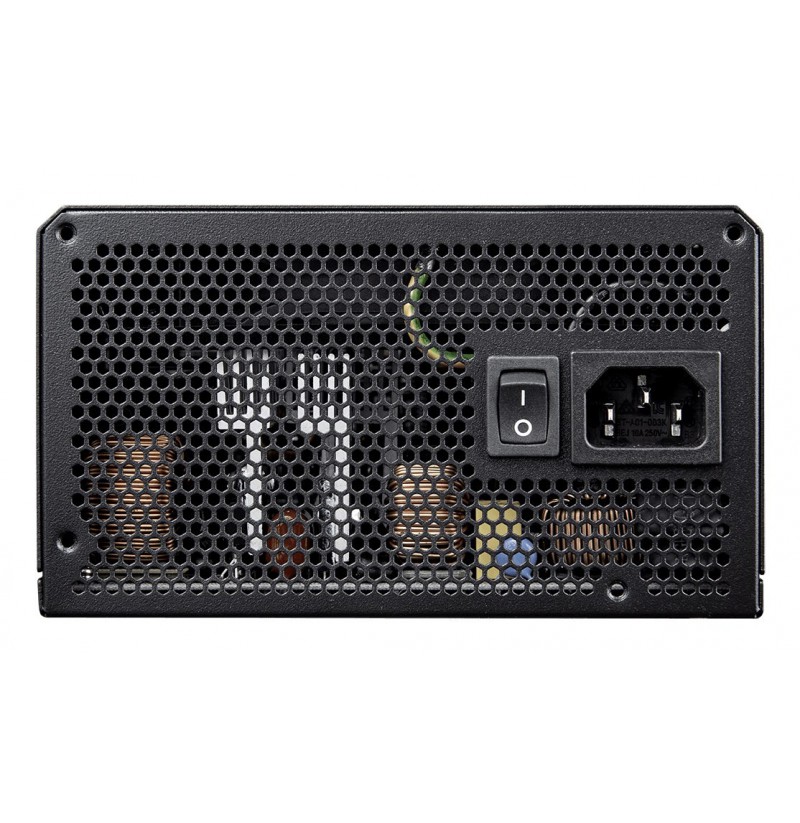

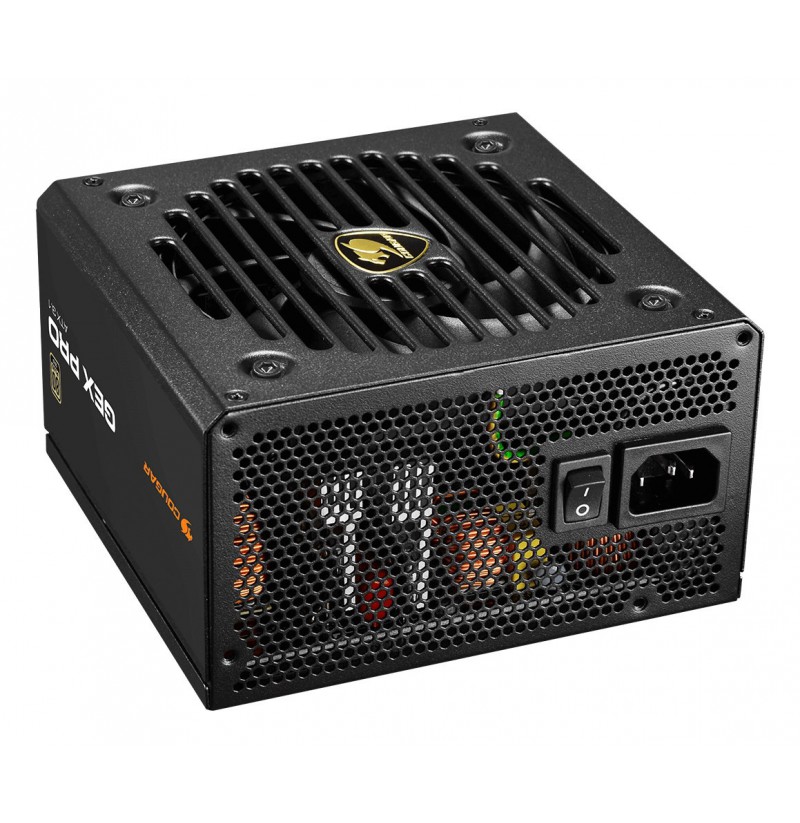

On/off switch: Yes
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active
Product colour: Black
Combined power (+3.3V): 100 W
Power protection features: Under voltage, Over current, Short circuit, Over voltage, Overheating, Over power
Total power: 750 W
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
Combined power (-12V): 3.6 W
Combined power (+12V): 750 W
Max output current (+5Vsb): 3 A
Max output current (+12V): 62.5 A
Efficiency: 91%
Combined power (+5V): 100 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A
AC input voltage: 100 - 240 V
Input current: 10-5 A
AC input frequency: 50/60 Hz
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 40 °C
Operating relative humidity (H-H): 20 - 85%
Storage temperature (T-T): -40 - 70 °C
Height: 56 mm
Width: 150 mm
Depth: 140 mm
Weight: 2.12 kg
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Purpose: PC
ATX version: 3.1
Package height: 107 mm
Package weight: 2.14 kg

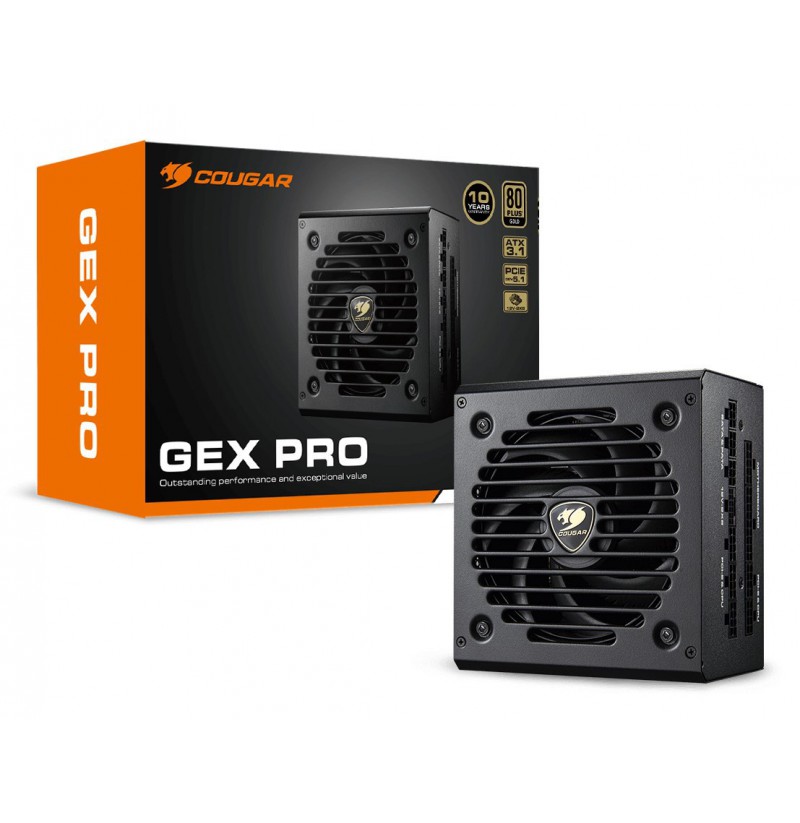

Package type: Box
Package width: 215 mm
Package depth: 330 mm
Compliance certificates: Federal Communications Commission (FCC), EAC, UKCA, RoHS, CE

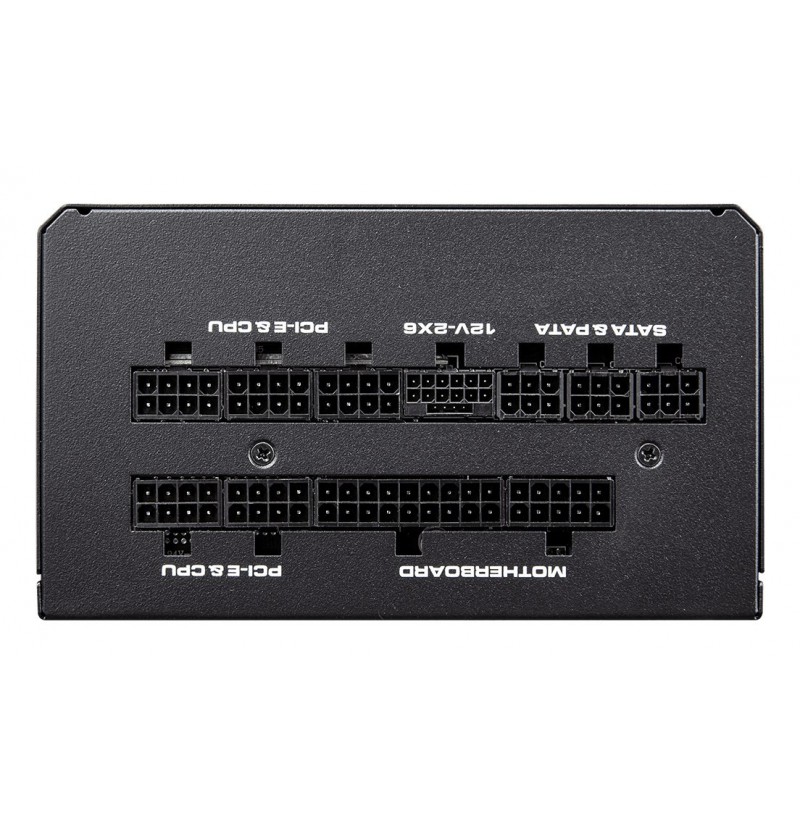

Motherboard power connector: 20+4 pin ATX
PCI Express power connectors (6+2 pin): 3
Number of SATA power connectors: 8
CPU power cable length: 70 cm
Motherboard power cable length: 61 cm
PCI Express connector: Yes

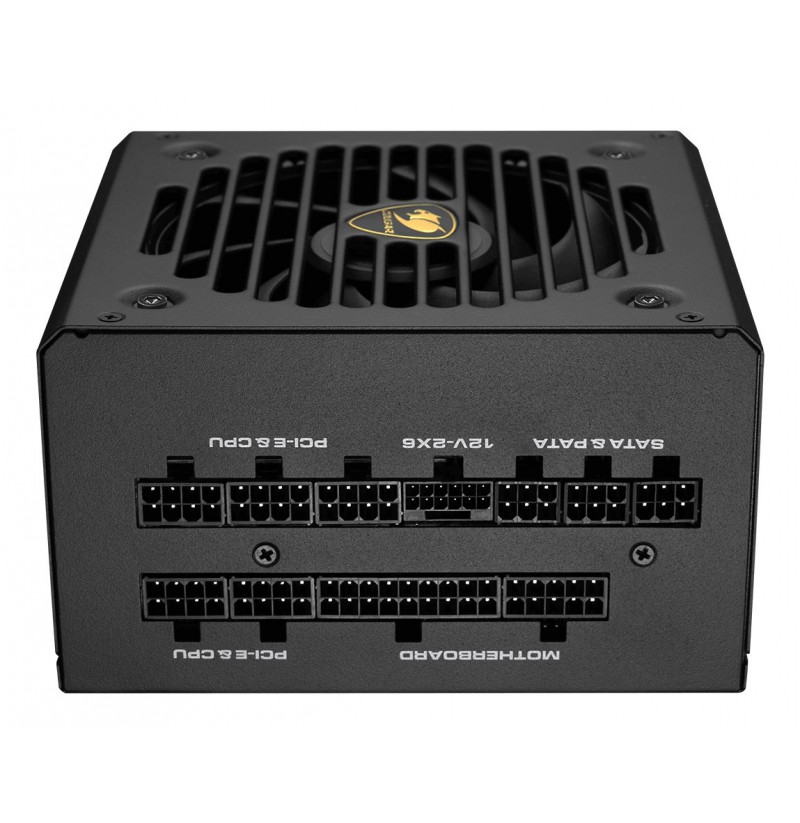

Cabling type: Fully-Modular
SATA power cable length: 760 mm, 400 mm, 520, 640
Number of PATA power connectors: 3
CPU power connector (4+4 pin): Yes
PCI Express power connectors (12+4 pin) cable length: 650 mm
PCI Express power connectors (12+4 pin): 1
