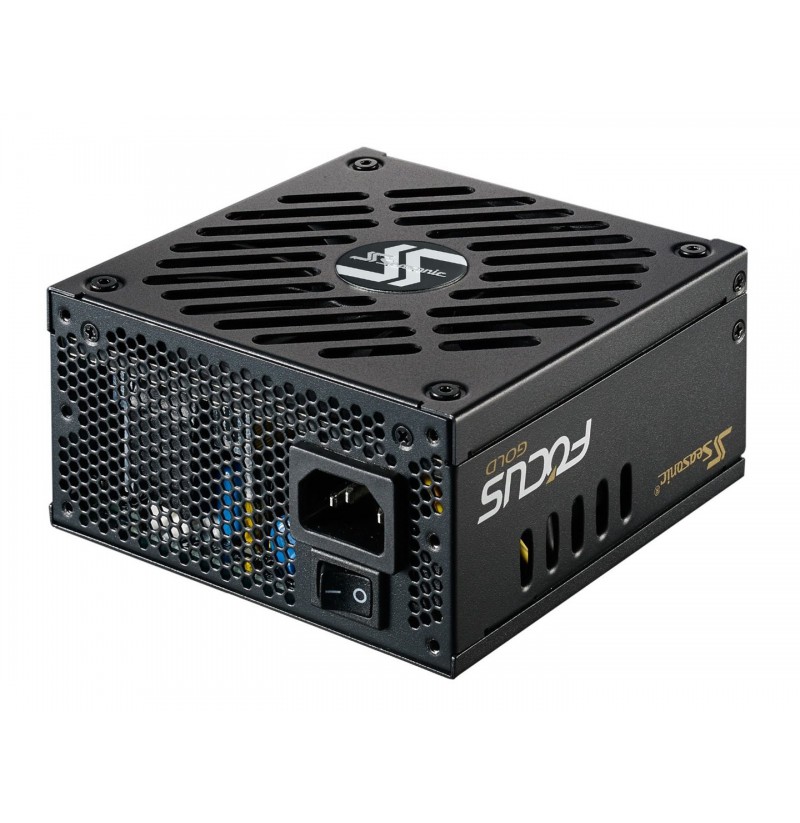

Seasonic FOCUS SGX-650 power supply unit 650 W 20+4 pin ATX SFX Black

Sustainability certificates: ENERGY STAR
Fan location: Top
Illumination: No
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Max output current (+12V): 54 A
Combined power (+3.3V): 100 W
Max output current (-12V): 0.3 A
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Combined power (+12V): 648 W
Power protection features: Overheating, Under voltage, Over current, Over power, Short circuit, Over voltage
Total power: 650 W
AC input voltage: 100 - 240 V
Input current: 9 A
AC input frequency: 50 - 60 Hz
Operating temperature (T-T): 0 - 50 °C
Height: 63.5 mm
Width: 125 mm
Depth: 125 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Purpose: PC
Power supply unit (PSU) form factor: SFX
Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Compliance certificates: RoHS
SATA power cable length: 600 mm
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 40 cm
Peripheral (Molex) power cable length: 700
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Fully-Modular
