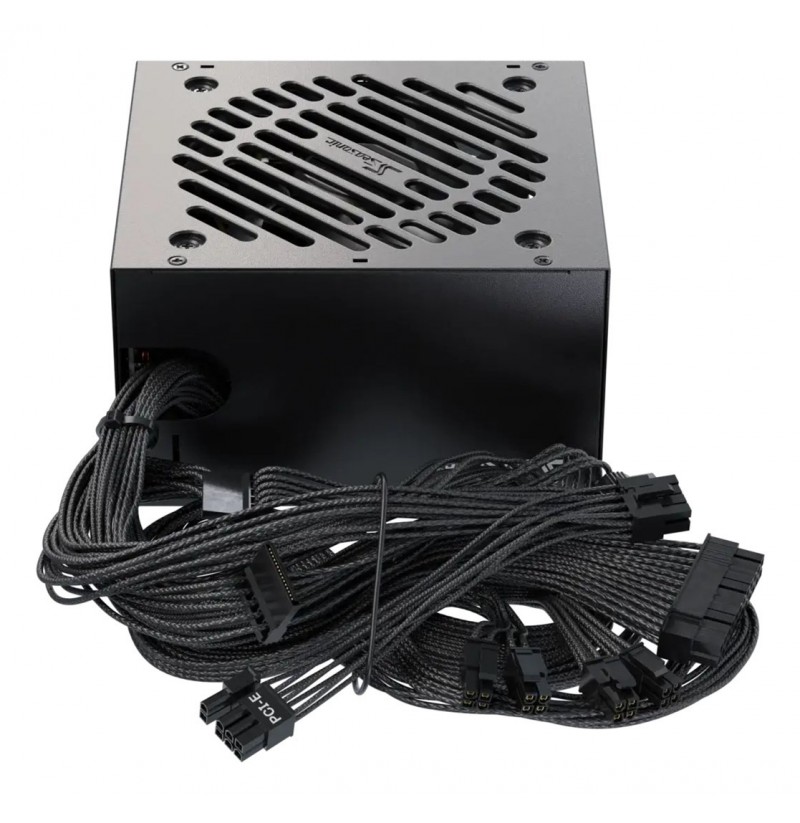

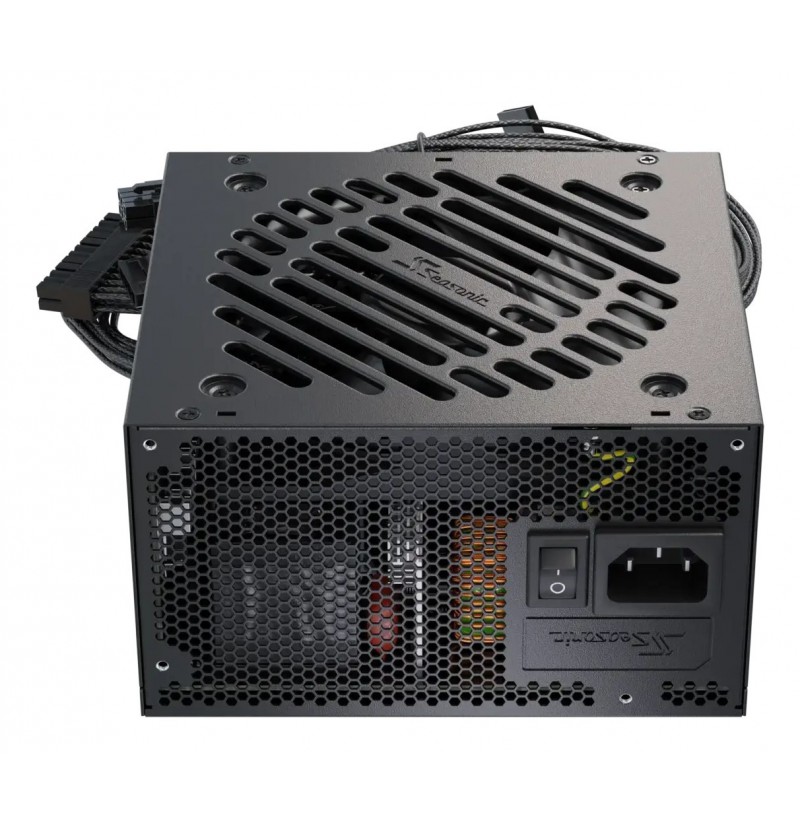

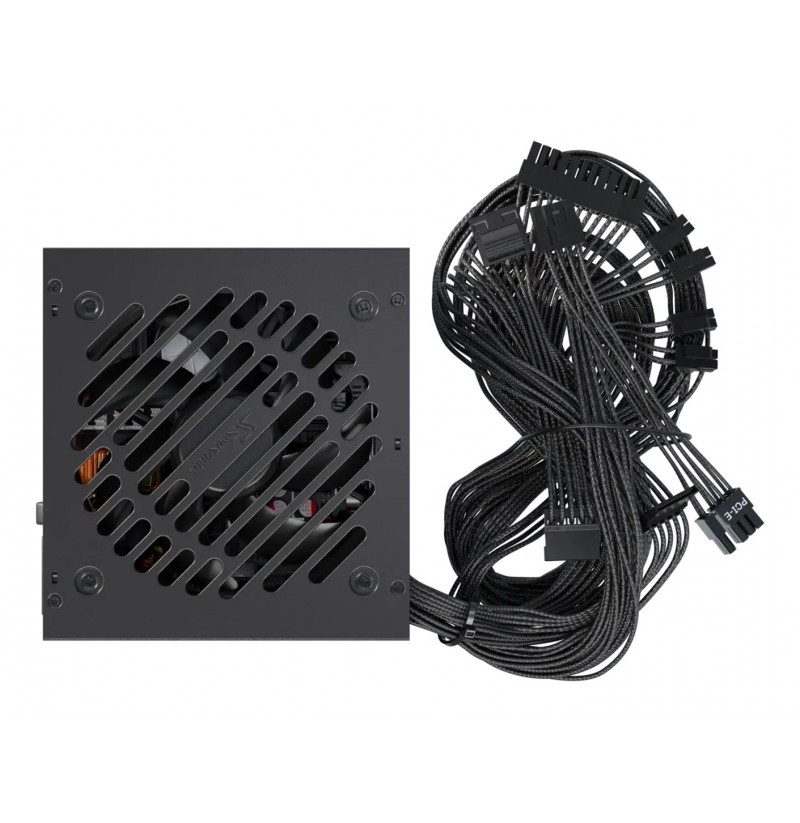

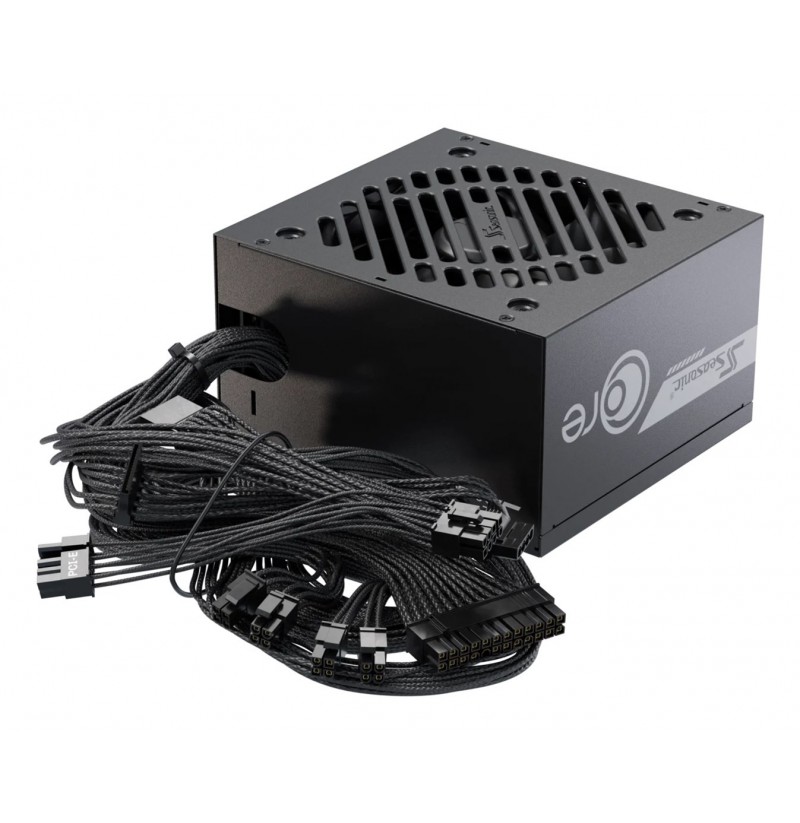

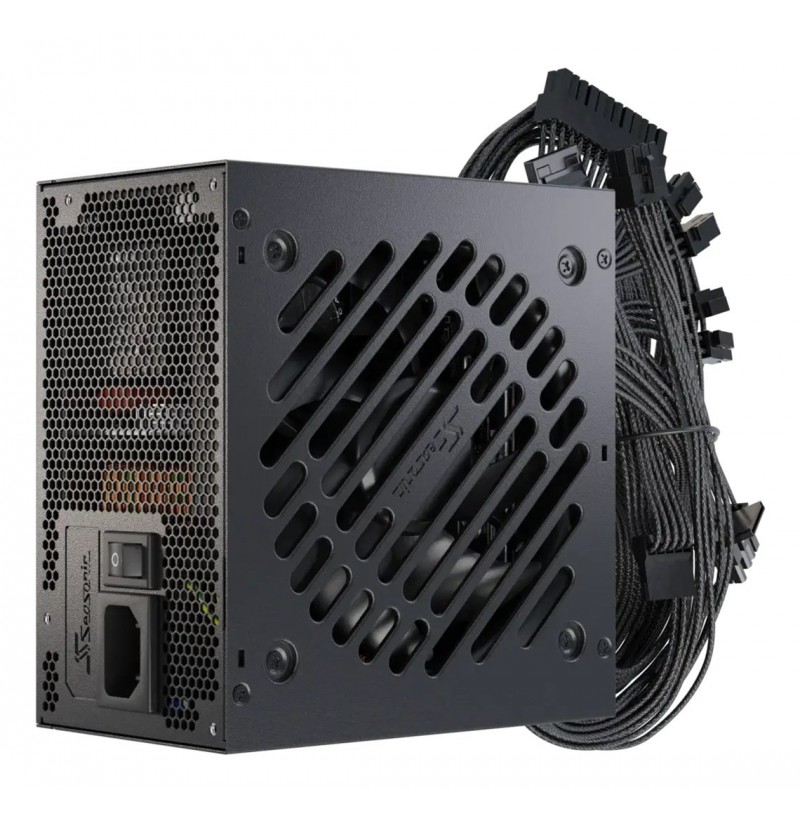

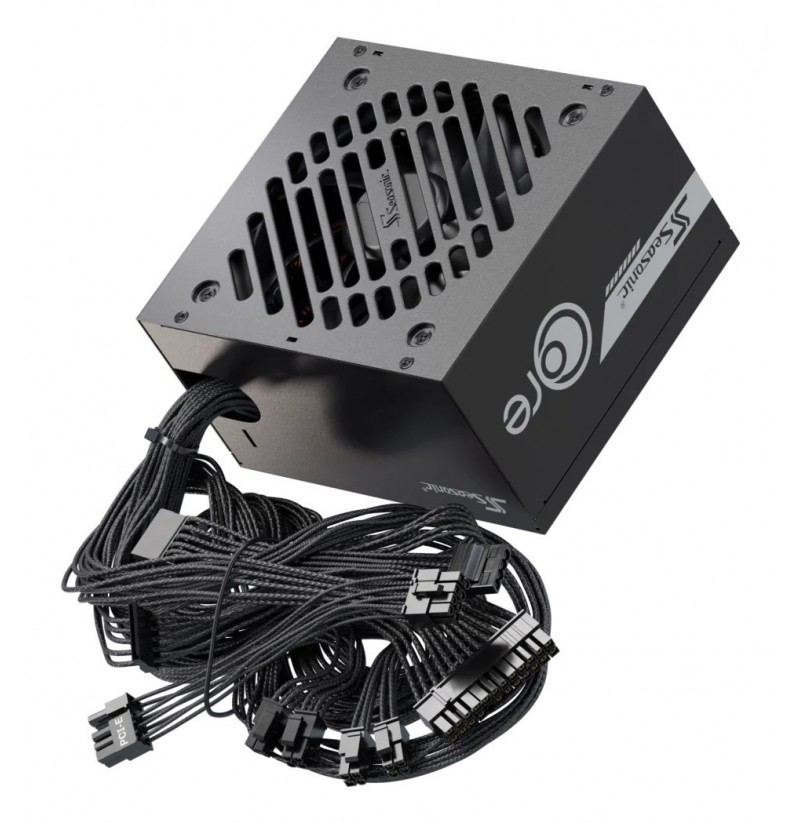

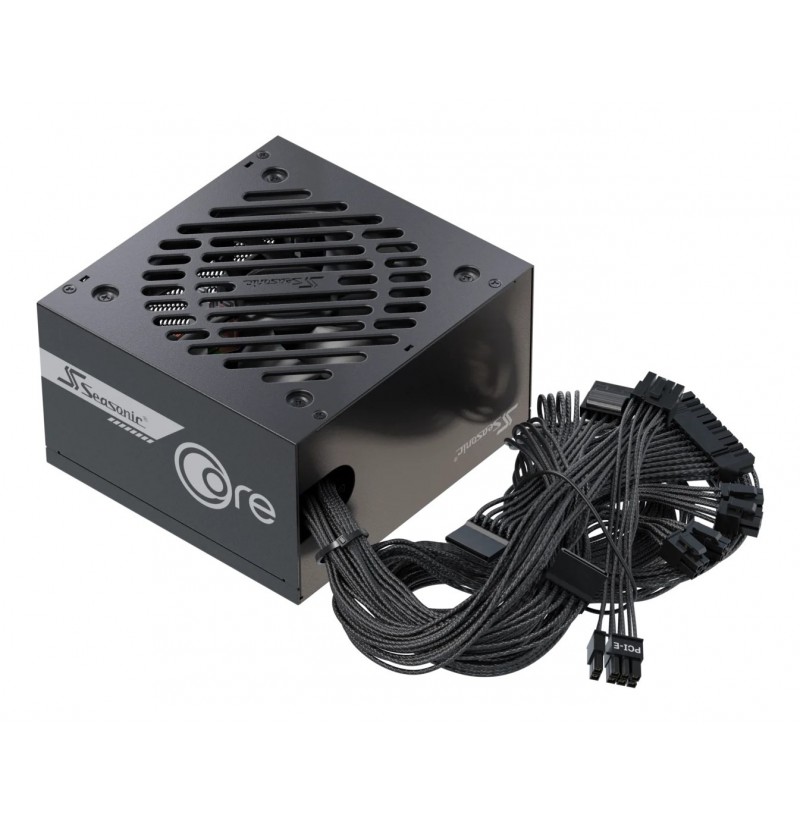

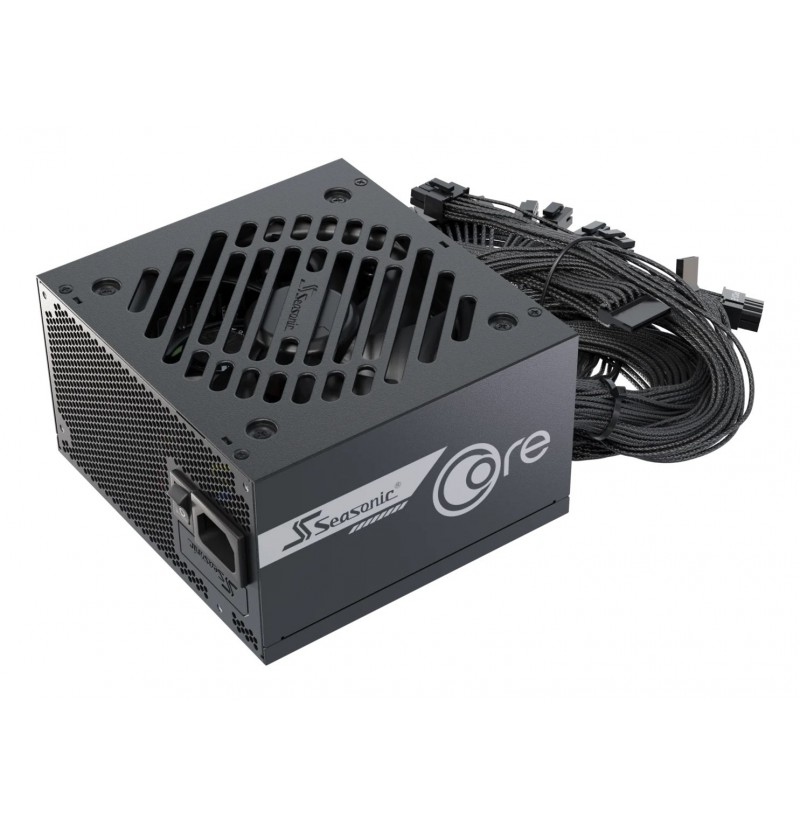

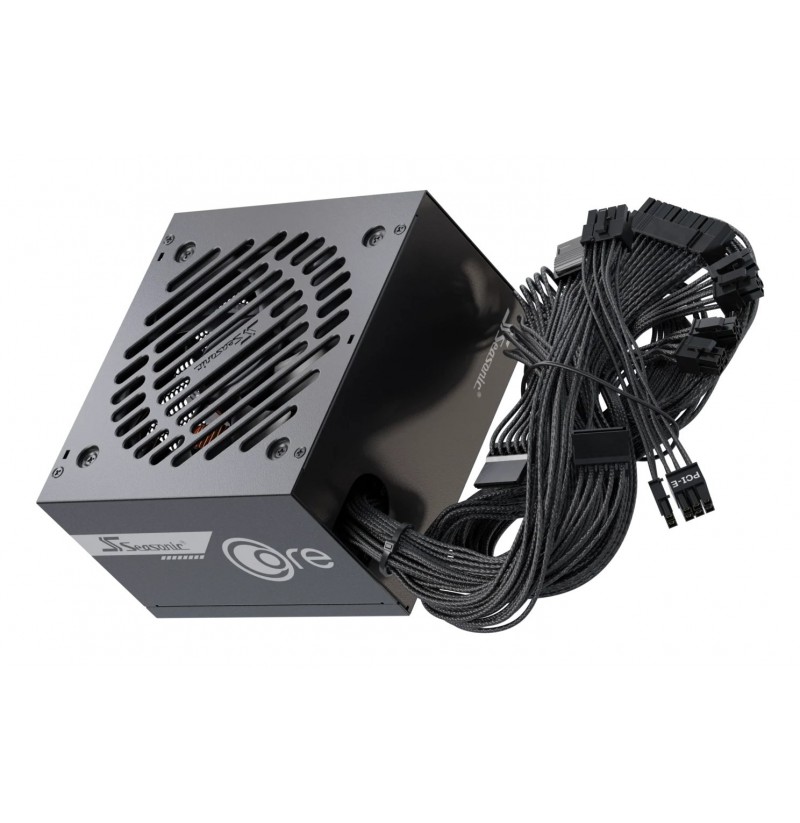

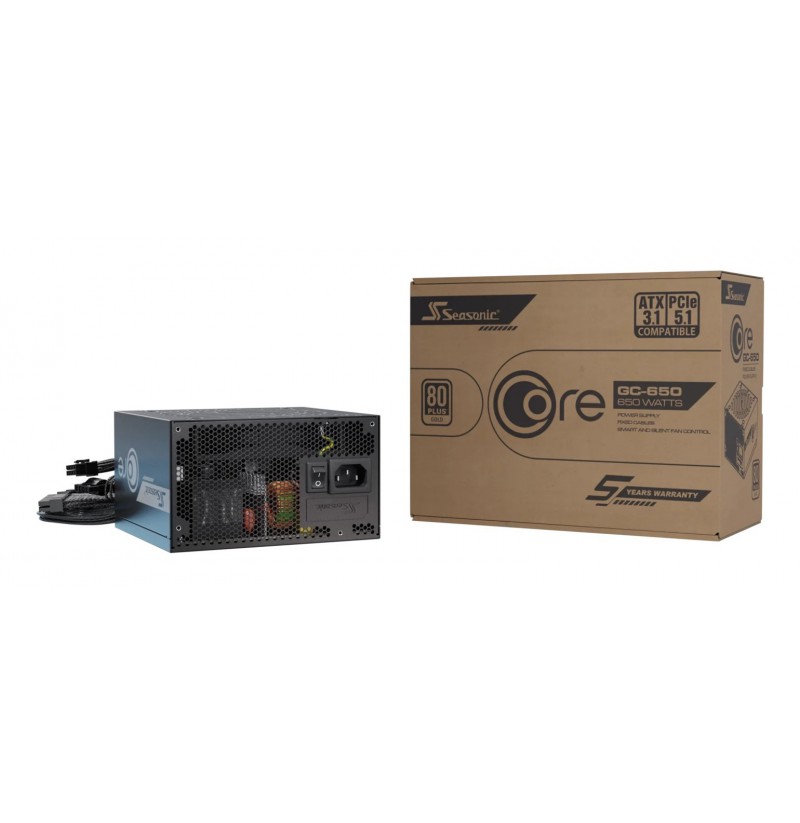

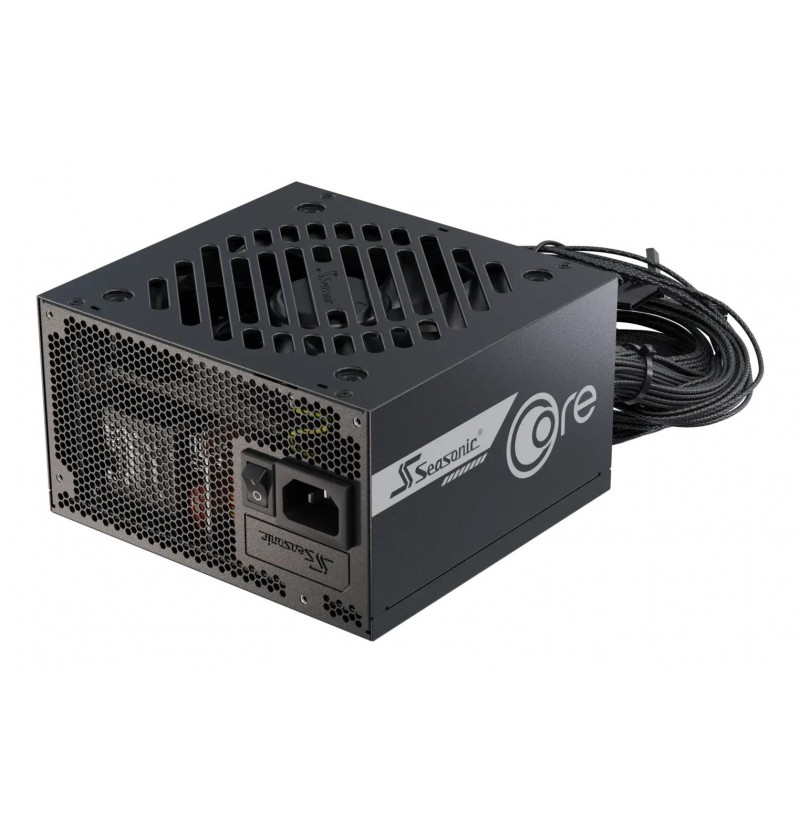

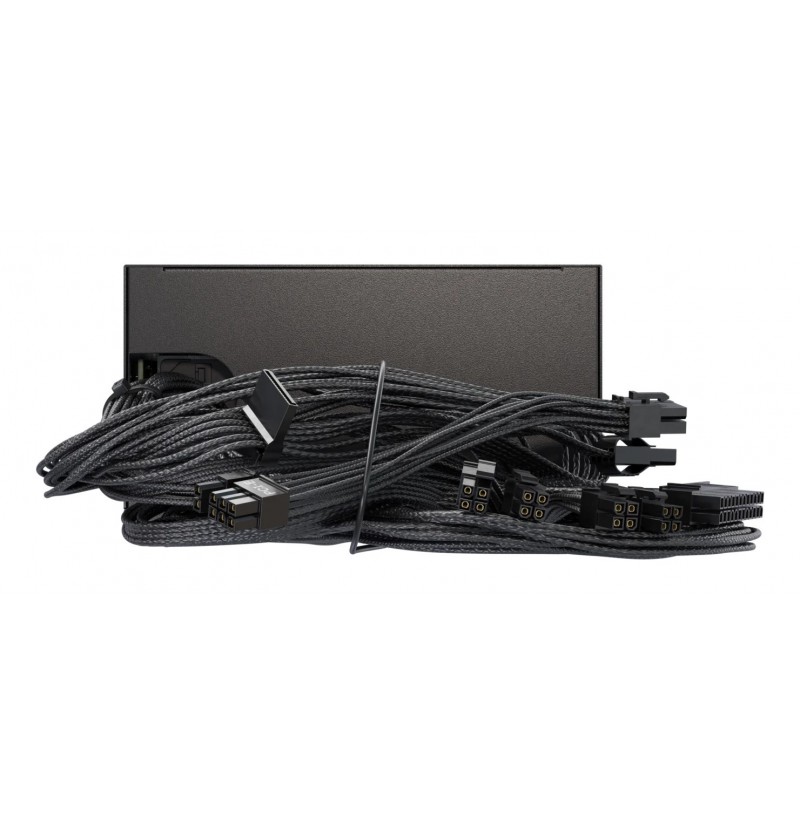

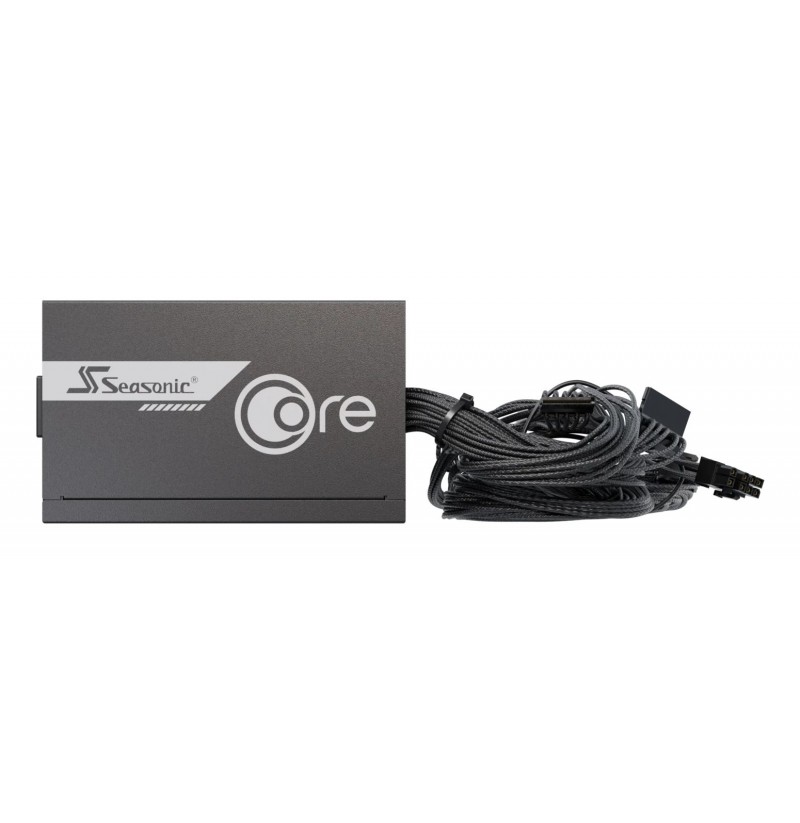

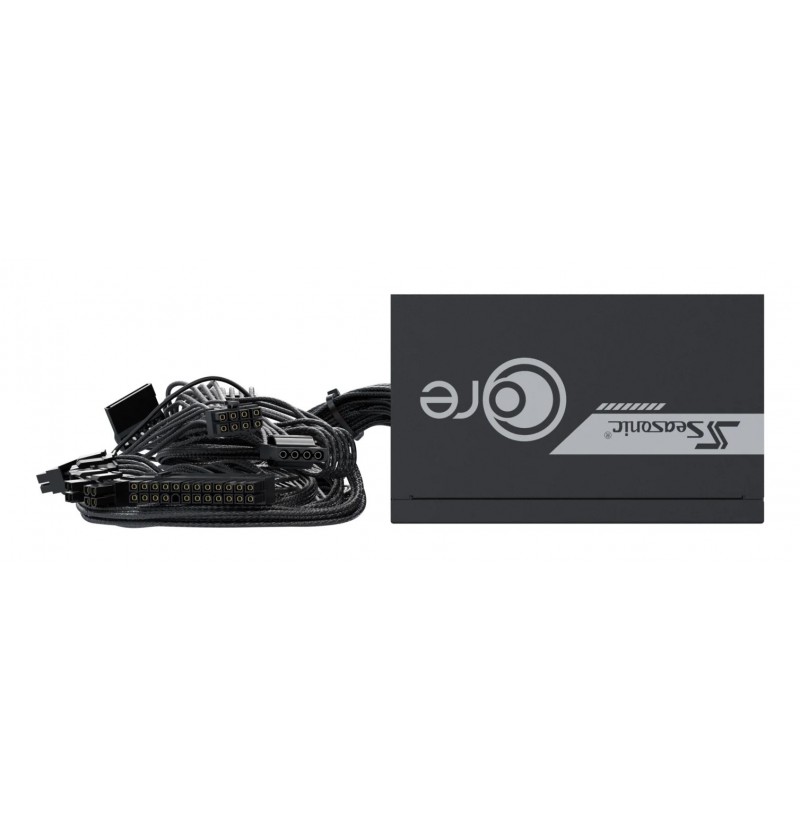

650W Seasonic Core GC-650 ATX3.1 80+Gold

Sustainability certificates: ENERGY STAR, ErP
Product colour: Black
On/off switch: Yes
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
AC input frequency: 50/60 Hz
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Total power: 650 W
Input current: 9 - 4.5 A
AC input voltage: 100 - 240 V
Combined power (-12V): 3.6 W
Combined power (+3.3V): 100 W
Combined power (+5Vsb): 12.5 W
Max output current (+12V): 54 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Combined power (+12V): 648 W
Combined power (+5V): 100 W
Operating relative humidity (H-H): 15 - 65%
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Depth: 140 mm
Height: 86 mm
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
Bearing technology: Ball bearing
ATX version: 3.1
Package type: Box
Compliance certificates: WEEE, CB, EAC, UKCA, REACH, cTUVus, CCC, BSMI, RoHS, CE
Peripheral (Molex) power connectors (4-pin): 1
Motherboard power cable length: 55 cm
ATX power connector (20+4 pin): Yes
Peripheral (Molex) power cable length: 600 mm
PCI Express power connectors (8-pin): 2
CPU power cable length: 60 cm
SATA power cable length: 600 mm
PCI Express power cable length: 55 cm
Number of SATA power connectors: 2
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Motherboard power connector: 24-pin ATX
