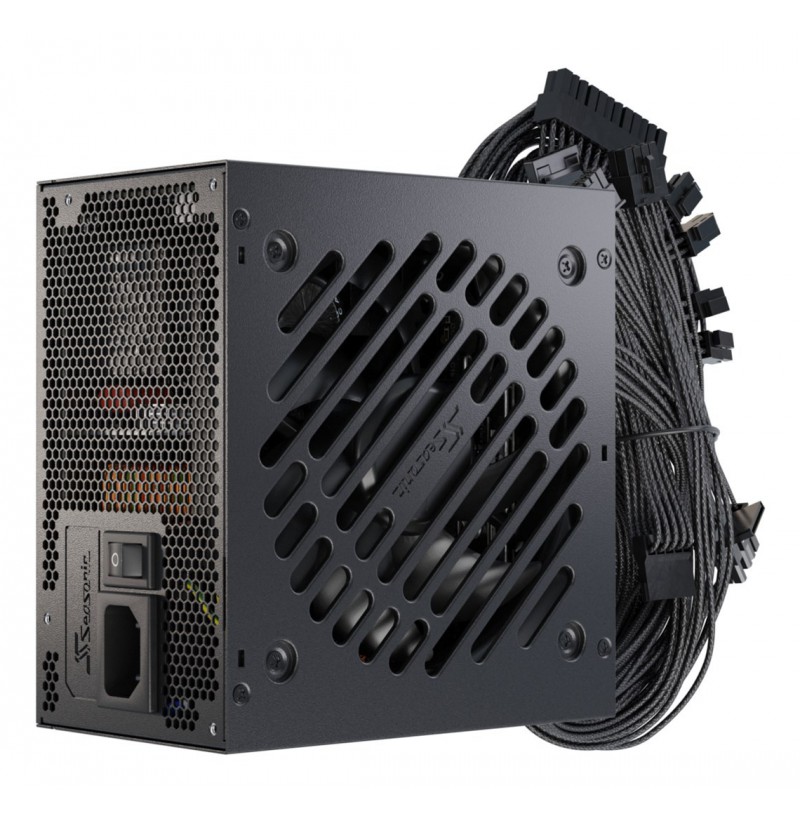

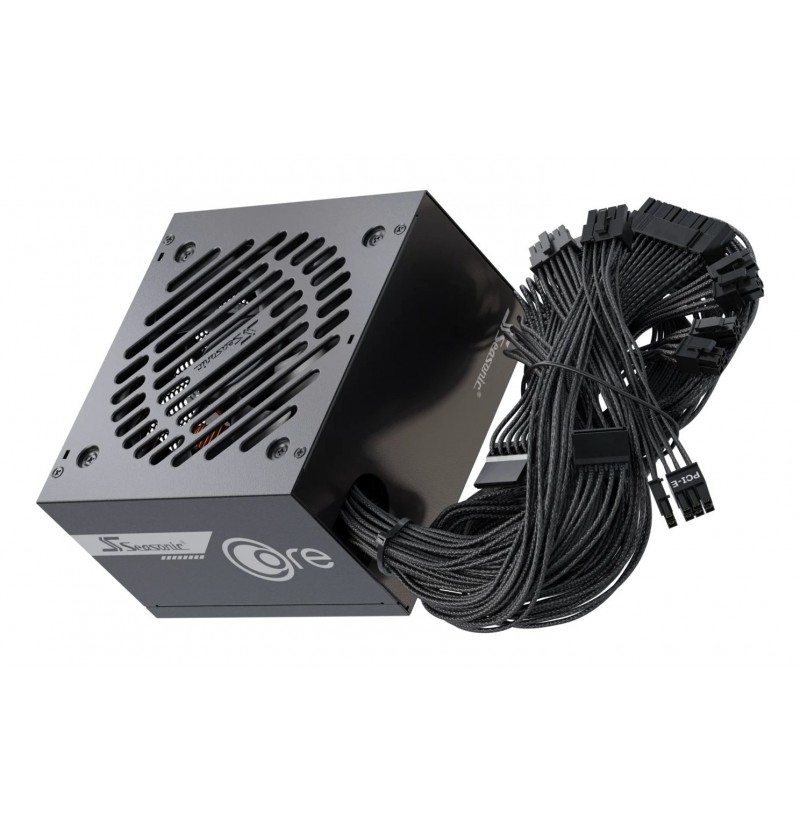

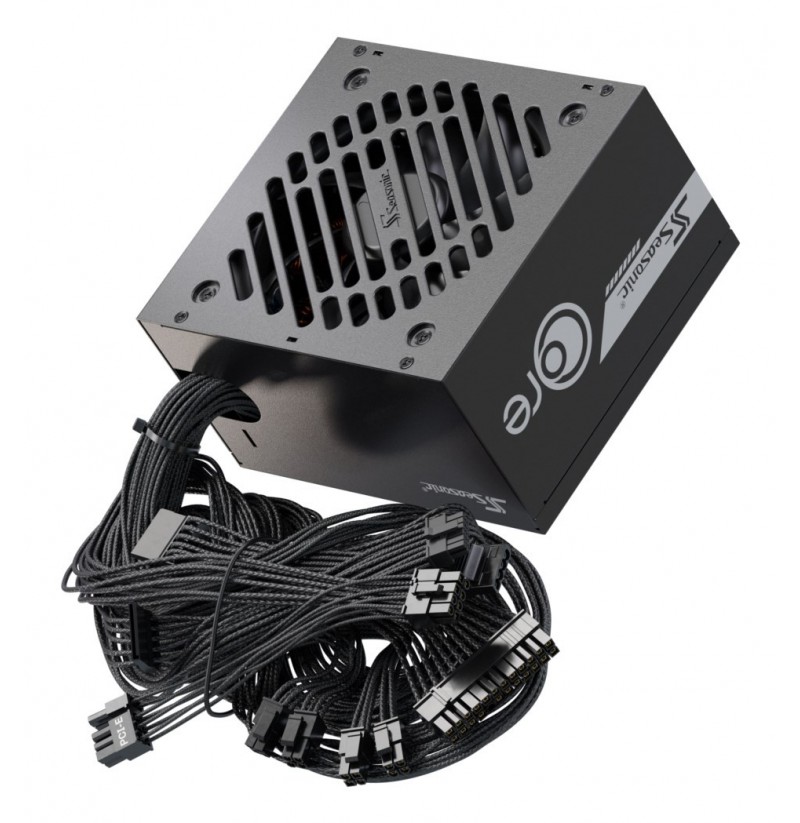

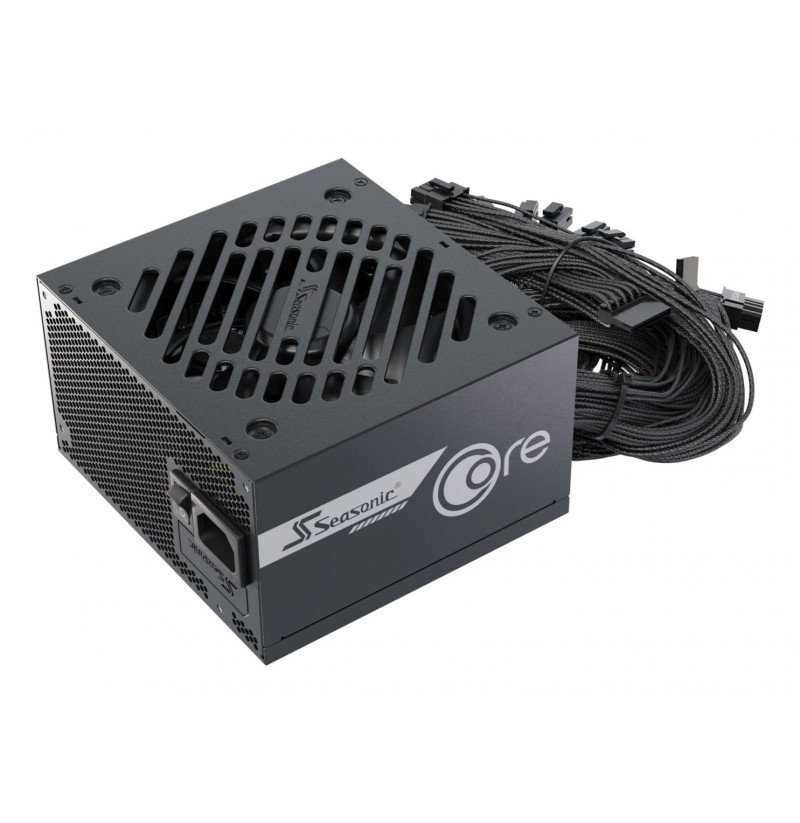

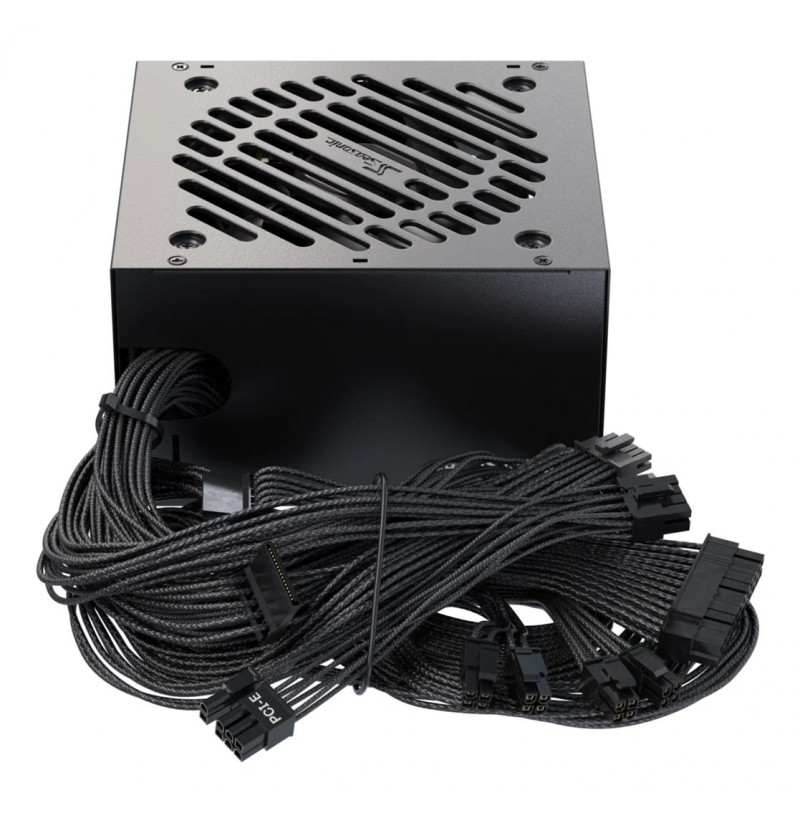

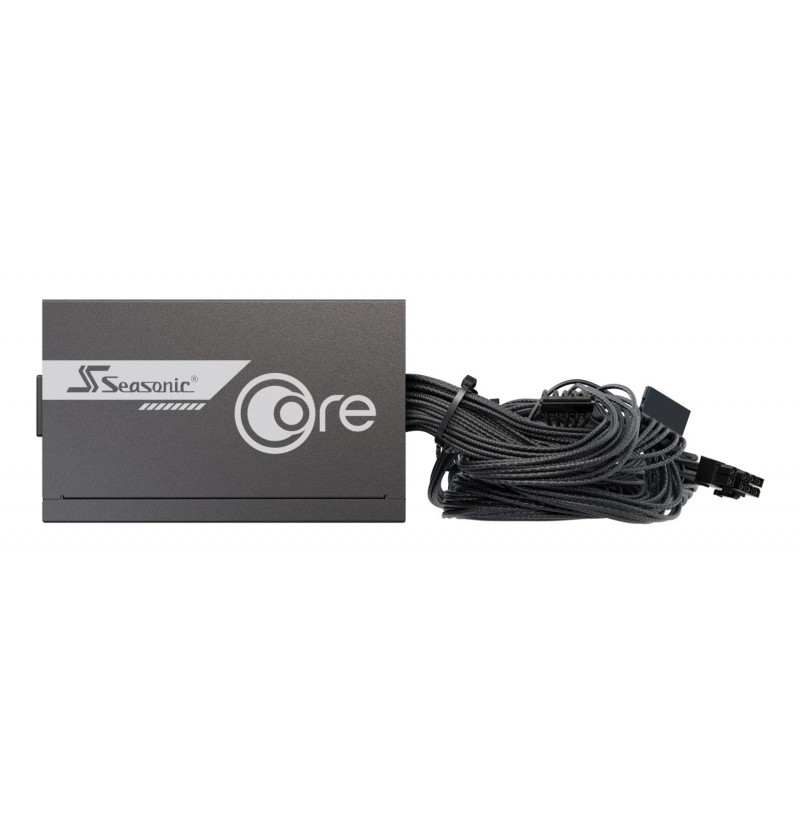

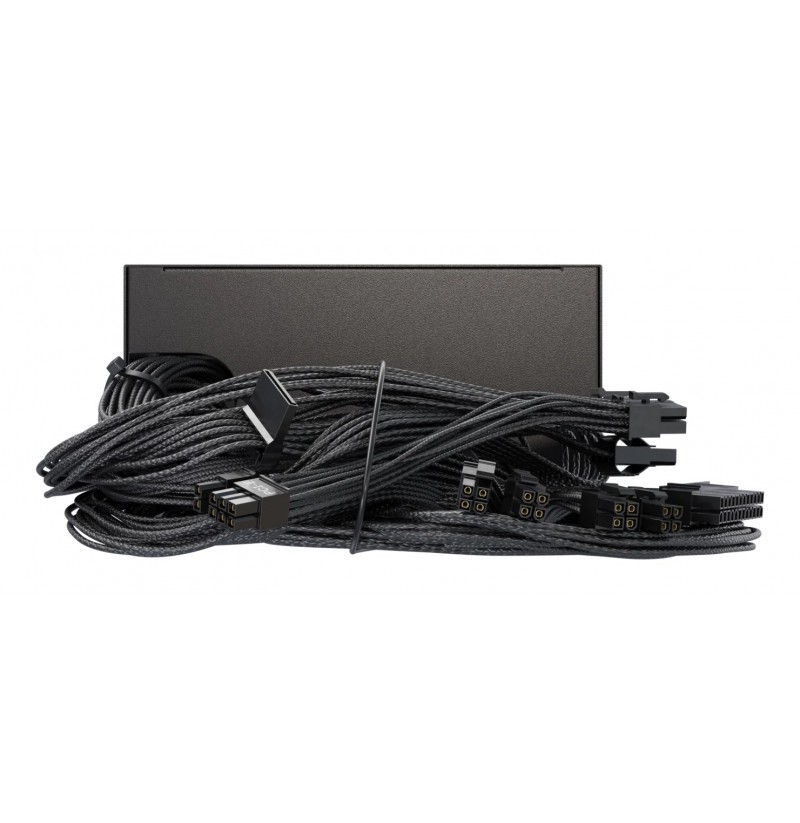

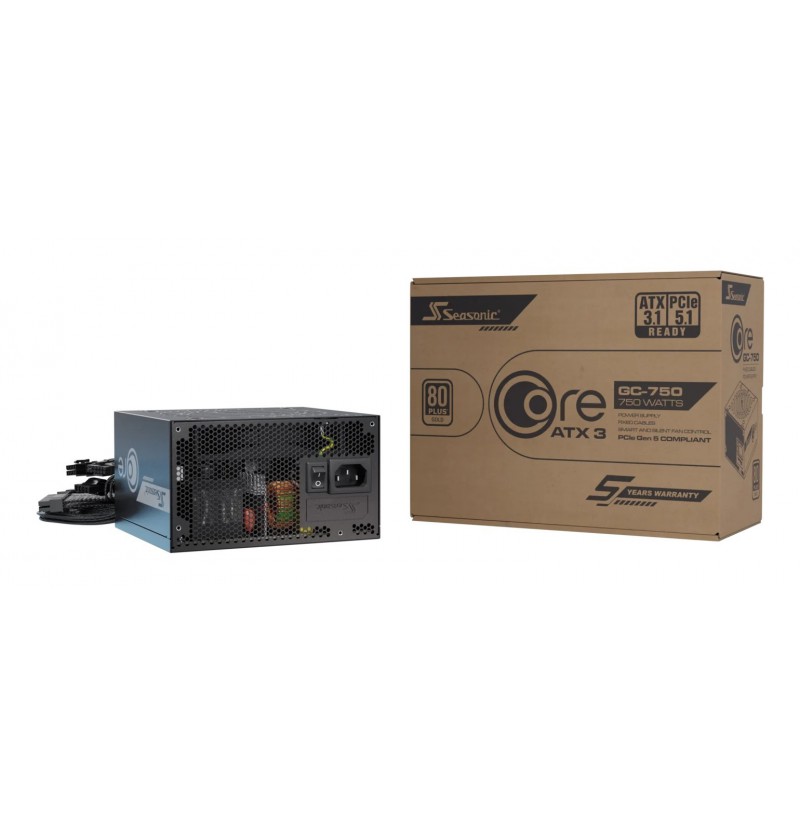

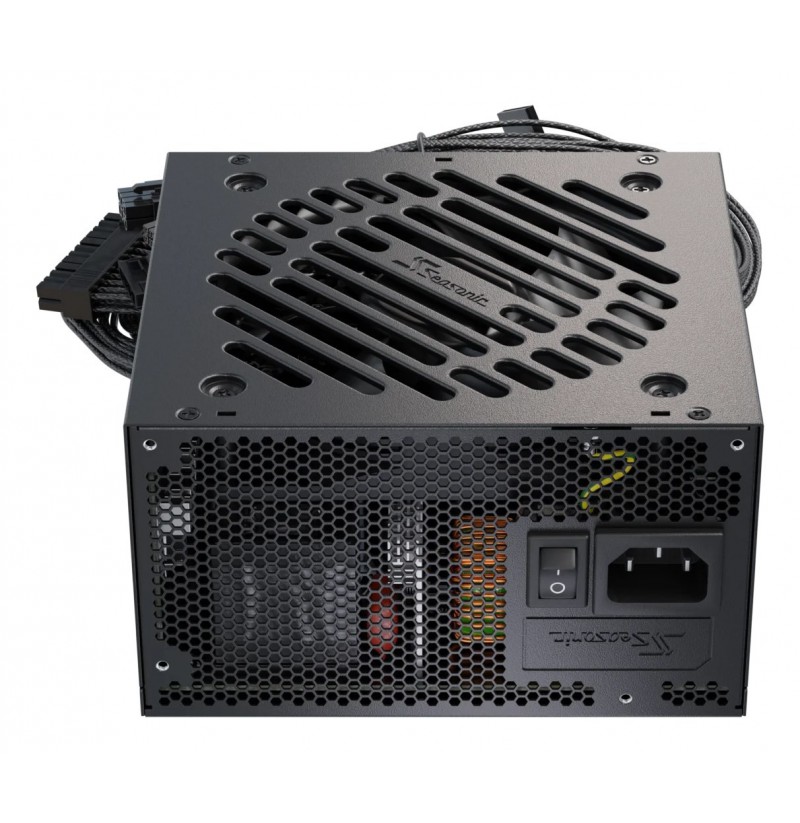

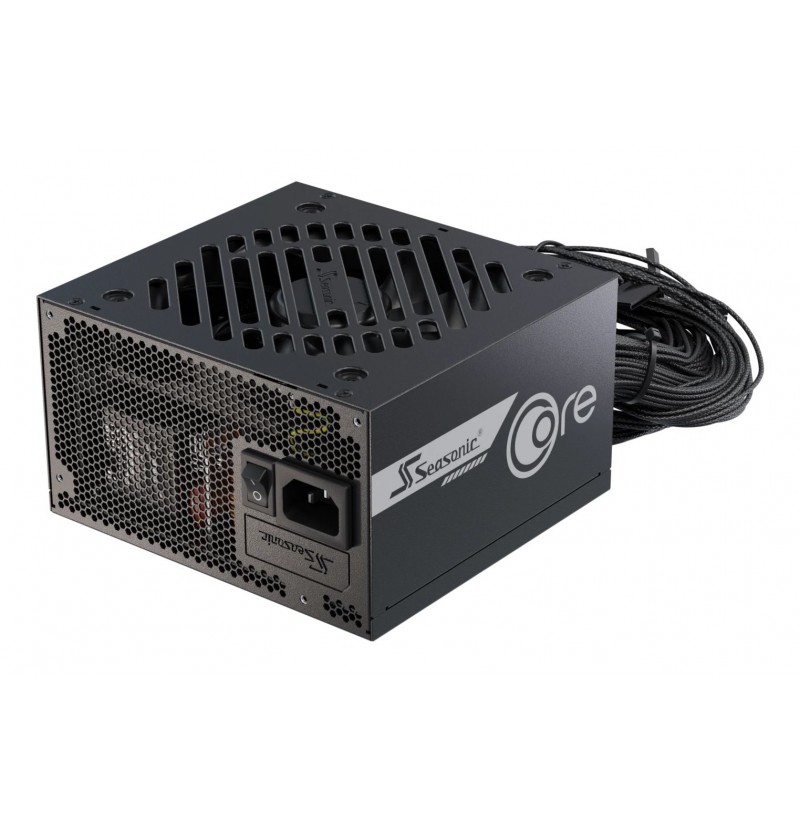

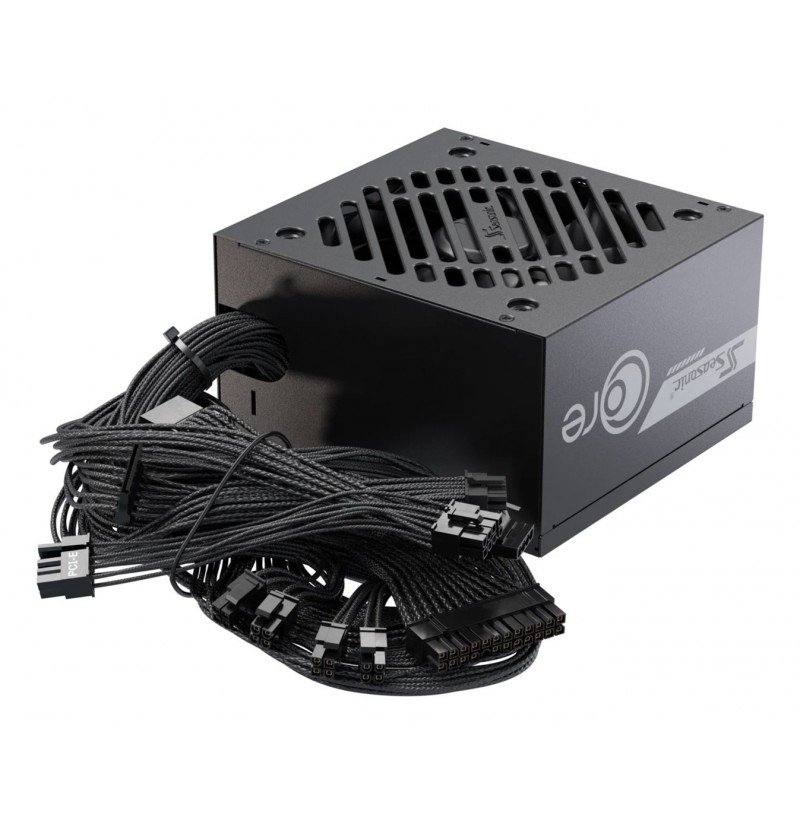

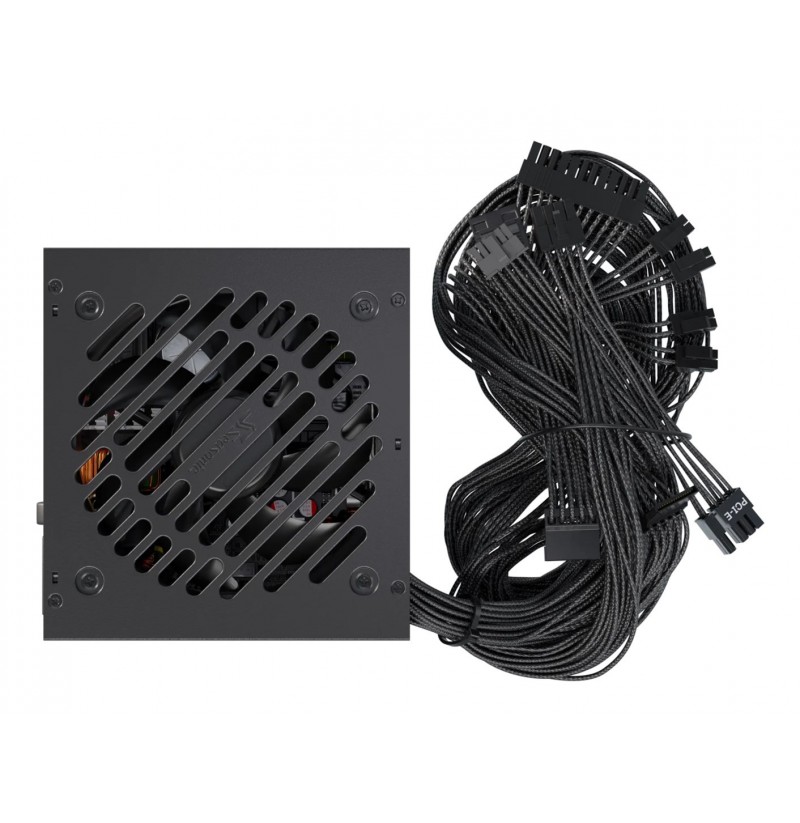

Seasonic CORE GC-750 ATX 3.1 power supply unit 750 W 20+4 pin ATX Black

Sustainability certificates: ENERGY STAR, ErP
On/off switch: Yes
Product colour: Black
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)
Combined power (+5Vsb): 12.5 W
AC input voltage: 100 - 240 V
Combined power (+12V): 744 W
Input current: 10 - 5 A
Max output current (+5V): 20 A
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Combined power (+3.3V): 100 W
Max output current (+12V): 62 A
Max output current (-12V): 0.3 A
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 2.5 A
Total power: 750 W
Max output current (+3.3V): 20 A
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 15 - 65%
Height: 86 mm
Width: 150 mm
Depth: 140 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Purpose: PC
Bearing technology: Ball bearing
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Package type: Box
Cables included: AC
Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Compliance certificates: RoHS, CE, REACH, UKCA, WEEE, BSMI, CB, cTUVus, China Compulsory Certification (CCC), EAC
PCI Express power cable length: 55 cm
SATA power cable length: 600 mm
Motherboard power cable length: 55 cm
EPS power connector (8-pin): Yes
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 600 mm
PCI Express power connectors (6+2 pin): 2
PCI Express connector: Yes
Number of SATA power connectors: 2
ATX power connector (20+4 pin): Yes
CPU power cable length: 60 cm
Peripheral (Molex) power connectors (4-pin): 1
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
