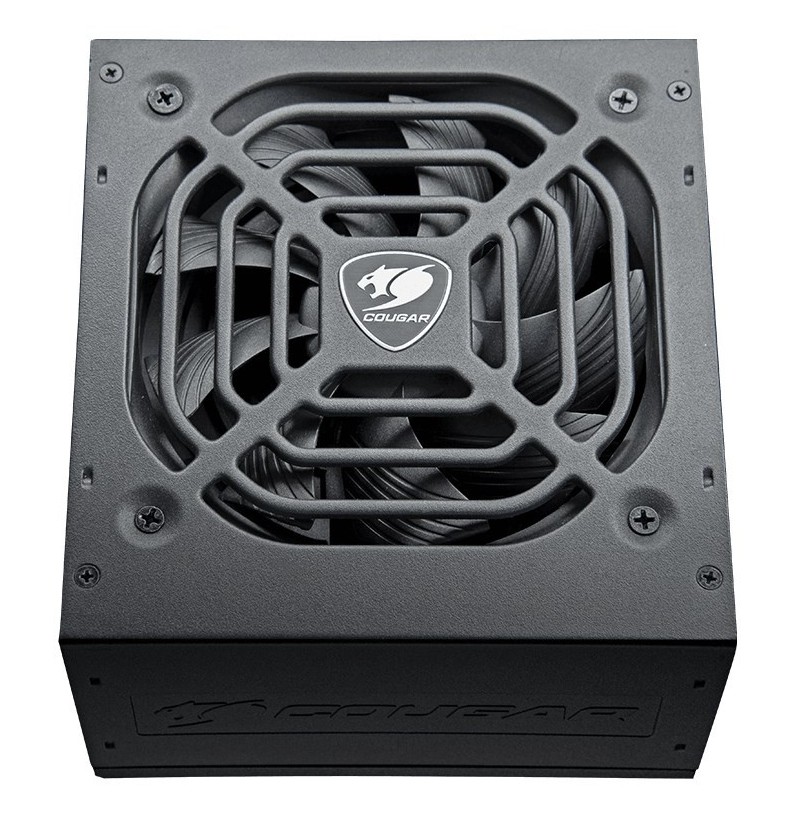

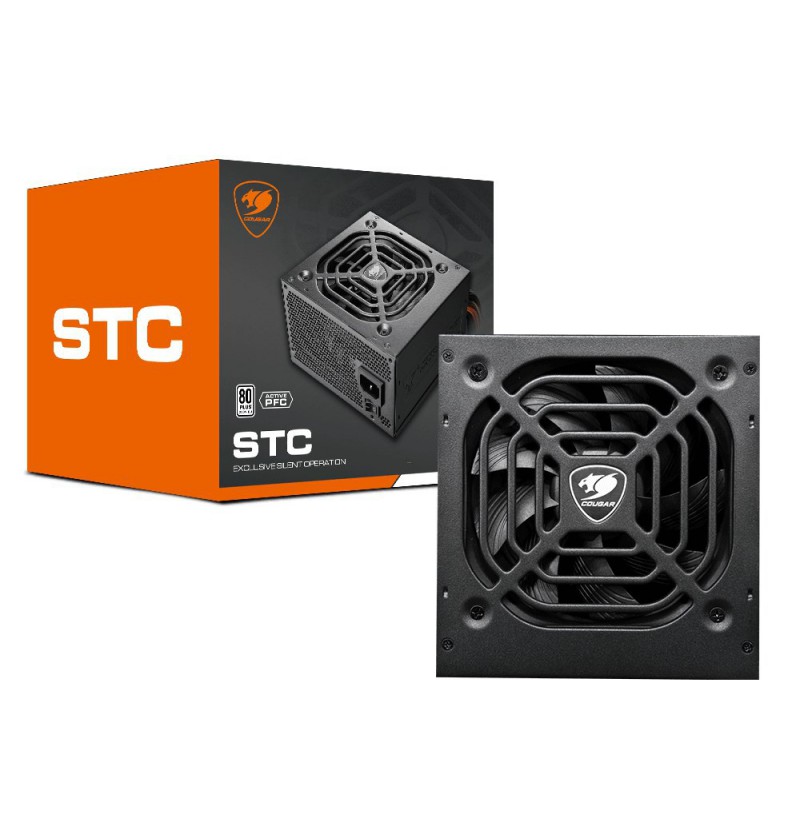

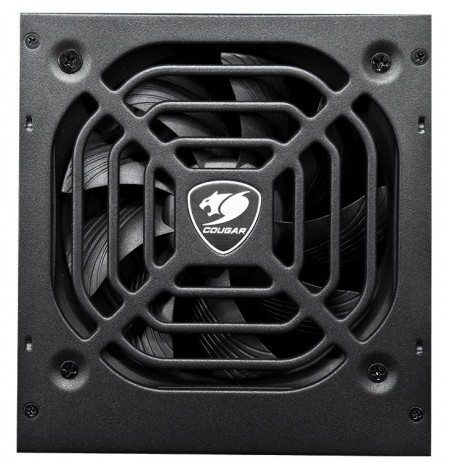

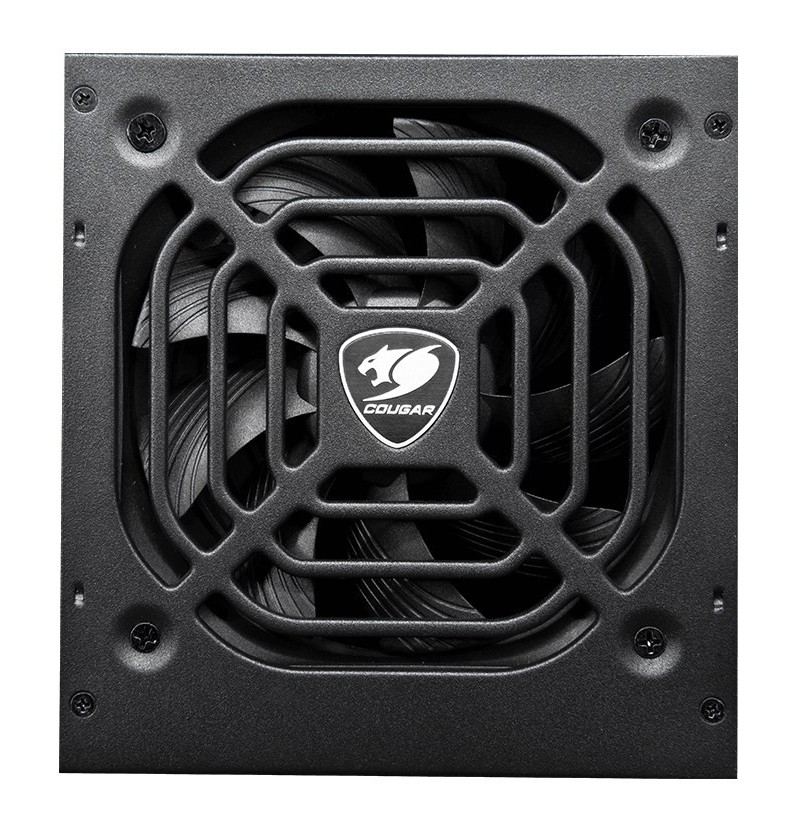

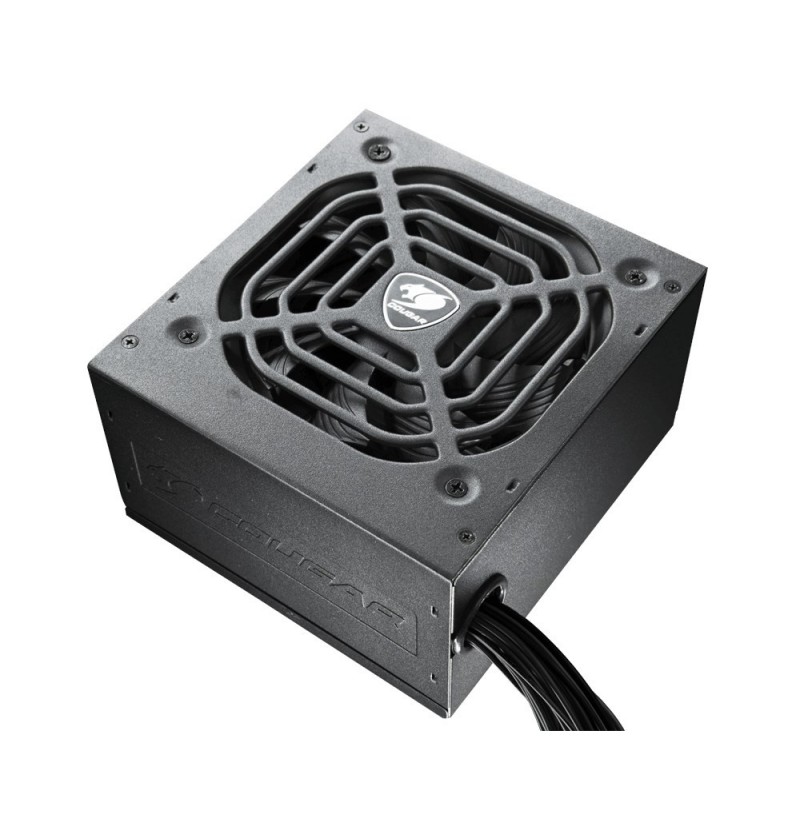

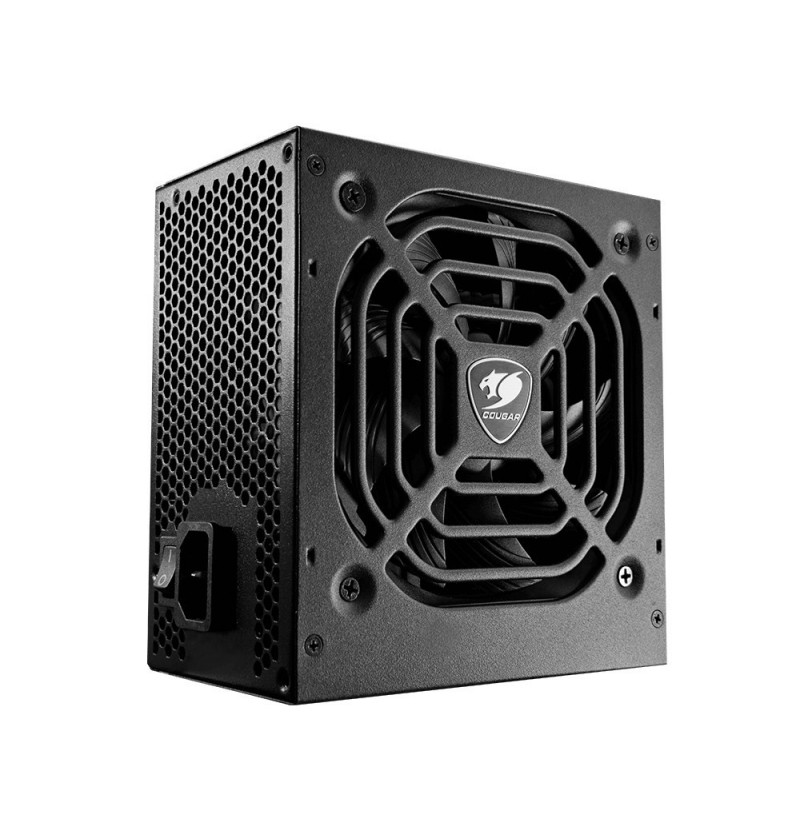

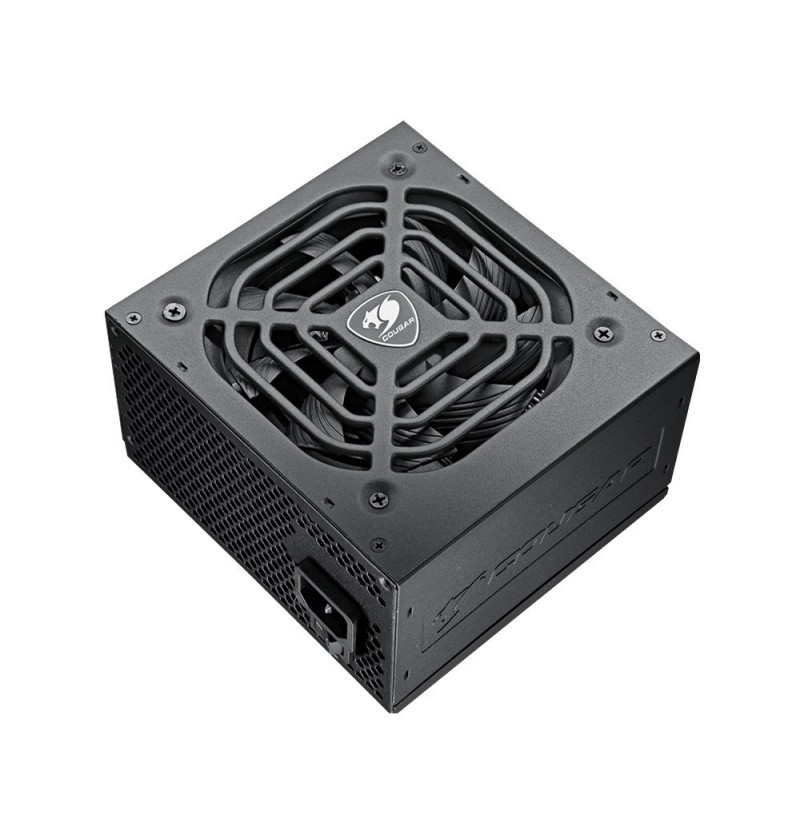

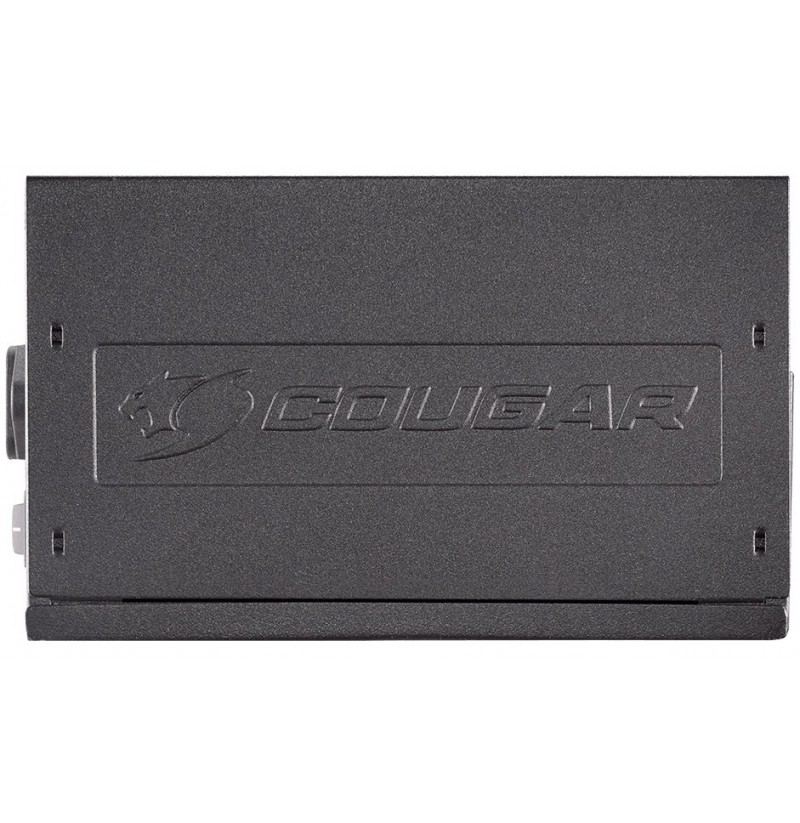

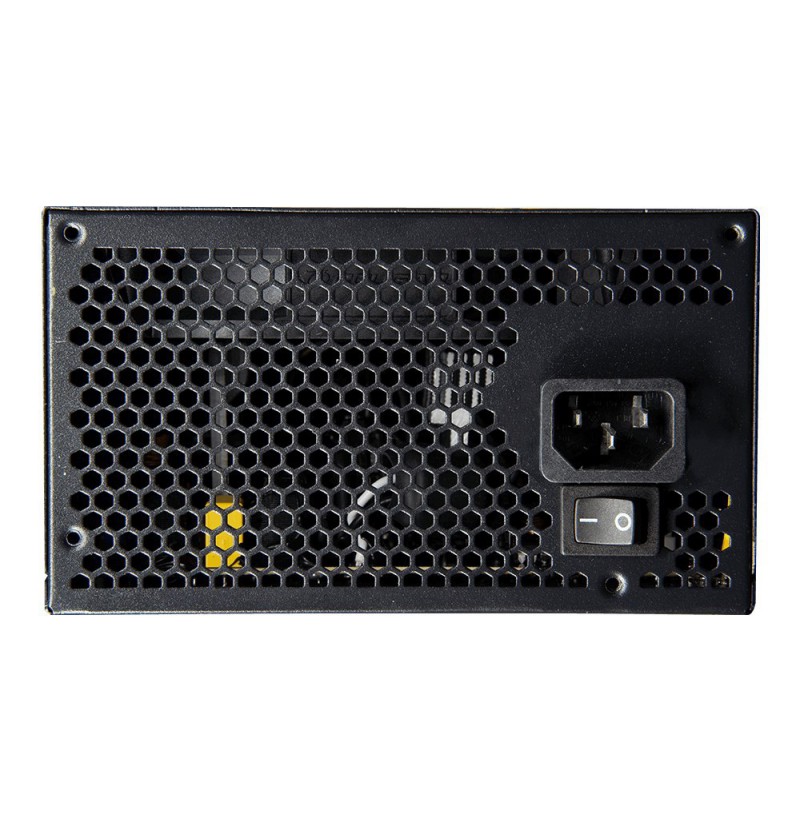

COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
AC input voltage: 200 - 240 V
Input current: 5 A
AC input frequency: 50 Hz
Max output current (+5Vsb): 3 A
Max output current (-12V): 0.3 A
Power protection features: Over power, Under voltage, Over current, Short circuit, Over voltage
Combined power (+12V): 588 W
Max output current (+12V): 49 A
Max output current (+5V): 20 A
Total power: 600 W
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
Combined power (+5V): 130 W
Max output current (+3.3V): 18 A
Weight: 1.52 kg
Width: 140 mm
Height: 86 mm
Depth: 150 mm
80 PLUS certification: 80 PLUS
Purpose: PC
Package height: 165 mm
Package depth: 158 mm
Package weight: 1.8 kg
Package width: 187 mm
Compliance certificates: EAC, RoHS, CE
Peripheral (Molex) power connectors (4-pin): 2
Number of PATA power connectors: 2
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 6
SATA power cable length: 450
Motherboard power cable length: 45 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Peripheral (Molex) power cable length: 450 mm
Motherboard power connector: 20+4 pin ATX
Commodity Classification Automated Tracking System (CCATS): 8504401300
Country of origin: China
