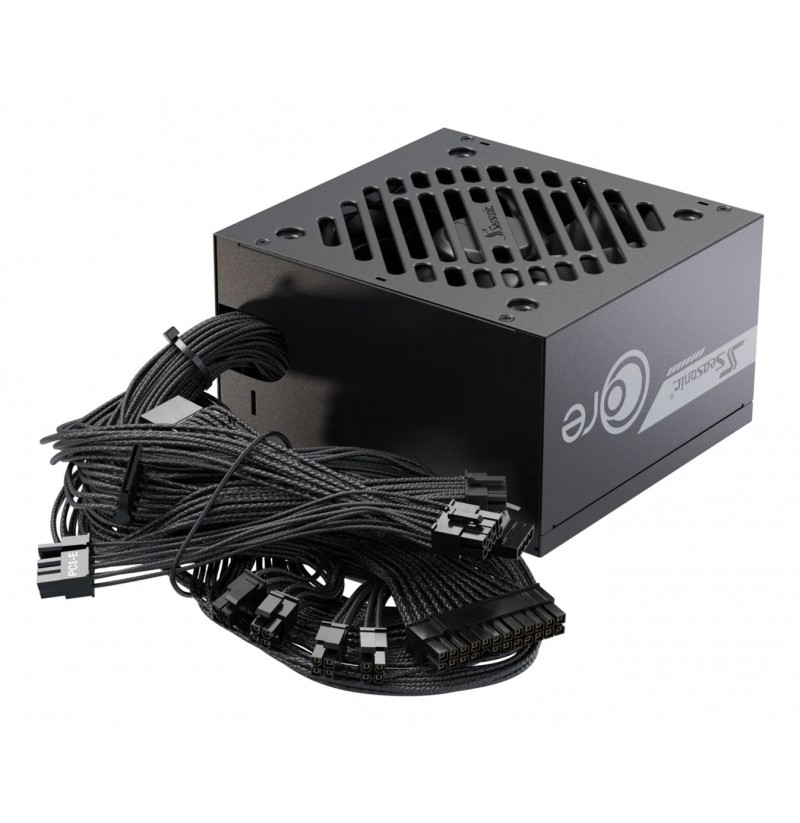

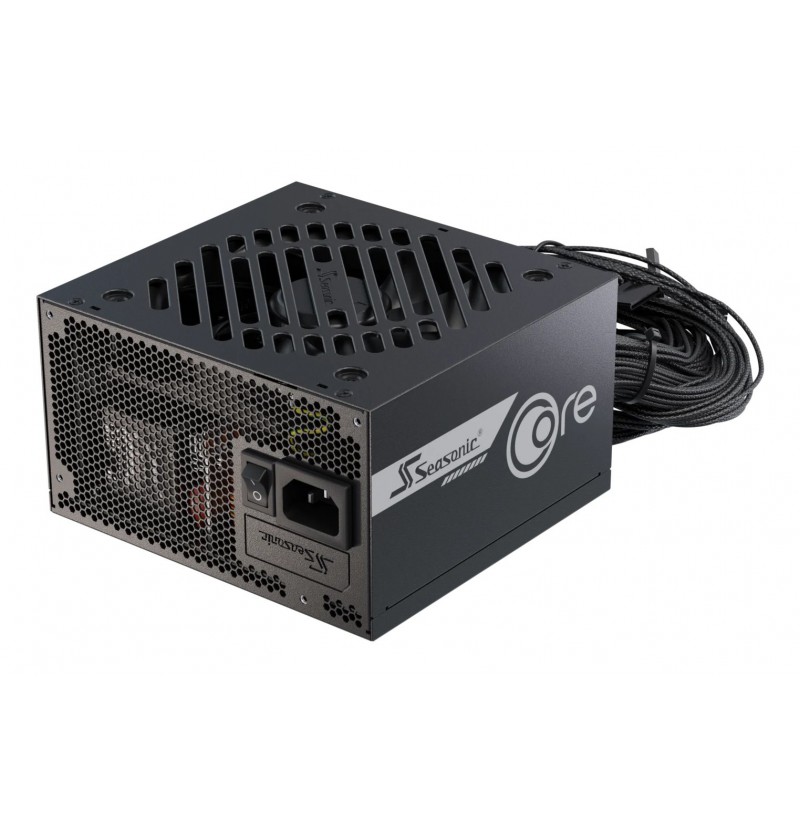

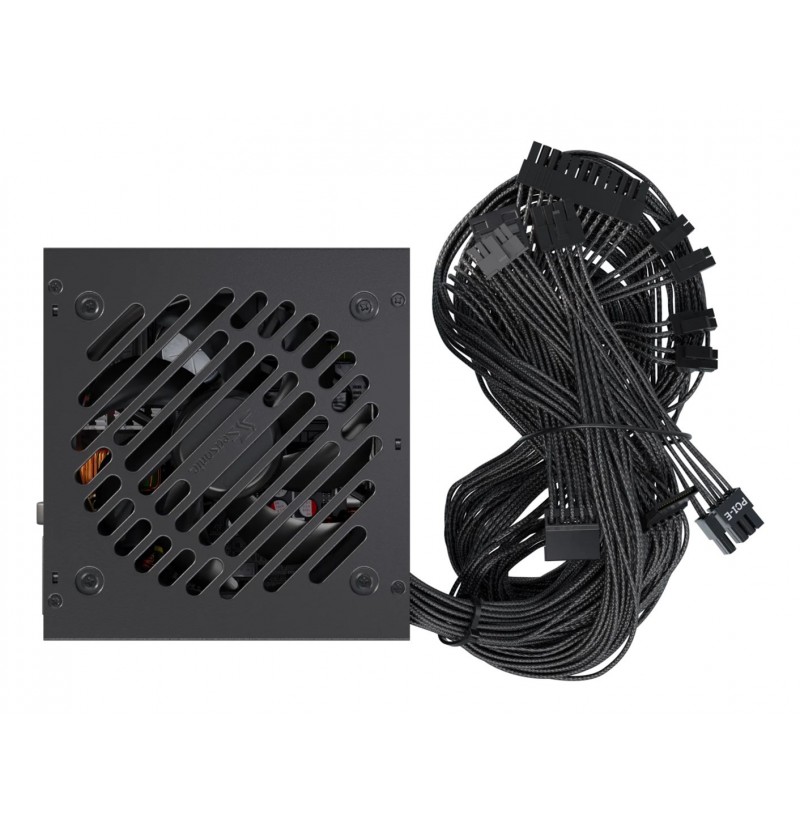

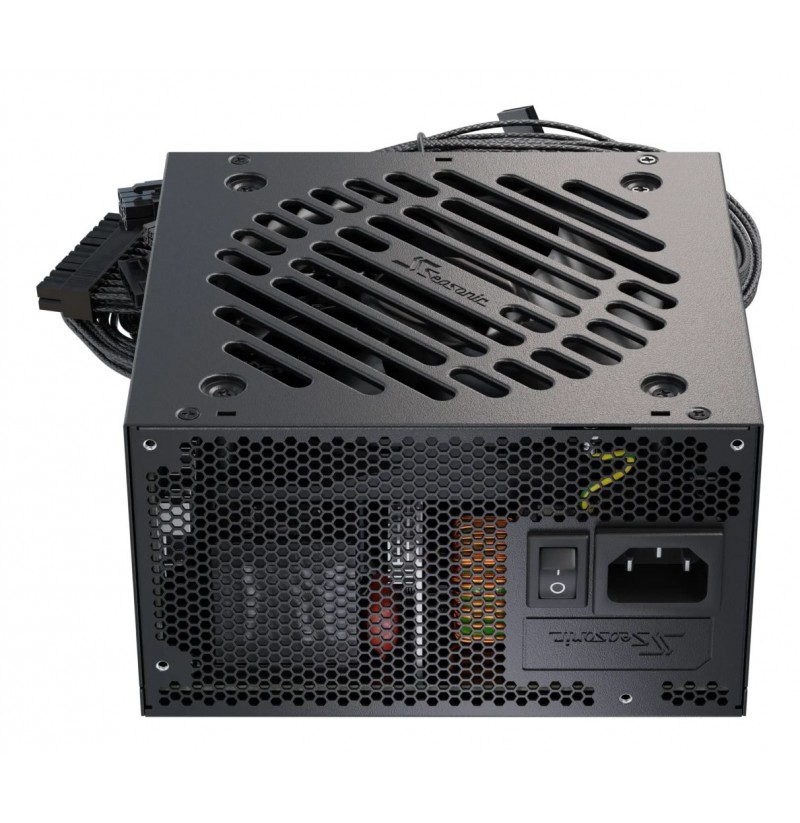

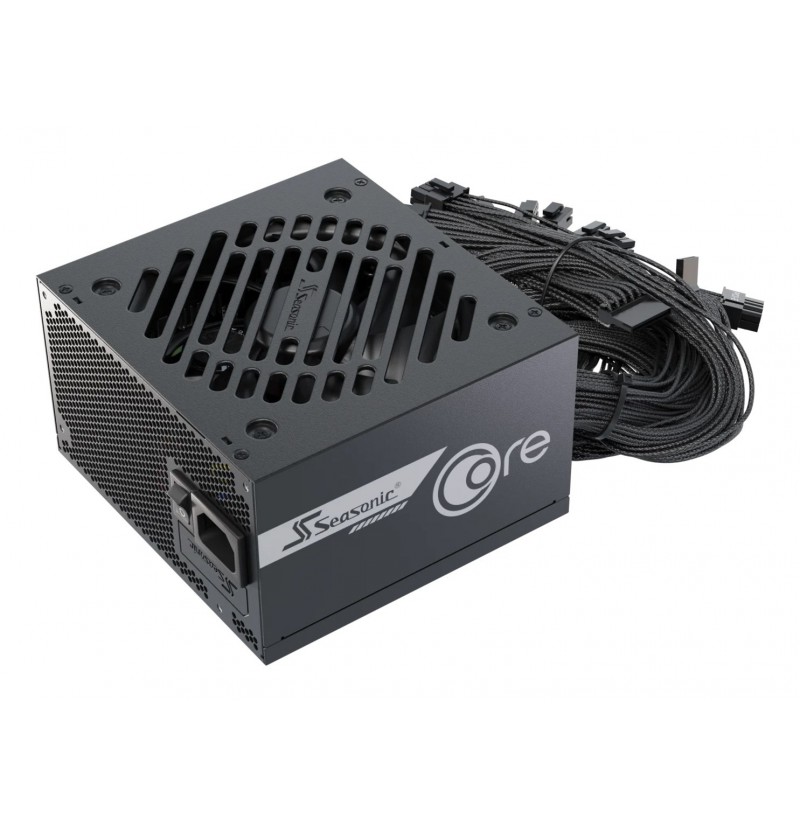

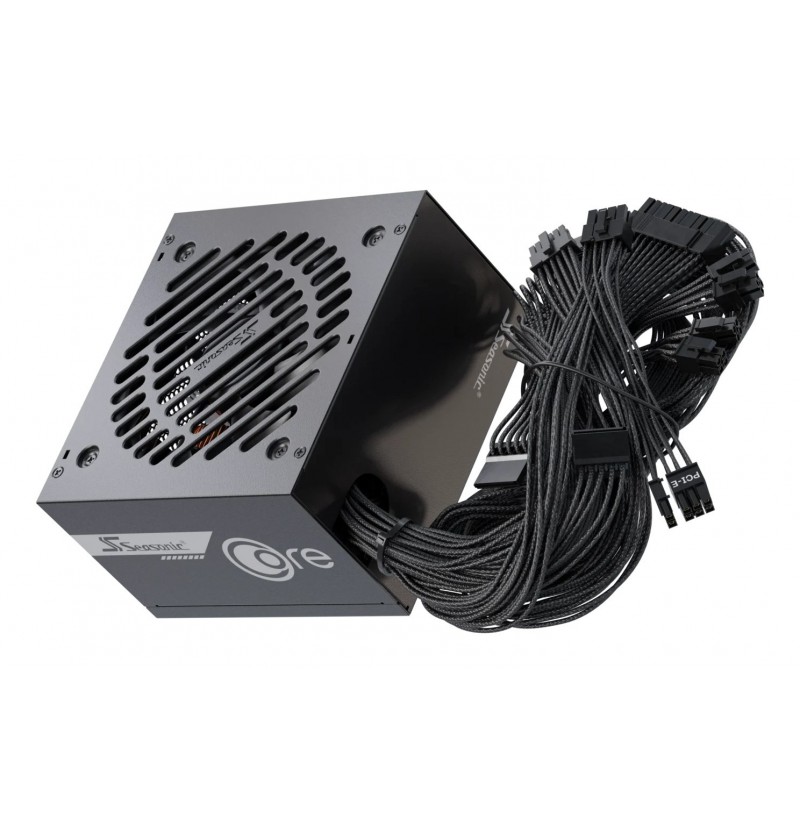

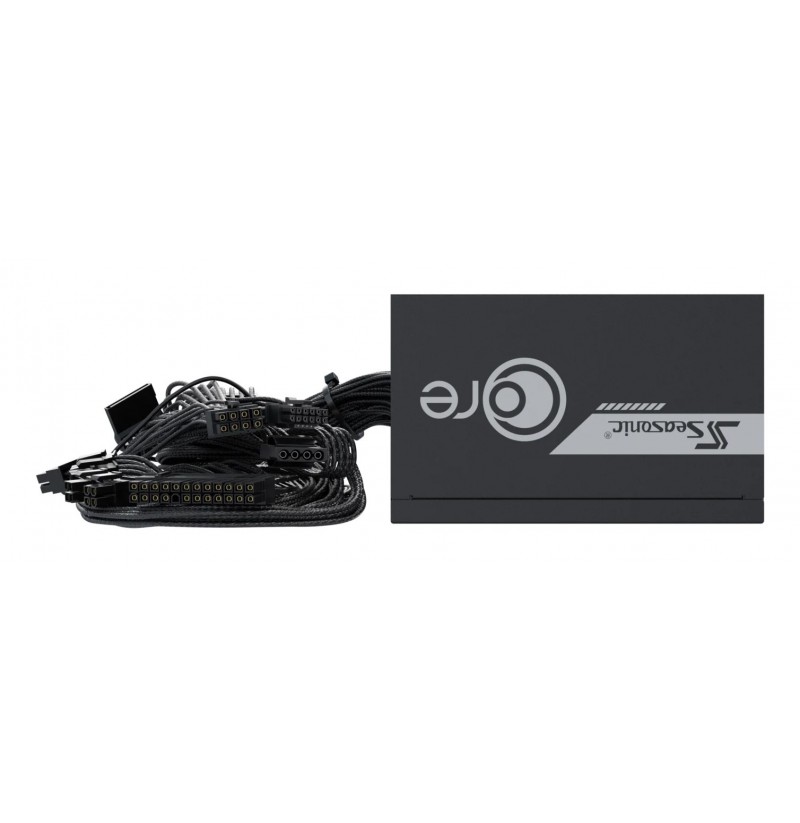

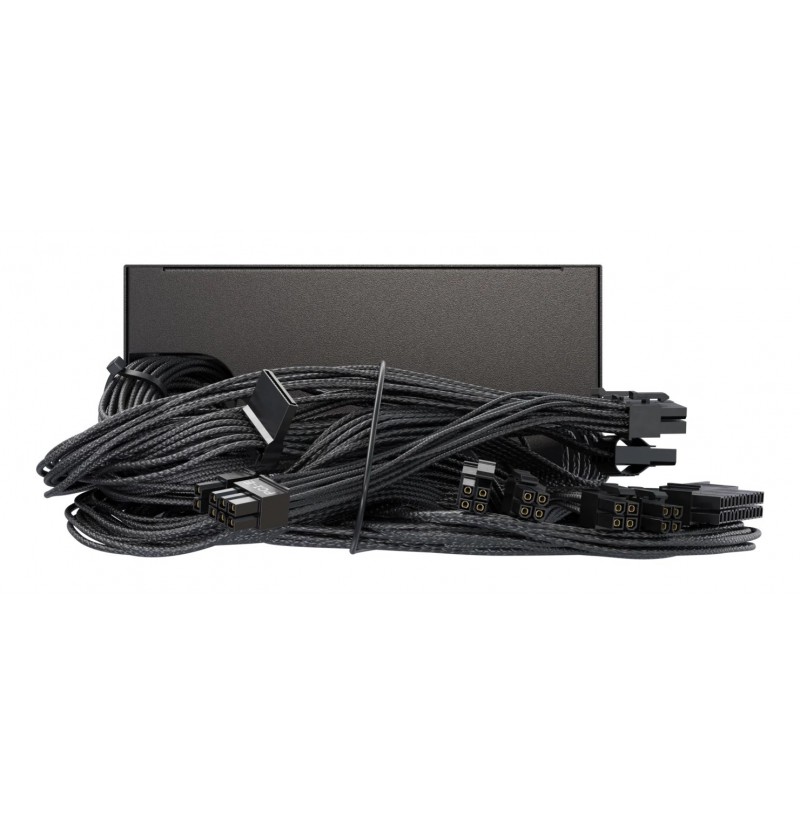

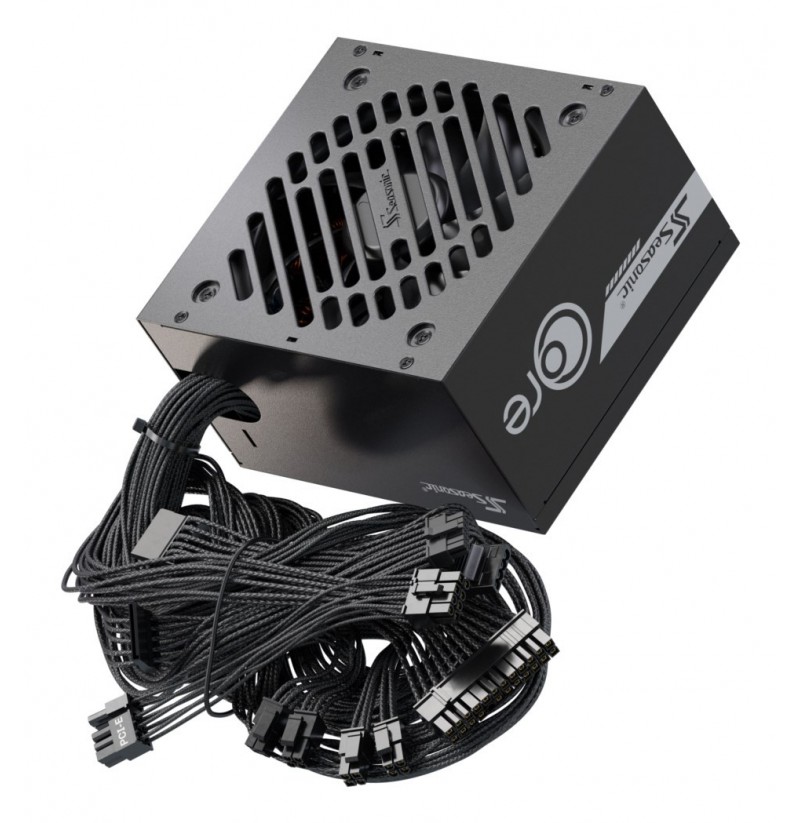

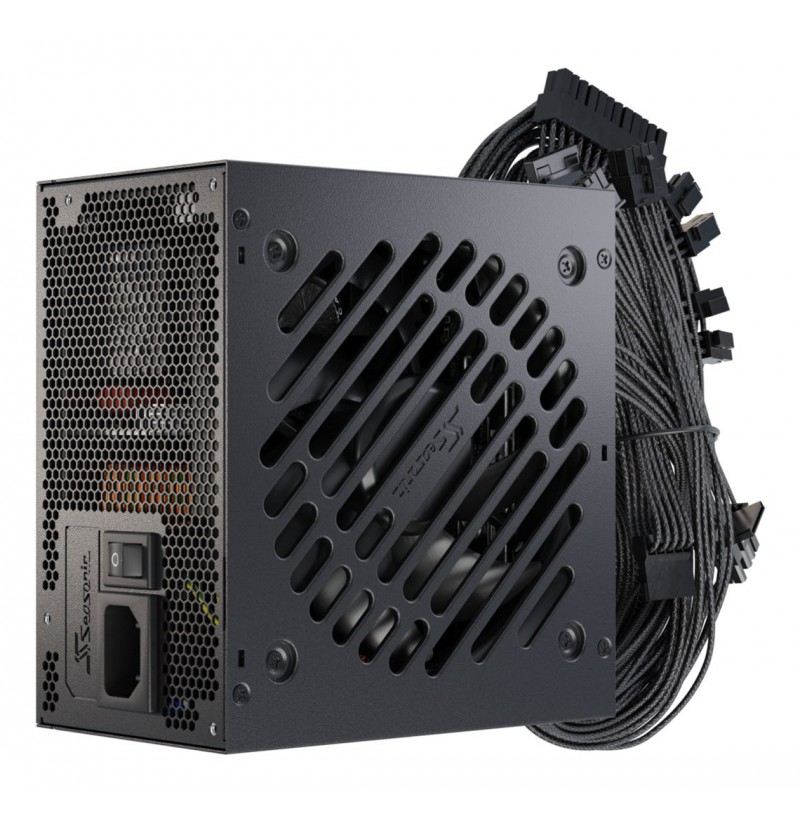

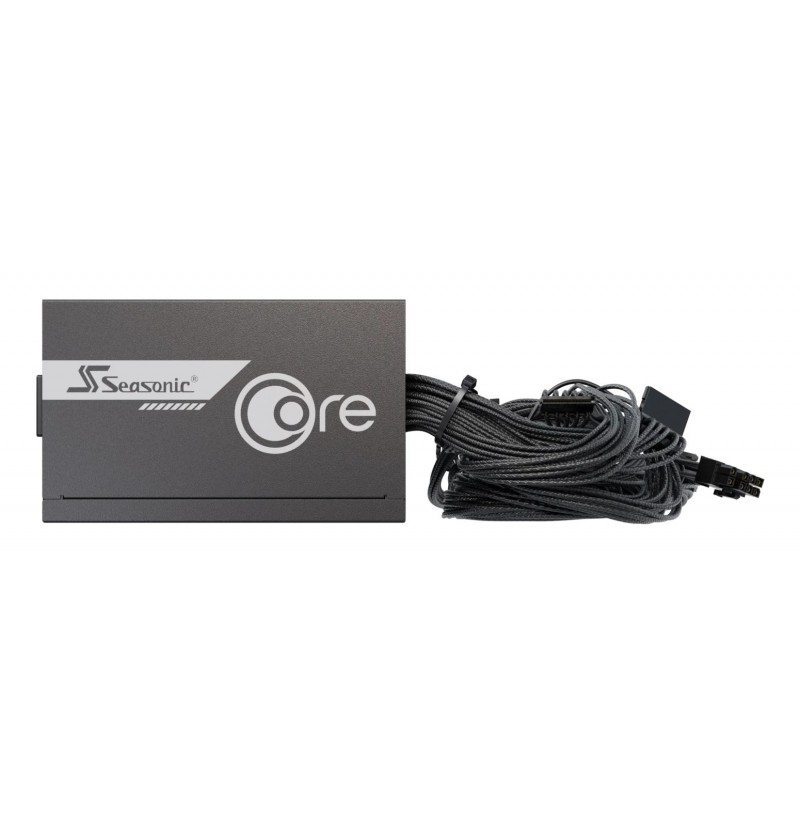

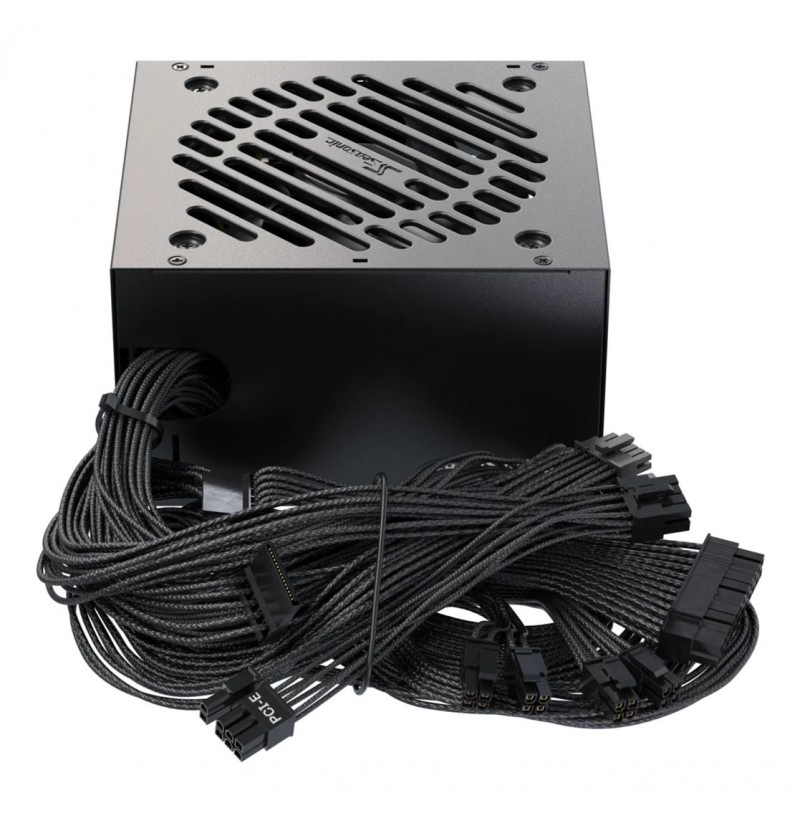

Seasonic CORE GC-850 ATX 3.1 power supply unit 850 W 20+4 pin ATX Black

Sustainability certificates: ENERGY STAR, ErP
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Cooling type: Active
On/off switch: Yes
Input current: 11 - 5.5 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Power protection features: Short circuit, Over voltage, Overheating, Under voltage, Over current, Over power
Combined power (+12V): 840 W
Max output current (+5Vsb): 2.5 A
Max output current (+12V): 70 A
Max output current (-12V): 0.3 A
Total power: 850 W
Max output current (+3.3V): 20 A
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
AC input frequency: 50/60 Hz
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 15 - 65%
Height: 86 mm
Width: 150 mm
Depth: 140 mm
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Purpose: PC
Bearing technology: Ball bearing

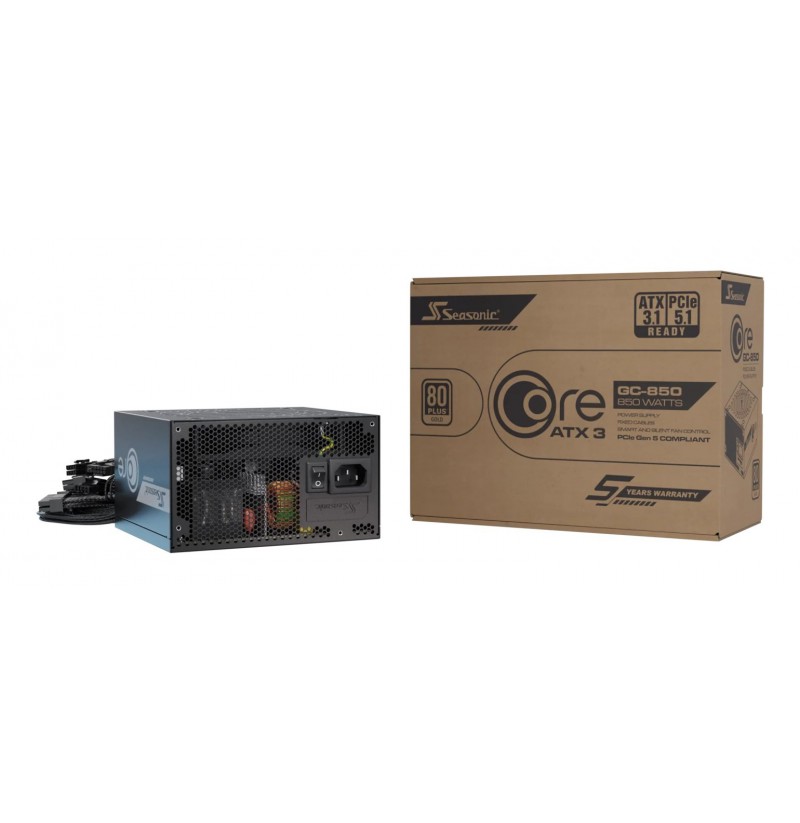

Package type: Box
Cables included: AC
Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Compliance certificates: BSMI, UKCA, REACH, WEEE, cTUVus, CB, EAC, RoHS, CE, China Compulsory Certification (CCC)
Number of SATA power connectors: 2
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
PCI Express connector: Yes
PCI Express power cable length: 55 cm
SATA power cable length: 600 mm
ATX power connector (20+4 pin): Yes
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 600 mm
CPU power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
CPU power connector (4+4 pin): Yes
