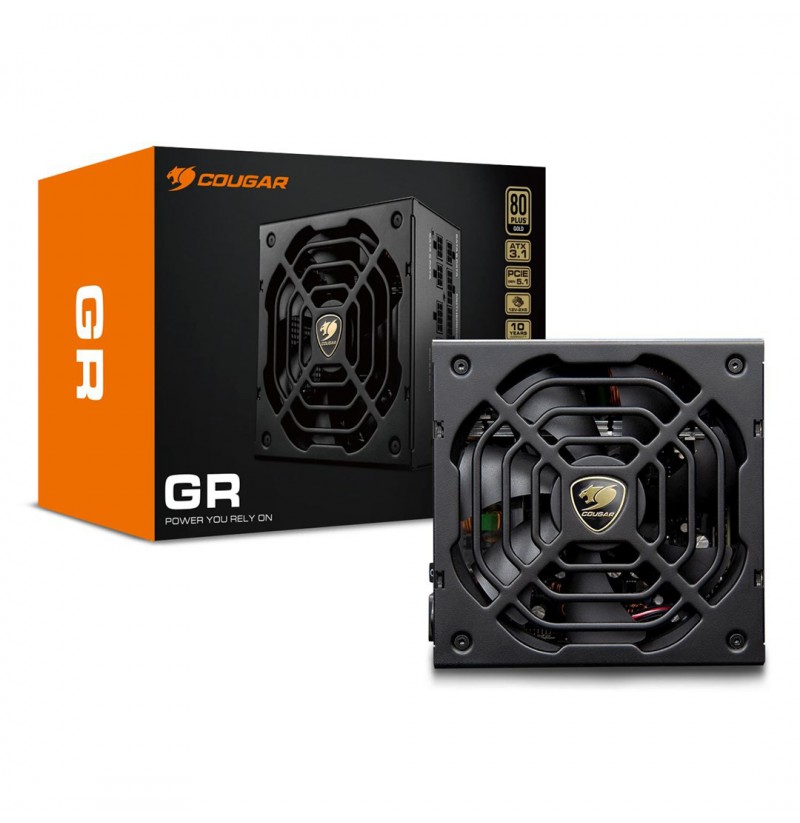

COUGAR Power Supply GR 1000W ATX3.1/PCIE 5.1 / 80 Plus Gold

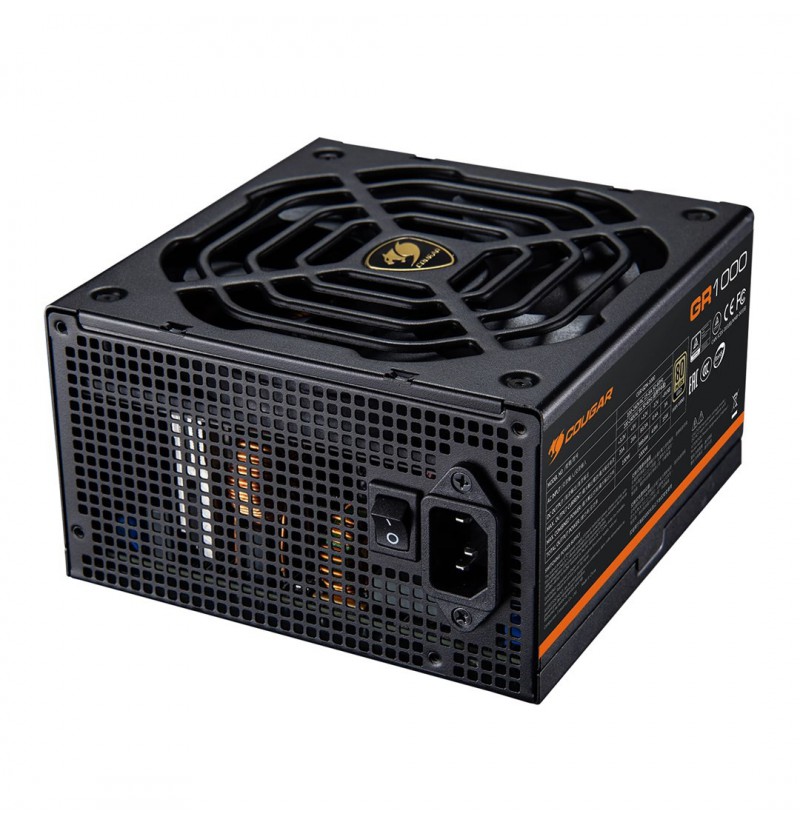

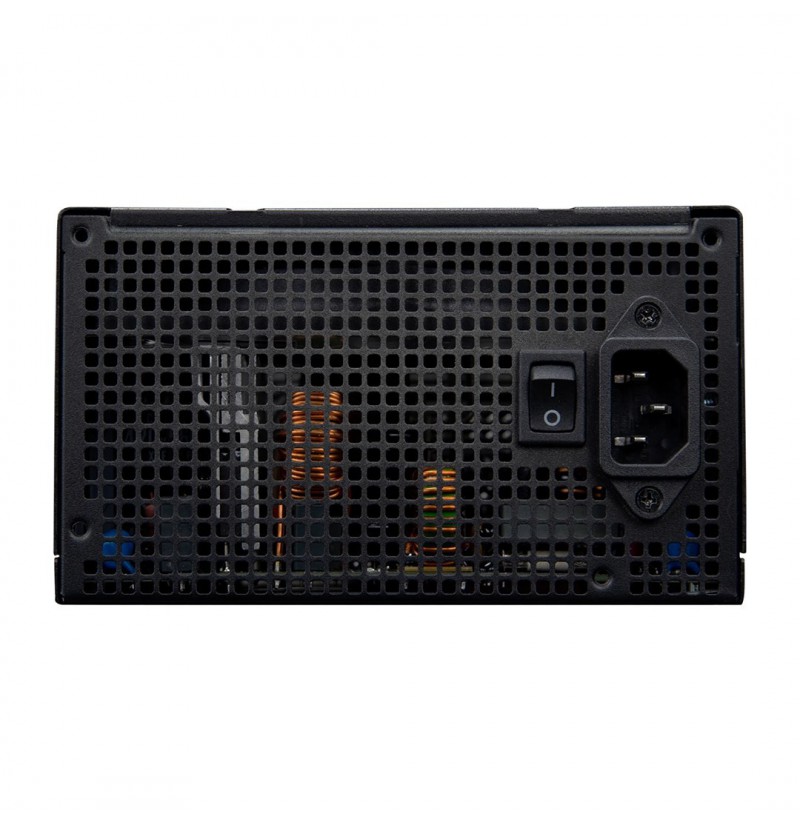

On/off switch: Yes

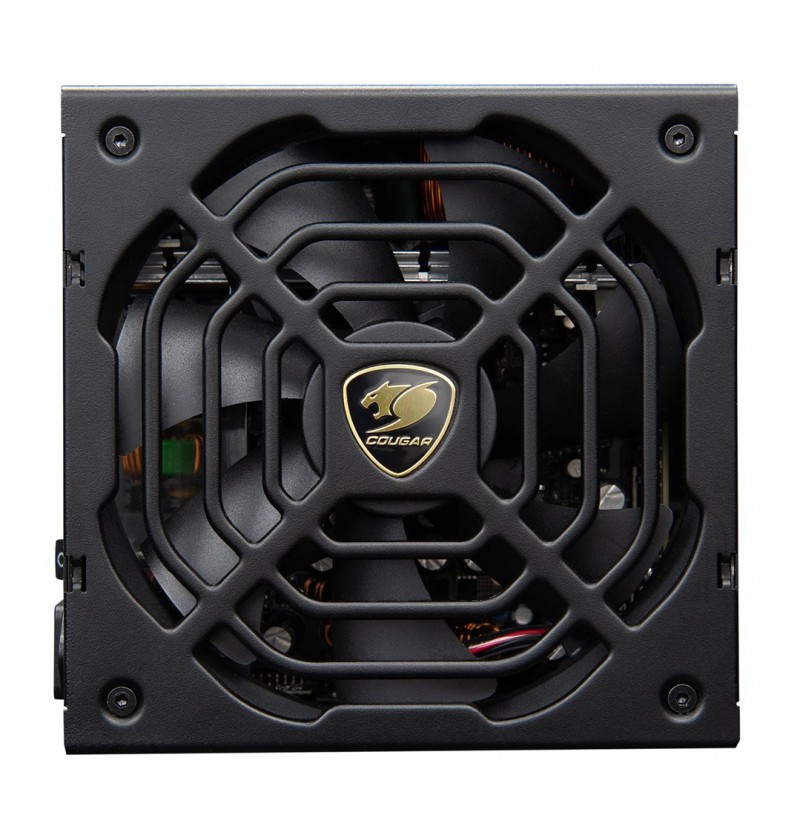

Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Black
Input current: 15-8 A
Efficiency: 91%
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Total power: 1000 W
Power protection features: Over current, Short circuit, Over voltage, Under total voltage, Over power, Overheating
Max output current (+12V): 83.3 A
Combined power (+3.3V): 100 W
Max output current (+5Vsb): 3 A
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+3.3V): 20 A
Combined power (+12V): 999.6 W
Combined power (-12V): 4.8 W
Depth: 150 mm
Width: 150 mm
Height: 86 mm
Weight: 2.25 kg

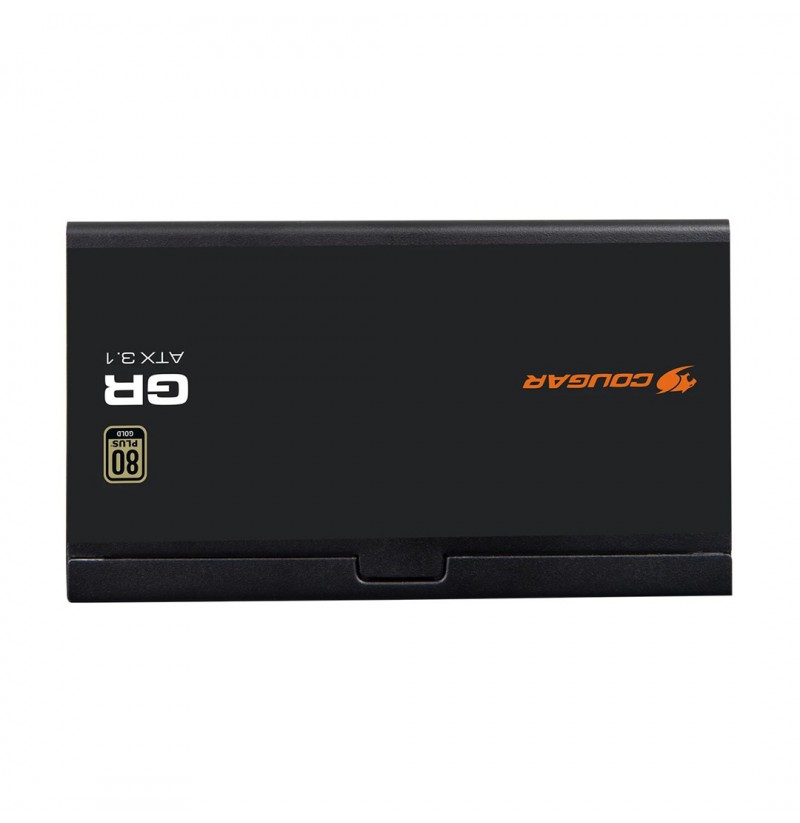

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
Bearing technology: FDB
ATX version: 3.1
Package weight: 3.45 kg
Package height: 107 mm
Package width: 316 mm
Package depth: 220 mm

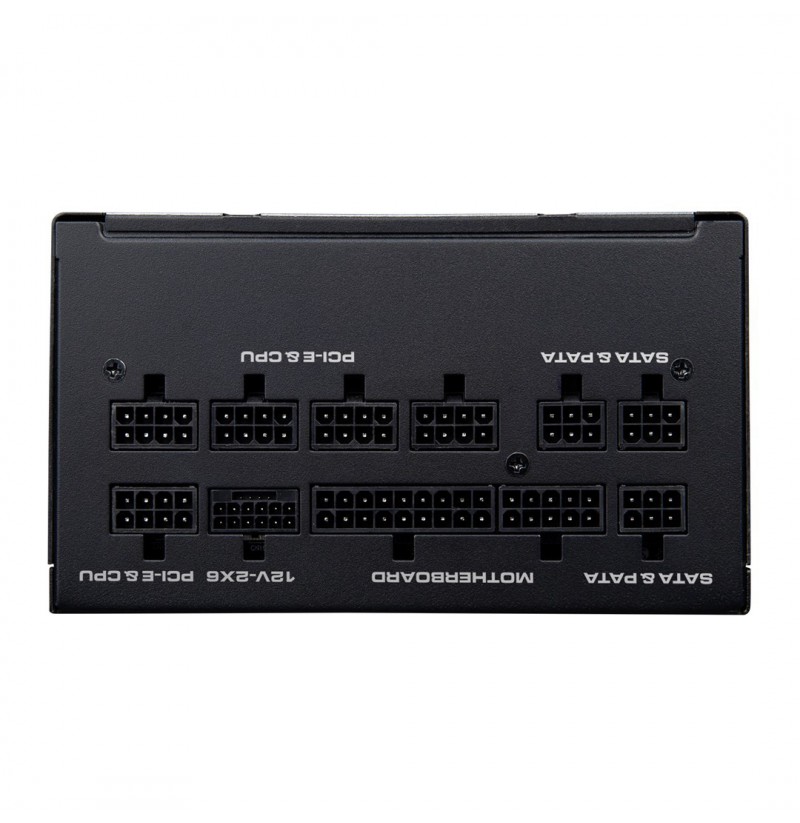

Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 3

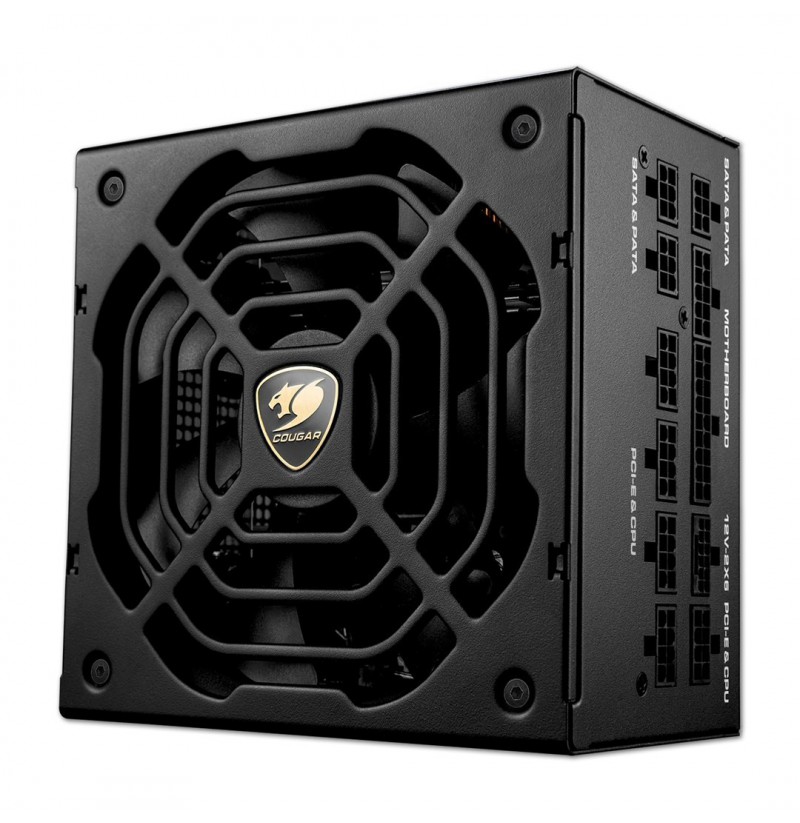

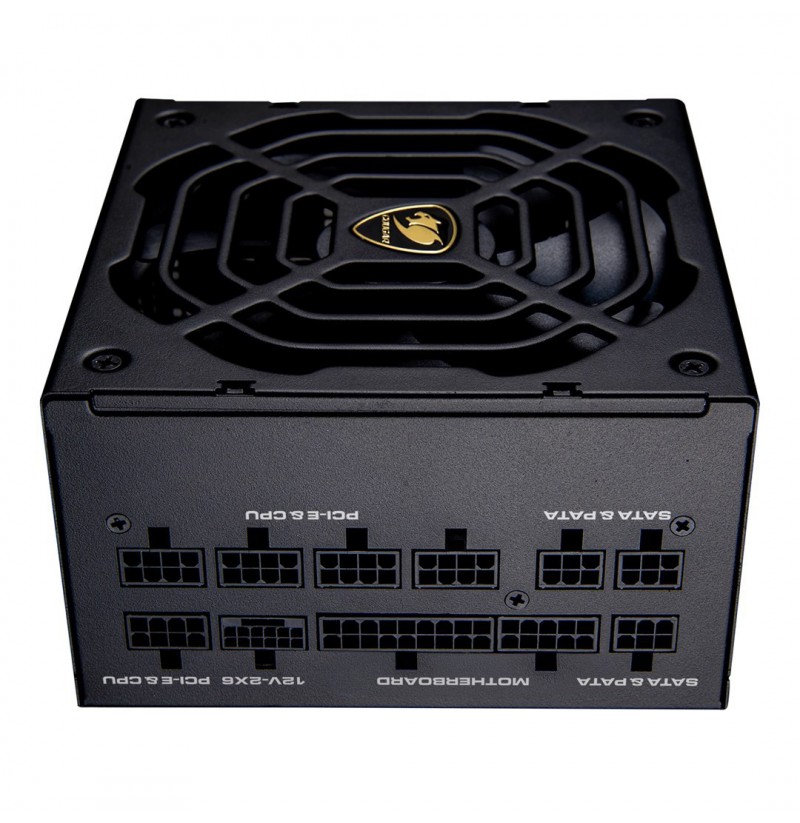

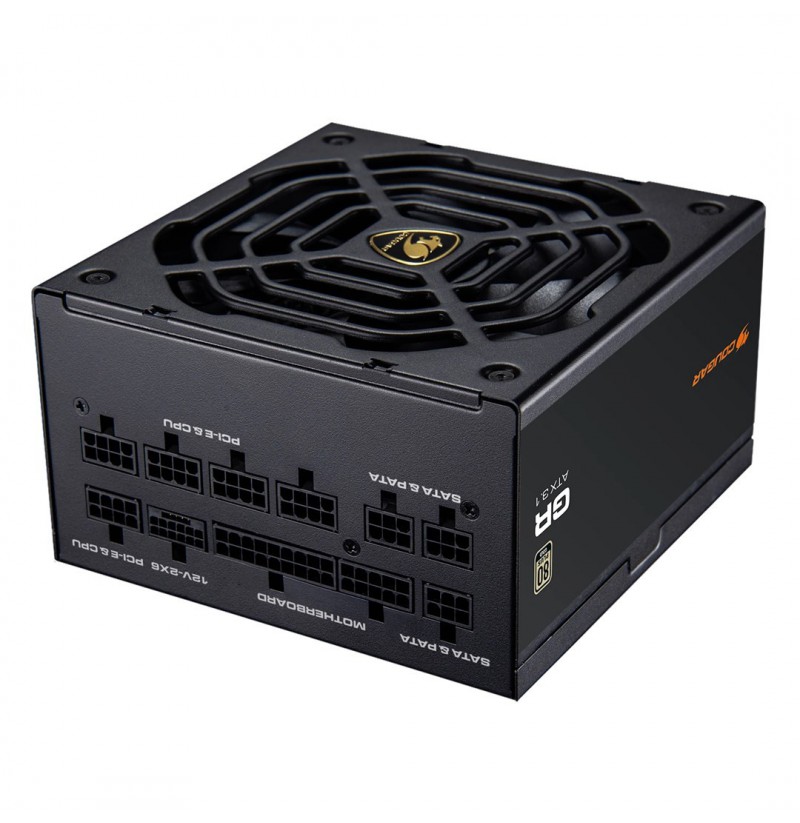

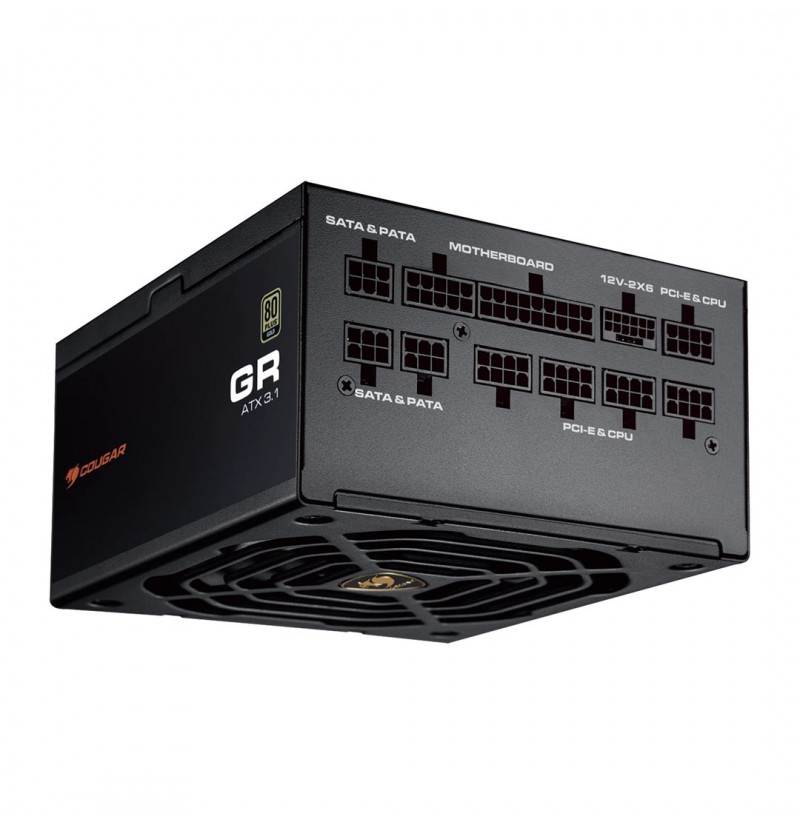

Cabling type: Fully-Modular
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Motherboard power cable length: 60 cm
Number of SATA power connectors: 9
SATA power cable length: 450, 150
CPU power cable length: 70 cm
CPU power connector (4+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
