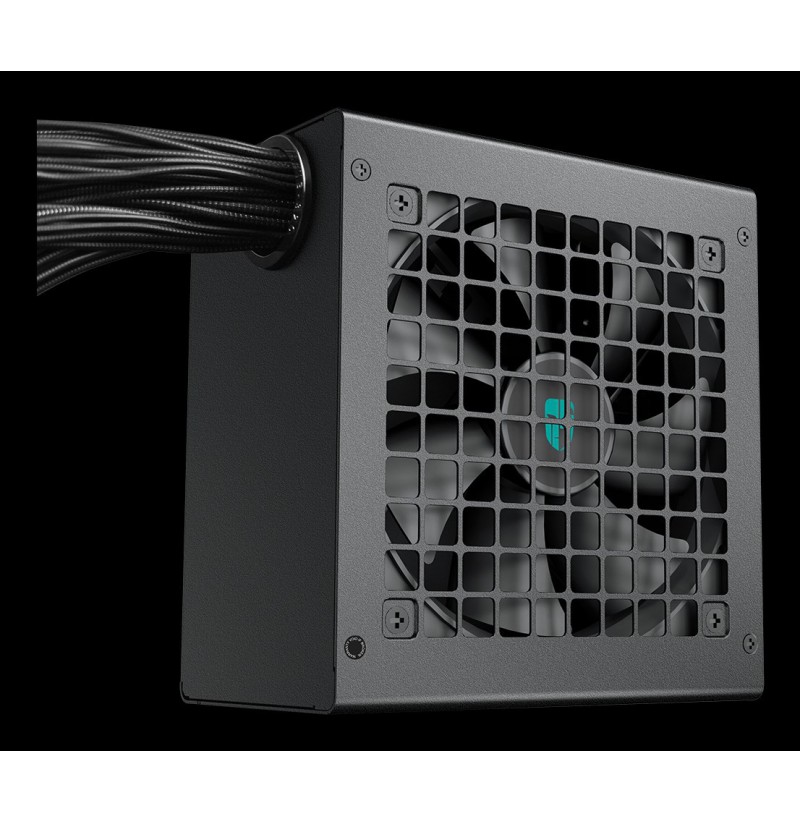

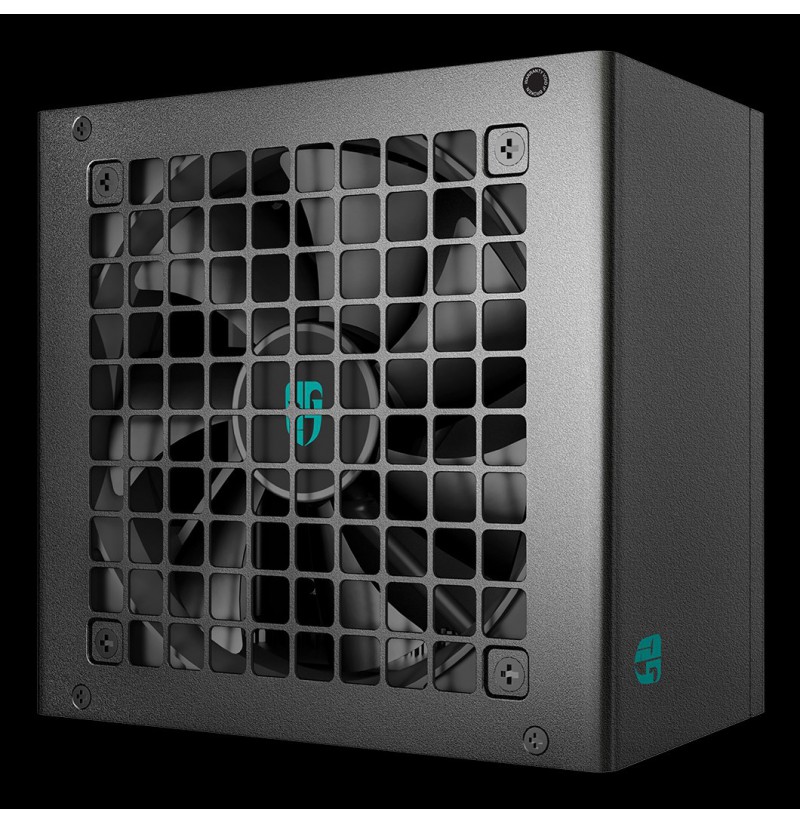

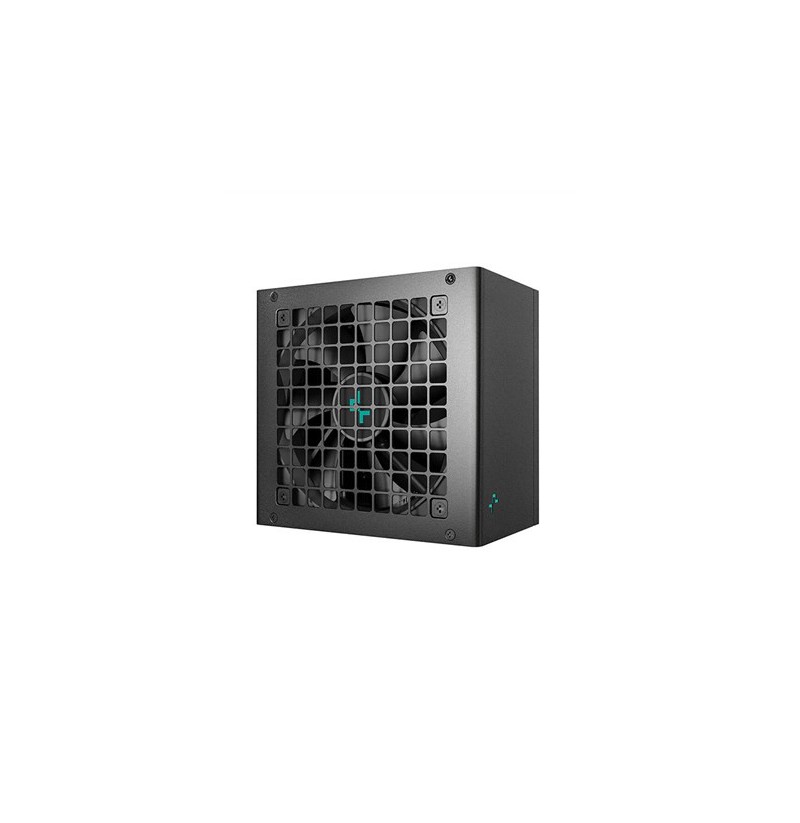

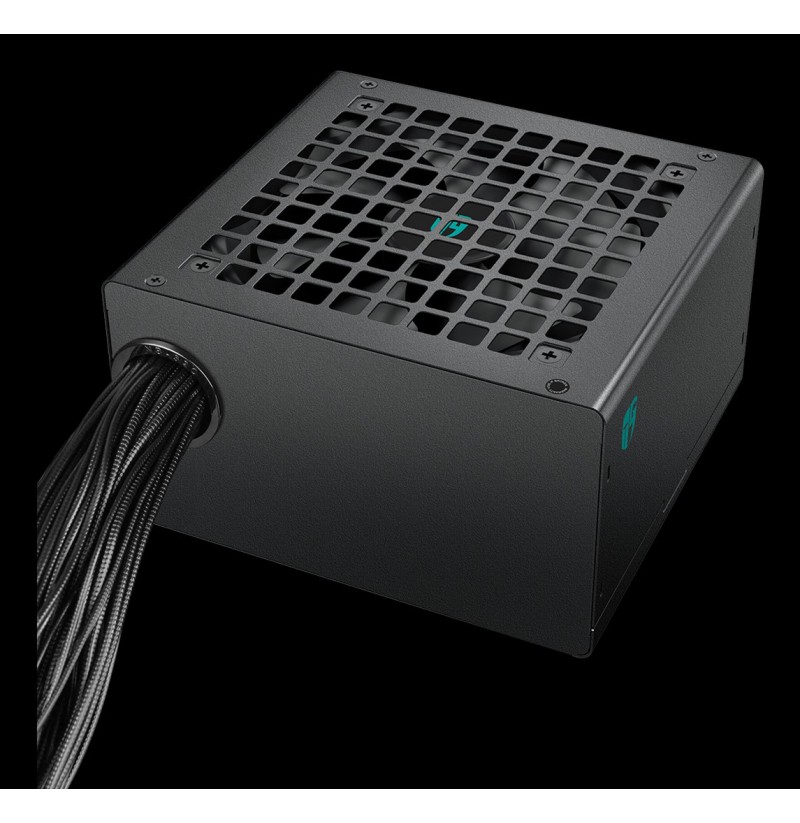

Gamer Storm PN750D power supply unit 750 W 20+4 pin ATX ATX Black

Sustainability certificates: ErP, Triman
Product colour: Black

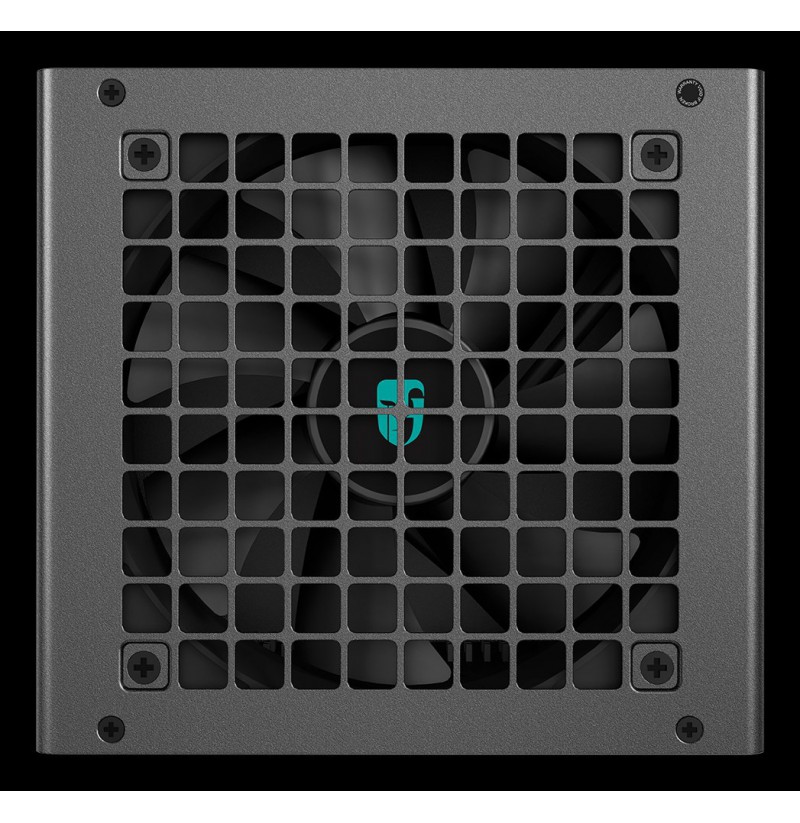

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

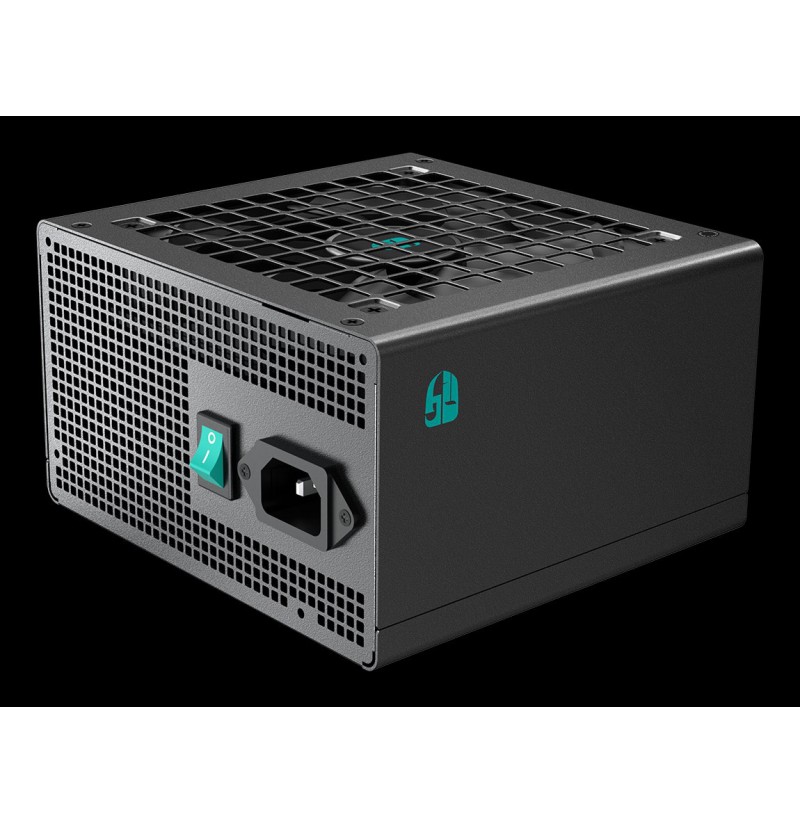

On/off switch: Yes
Cooling type: Active
AC input frequency: 50/60 Hz
Input current: 10.0 - 5.0 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Power protection features: Overheating, Under voltage, Over current, No load operation, Over power, Short circuit, Over voltage, Surge and inrush
Total power: 750 W
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Combined power (+12V): 750 W
Power Factor Correction (PFC) type: Active
Combined power (+5V): 110 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Hold time: 16 ms
Efficiency: 90%
Max output current (-12V): 0.3 A
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Height: 86 mm
Depth: 140 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
ATX version: 3.1
Bearing technology: Hydro bearing
Power supply unit (PSU) form factor: ATX
Purpose: PC
Package type: Box
Cables included: AC
Certification: P65
Compliance certificates: RCM, TÜV mark, RoHS, CE, EAC, CCC, Federal Communications Commission (FCC)
Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
CPU power cable length: 70 cm
Cabling type: Non-Modular
Peripheral (Molex) power cable length: 120
PCI Express power cable length: 55 cm
SATA power cable length: 120, 450 mm
ATX power connector (20+4 pin): Yes
Number of SATA power cables: 2
PCI Express connector: Yes
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 3
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 2

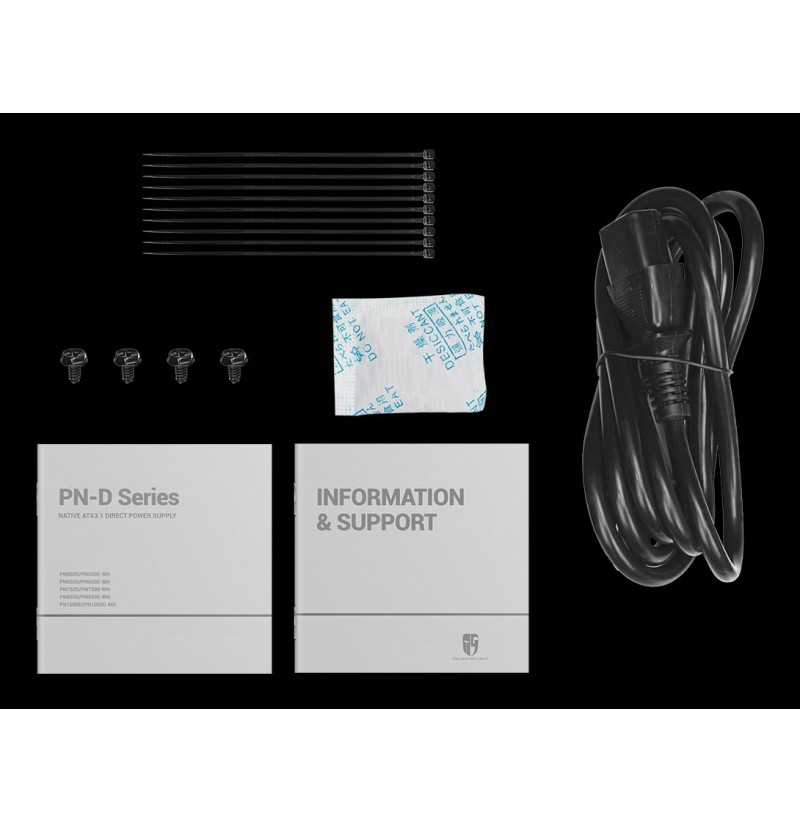

Screws included: Yes
Cable ties included: Yes
Warranty period: 10 year(s)
