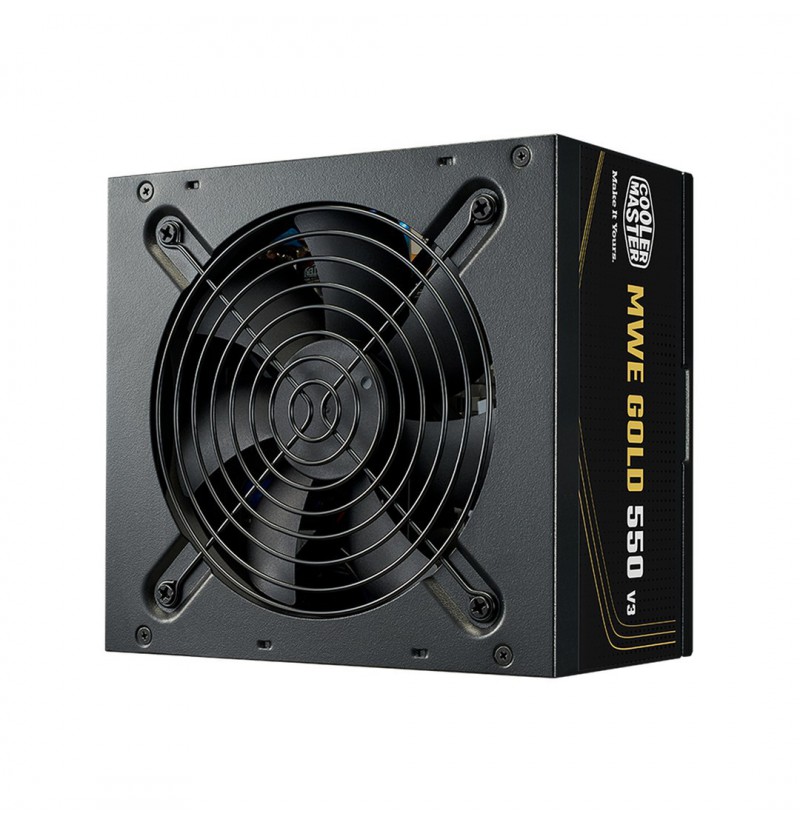

Cooler Master MWE Gold V3 ATX 3.1 Non-Modular power supply unit 550 W 24-pin ATX Black

Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 1800 RPM
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 4 - 8 A
Power protection features: Overheating, Over power, Short circuit, Over voltage, Under voltage, Over current
Total power: 550 W
Efficiency: 90%
Combined power (+5V): 120 W
Power Good signal delay range: 100 - 150 ms
Combined power (+3.3V): 120 W
Max output current (+12V): 45.8 A
Max output current (-12V): 0.3 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Max output current (+5V): 20 A
Combined power (+12V): 549.6 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Hold time: 16 ms
Operating temperature (T-T): 0 - 40 °C
Weight: 1.57 kg
Width: 150 mm
Height: 86 mm
Depth: 140 mm
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
Purpose: PC/Server
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Package height: 110 mm
Package width: 190 mm
Package depth: 260 mm
Package weight: 1.98 kg
Certification: ErP 2014 Lot 3
Compliance certificates: EAC, BSMI, KC, RCM, BIS, CCC, REACH, cTUVus, RoHS, China Compulsory Certification (CCC), Federal Communications Commission (FCC), UKCA
Peripheral (Molex) power connectors (4-pin): 3
EPS power connector (8-pin): Yes
PCI Express power connectors (6+2 pin): 2
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 700 mm, 550, 400
PCI Express power cable length: 62 cm
PCI Express connector: Yes
SATA power cable length: 400, 550, 700 mm
Number of EPS connectors: 2
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Cabling type: Non-Modular
Motherboard power cable length: 50 cm
EPS cable length: 67 cm
Master (outer) case width: 275 mm
Master (outer) cases per pallet: 120 pc(s)
Master (outer) case height: 215 mm
Master (outer) case length: 570 mm
