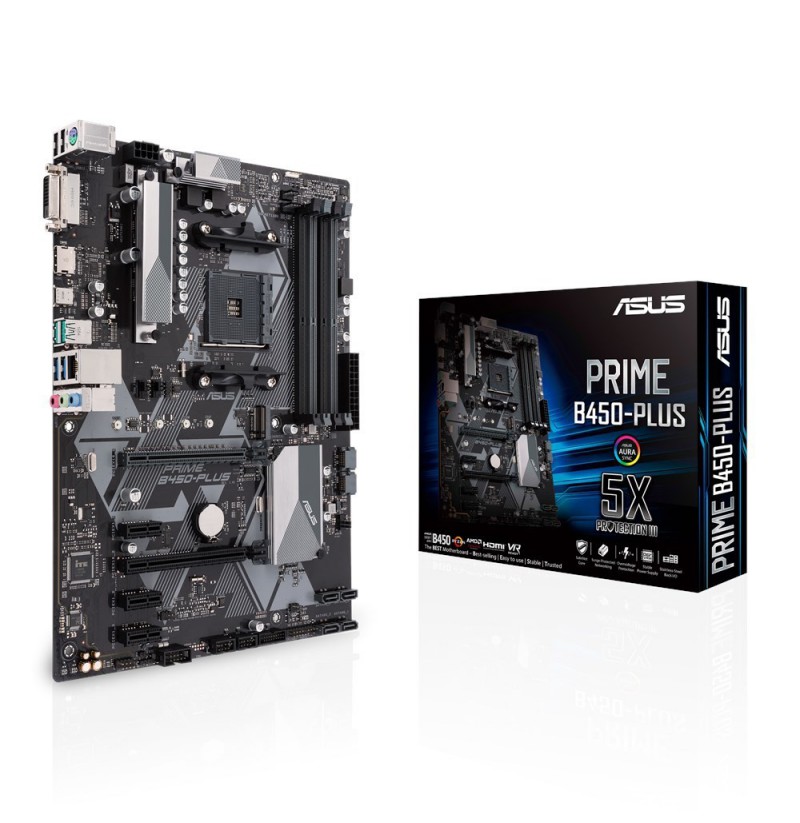

ASUS PRIME B450-PLUS, AM4, B450, USB3.1, M.2, SATA 6GB/S Padidinti

Plate mainboard ASUS PRIME PRIME B450-PLUS (AM4, 4x DDR4 DIMM, ATX, CrossFireX)

78,05 €

PRIME B450-PLUS

4718017075671

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, AMD Athlon, AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 5, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Parallel processing technology support: CrossFireX
Maximum resolution: 4096 x 2160 pixels
Motherboard chipset: AMD B450
Audio chip: Realtek ALC887-VD2
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 Enterprise x64, Windows 10 Pro x64, Windows 10 Home x64, Windows 10 Education x64
Component for: PC
Motherboard chipset family: AMD
Motherboard form factor: ATX
Unbuffered memory: Y
Supported memory clock speeds: 3200, 2666, 2133, 3000, 2400, 2800
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
ECC: Y
Number of memory slots: 4
Width: 305 mm
Depth: 234 mm
Wake-on-LAN ready: Y
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Y
Front panel connector: Y
CPU fan connector: Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Number of chassis fan connectors: 3
USB 2.0 connectors: 2
Number of COM connectors: 1
Front panel audio connector: Y
Number of EATX power connectors: 1
12V power connector: Y
ATX Power connector (24-pin): Y
BIOS memory size: 128 Mbit
ACPI version: 6.1
System Management BIOS (SMBIOS) version: 3.1
BIOS type: UEFI AMI
Clear CMOS jumper: Y
Cables included: SATA
Manual: Y
Drivers included: Y
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PS/2 ports quantity: 1
HDMI version: 2.0b
DVI-D ports quantity: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 2.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
