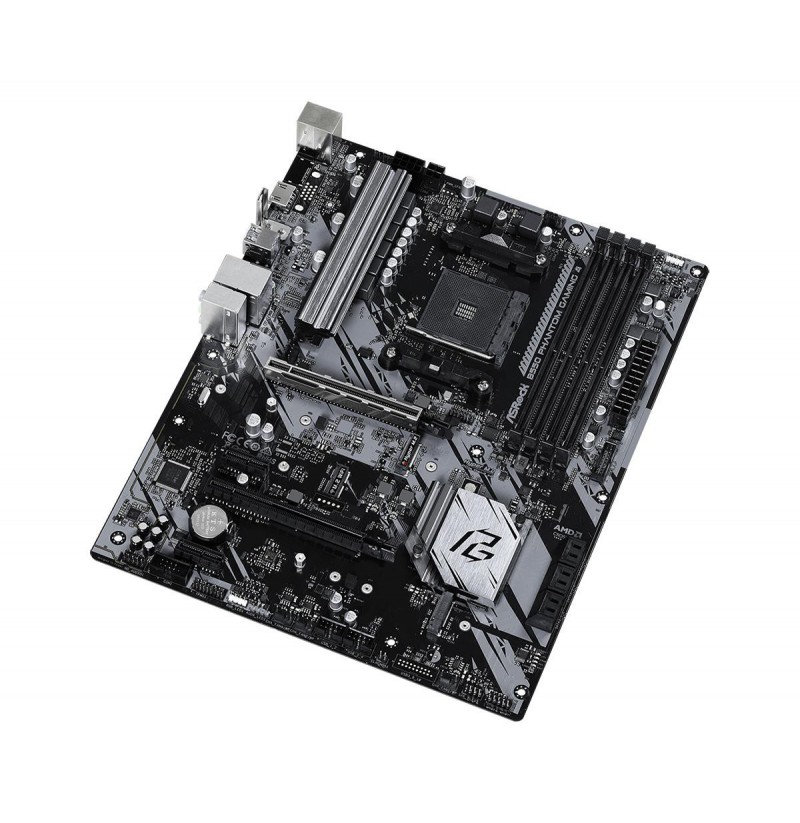

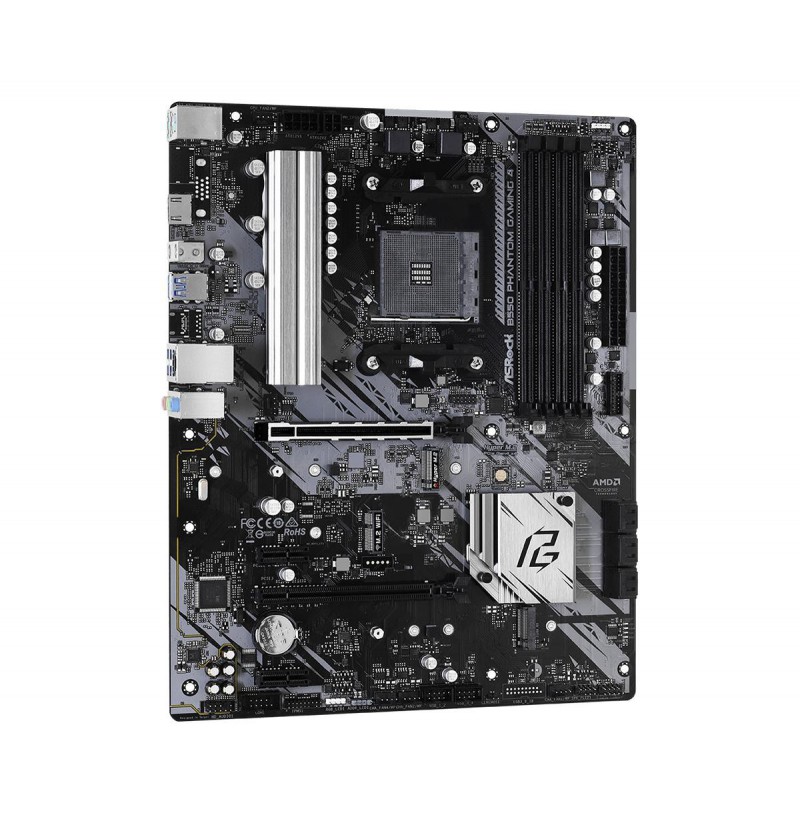

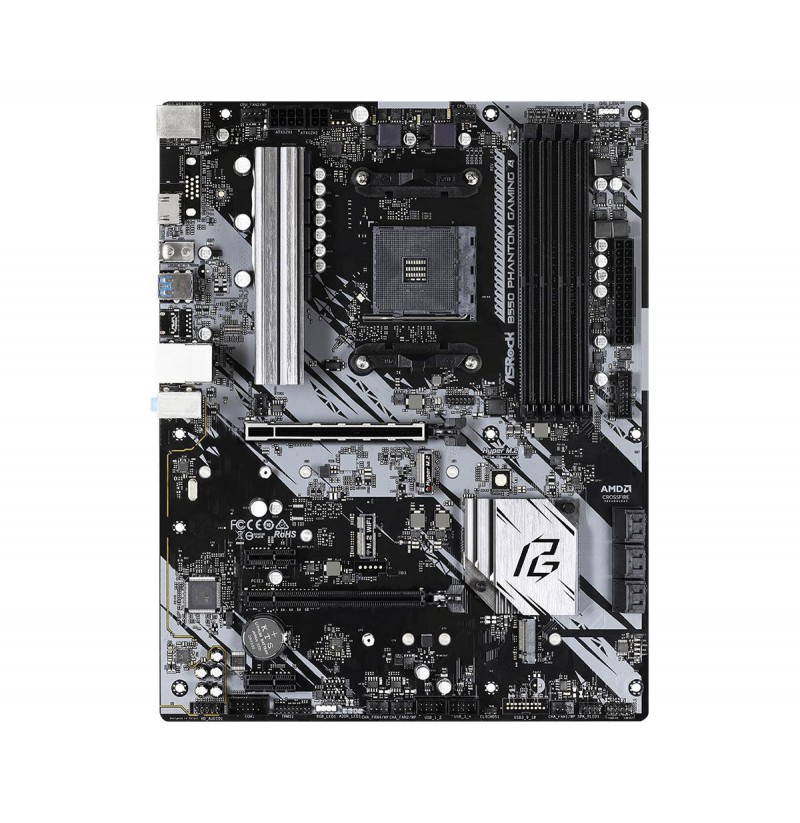

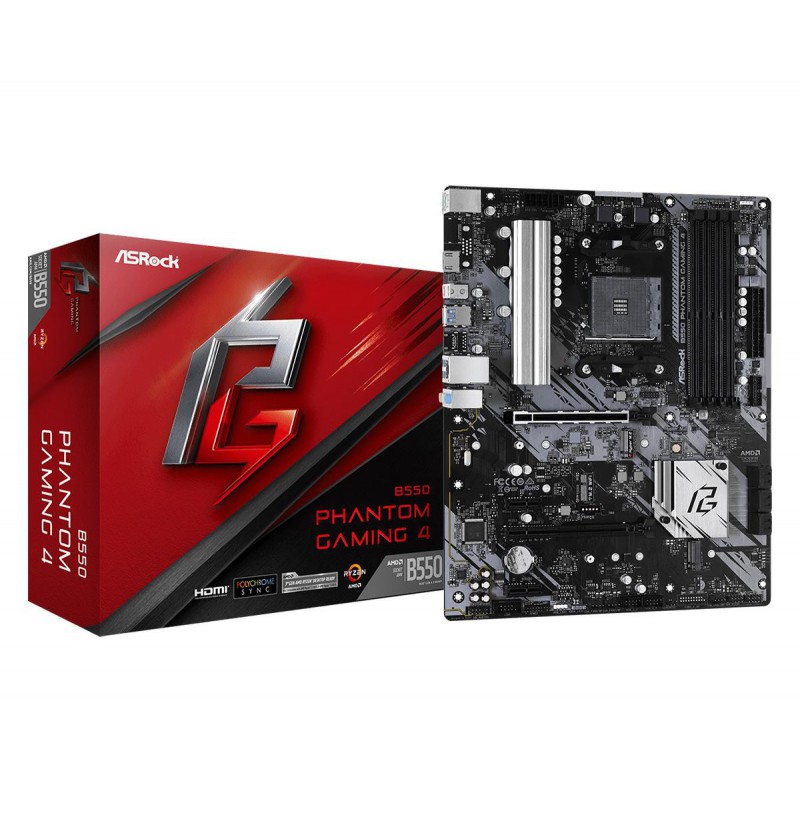

Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550

Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Motherboard form factor: ATX
Motherboard chipset family: AMD
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 3800, 4533, 2667, 3733, 4400, 2400, 3866, 4133, 4000, 4466, 3200, 4266, 4333, 3466, 2133 MHz, 4200, 2933, 3600
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Width: 305 mm
Depth: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Wake-on-LAN ready: Yes
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
USB 2.0 connectors: 2
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
Peripheral (Molex) power connectors (4-pin): 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Audio connector: Yes
BIOS type: UEFI
Drivers included: Yes
RAID levels: 1, 0, 10
Supported storage drive interfaces: M.2, Serial ATA III

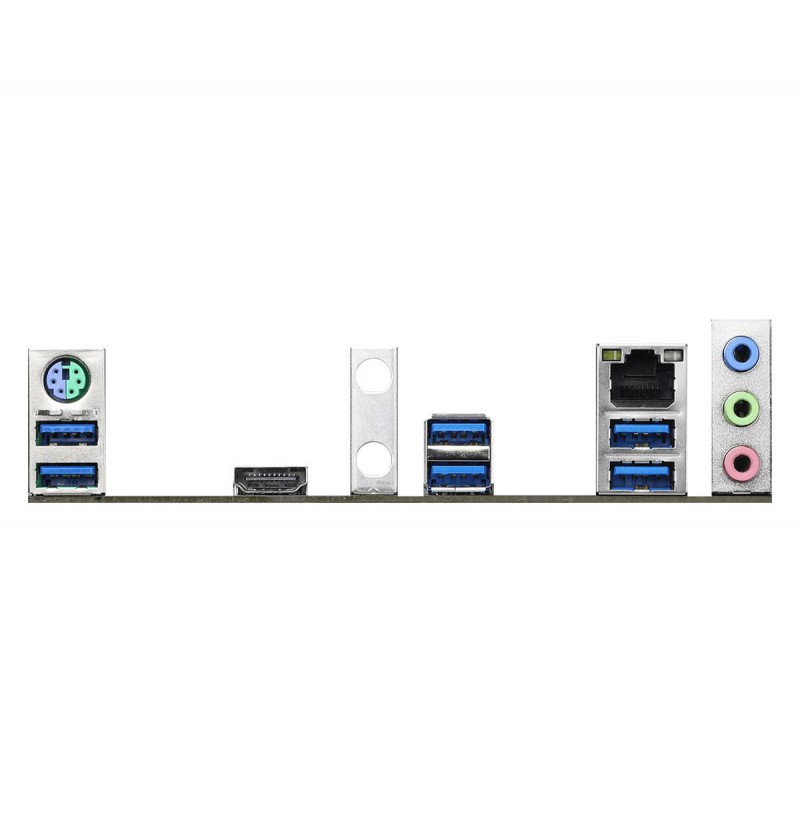

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
Microphone in: Yes
