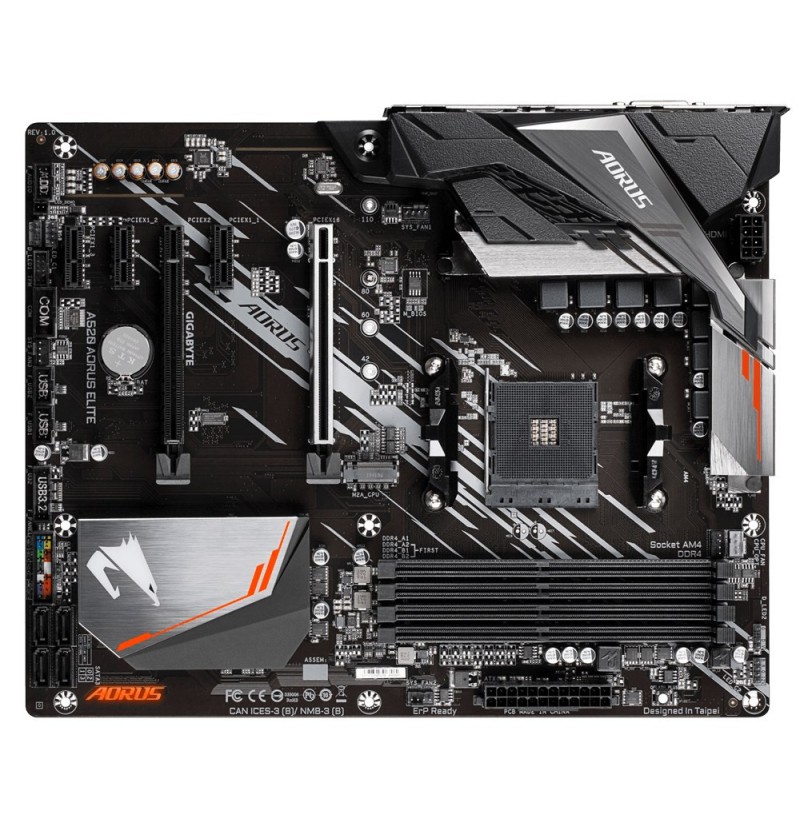

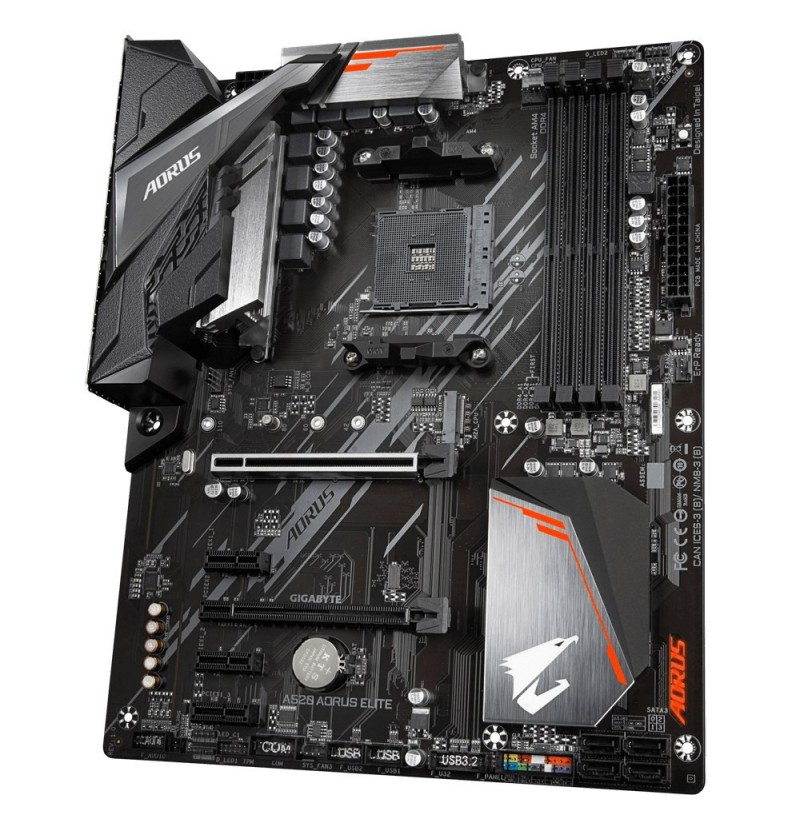

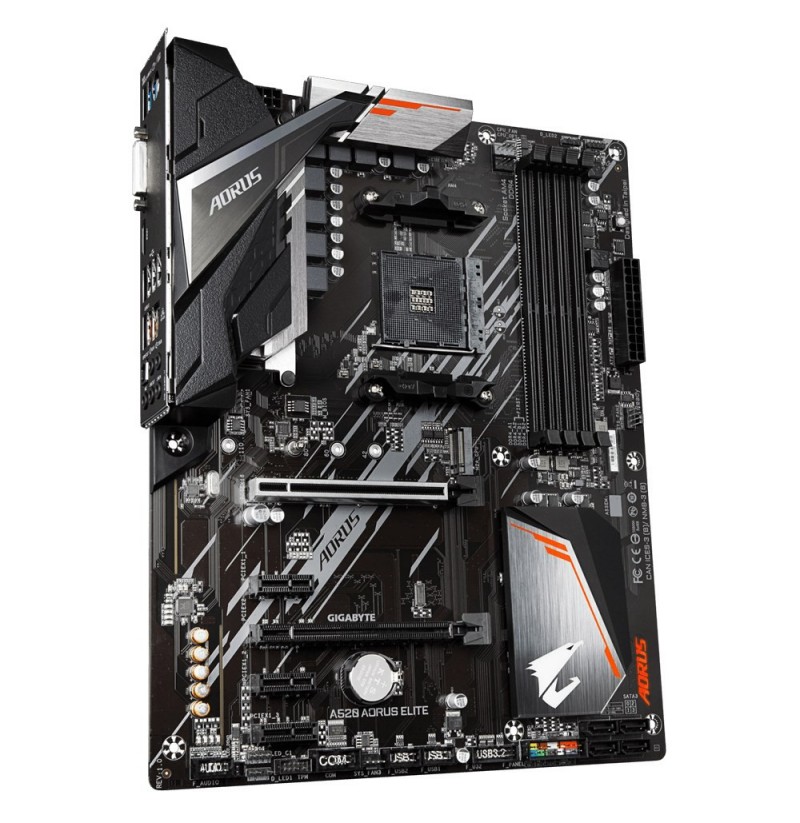

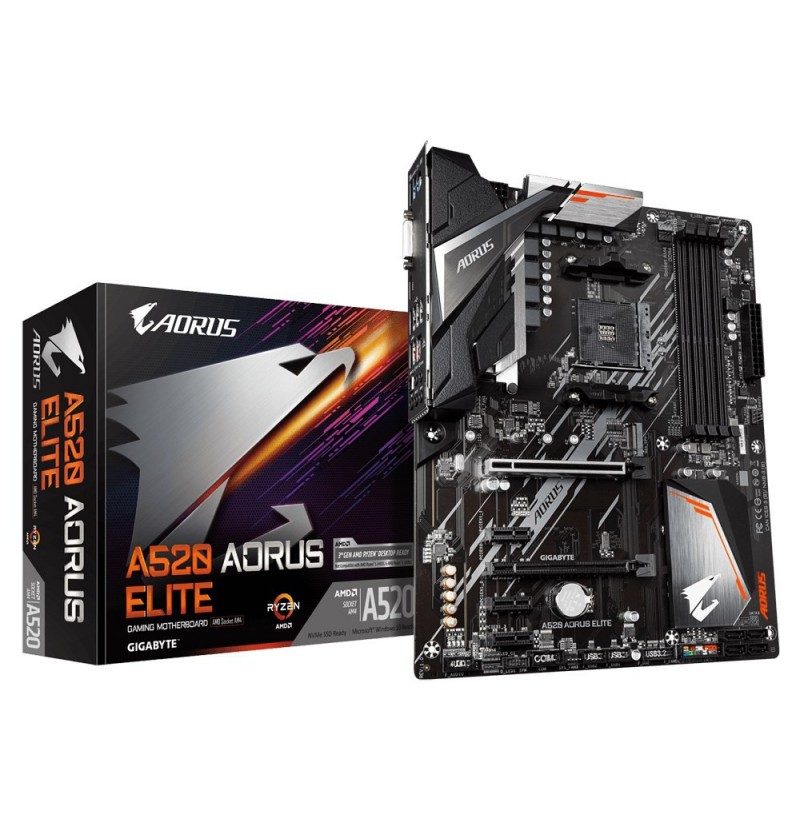

Gigabyte A520 AORUS ELITE motherboard Socket AM4 ATX AMD A520 Padidinti

Gigabyte | A520 AORUS ELITE 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Number of SATA conn

91,88 €

4719331809812

Galimas pasirinkimas

 1..4 d.d.


Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Audio chip: Realtek ALC1200
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Motherboard chipset family: AMD
Unbuffered memory: Yes
Supported memory clock speeds: 2400, 2933, 3600 MHz, 4000, 3200, 2667, 2133, 4733 MHz, 3333, 4400, 4600
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Depth: 244 mm
Width: 305 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Power fan connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Supported storage drive interfaces: M.2, Serial ATA III
RAID levels: 10, 0, 1
Number of storage drives supported: 5

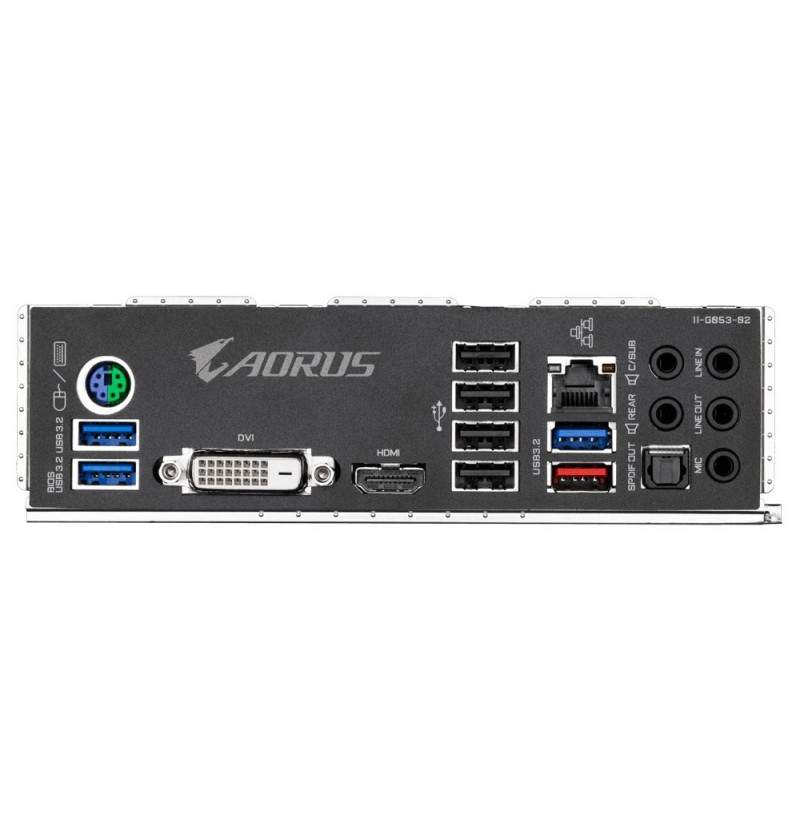

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
DVI-D ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PS/2 ports quantity: 1
S/PDIF out port: Yes
Headphone outputs: 5
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 slots: 3
