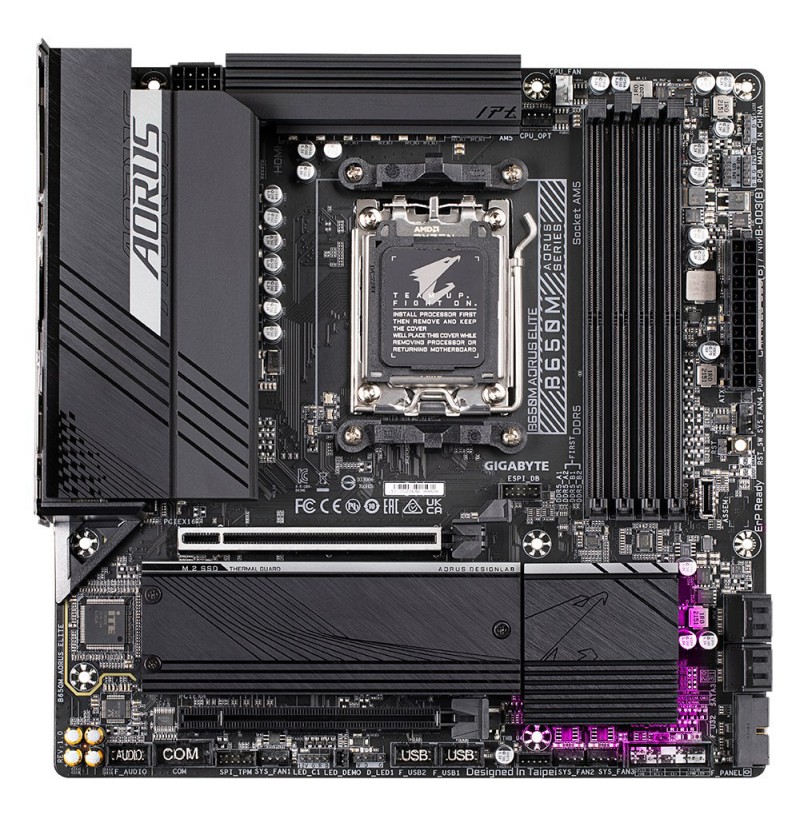

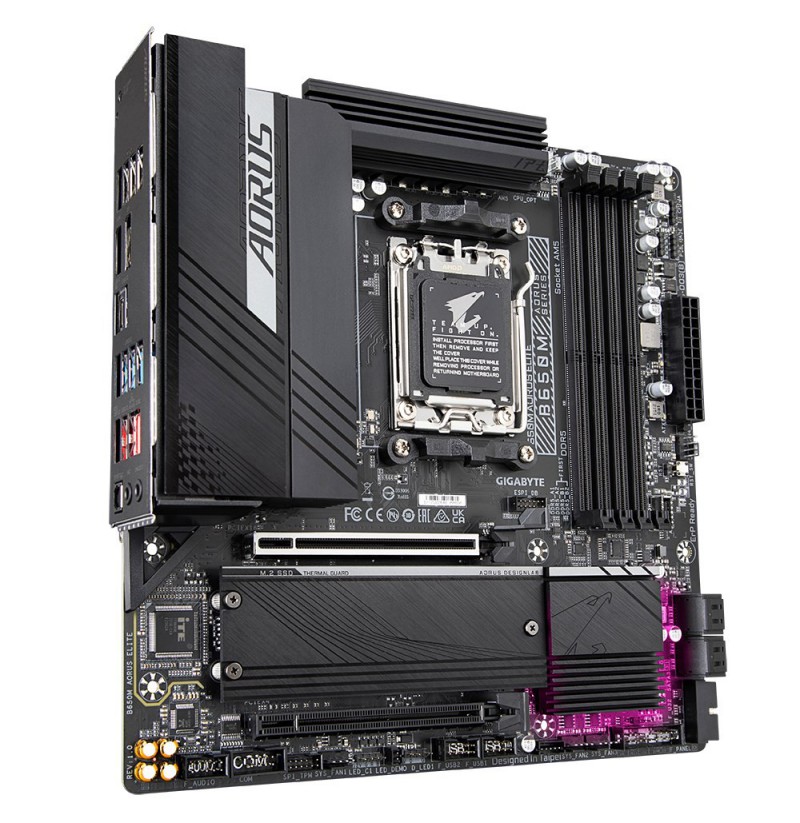

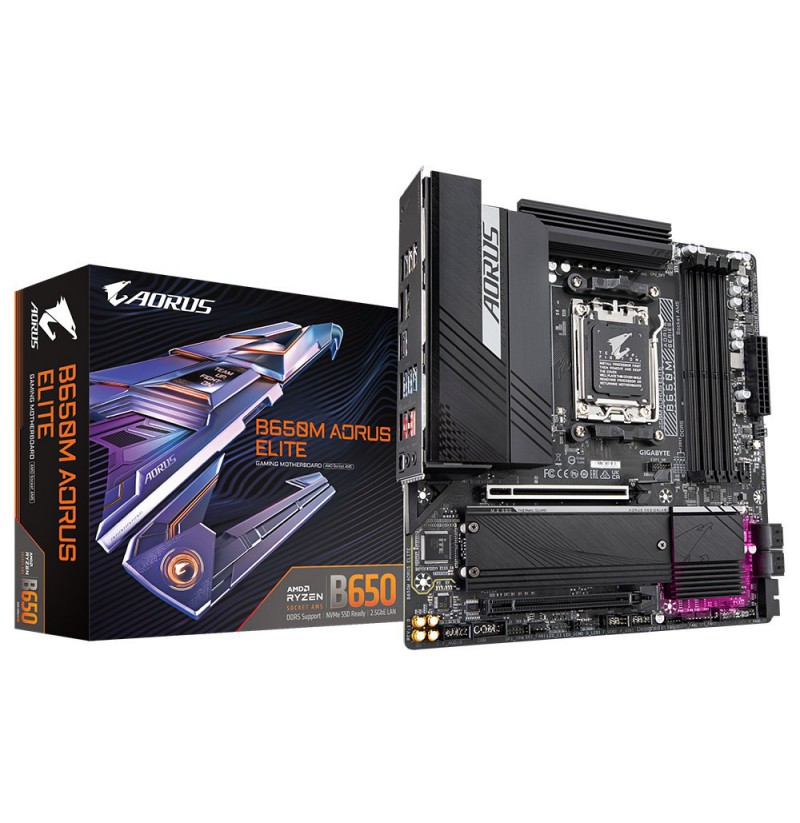

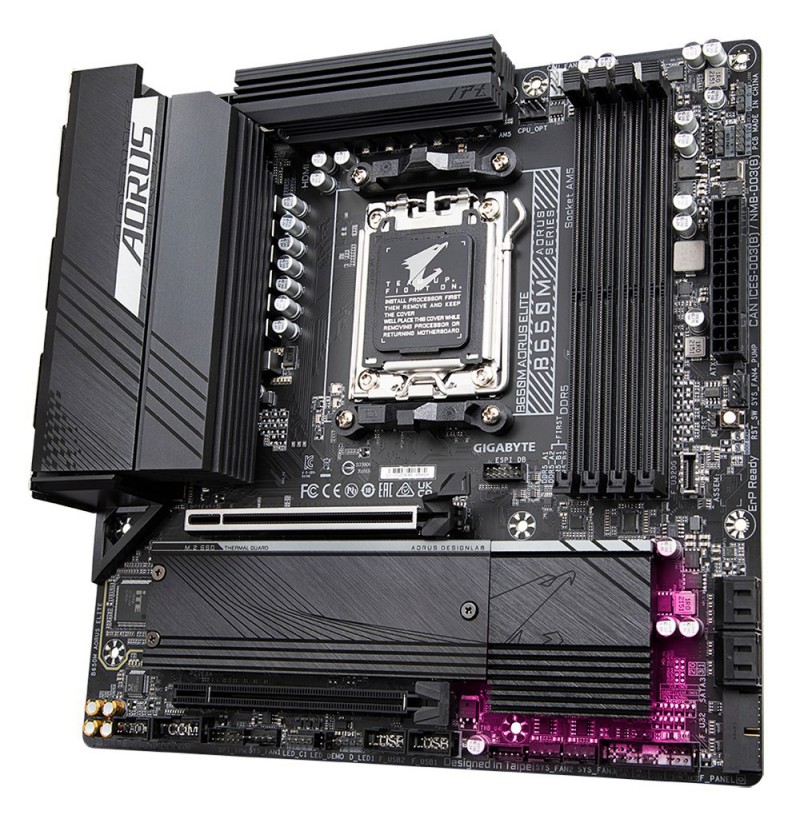

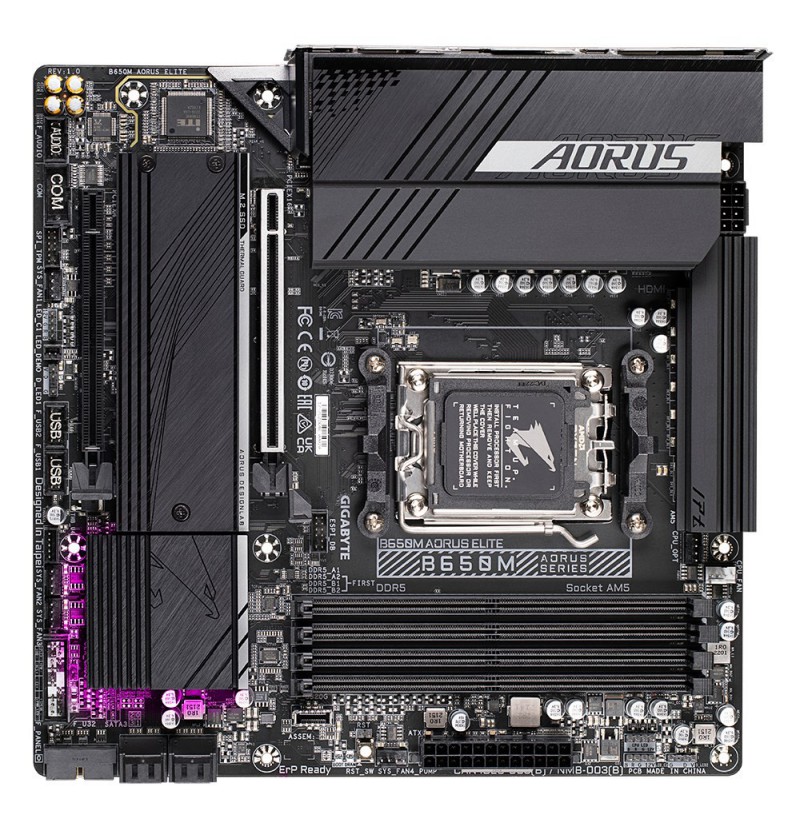

GIGABYTE B650M AORUS ELITE Motherboard - AMD Ryzen 9000 CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0

GIGABYTE B650M AORUS ELITE Motherboard - AMD Ryzen 9000 CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2x2
Warranty period: 3 year(s)
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
DirectX version: 12.0
Audio chip: Realtek ALC897
PC health monitoring: Voltage, Fan, Temperature, Water cooling
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD B650
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Product colour: Black
Audio output channels: 7.1 channels
Cooling type: Passive
Power source type: ATX
Component for: PC
Supported memory clock speeds: 8000, 6000, 7000, 6400 MHz, 6200, 6666, 5200, 6800, 6600, 4400 MHz, 5600, 7200, 7600, 7800, 4800
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 256 GB
ECC сompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Width: 244 mm
Height: 35 mm
Depth: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Realtek RTL8125
RGB LED pin header: Yes
TPM connector: Yes
Number of chassis fan connectors: 4
12V power connector: Yes
Serial port headers: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 5
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
USB 2.0 connectors: 2
Number of water pump connectors: 2
Number of EPS power connectors (8-pin): 1
ATX Power connector (24-pin): Yes
USB 3.2 Gen 2x2 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Desktop Management Interface (DMI) version: 2.7
ACPI version: 5.0
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
System Management BIOS (SMBIOS) version: 2.7
Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.9 kg
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Batteries included: Yes
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes

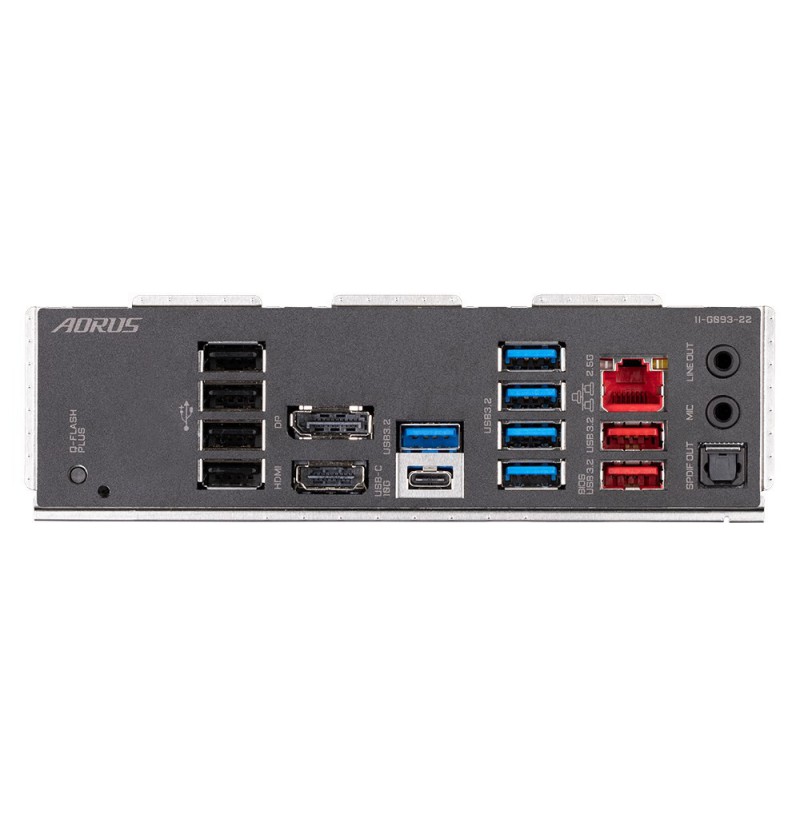

DisplayPorts quantity: 1
HDMI ports quantity: 1
Line-in: Yes
HDMI version: 2.1
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
S/PDIF out port: Yes
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 2.0 ports quantity: 4
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 25110
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
Number of battery cells: 1
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Weight: 1.66 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
