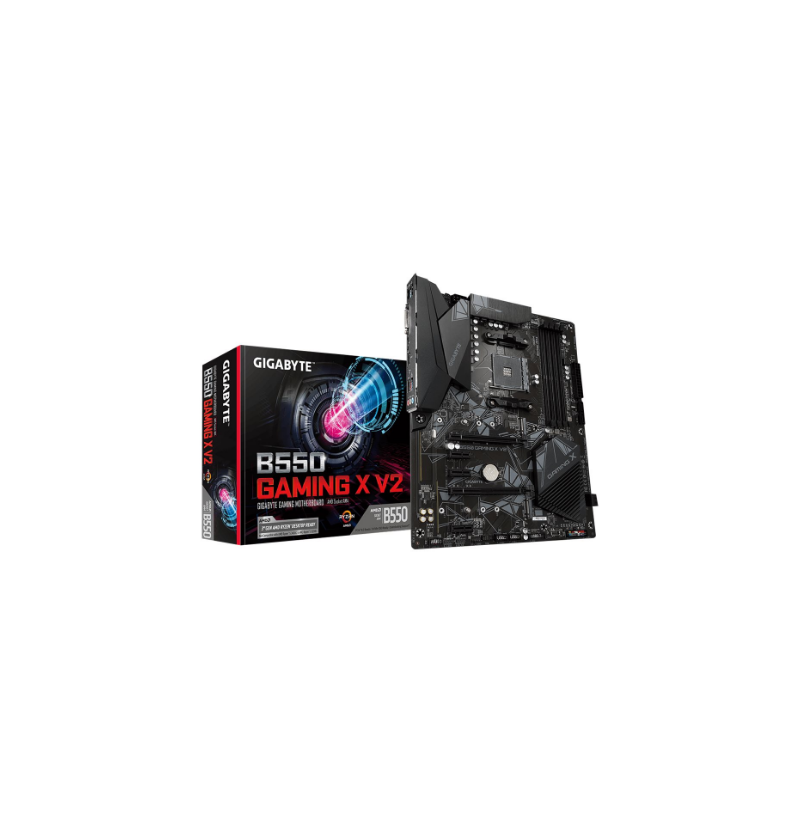

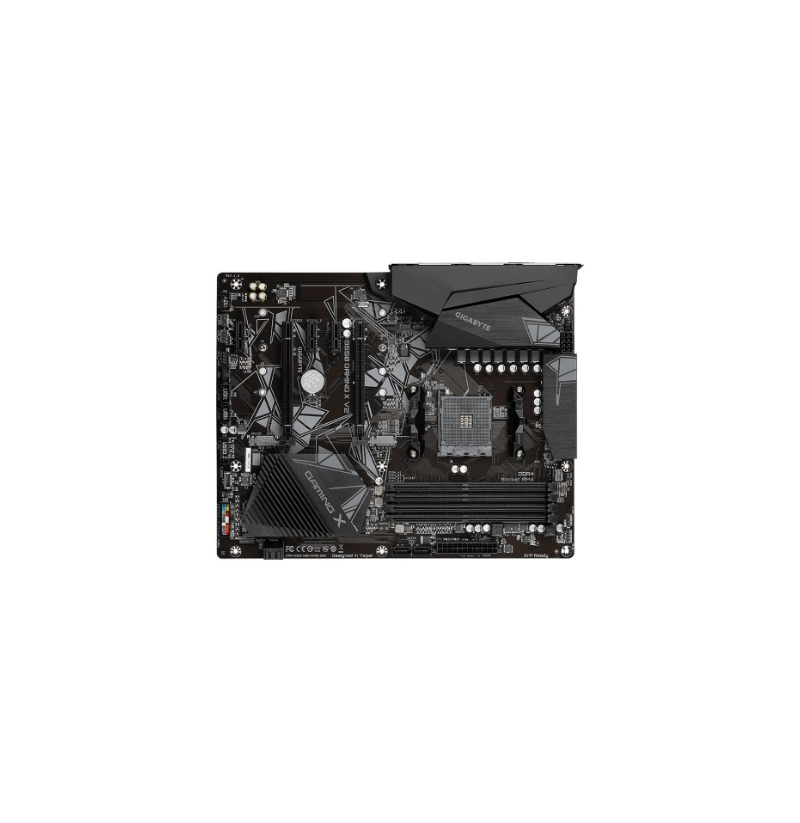

Gigabyte | B550 GAMING X V2 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Chipset AMD B | ATX

Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7
Processor socket: Socket AM4
Processor manufacturer: AMD
Parallel processing technology support: Not supported
Maximum graphics card memory: 16 MB
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64
Motherboard form factor: ATX
Motherboard chipset: AMD B550
Audio chip: Realtek ALC887
Audio output channels: 7.1 channels
Supported memory clock speeds: 3200 MHz, 2933, 2667, 2400, 2133
Memory slots type: DIMM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Width: 305 mm
Depth: 244 mm
Ethernet LAN: Yes
Ethernet interface type: 100 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi: No
Front panel connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
TPM connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
RAID levels: 10, 0, 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, Serial ATA III
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
DVI-D ports quantity: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
Number of M.2 (M) slots: 2
