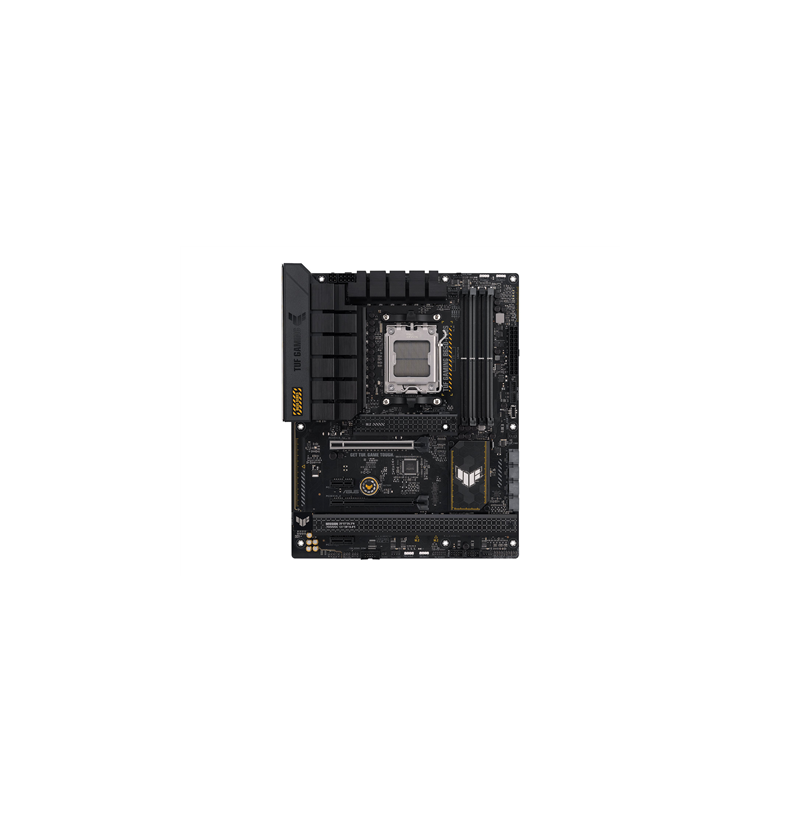

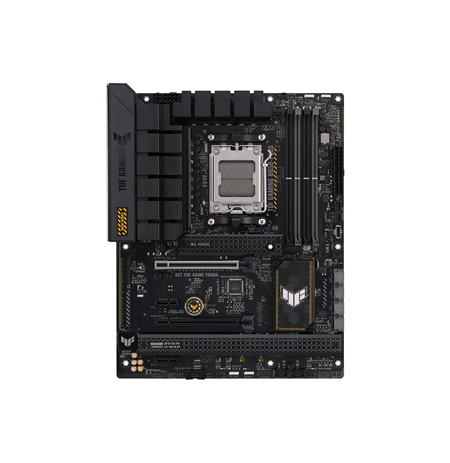

ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX

Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Processor manufacturer: AMD
Parallel processing technology support: Not supported
Motherboard chipset family: AMD
Power source type: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10, Windows 11 x64
Motherboard chipset: AMD B650
Component for: PC
Motherboard form factor: ATX
Supported memory clock speeds: 5000, 5800, 5400, 4800 MHz, 5200, 6000, 5600, 6400 MHz, 6200
Supported memory clock speed (max): 6400 MHz
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Depth: 244 mm
Width: 305 mm
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
CPU fan connector: Yes
12V power connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
Number of COM connectors: 1
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Package depth: 273 mm
Package height: 68 mm
Package weight: 1.36 kg
Package width: 338 mm
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10
RAID support: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 2.0 ports quantity: 4
Headphone outputs: 1
DisplayPort version: 1.4
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
PCI Express x4 (Gen 1.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 2
Back-to-BIOS button: Yes
