Gigabyte A520M K 1.0 M/B Processor family AMD Padidinti

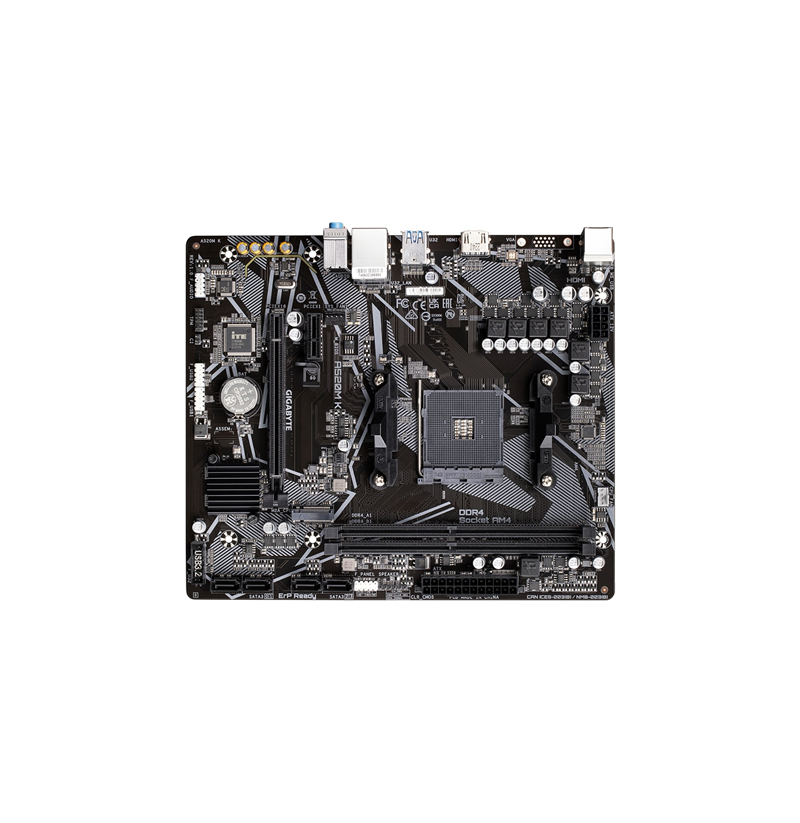

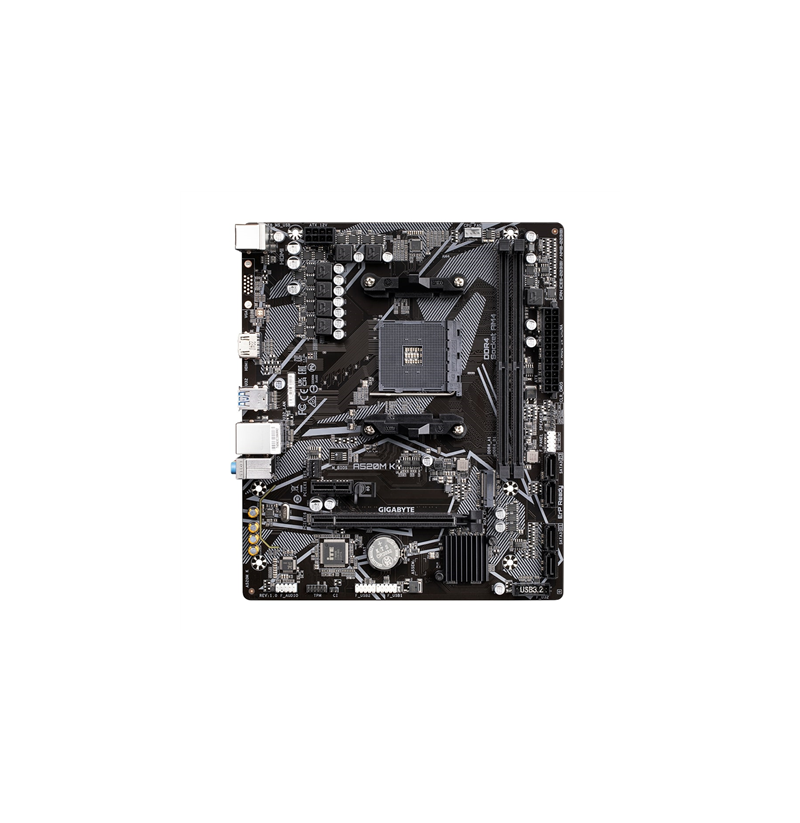

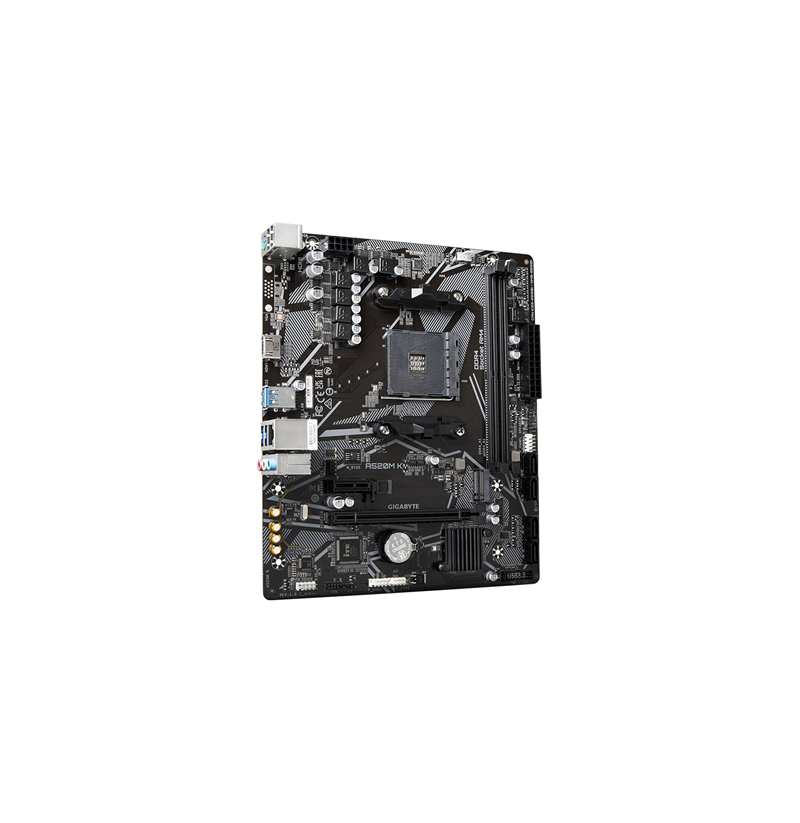

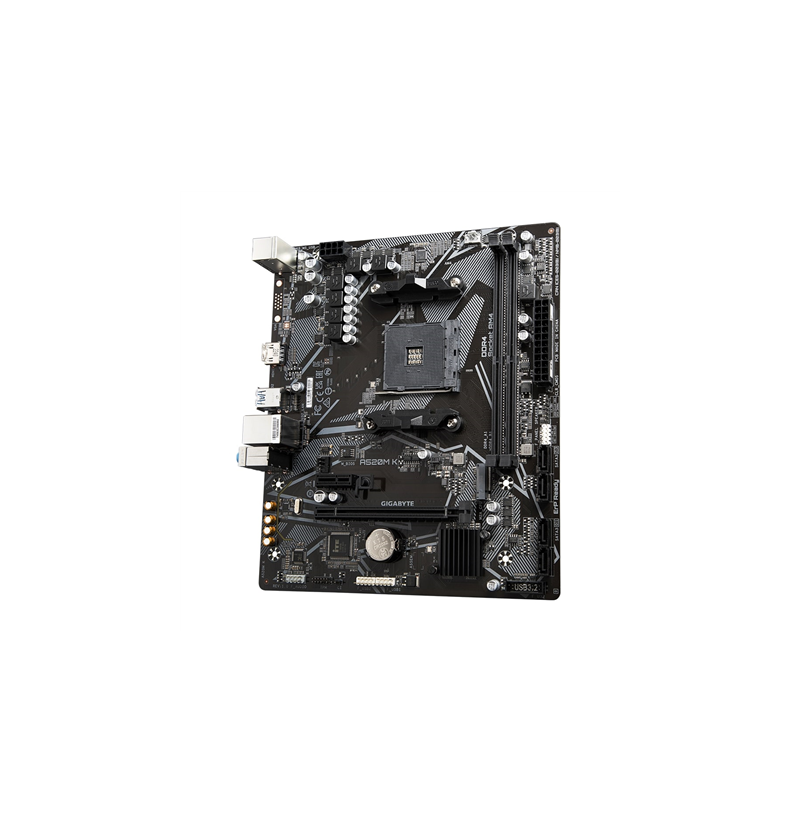

GIGABYTE A520M K (rev. 1.0) AMD A520 Socket AM4 micro ATX

79,08 €

A520M K

4719331850883

Galimas pasirinkimas

 pristatymas 11...13 d.d.


Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, AMD Ryzen Threadripper 3000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 64 GB
Processor socket: Socket AM4
Number of displays supported: 2
Discrete graphics support: Yes
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Cooling type: Active
Windows operating systems supported: Windows 10 x64
Component for: PC
Power source type: ATX
Motherboard form factor: micro ATX
Audio chip: Realtek ALC887
Motherboard chipset family: AMD
PC health monitoring: Power supply, Voltage, LED, Temperature, CPU, Fan
Audio output channels: 7.1 channels
Motherboard chipset: AMD A520
Memory channels: Dual-channel
Number of memory slots: 2
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR4-SDRAM
Supported memory module capacities: 8GB, 32GB, 1GB, 16GB, 2GB, 4GB
Supported memory clock speeds: 2667, 5000, 2933, 3600, 3333, 2400, 4866, 3200, 4000, 2133, 4600
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Width: 233 mm
Depth: 198 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Power fan connector: Yes
Front panel audio connector: Yes
Total number of SATA connectors: 4
TPM connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Serial port headers: 1
RGB LED pin header: Yes
12V power connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS button: Yes
Clear CMOS jumper: Yes
ACPI version: 5.0
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Drivers included: Yes
Cables included: SATA
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
PS/2 ports quantity: 1
Microphone in: Yes
USB connector type: USB Type-A
Digital audio optical out: 1
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Serial ports quantity: 1
DVI-D ports quantity: 1
Headphone outputs: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
