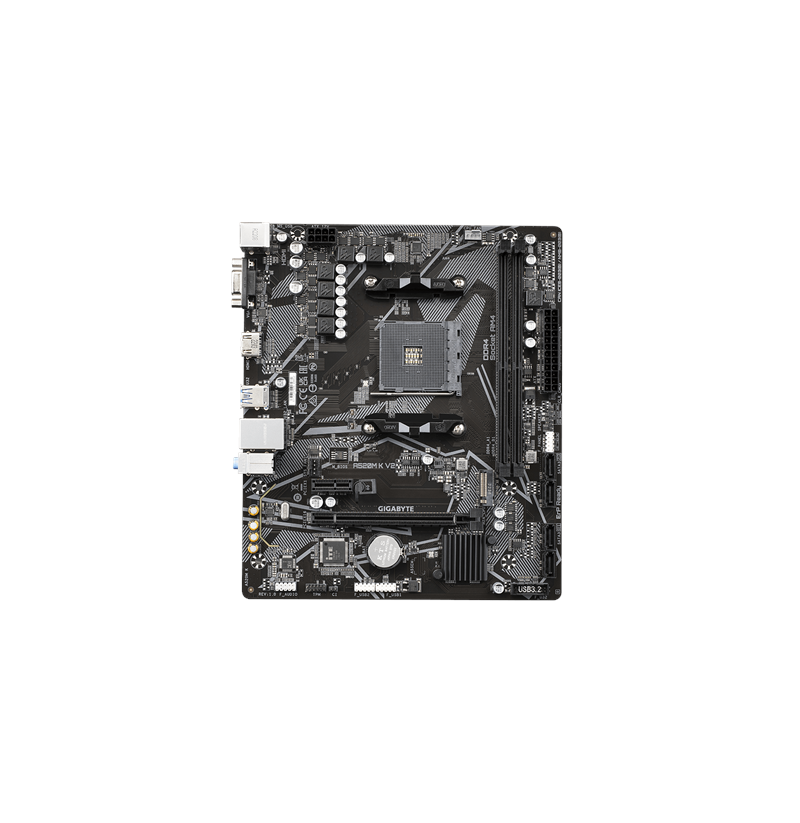

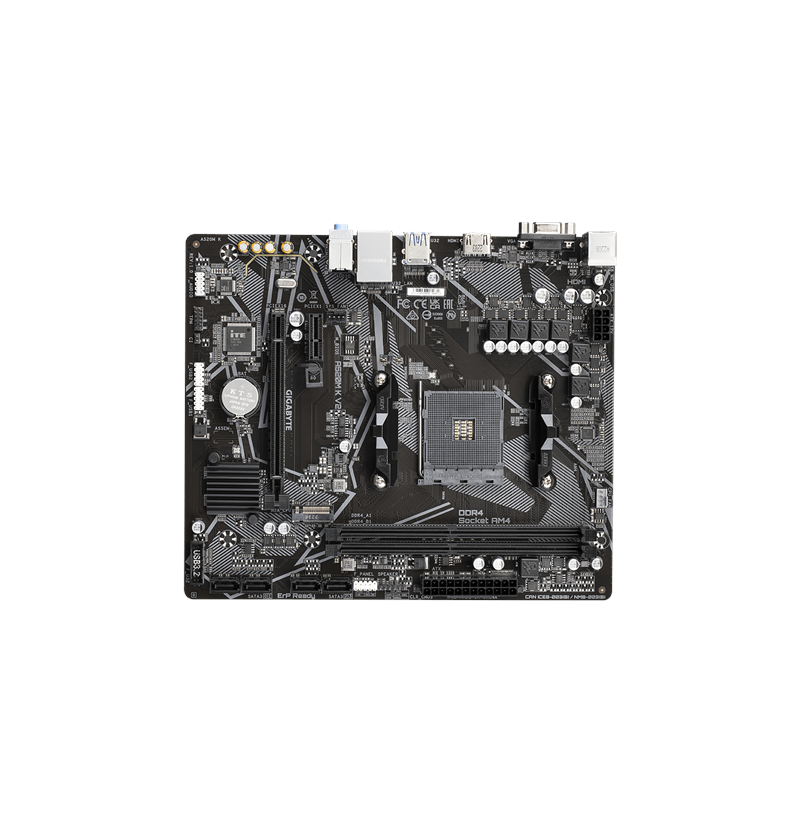

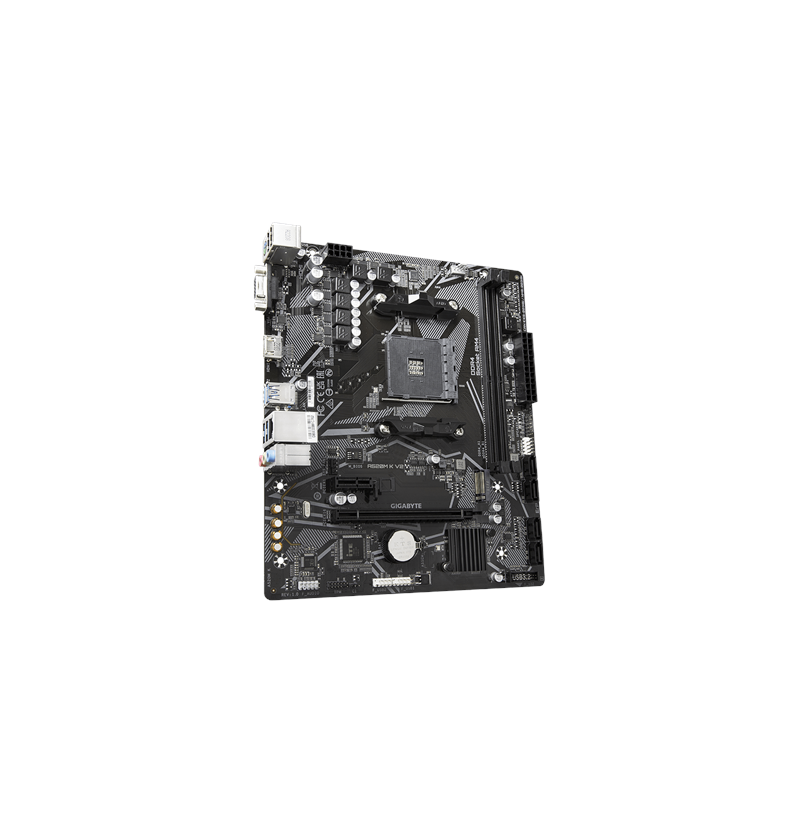

Gigabyte A520M K V2 1.0 M/B Processor family AMD Padidinti

Gigabyte | A520M K V2 1.0 M

56,47 €

A520M K V2

4719331852771

Galimas pasirinkimas

 1..4 d.d.


Warranty period: 3 year(s)
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
HDCP: Yes
Motherboard form factor: micro ATX
PC health monitoring: Temperature, Fan, Voltage
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: AMD
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 3200, 4266, 3400, 3866, 2133, 5100, 2933, 3600, 2667, 3733, 4400, 2400, 3466, 4600, 4133, 4000, 4800
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 5100 MHz
ECC сompatibility: ECC & Non-ECC
Height: 35 mm
Depth: 198 mm
Width: 233 mm
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
12V power connector: Yes
Chassis intrusion connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Front panel connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
TPM connector: Yes
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Package width: 265 mm
Package height: 52 mm
Package weight: 675 g
Package depth: 235 mm
Bundled software: Norton Internet Security
Cables included: SATA
Batteries included: Yes
RAID levels: 1, 10, 0
Number of storage drives supported: 5
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

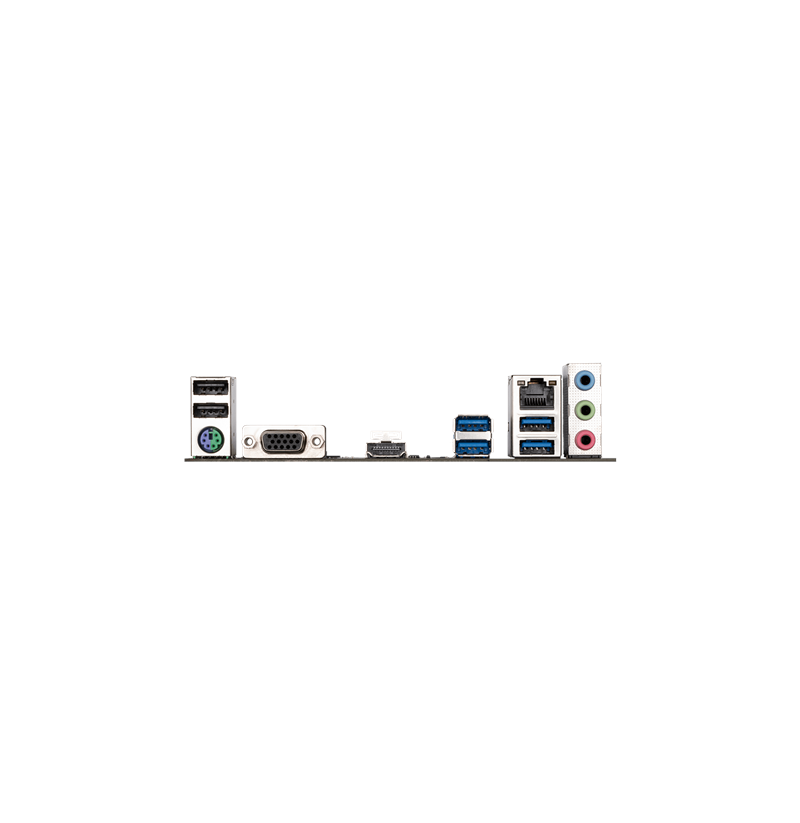

VGA (D-Sub) ports quantity: 1
Headphone outputs: 3
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
HDMI version: 2.1
PS/2 ports quantity: 1
USB connector type: USB Type-A
Microphone in: Yes
PCI Express x1 slots: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
