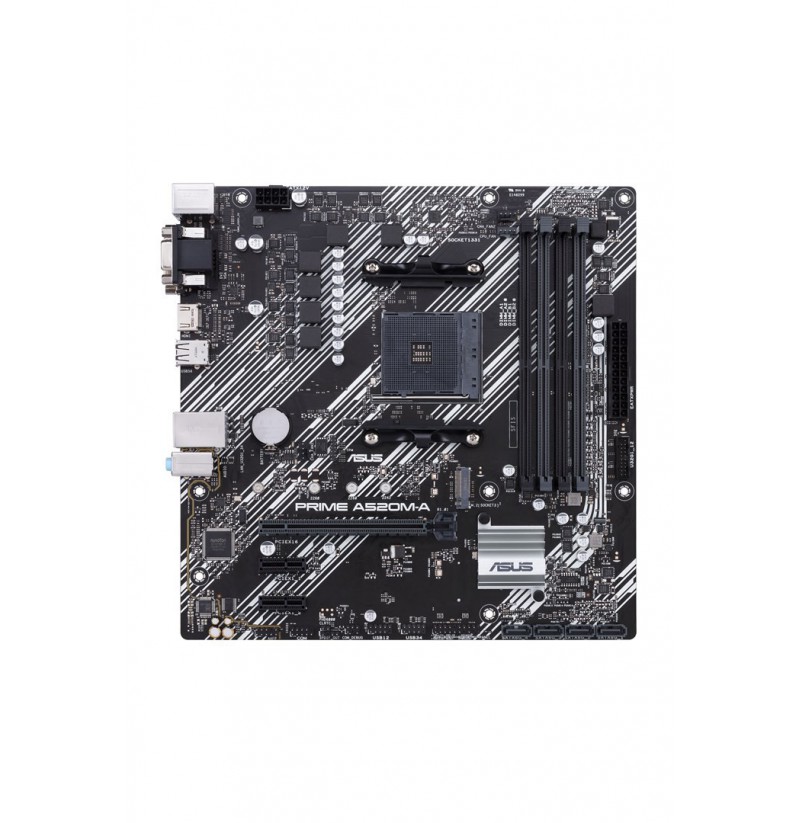

ASUS PRIME A520M-A II/CSM - bundkort

Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5
Processor manufacturer: AMD
Processor socket: Socket AM4
Parallel processing technology support: Not supported
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Audio chip: Realtek ALC887 / Realtek ALC897
Motherboard chipset: AMD A520
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64
Supported memory clock speeds: 4133, 4800, 3733, 4400 MHz, 3866, 4600 MHz, 3466, 2133 MHz, 2400, 2800, 3000, 3600, 3200 MHz, 2666, 4100, 3333, 4466
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Width: 244 mm
Depth: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Top Wi-Fi standard: Not available
Ethernet interface type: Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
TPM connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Number of COM connectors: 1
S/PDIF out connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
12V power connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
RAID support: Yes
RAID levels: 0, 10, 1
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB connector type: USB Type-A
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
PS/2 ports quantity: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Warnings: Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.
