MSI | B550M PRO-VDH | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Number of SATA connectors 4 | Chipse Padidinti

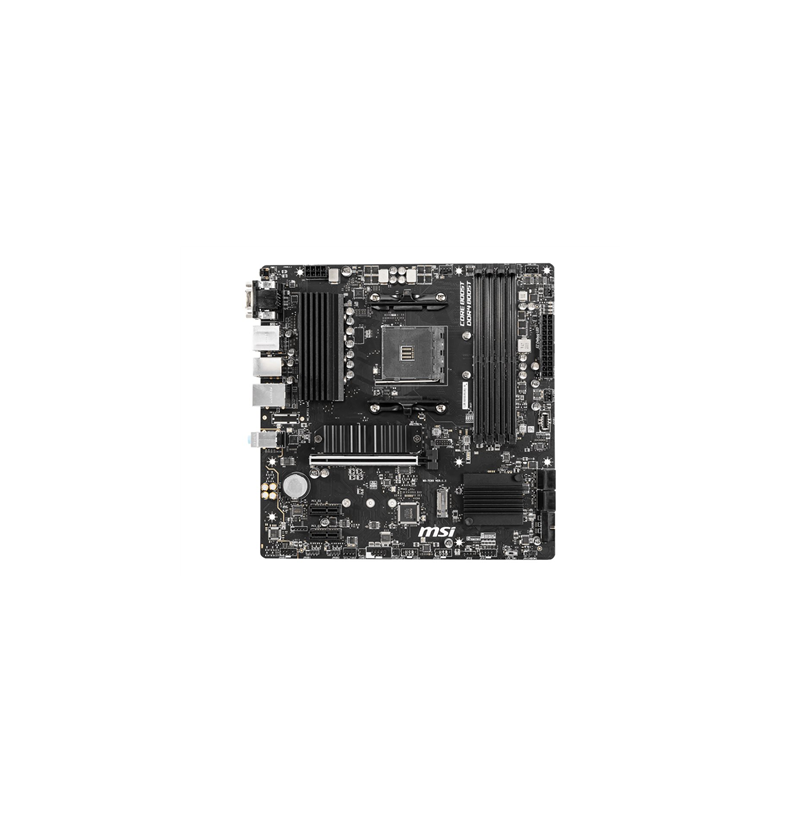

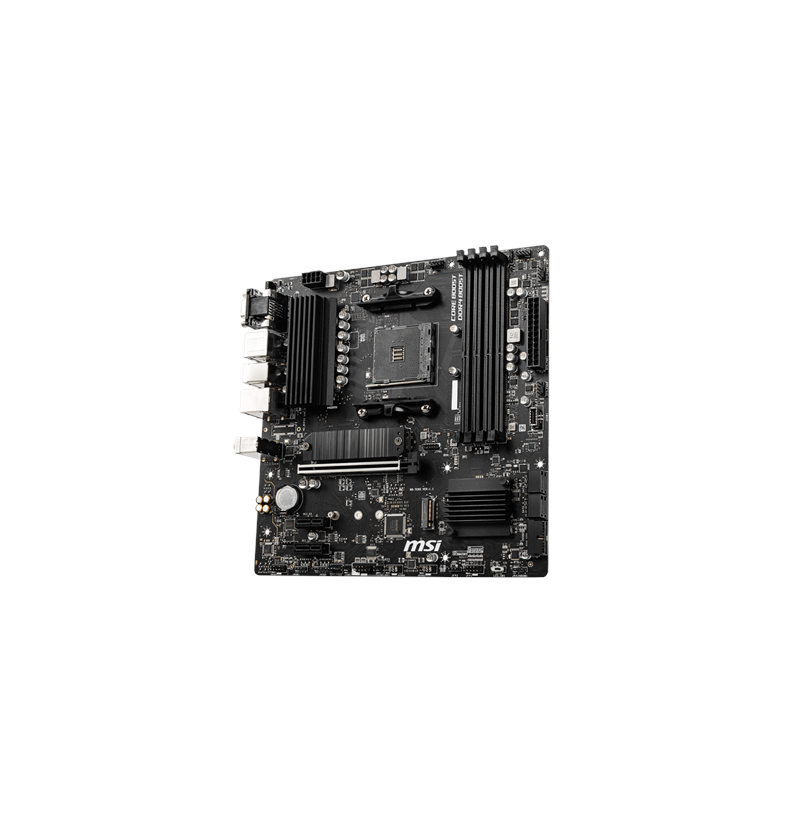

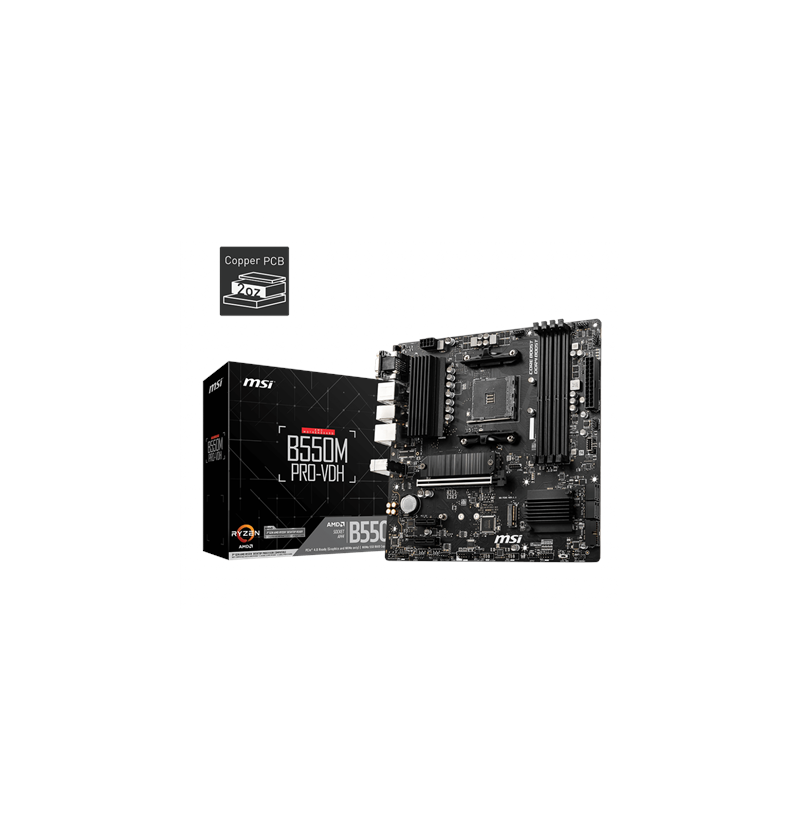

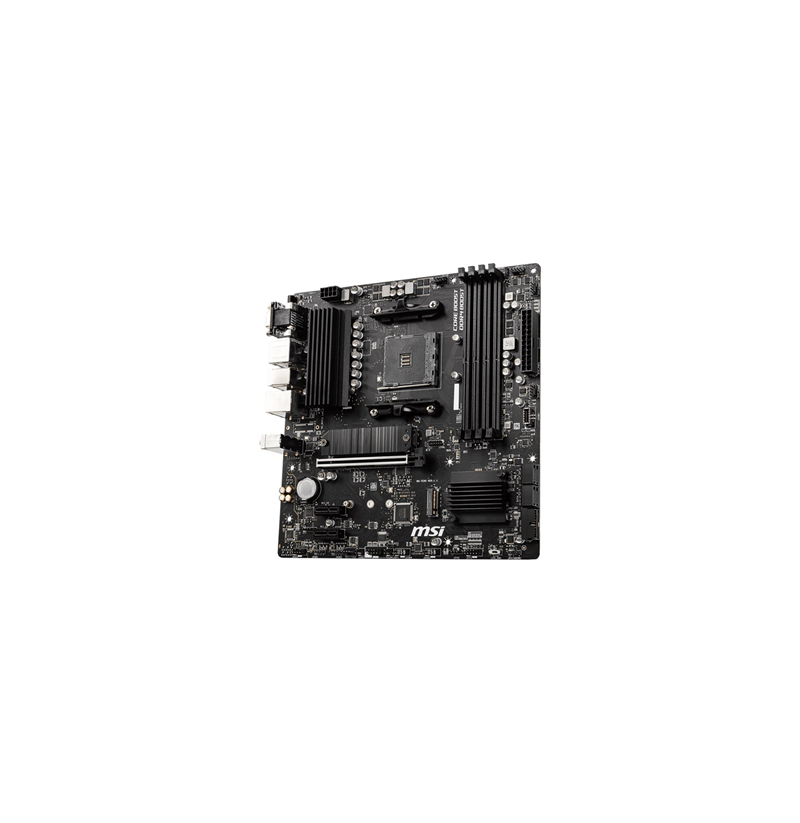

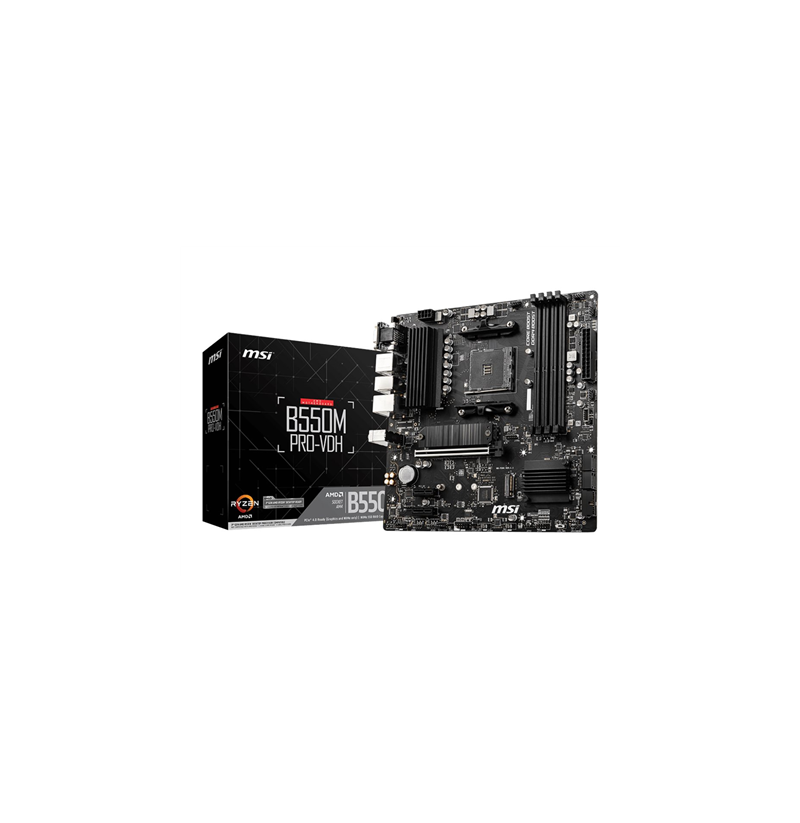

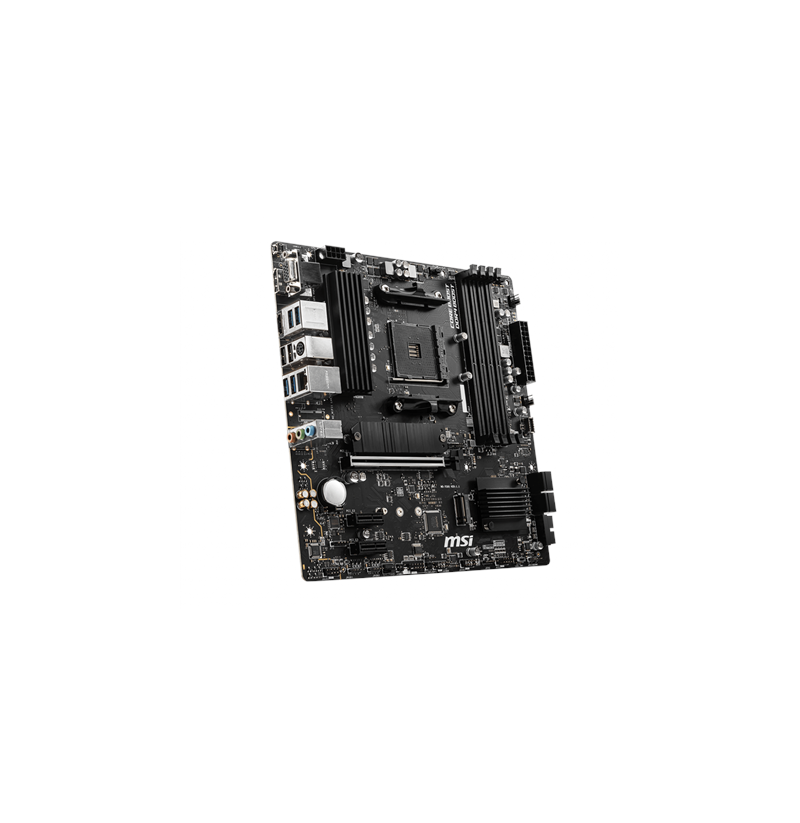

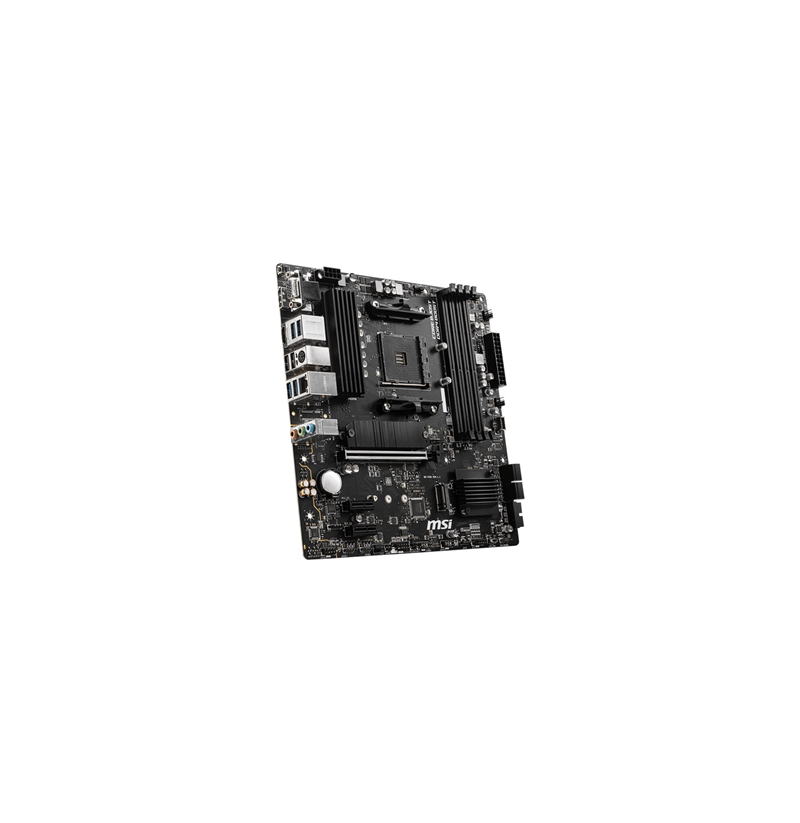

MSI B550M PRO-VDH AMD B550 Socket AM4 micro ATX

99,11 €

B550M PRO-VDH

4719072758417

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Processor manufacturer: AMD
Compatible processor series: 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 5, AMD Ryzen™ 7
Processor socket: Socket AM4
Maximum number of SMP processors: 1
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Memory slots type: DIMM
Supported memory clock speeds: 4133, 4000, 3466, 3200, 1866, 2400, 2800, 3000, 2667, 2933, 3600, 4266, 3866, 2133, 3733, 4400 MHz, 3066
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111HN
Wi-Fi: No
Serial port headers: 1
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
TPM connector: Yes
RGB LED pin header: Yes
CPU fan connector: Yes
Front panel connector: Yes
Chassis intrusion connector: Yes
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 1
Supported storage drive interfaces: Serial ATA III

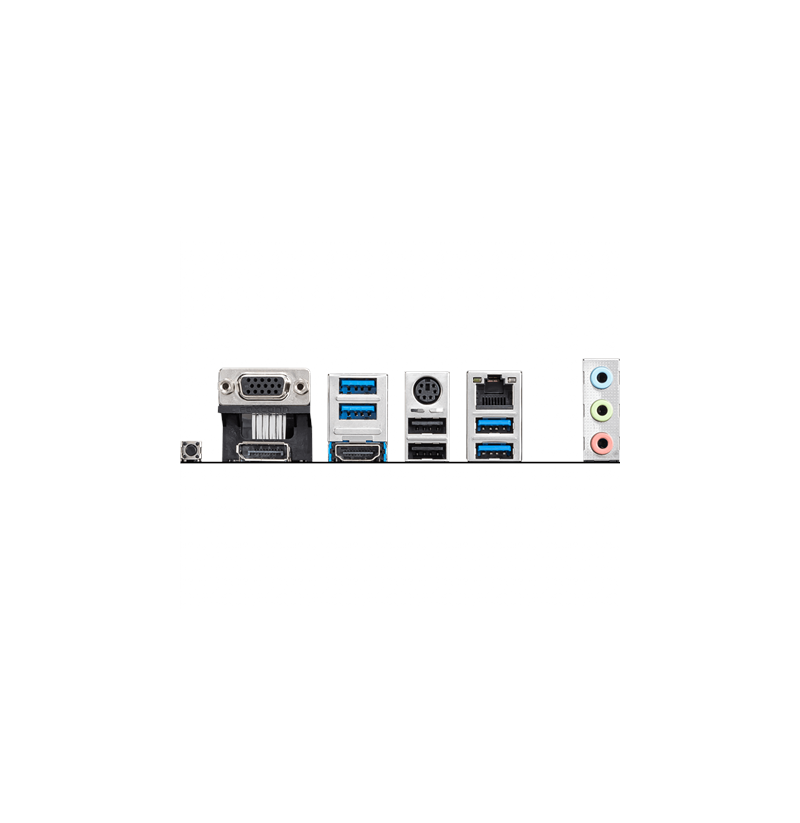

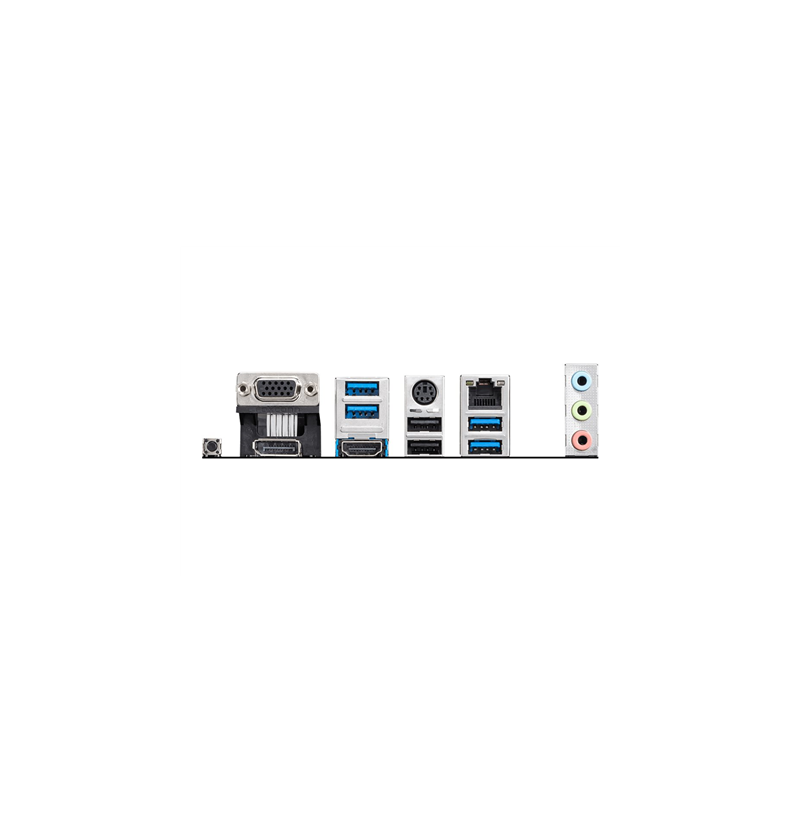

DisplayPorts quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
