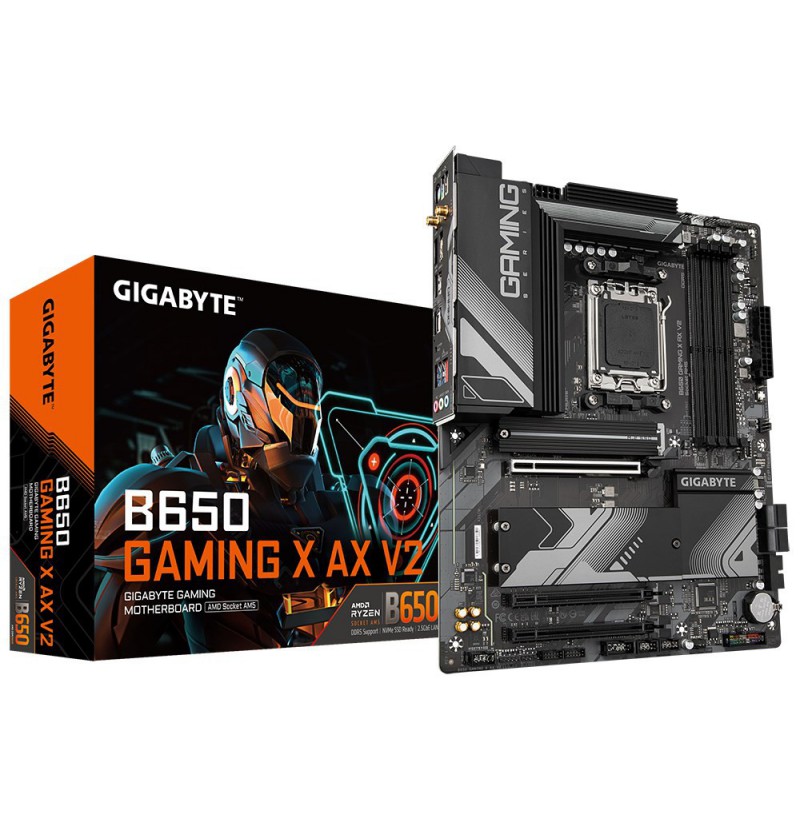

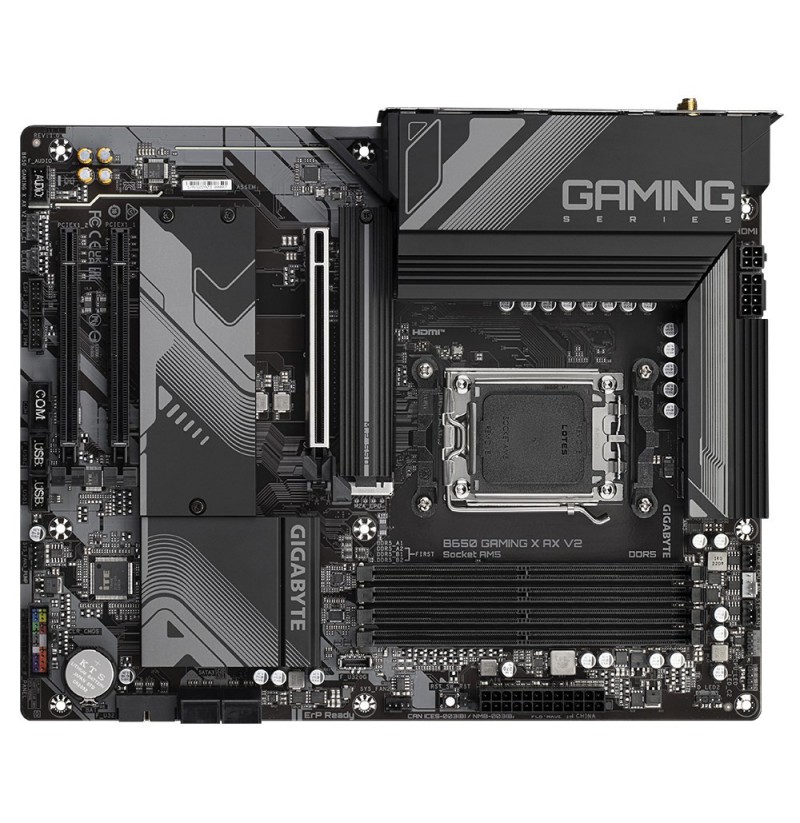

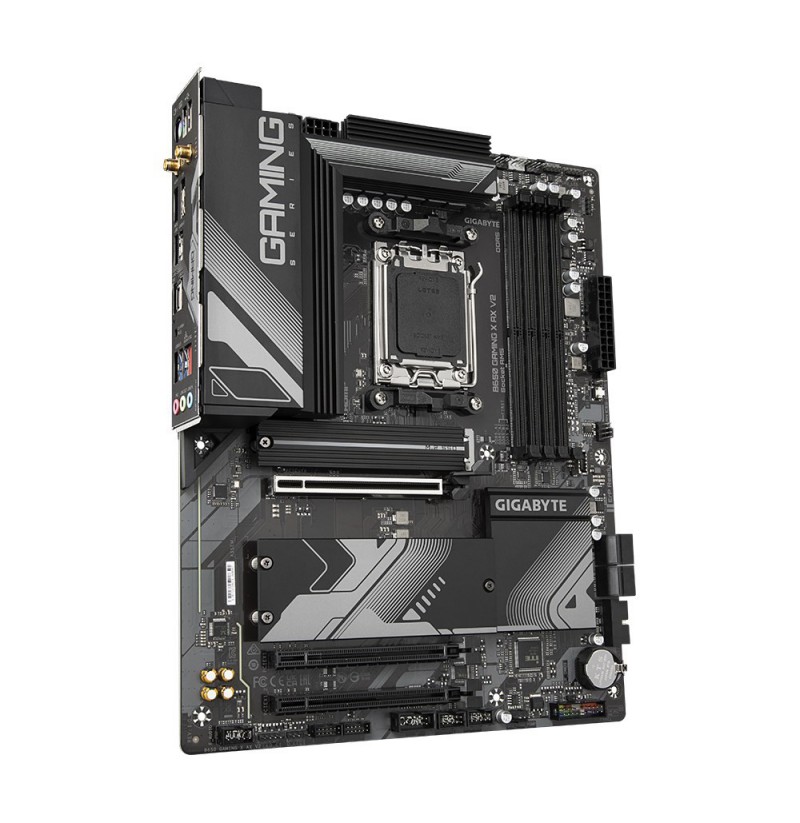

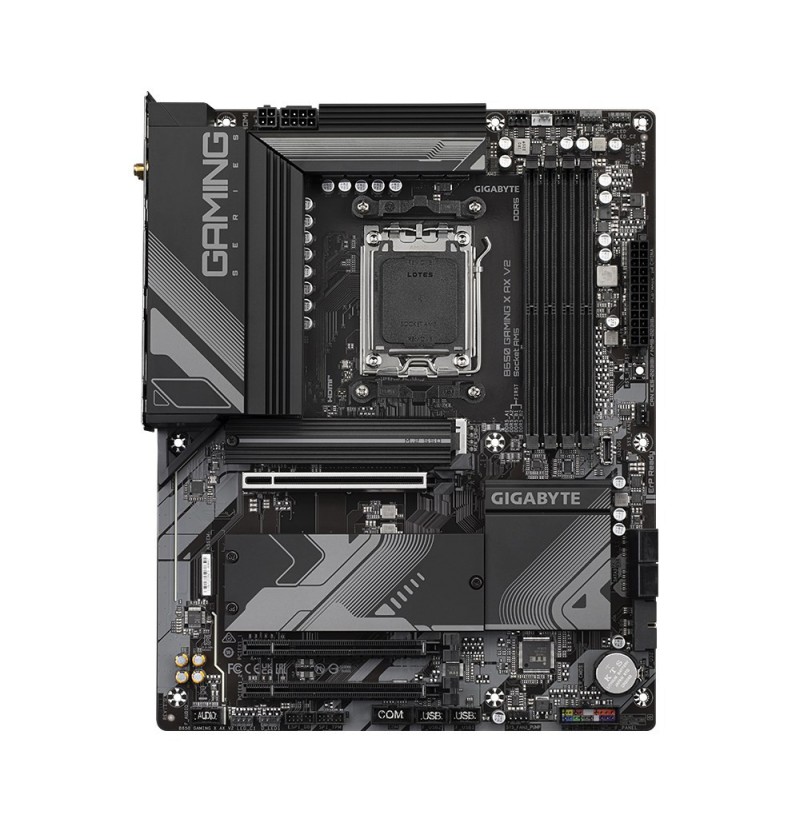

Mainboard Gigabyte B650 GAMING X AX V2

Warranty period: 3 year(s)
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX
Motherboard chipset: AMD B650
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Product colour: Bronze
Audio output channels: 7.1 channels
Power source type: ATX
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 7800, 8000, 6000, 6400 MHz, 6800, 4800, 6600, 5200, 4400 MHz, 5600, 7200 MHz, 6200, 7600, 7000
Maximum internal memory: 256 GB
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8000 MHz
Maximum internal memory per slot: 64 GB
ECC сompatibility: Non-ECC
Height: 35 mm
Depth: 244 mm
Width: 305 mm
Bluetooth version: 5.3
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac)
Wi-Fi: Yes
WLAN controller model: Realtek RTL8852CE
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Bluetooth: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 3
Serial port headers: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 5
Front panel connector: Yes
USB 2.0 connectors: 2
Number of CPU fan connectors: 2
Number of water pump connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Package height: 80 mm
Package depth: 270 mm
Package weight: 2.16 kg
Package width: 335 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
Screws included: Yes
Antenna included: Yes
Batteries included: Yes
RAID levels: 1, 10, 0
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

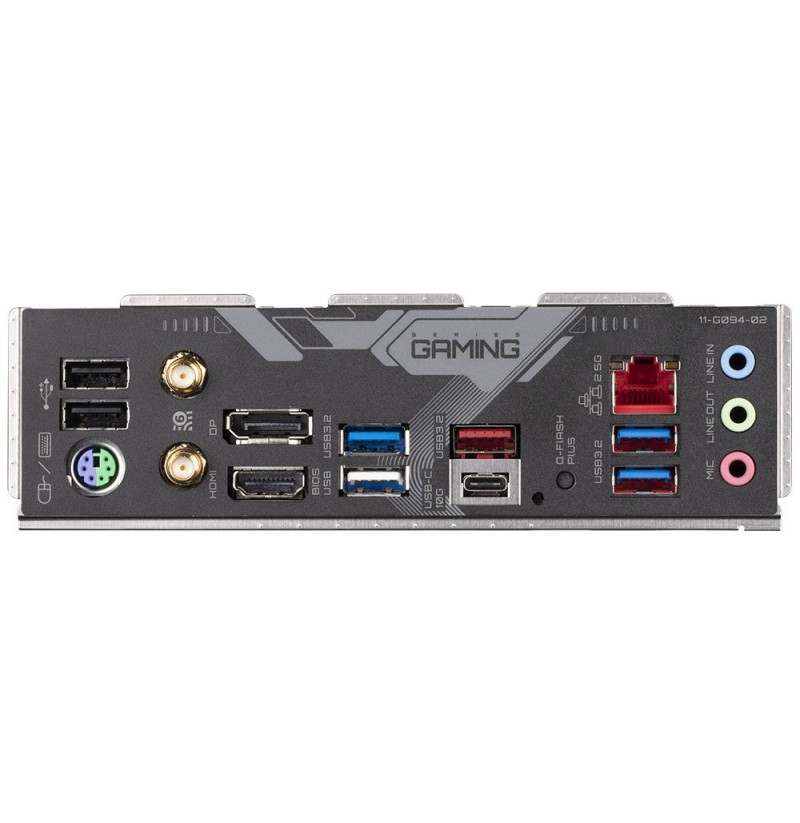

HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 2.0 ports quantity: 3
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Line-in: Yes
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 25110
PCI Express x16 (Gen 3.x) slots: 2
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 25110
Battery weight: 3 g
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
